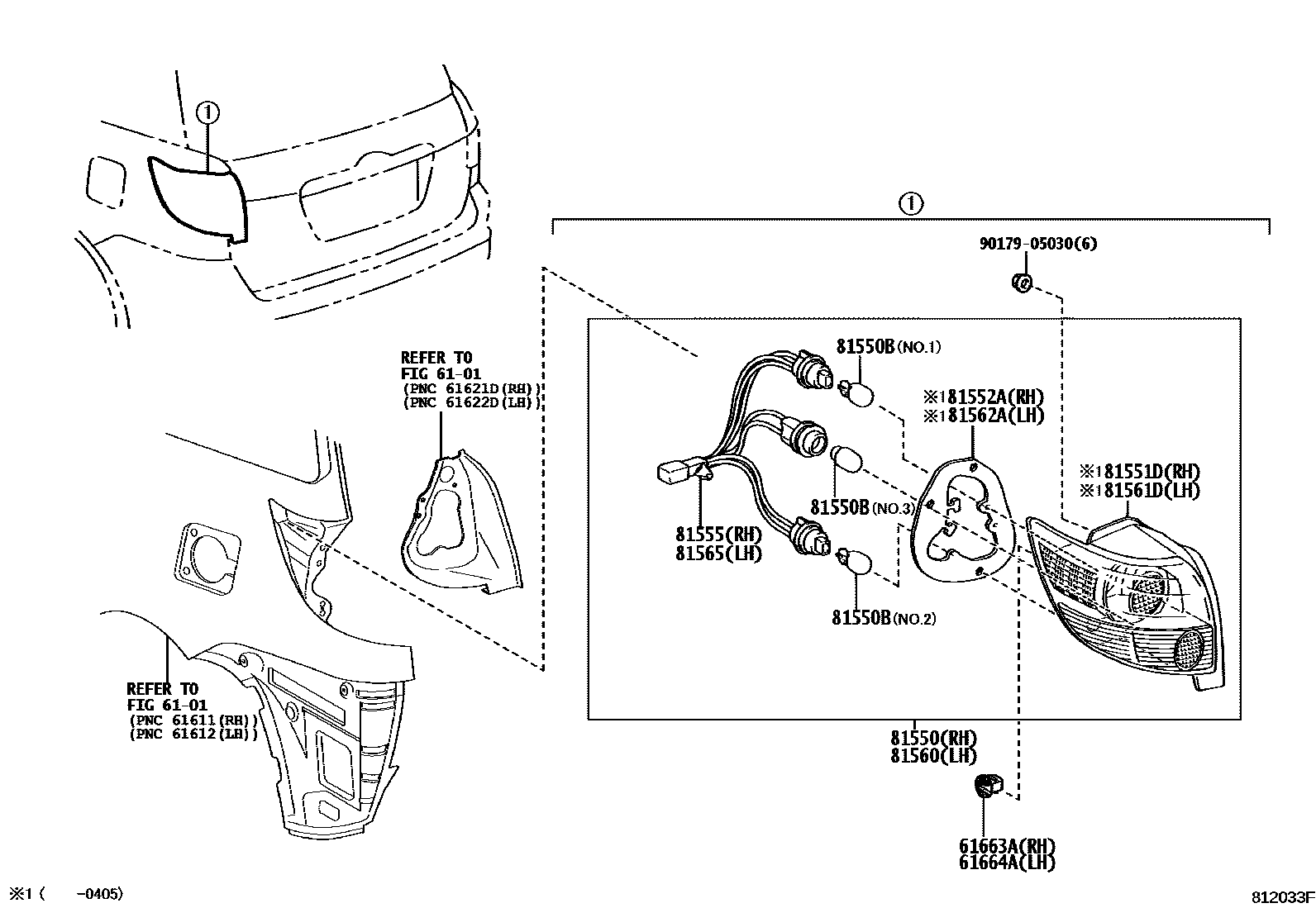

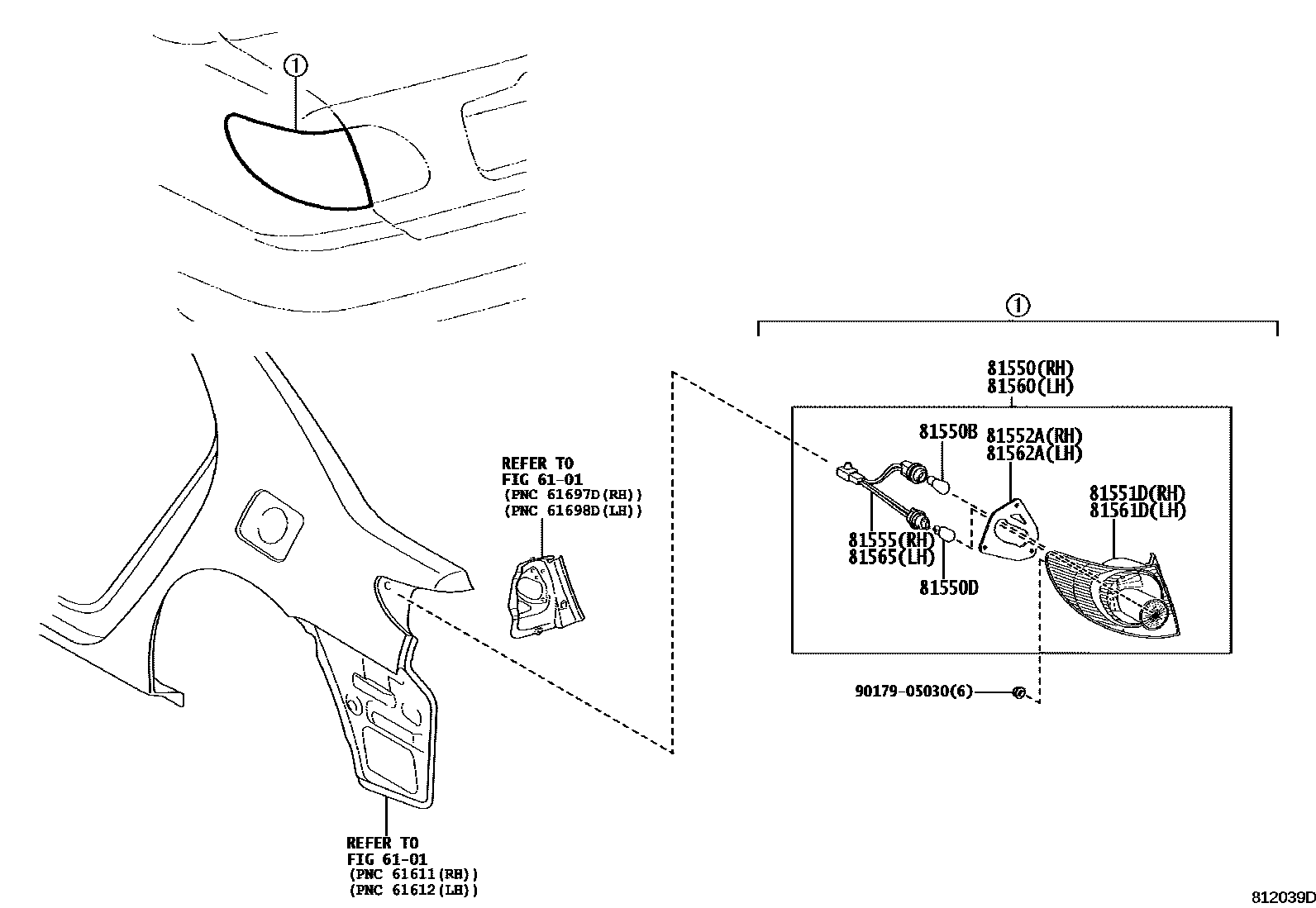

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61663A | Rear combination light mounting bracket | 61663-02010 · 61663-32020 |
| 61664A | Left rear combination light mounting bracket | 61664-02010 · 61664-32010 |
| 81550 | Right rear combination light assembly | 81550-02200 · 81550-02210 · 81550-02290 · 81550-02320 · 81550-02321 · 81550-02322 |
| 81550B | Bulb (for rear combination lights) | 90084-98027 · 90084-98036 · 90981-11059 · 90981-13044 · 90981-15011 |
| 81550D | Bulb (for rear combination lights) | 90084-98037 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02200 · 81551-02210 · 81551-02290 |
| 81552A | Right rear combination light gasket | 81552-02200 · 81554-02210 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02200 · 81555-02210 |
| 81560 | Left rear combination light assembly | 81560-02200 · 81560-02210 · 81560-02290 · 81560-02320 · 81560-02321 · 81560-02322 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02200 · 81561-02210 · 81561-02290 |
| 81562A | Left rear combination light gasket | 81552-02200 · 81554-02210 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02200 · 81555-02210 |
