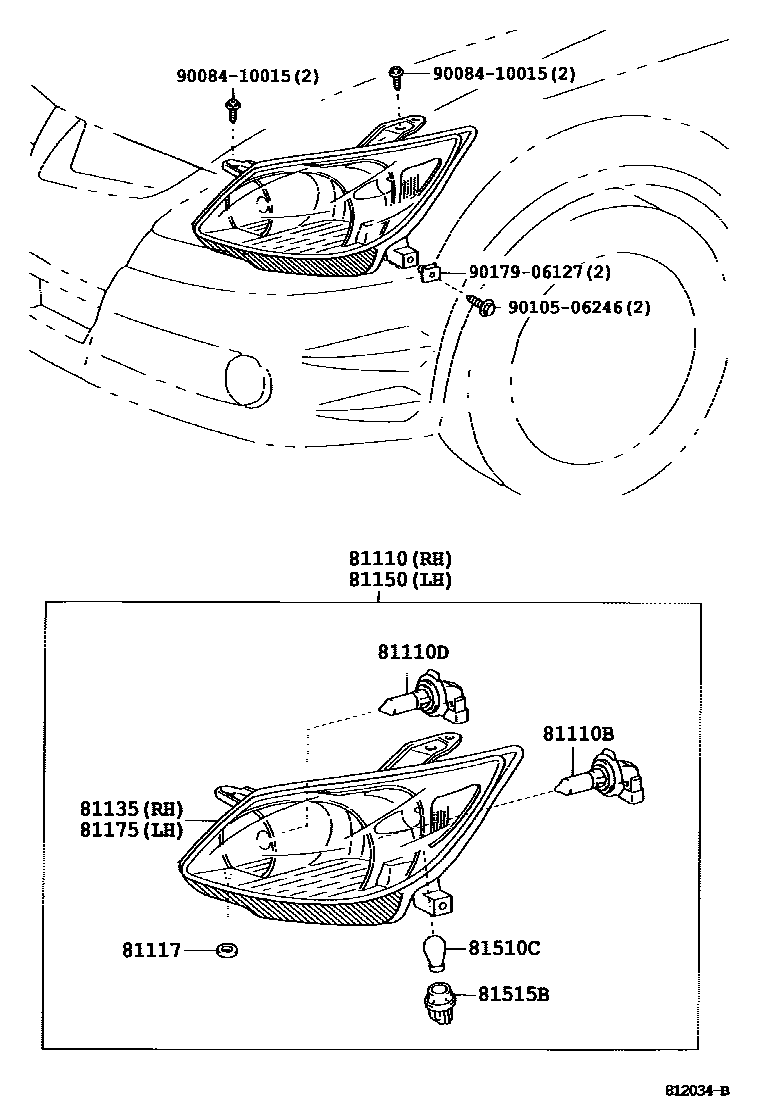

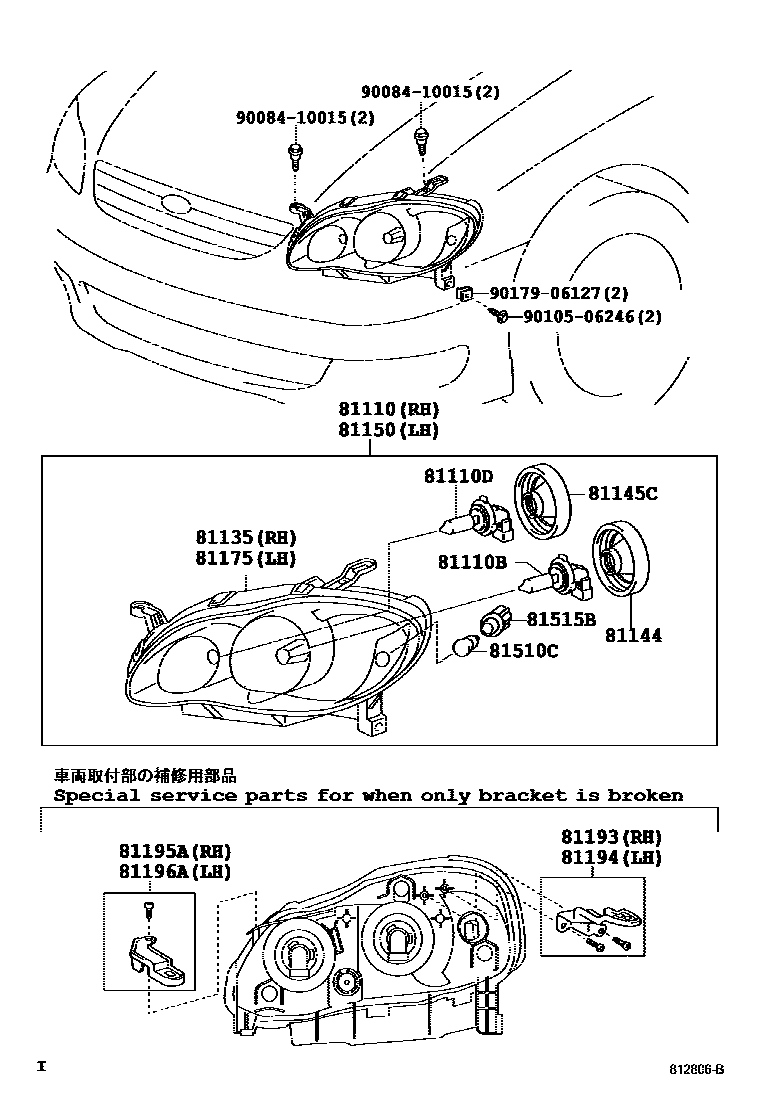

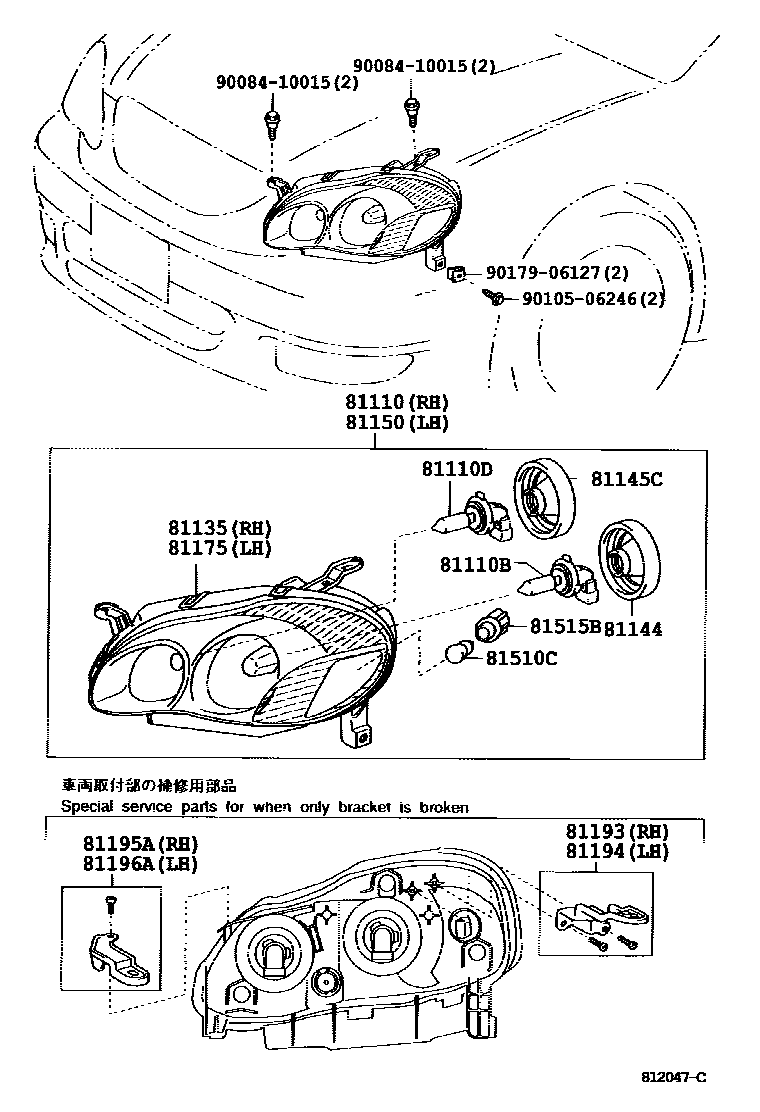

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-02190 · 81110-02200 · 81110-02210 · 81110-02360 · 81110-02370 |
| 81110B | Bulb (for headlight No. 1) | 90080-81040 · 90981-13047 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 |
| 81117 | Headlight housing seal | 81117-01070 |
| 81135 | Right headlight assembly | 81130-02190 · 81130-02200 · 81130-02210 · 81130-02360 · 81130-02370 |
| 81144 | No. 1 headlight cover | 90069-81008 |
| 81145C | No. 2 headlight lamp holder cover | 90069-81008 |
| 81150 | Left headlight assembly | 81150-02200 · 81150-02210 · 81150-02220 · 81150-02350 · 81150-02360 |
| 81175 | Left headlight assembly | 81170-02200 · 81170-02210 · 81170-02220 · 81170-02350 · 81170-02360 |
| 81193 | Right headlight upper protective ring | 81193-02030 |
| 81194 | Left headlight upper protective ring | 81194-02030 |
| 81195A | Right headlight lower protection ring | 81195-02040 |
| 81196A | Left headlight lower protection ring | 81196-02030 |
| 81510C | Bulb (for front turn signal lamp) | 90084-98027 · 90084-98048 |
| 81515B | Front turn signal lamp holder | 90075-60049 · 90075-99106 |
