Toyota COROLLA 燃油箱和燃油管 — Figure 7701

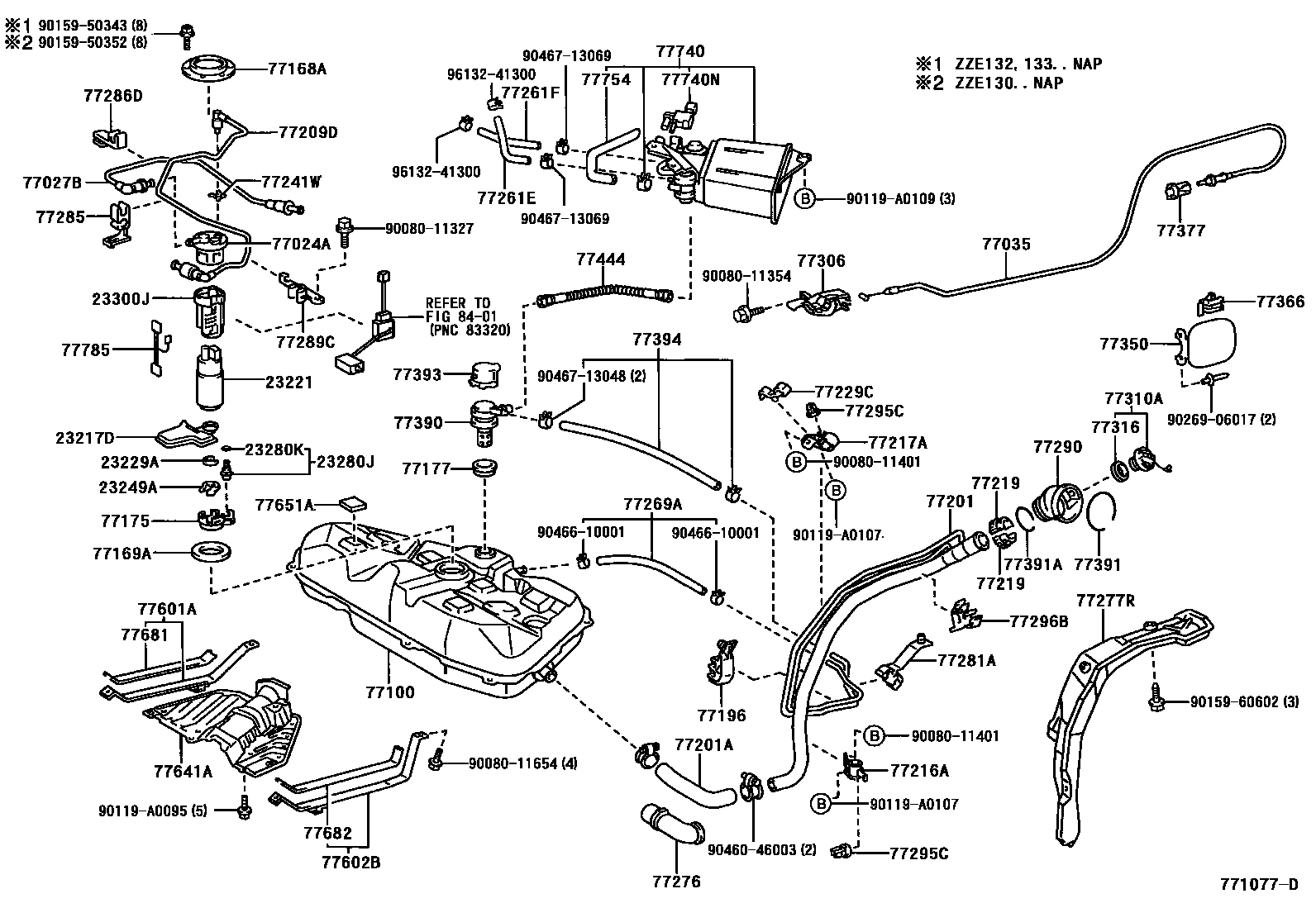

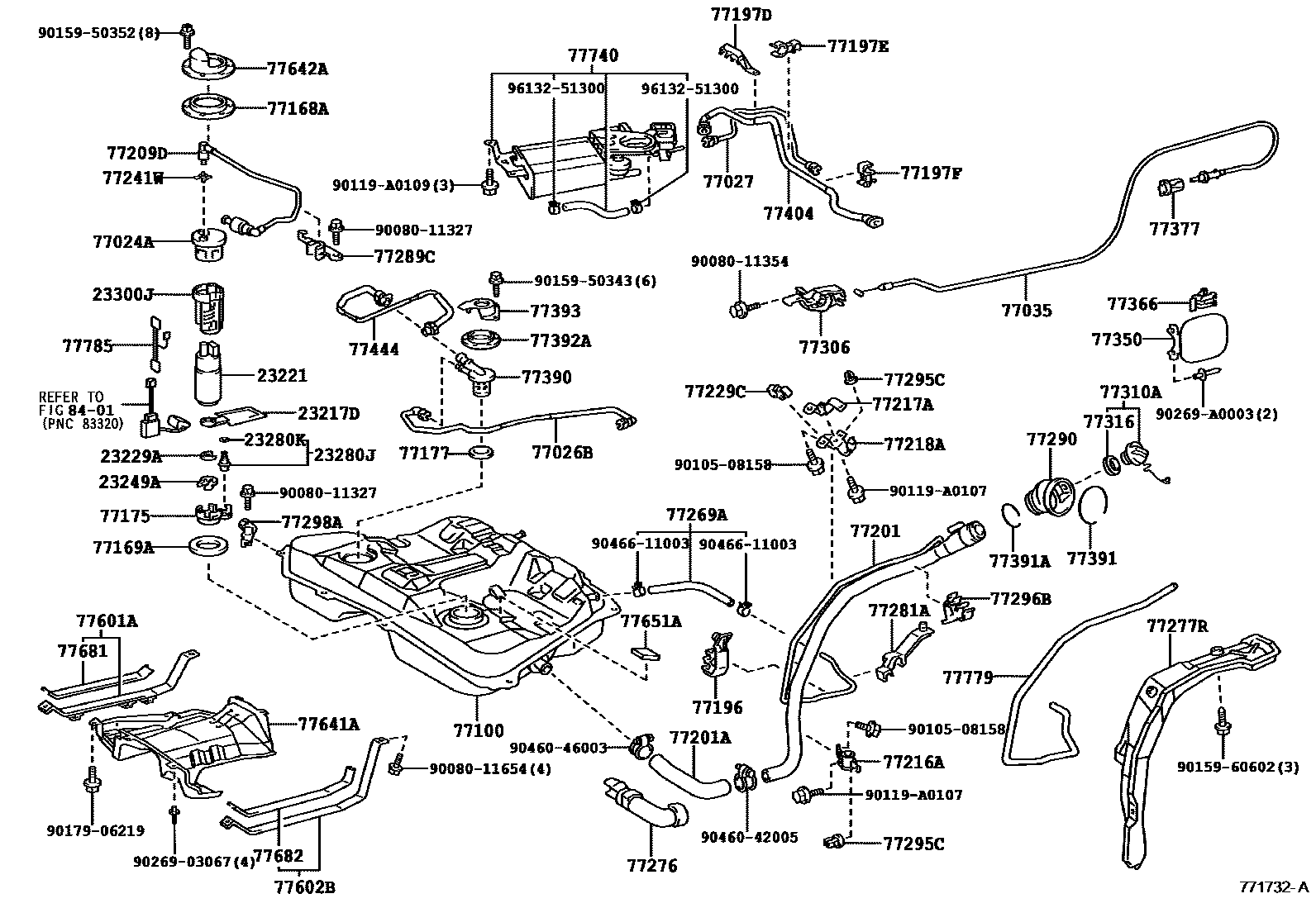

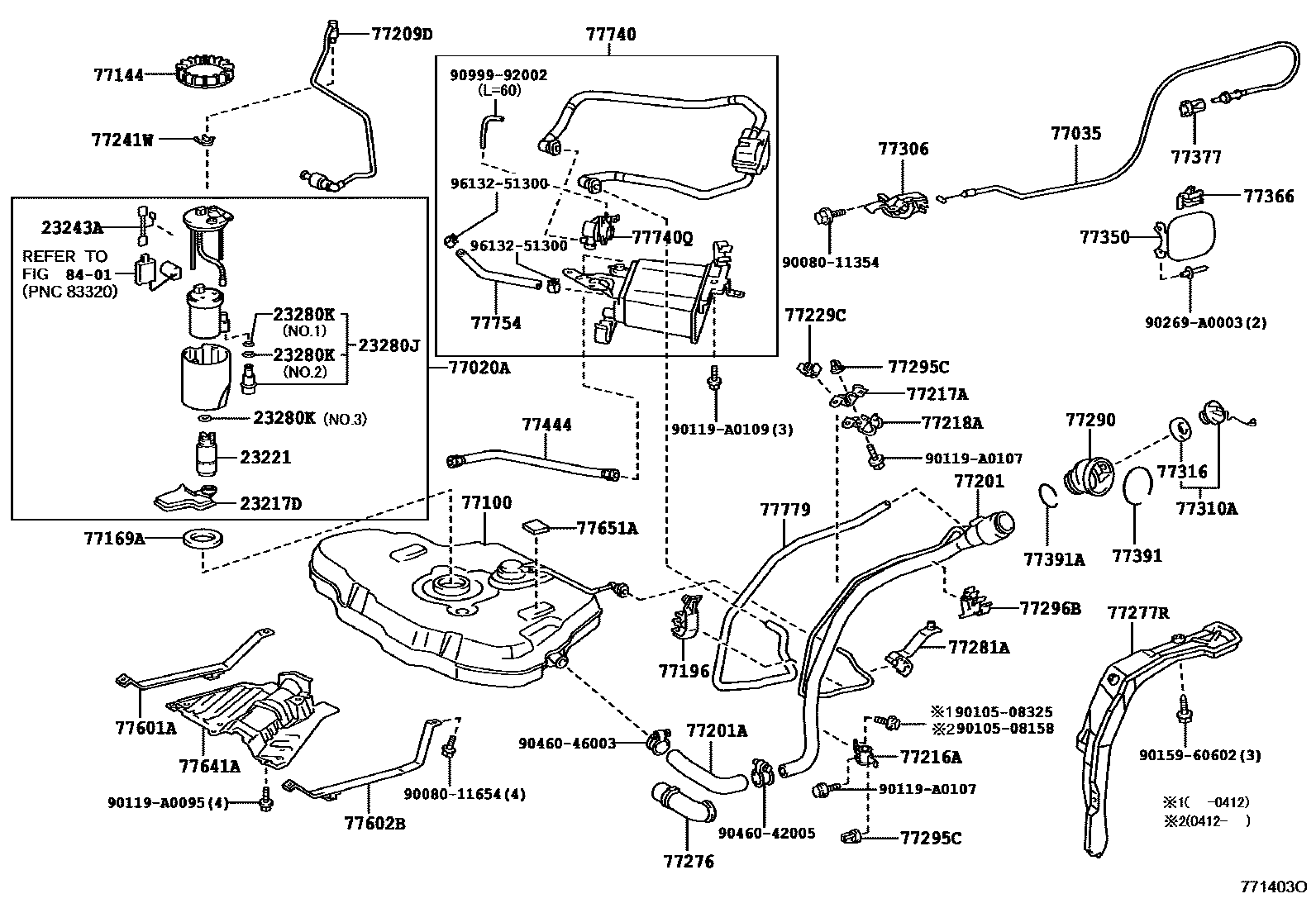

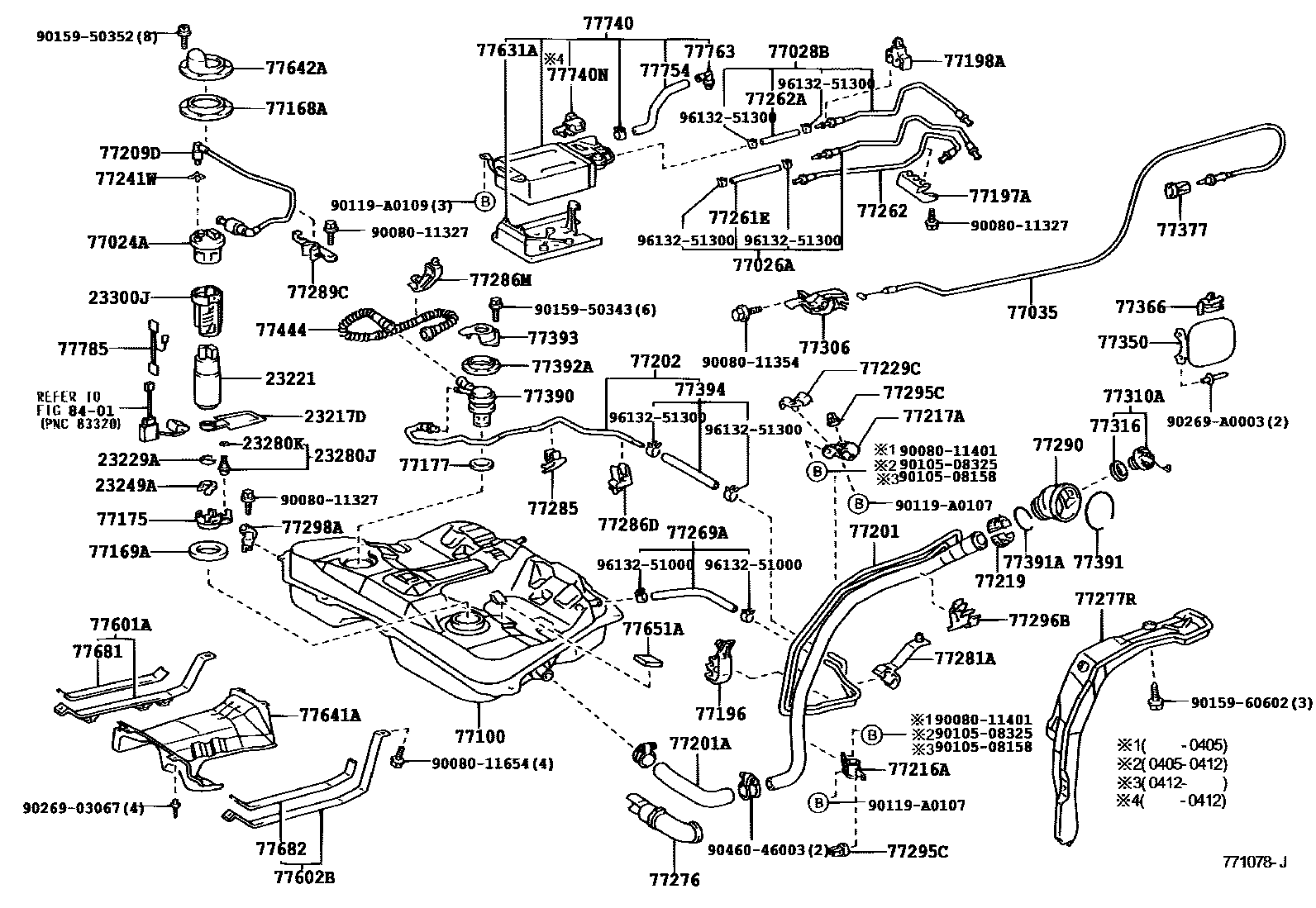

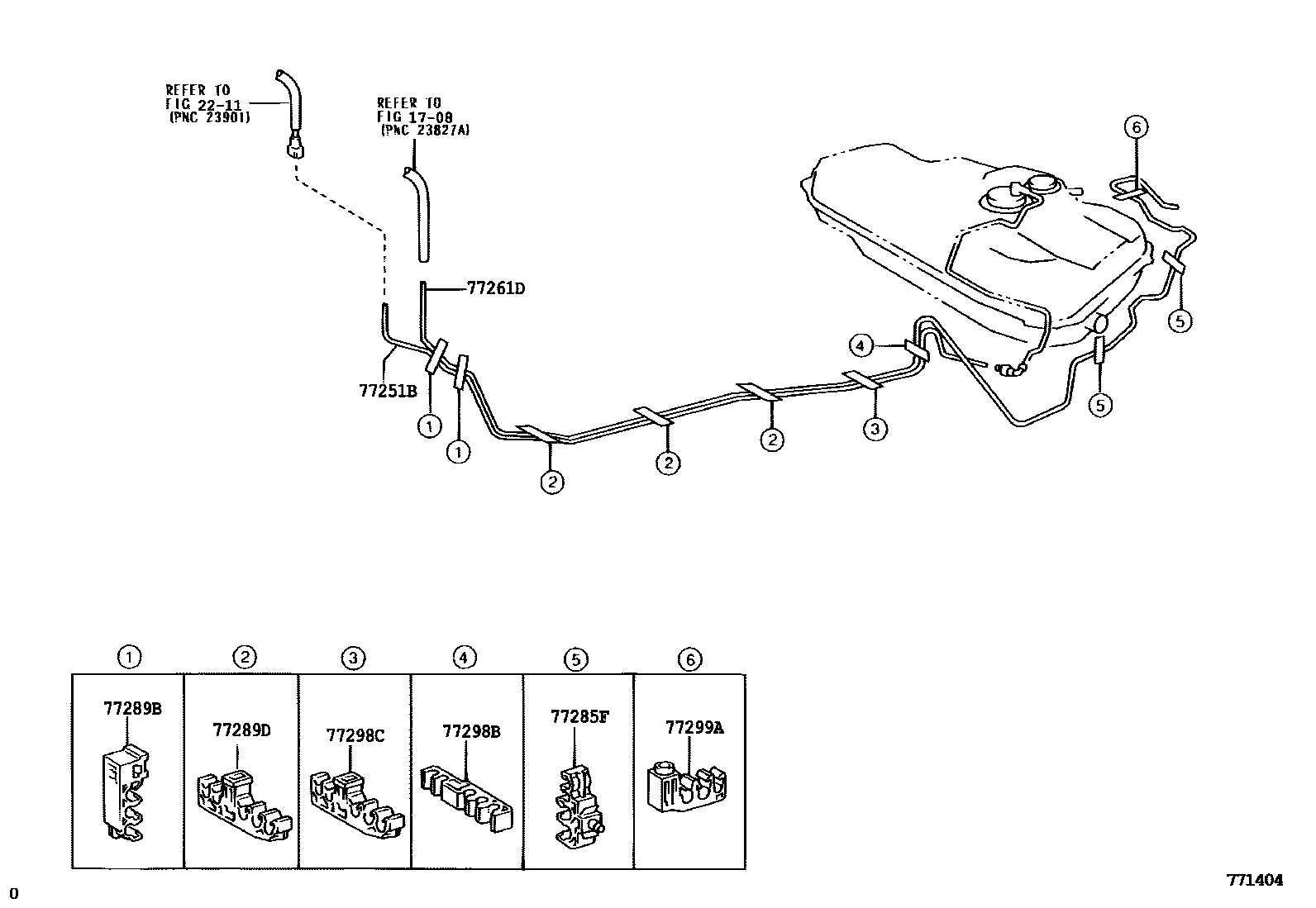

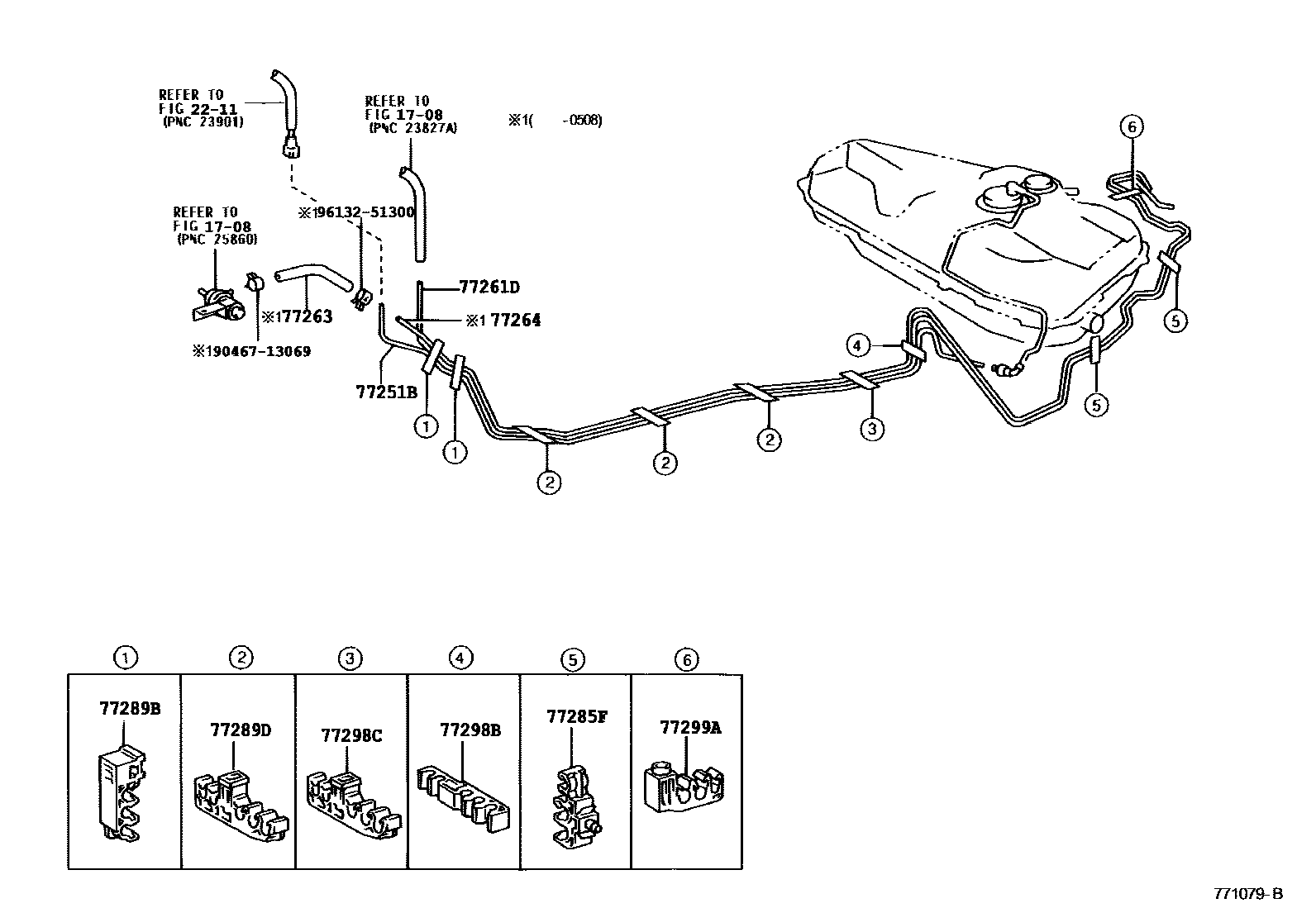

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 6 images and 91 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-03030 · 23217-0D030 · 23217-0D100 · 23217-0F010 |
| 23221 | fuel pump | 23220-0D210 · 23221-0A030 · 23221-0D100 |
| 23229A | Clip (for fuel pump filter) | 23219-03010 |
| 23243A | Fuel pump motor wiring harness | 23243-0D010 |
| 23249A | Rubber gasket (for fuel pump) | 23249-0A020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-07020 · 90301-15024 · 90301-A0013 |
| 23300J | fuel filter assembly | 23300-0A020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02180 · 77020-02181 |
| 77024A | Fuel absorber sub-assembly | 77024-01020 · 77024-01030 · 77024-02020 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-01010 |
| 77026B | No. 1 fuel evaporation pipe sub-assembly | 77026-02040 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-02050 |
| 77027B | No. 1 fuel evaporation exhaust pipe sub-assembly | 77027-02040 |
| 77028B | No. 3 fuel evaporation pipe sub-assembly | 77028-01020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02100 |
| 77100 | fuel tank assembly | 77001-01040 · 77001-01060 · 77001-01080 · 77001-02150 · 77001-02270 · 77001-12A00 |
| 77144 | Fuel pump instrument fixture | 77144-04010 · 77144-47020 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02020 · 77169-02050 · 77169-47030 |
| 77175 | No. 2 oil suction pipe bracket | 77175-02010 |
| 77177 | Check valve gasket | 77177-02010 · 77177-33010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-02030 · 77196-12030 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-12040 |
| 77197D | No. 2 evaporation vent pipe clamp | 77197-12050 |
| 77197E | No. 2 evaporation vent pipe clamp | 77197-12060 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-21010 |
| 77198A | No. 3 evaporation vent pipe clamp | 77196-12020 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-02080 · 77201-02150 · 77201-02180 · 77201-02190 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 77213-01020 · 77213-02060 |
| 77202 | Breather tube sub-assembly | 77015-01010 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-01010 · 77209-02060 · 77209-02080 · 77209-02100 · 77209-12180 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02070 · 77216-02080 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02040 · 77217-02050 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-02030 |
| 77219 | Fuel tank filler pipe cap | 77219-02020 |
| 77229C | Snorkel clamp | 77229-02020 · 77229-06020 |
| 77241W | Pipe joint clip | 77241-02010 · 77241-60320 |
| 77251B | main fuel pipe | 77251-02220 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-01040 · 77261-02180 · 77261-02220 |
| 77262 | No. 2 fuel evaporation exhaust pipe | 77027-01020 |
| 77262A | No. 1 fuel hose (for the intermediate pipe from the fuel tank to the canister) | 95333-08020 |
| 77263 | No. 3 fuel tank to carbon canister pipe | 95333-08020 |
| 77264 | Carbon canister to front side member pipe | 77264-01020 · 77264-02030 |
| 77269A | fuel tank breather hose | 77269-01010 · 77269-02020 · 77269-02040 |
| 77276 | Fuel hose protector | 77276-02010 · 77276-02020 · 77276-12060 |
| 77277R | Fuel tank filler pipe protection device | 77277-02050 · 77277-02070 |
| 77281A | Fuel filler pipe clamp | 77281-02050 · 77281-02060 · 77281-12080 |
| 77285 | Fuel pipe bracket | 77285-12080 · 77285-12090 |
| 77285F | No. 1 fuel pipe clamp | 77285-02020 |
| 77286D | No. 2 fuel pipe clamp | 77286-12070 · 77286-12080 |
| 77286M | No. 6 fuel pipe clamp | 77299-12010 |
| 77289B | No. 3 fuel pipe clamp | 77289-02010 |
| 77289C | No. 4 fuel pipe clamp | 77289-12040 |
| 77289D | No. 5 fuel pipe clamp | 77298-06040 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-02050 · 77291-02060 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296B | No. 1 fuel line protector bracket | 77296-02010 · 77296-12040 |
| 77298A | No. 4 fuel pipe clamp | 77298-12110 |
| 77298B | No. 4 fuel pipe clamp | 77298-02010 |
| 77298C | No. 4 fuel pipe clamp | 77298-02030 |
| 77299A | No. 5 fuel pipe clamp | 77299-02020 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02080 · 64606-AA020 · 77306-02020 · 77306-02021 |
| 77310A | Fuel tank cap assembly | 77300-06040 · 77300-08010 · 77300-33070 · 77300-52040 |
| 77316 | fuel tank cap gasket | 77316-06010 · 77316-06050 · 77316-33042 |
| 77350 | Fuel filler cap assembly | 77350-02020 · 77350-02021 · 77350-12450 · 77350-12470 |
| 77366 | Fuel filler cap hinge spring | 77360-30070 |
| 77377 | Fuel filler cap lock retainer | 77377-02010 |
| 77390 | Fuel tank inlet valve assembly | 77390-12020 · 77390-12030 · 77390-12040 |
| 77391 | fuel inlet ring | 77391-02060 · 77391-02070 · 77391-12040 · 77391-12050 |
| 77391A | fuel inlet ring | 77391-02040 |
| 77392A | One-way valve bracket | 77392-12010 |
| 77393 | One-way valve protection device | 77393-12030 · 77393-42010 |
| 77394 | Valve to fuel filler hose | 77394-01010 · 77394-02020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-12010 |
| 77444 | fuel tank vent hose | 77404-01010 · 77404-01011 · 77404-02020 · 77404-02050 · 77404-02051 · 77404-02070 · 77404-12030 · 77404-12031 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-02070 · 77601-12250 · 77601-12260 · 77601-12330 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-12200 · 77602-12210 · 77612-02080 |
| 77631A | Fuel tank center lower protective shell | 77631-01010 |
| 77641A | No. 1 fuel tank protective shell | 77606-02030 · 77641-01021 · 77641-02030 · 77641-02050 |
| 77642A | No. 2 fuel tank protective shell | 77642-12050 |
| 77651A | No. 1 fuel tank liner | 77651-02040 · 77651-02050 · 77651-12080 |
| 77681 | Fuel tank right side strap seat | 77681-32060 · 77681-34030 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77740 | Carbon canister assembly | 77740-01031 · 77740-02121 · 77740-02130 · 77740-02170 |
| 77740N | Vacuum switching valve (for carbon canister) | 90080-91233 |
| 77740Q | Carbon canister leak detection pump sub-assembly | 90910-AF001 · 90910-AF002 |
| 77754 | No. 1 carbon canister outlet hose | 77754-01030 · 77754-02030 · 77754-02040 |
| 77763 | Carbon canister discharge housing | 77763-12010 |
| 77779 | Carbon canister outlet pipe | 77779-02010 |
| 77785 | fuel pump wiring harness | 77785-06020 |
