Toyota COROLLA 挡泥板和扰流板 — Figure 7601

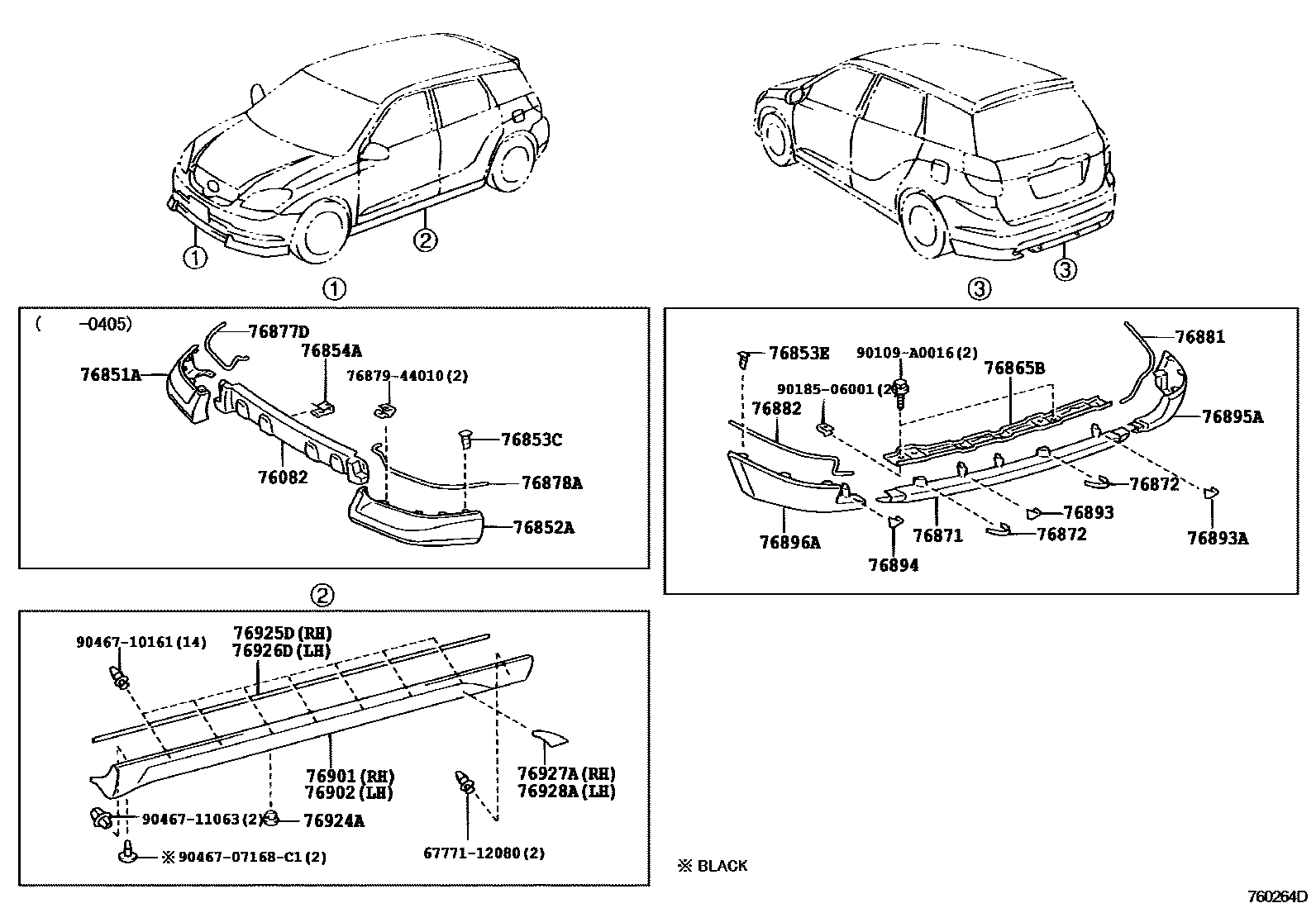

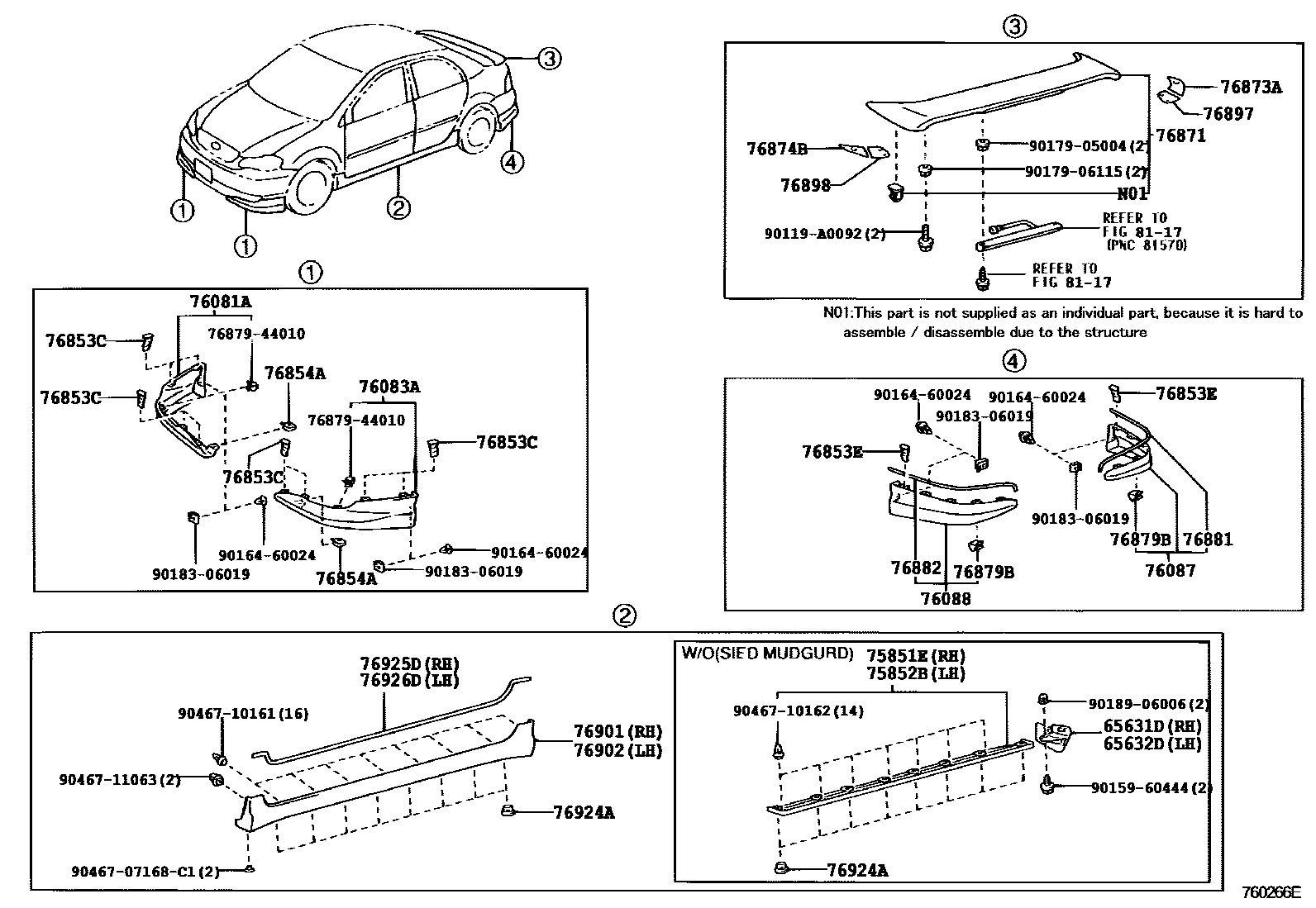

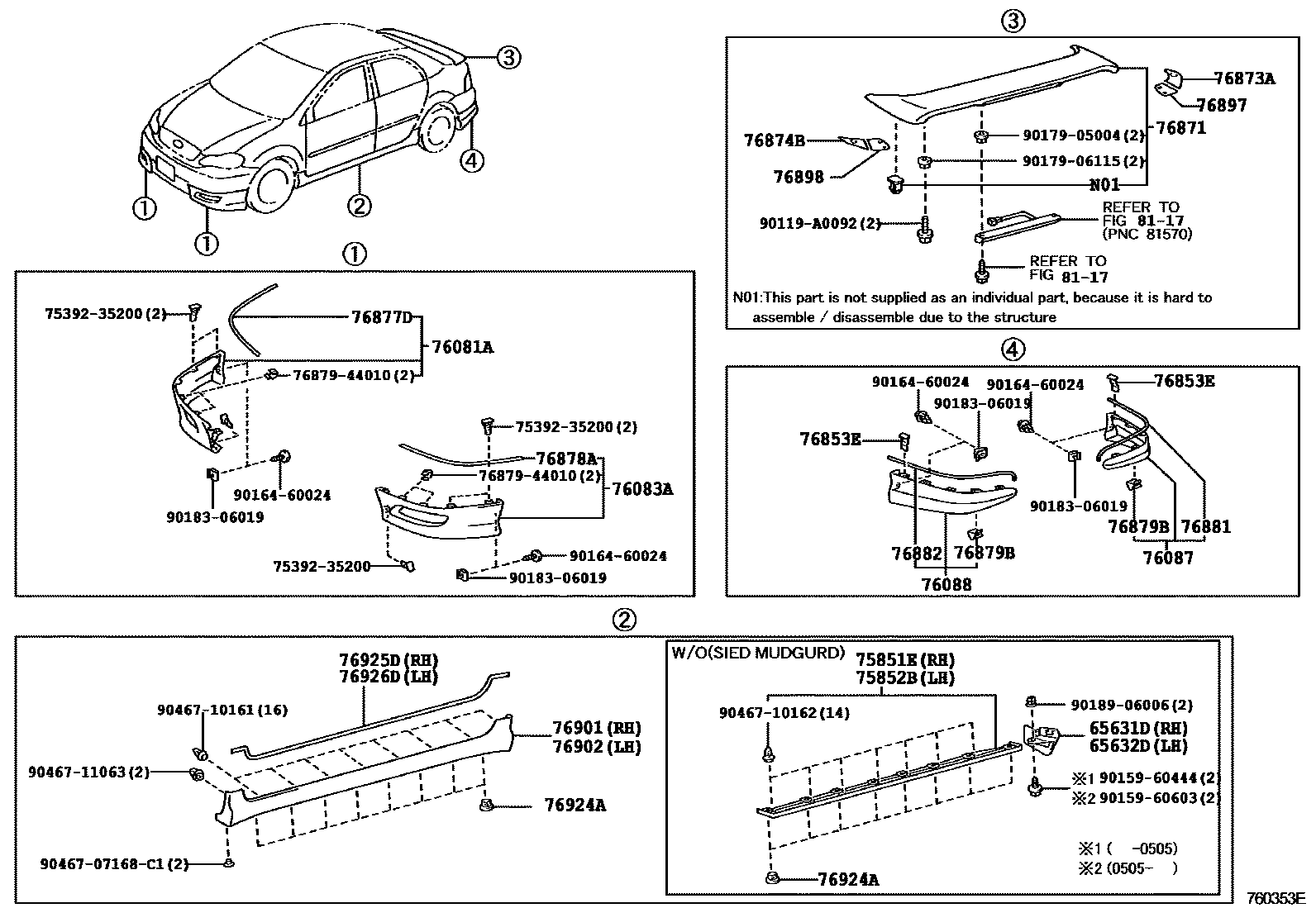

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-02030 |
| 65632D | Left rear wheel house front panel | 65632-02030 |
| 75851E | Right body door sill panel protection strip | 75851-02030 |
| 75852B | Left body door sill panel protection strip | 75852-02030 |
| 76082 | Front center spoiler sub-assembly | 76082-02900 |
| 76851A | Right front spoiler cover | 76851-02900 |
| 76852A | Left front spoiler cover | 76852-02900 |
| 76853C | No. 1 front spoiler fixing piece | 76853-10010 |
| 76853E | No. 1 rear spoiler fixing piece | 76853-10010 |
| 76854A | No. 2 front spoiler fixing piece | 76854-44010 |
| 76865B | Rear spoiler fixings | 76865-02030 |
| 76871 | rear spoiler | 76871-02900 · 76871-02901 |
| 76873A | Right rear spoiler protective strip | 76783-02020 |
| 76874B | Left rear spoiler protective strip | 76784-02020 |
| 76879B | No. 2 rear spoiler clip | 76879-44010 |
| 76893 | No. 1 rear spoiler cover | 76893-02010 |
| 76893A | Right rear spoiler cover | 76893-02020 |
| 76894 | Left rear spoiler cover | 76894-02010 |
| 76895A | Right rear bumper spoiler | 76895-02900 |
| 76896A | Left rear bumper spoiler | 76896-02900 |
| 76897 | Right rear spoiler protection strip | 76897-02020 |
| 76898 | Left rear spoiler protection strip | 76898-02020 |
| 76924A | No. 2 side fender fixings | 76924-02010 · 76924-52021 |
| 76927A | Right rear fender protection strip | 76927-02020 |
| 76928A | Left rear fender protection strip | 76928-02020 |
