Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

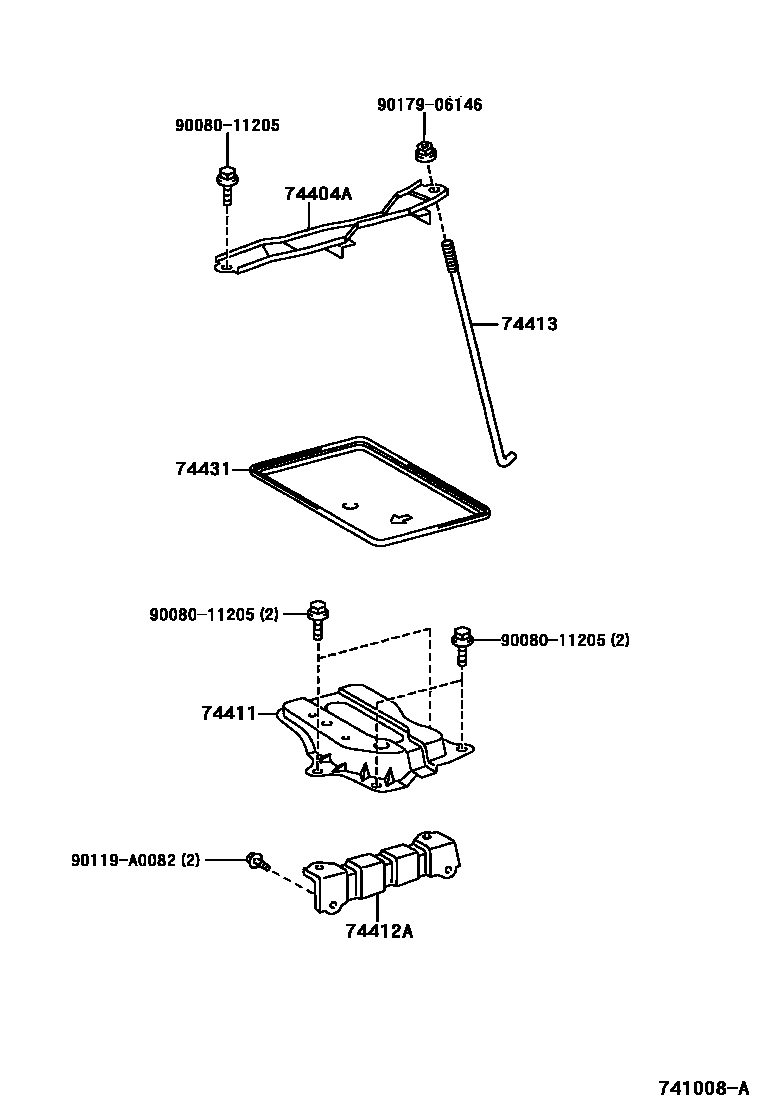

Toyota COROLLA battery holder EPC diagram — 741008A
battery holder — 741008A (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02050
74411battery holder74411-02010
74412ANo. 2 battery holder74412-12020
74413Battery clamp bolt74451-02020
74431battery tray74431-02110
