Toyota COROLLA 扶手和遮阳板 — Figure 7401
Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 4 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

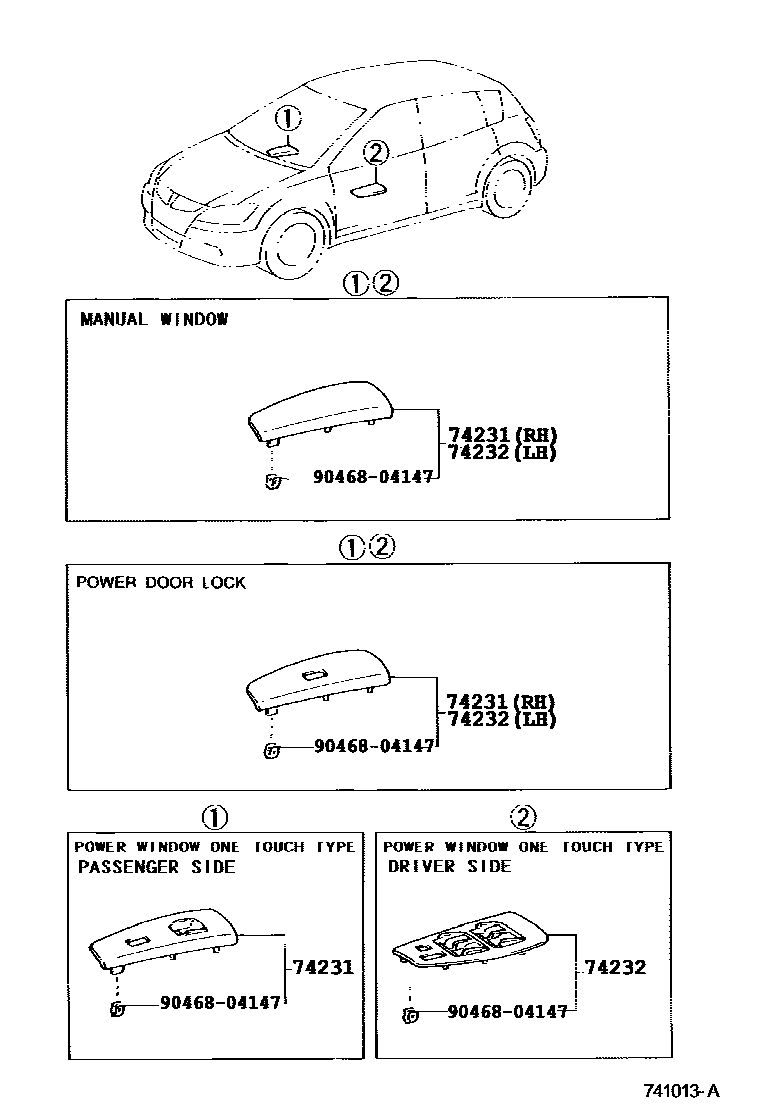

| 74231 | Right front armrest upper panel | 74231-01030 · 74231-01040 · 74231-02350 · 74231-02360 · 74231-02370 · 74231-02500 · 74231-02510 |
| 74232 | Left front armrest upper panel | 74232-01030 · 74232-01040 · 74232-02350 · 74232-02360 · 74232-02370 · 74232-02500 · 74232-02510 |

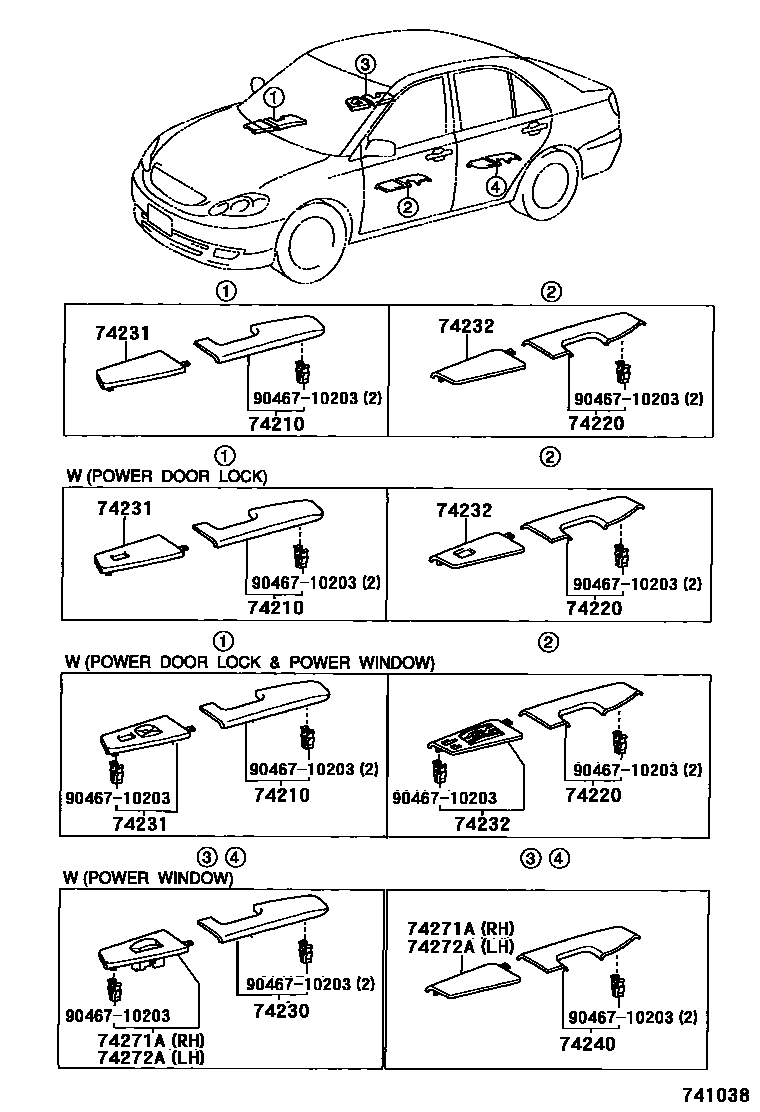

| 74271A | Right rear door armrest upper panel | 74271-02060 · 74271-02080 · 74271-02130 · 74271-02140 |
| 74272A | Left rear door armrest upper panel | 74272-02060 · 74272-02080 · 74272-02120 · 74272-02130 |
