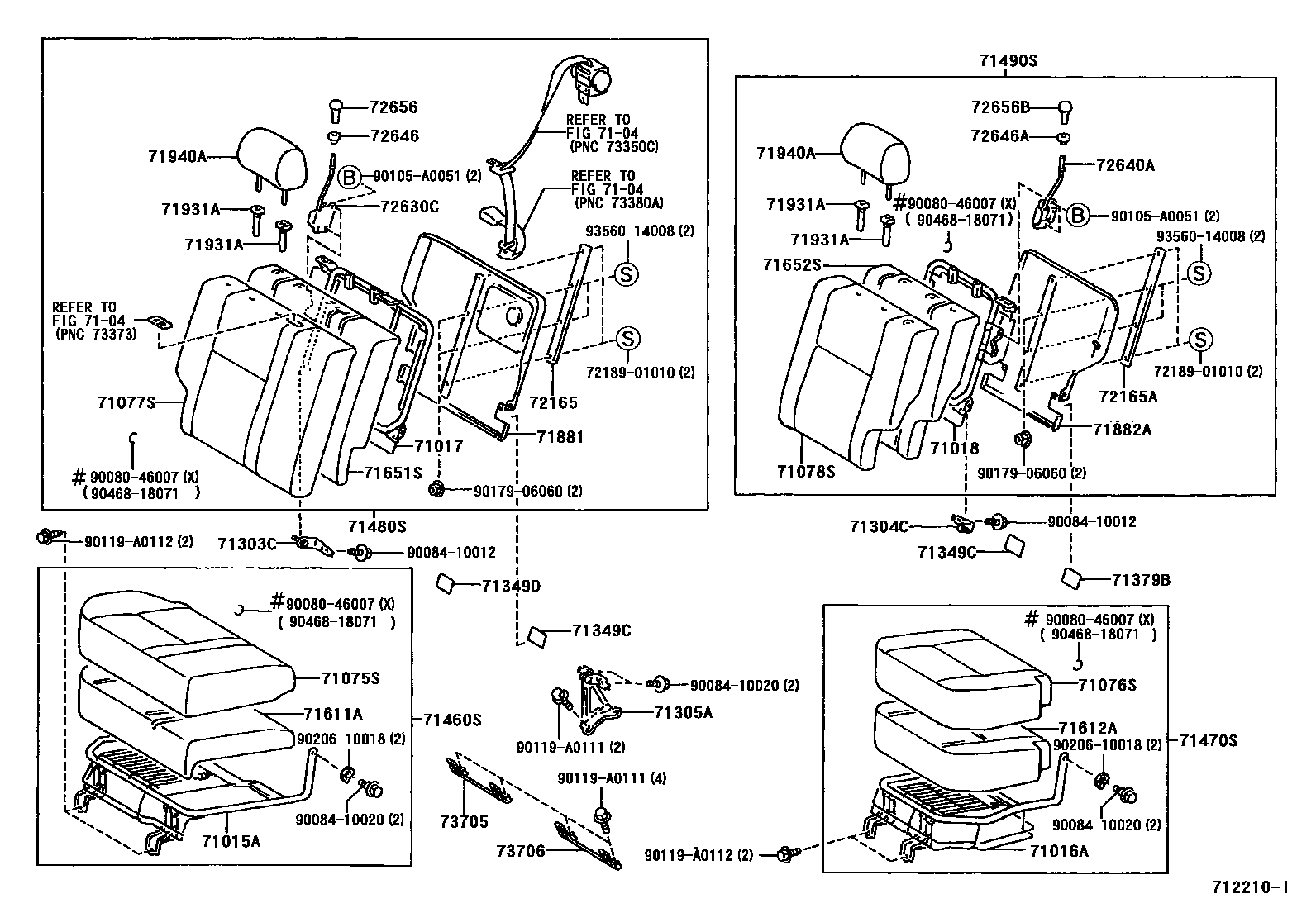

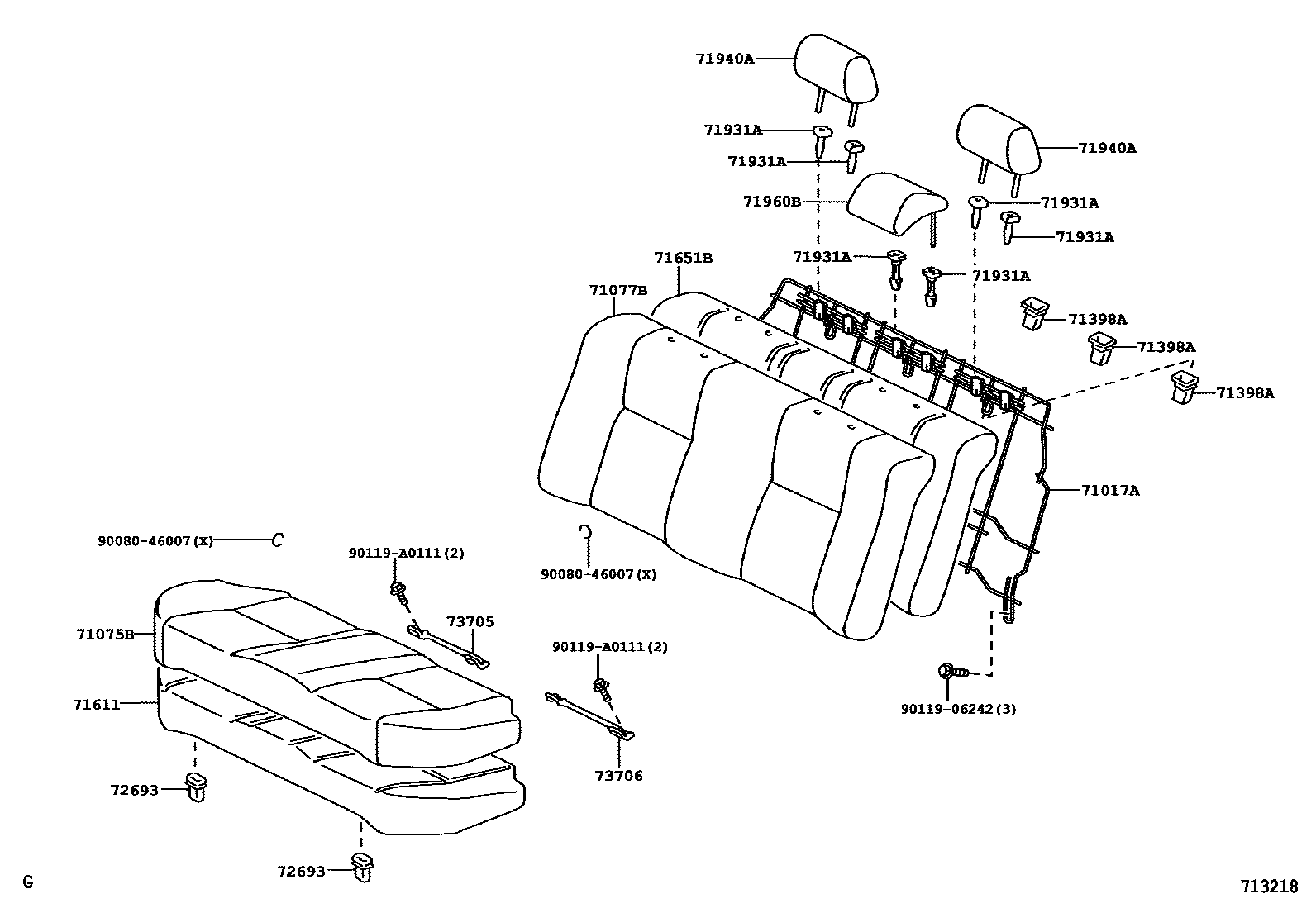

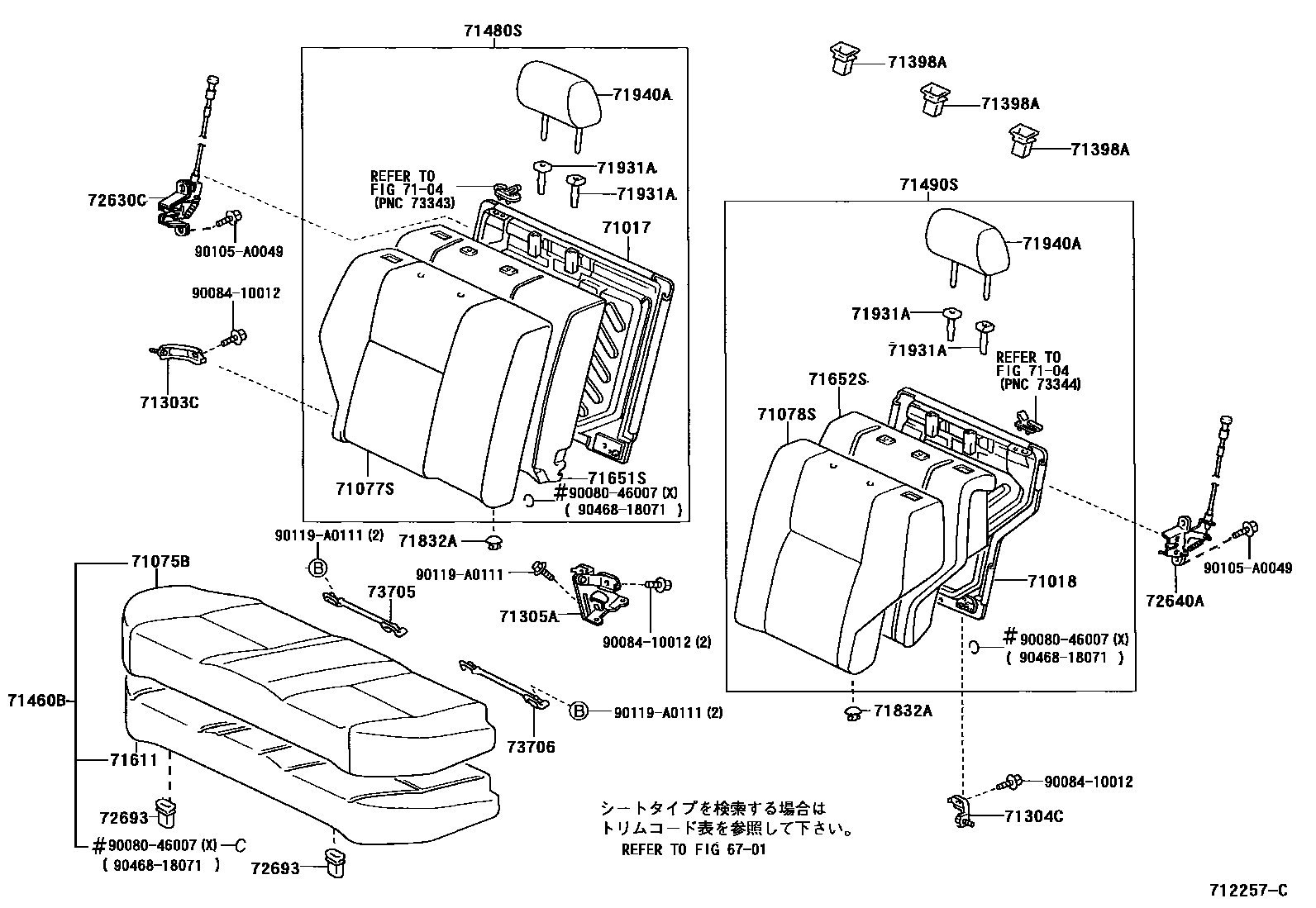

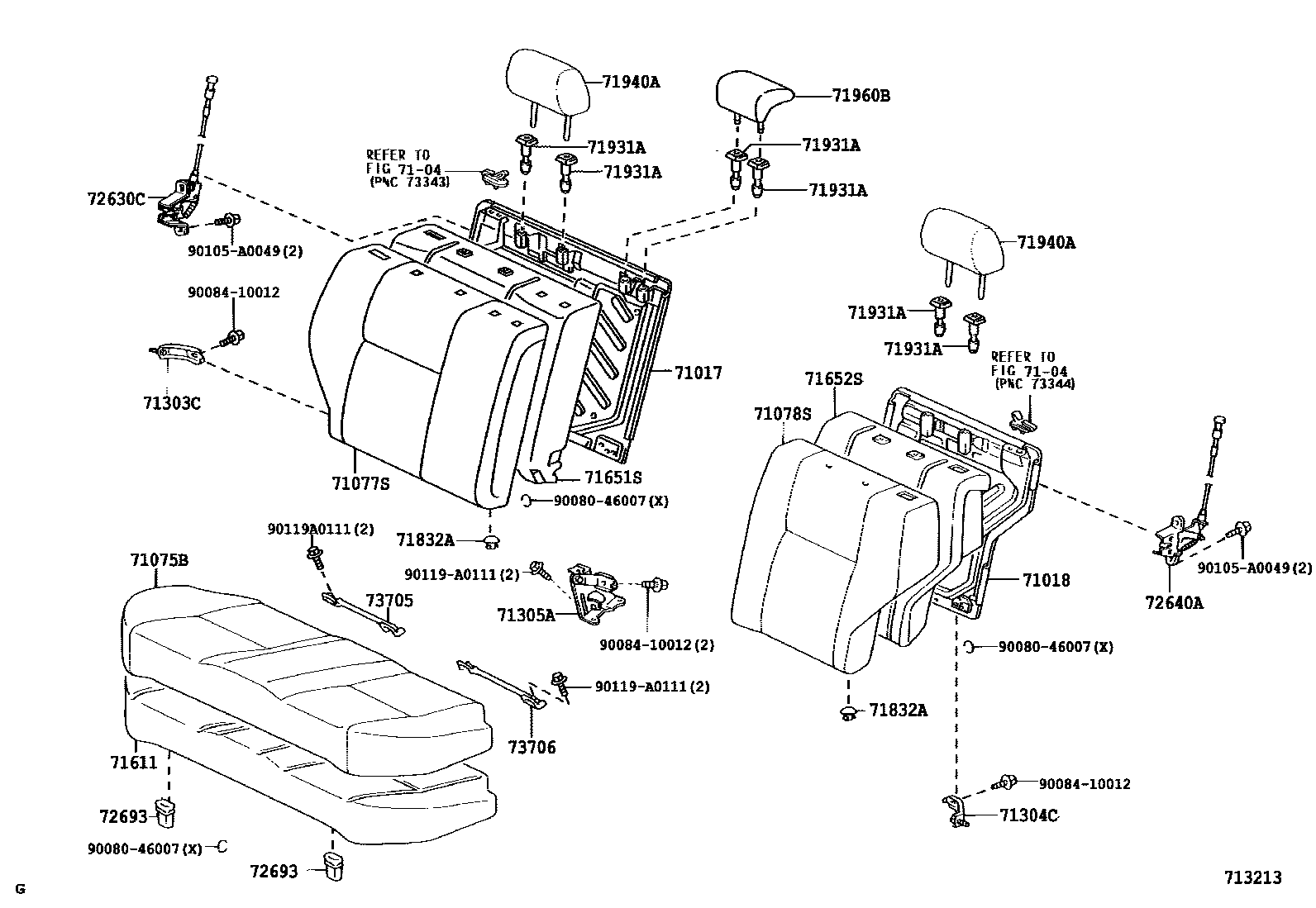

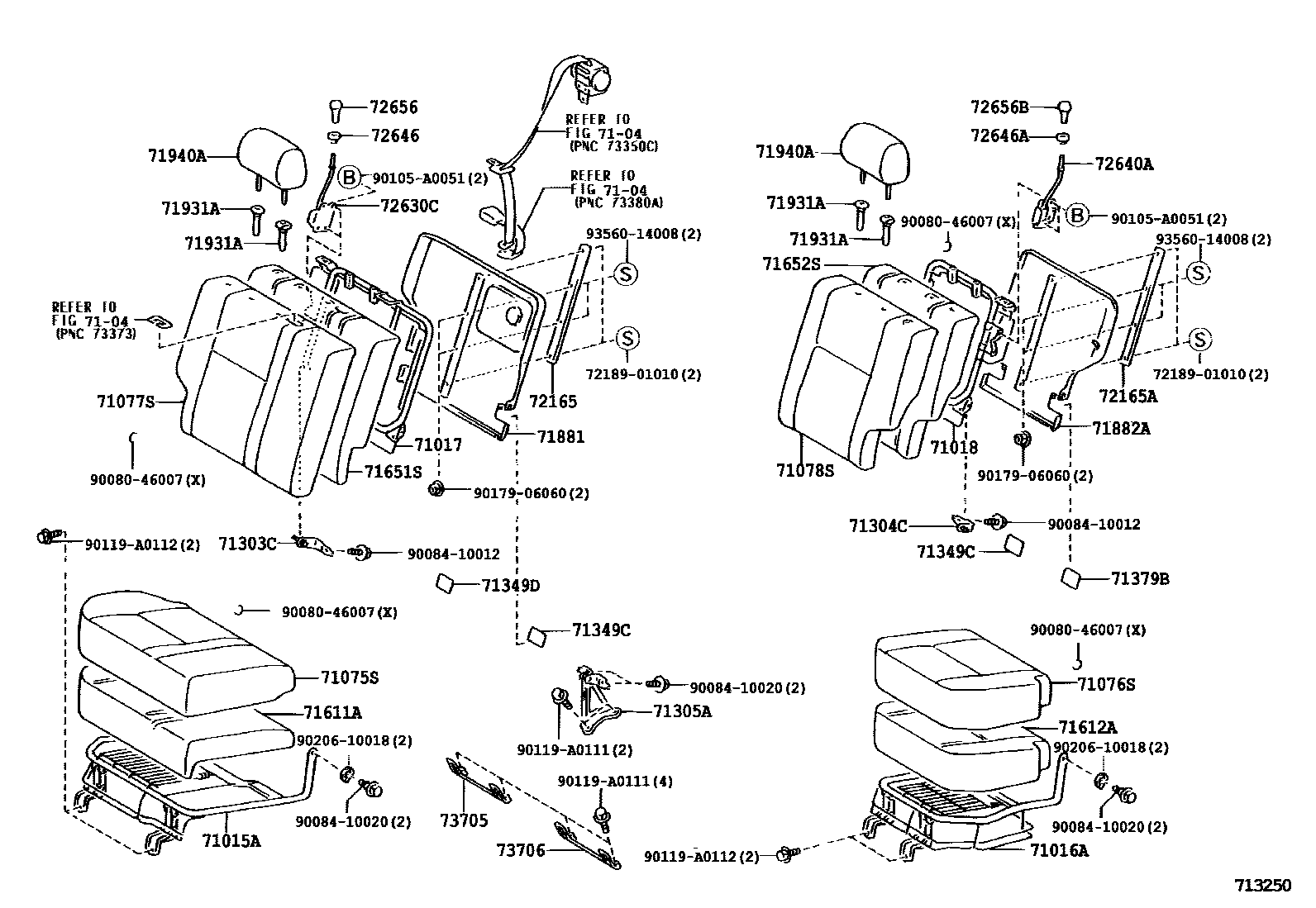

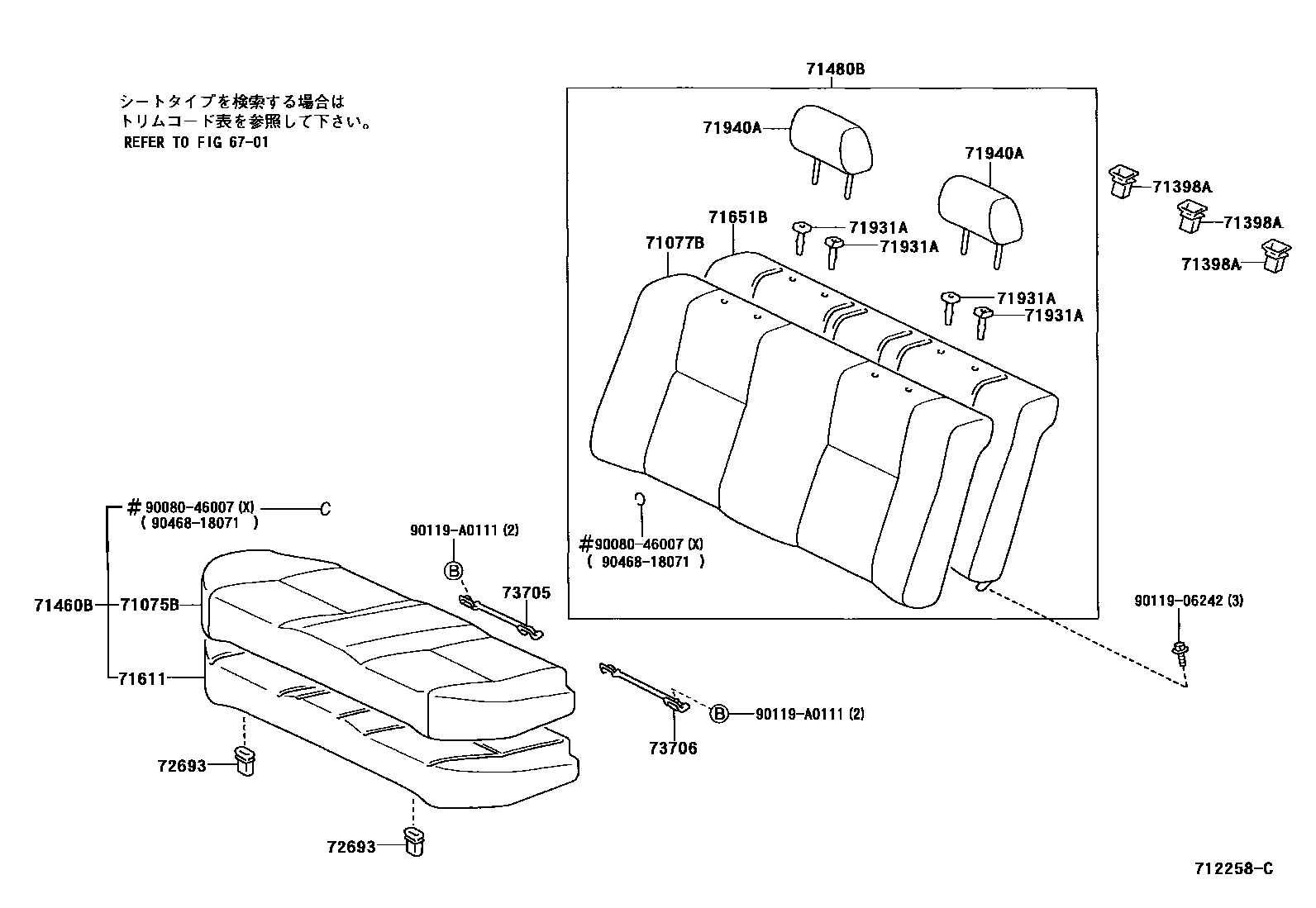

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-01030 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-01010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-01030 · 71017-02130 · 71017-02231 |
| 71017A | Rear seat back frame sub-assembly | 71017-02220 |
| 71018 | Rear left seat back frame sub-assembly | 71018-01030 · 71018-02070 · 71018-02120 |
| 71077S | Right rear seat back cover (for split seats) | 71077-02G70 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-01020 · 71303-02050 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-01020 · 71303-02050 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-01020 · 71305-02050 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71611 | Rear seat cushion cushion | 71503-02090 · 71503-02120 |
| 71611A | Rear right seat cushion | 71611-01050 |
| 71612A | Rear left seat cushion | 71612-01010 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02080 · 71507-02120 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-01040 · 71651-02110 · 71651-02160 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-01040 · 71652-02100 |
| 71940A | Rear seat headrest assembly | 71940-01050 |
| 72630C | Rear right seat back lock assembly | 72630-01020 · 72630-02020 |
| 72640A | Rear left seat back lock assembly | 72640-01020 · 72640-02020 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-12040 · 73705-12050 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-12040 · 73706-12050 |
