Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

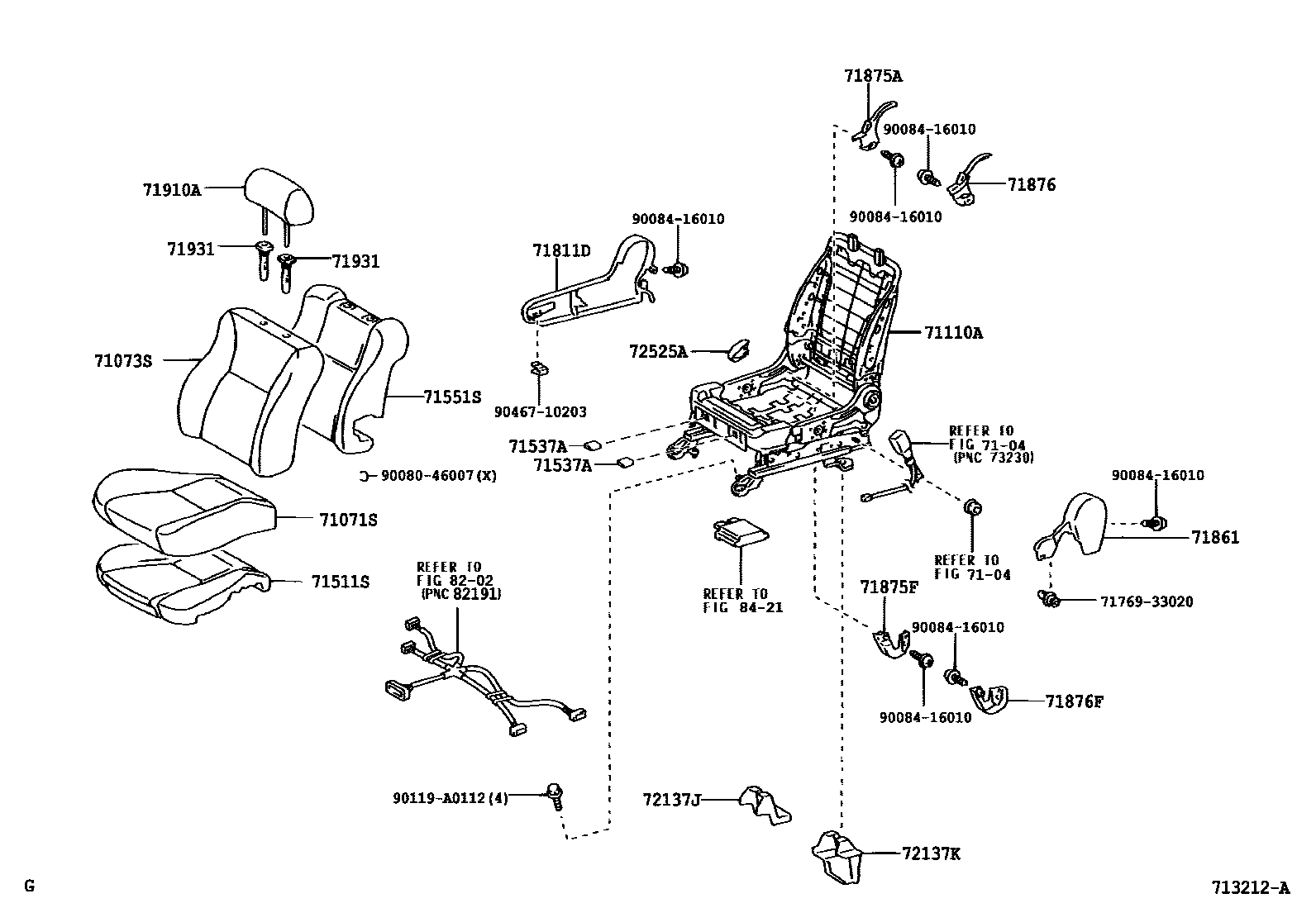

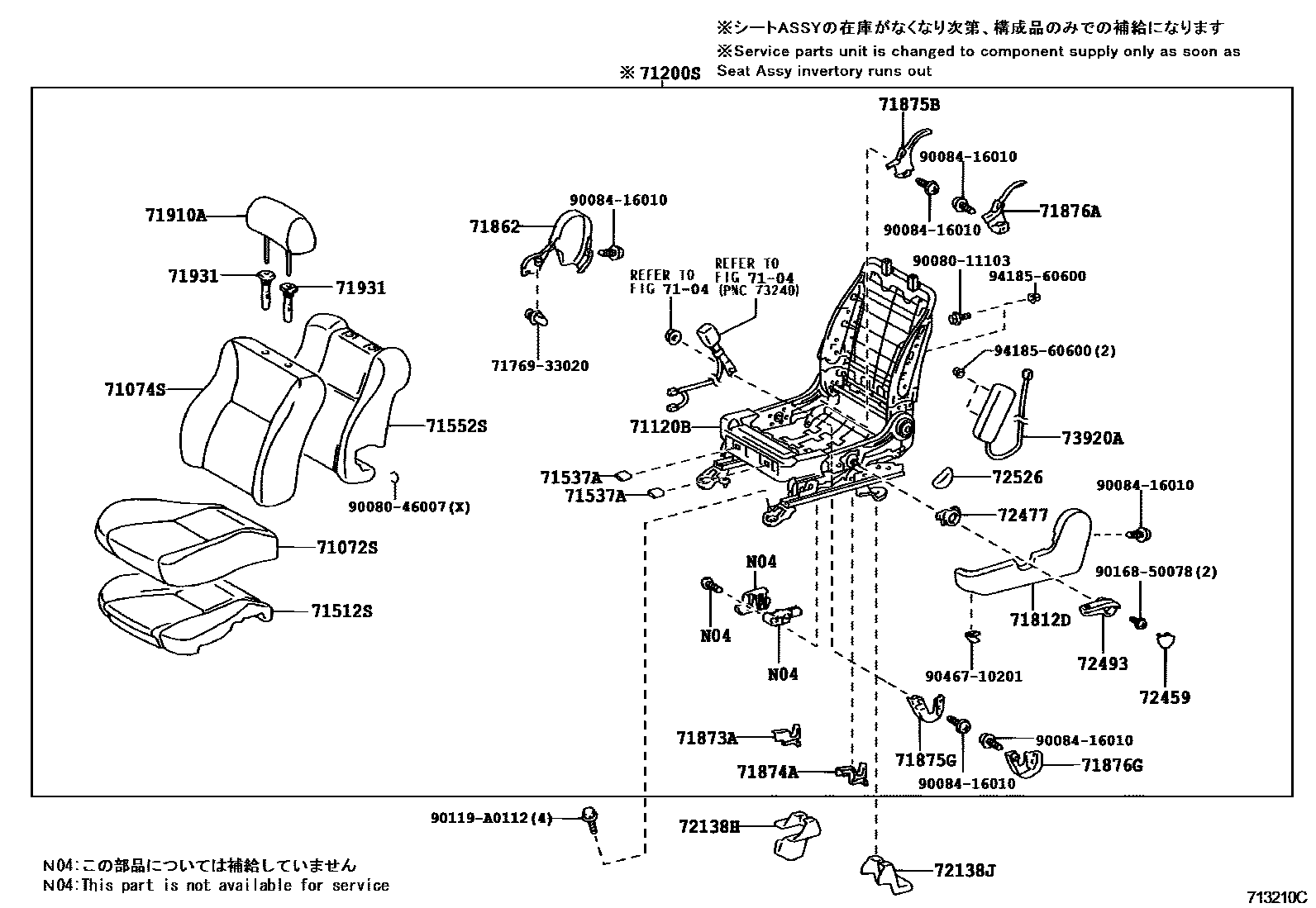

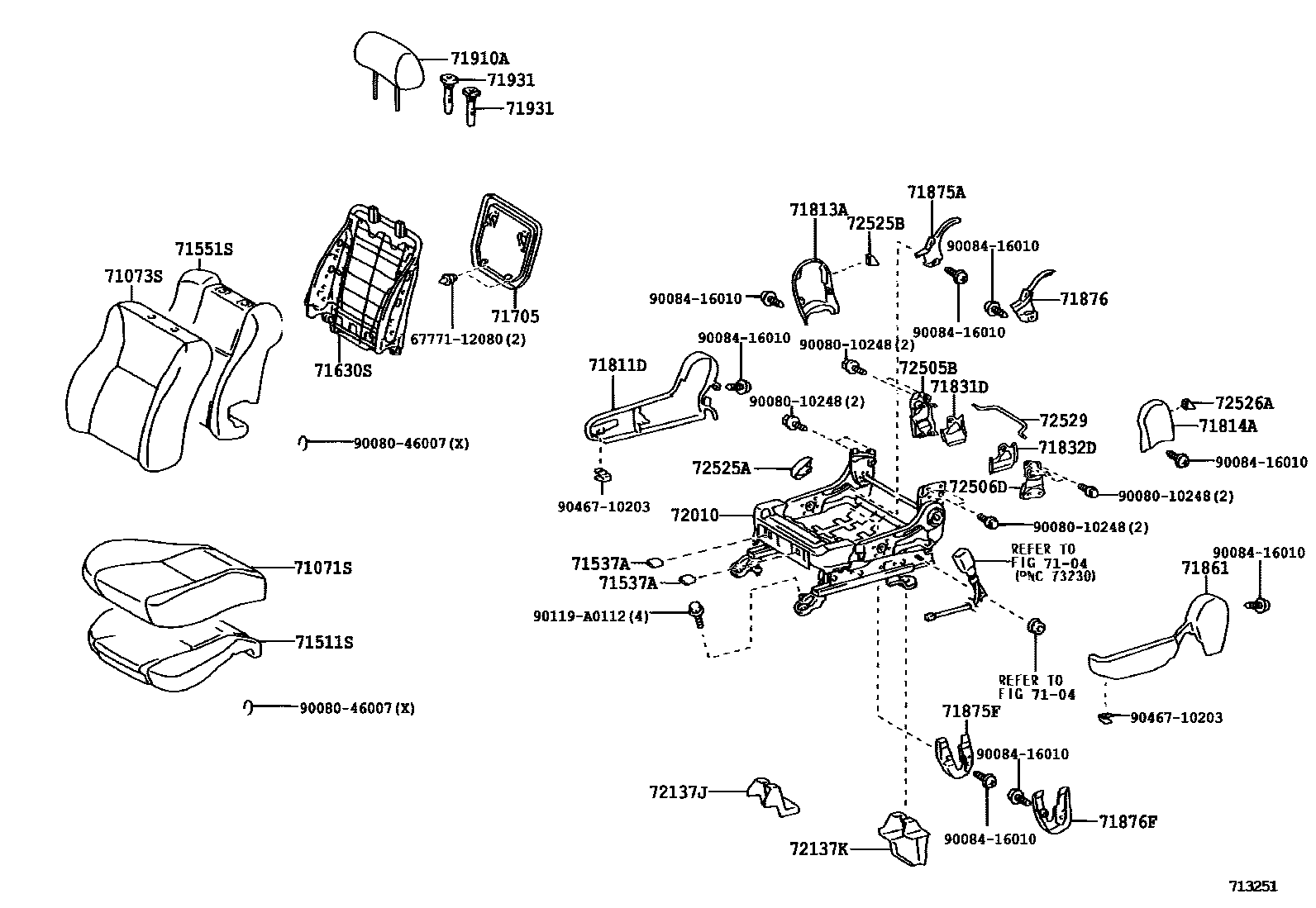

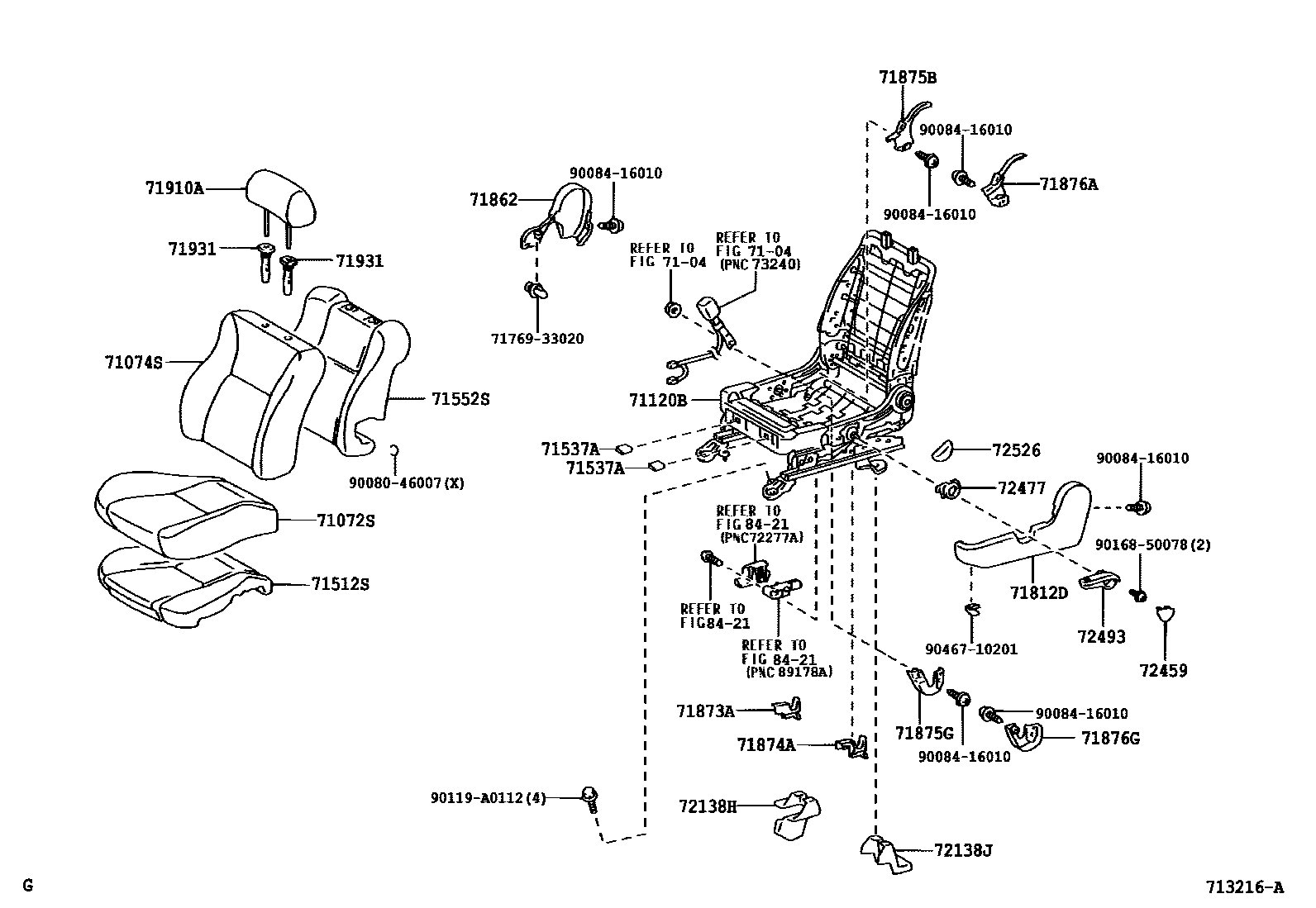

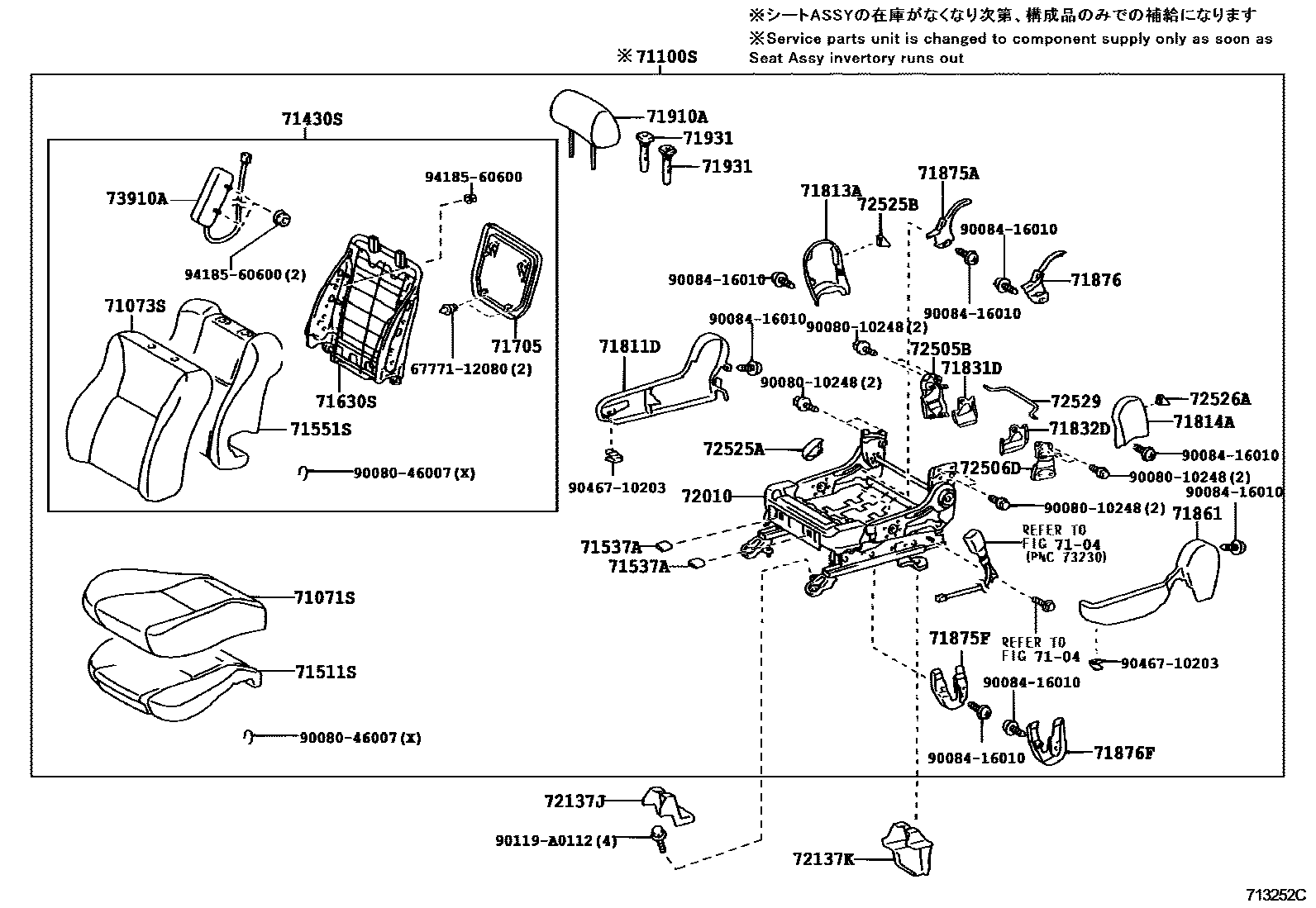

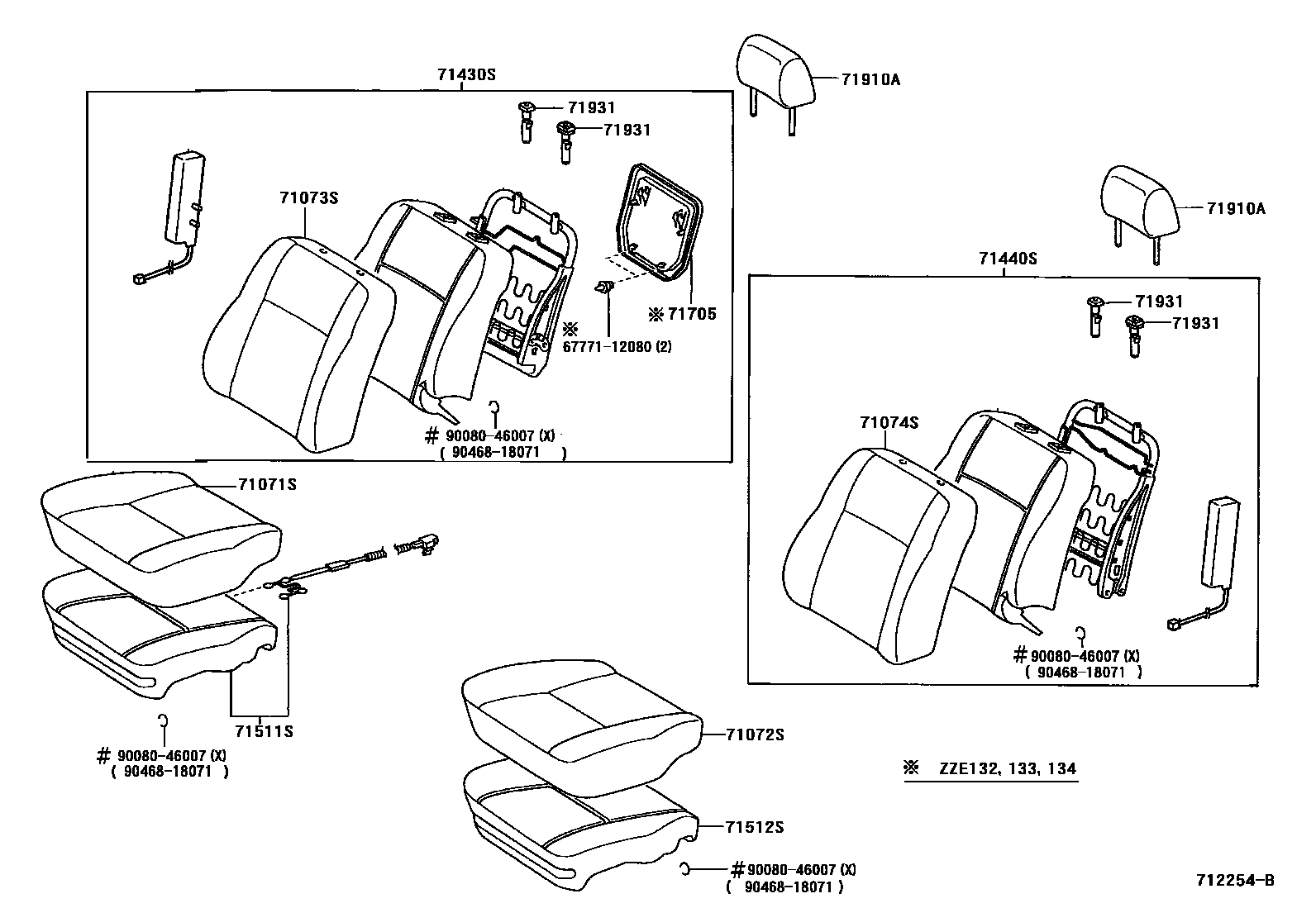

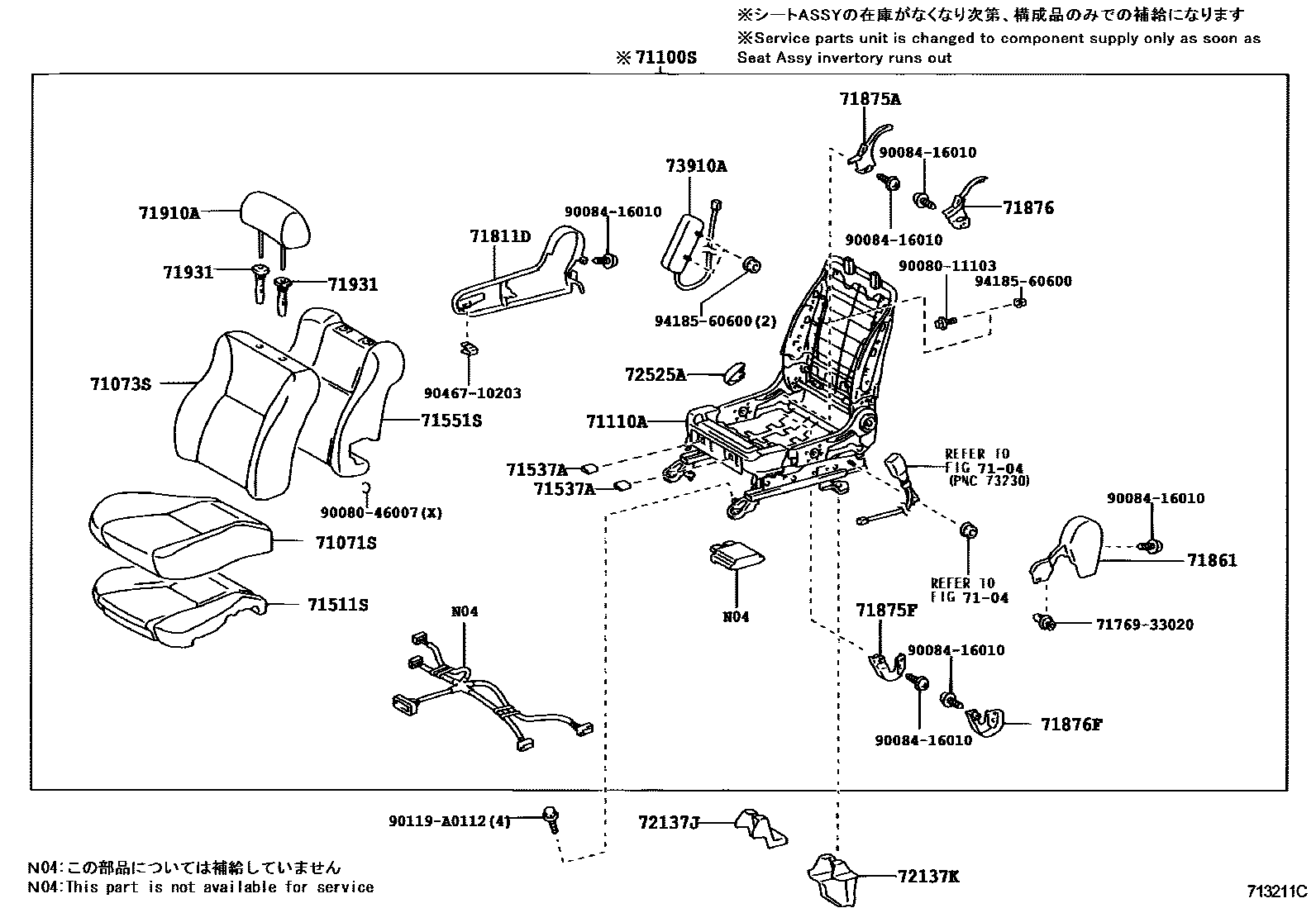

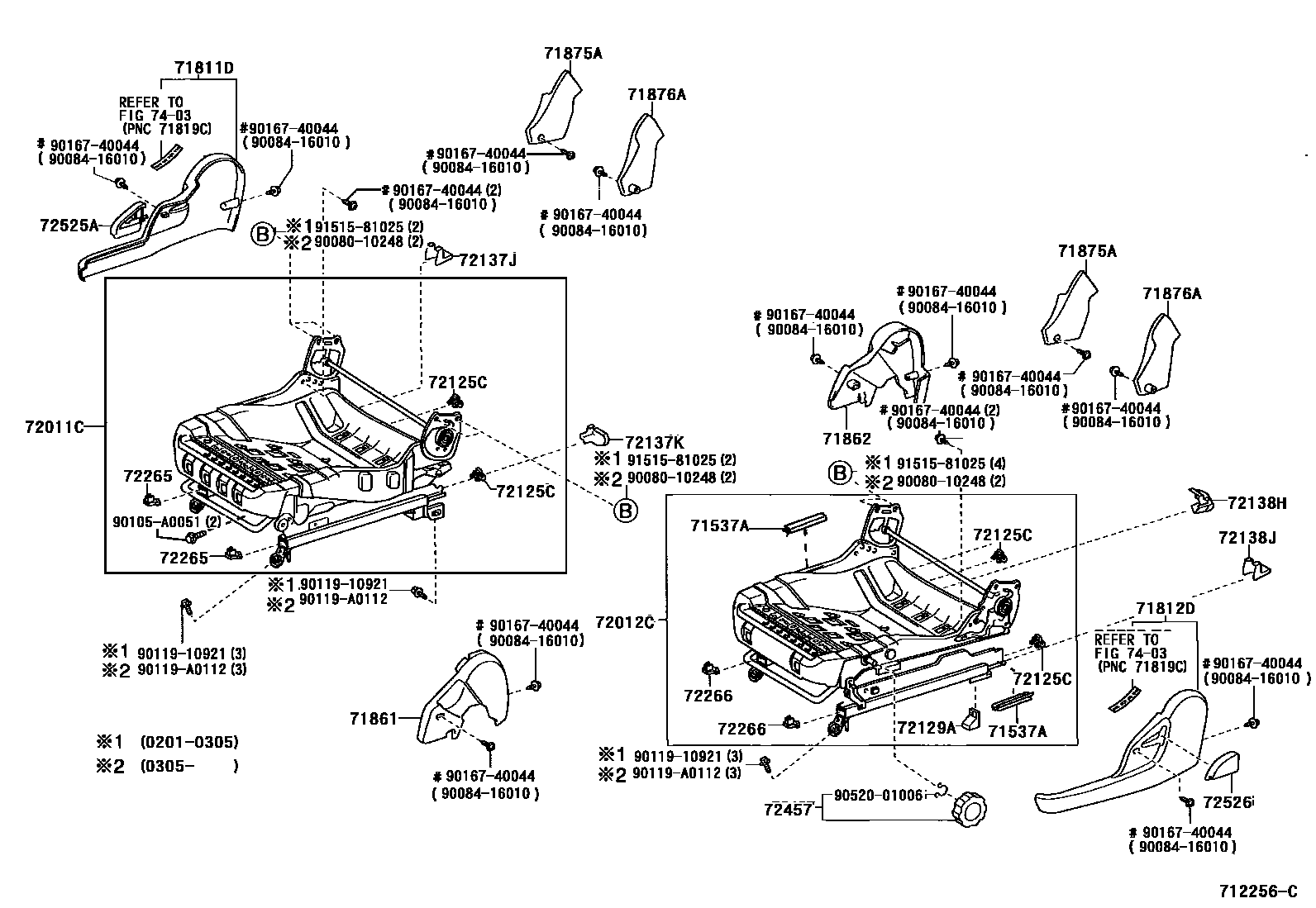

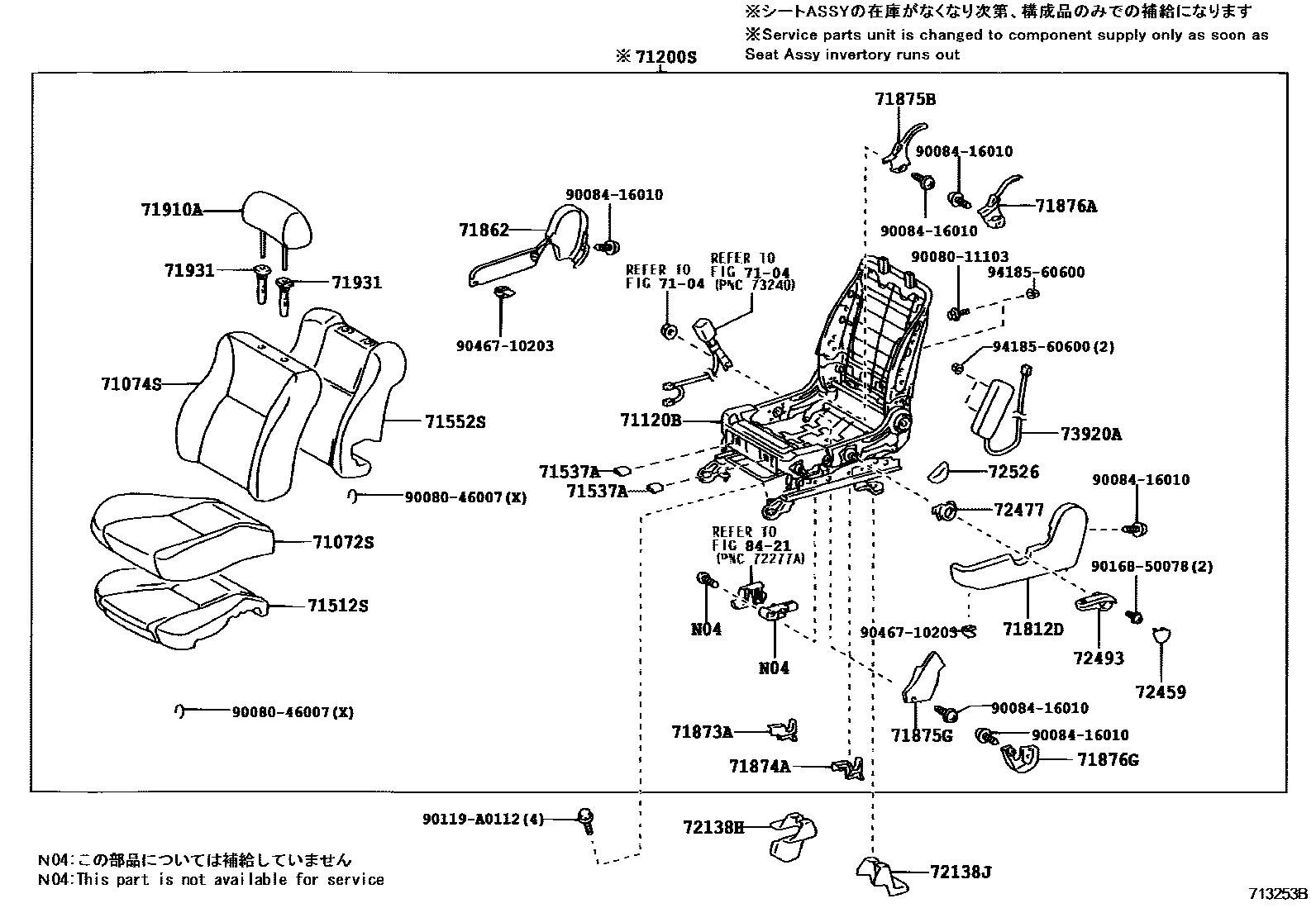

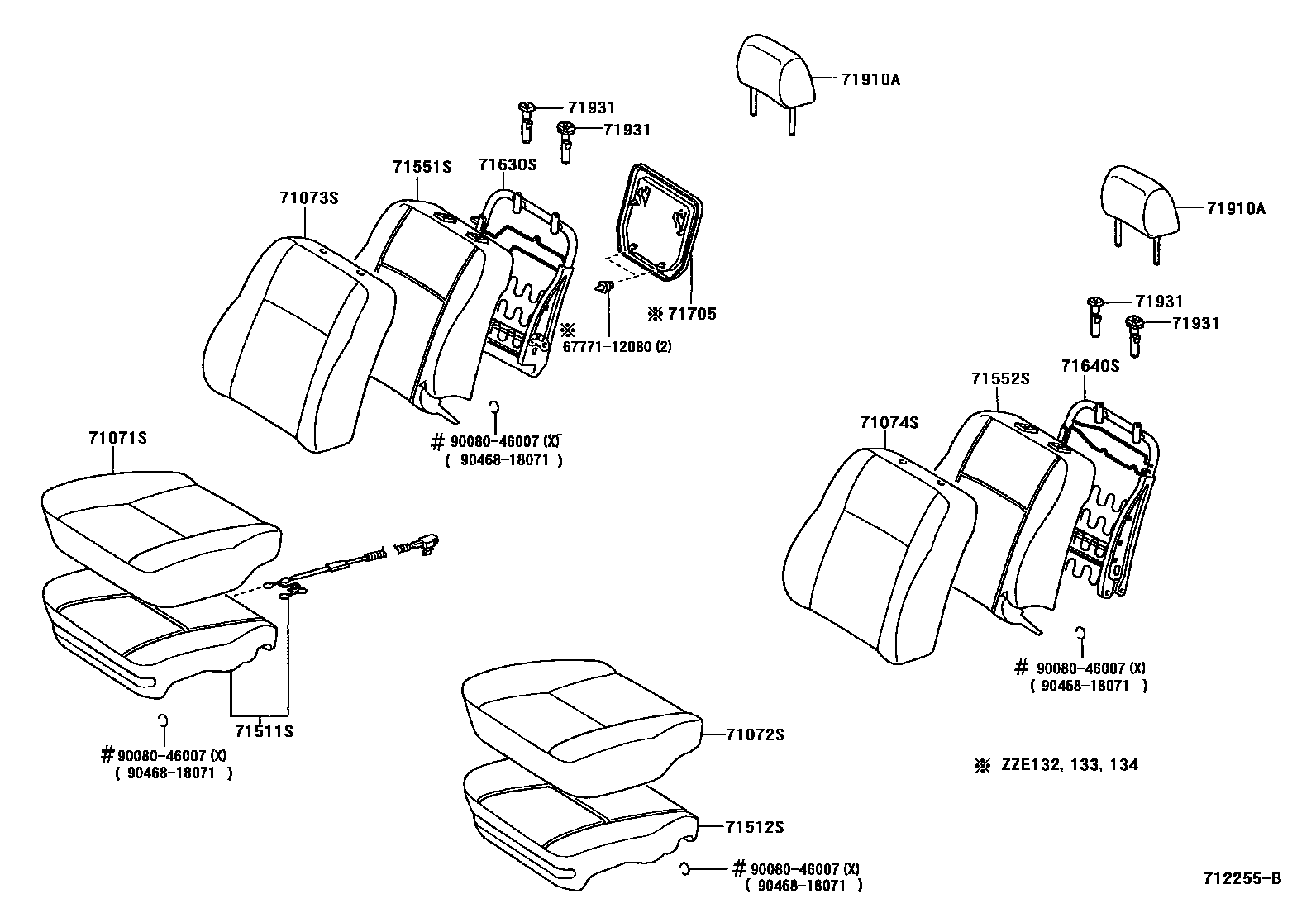

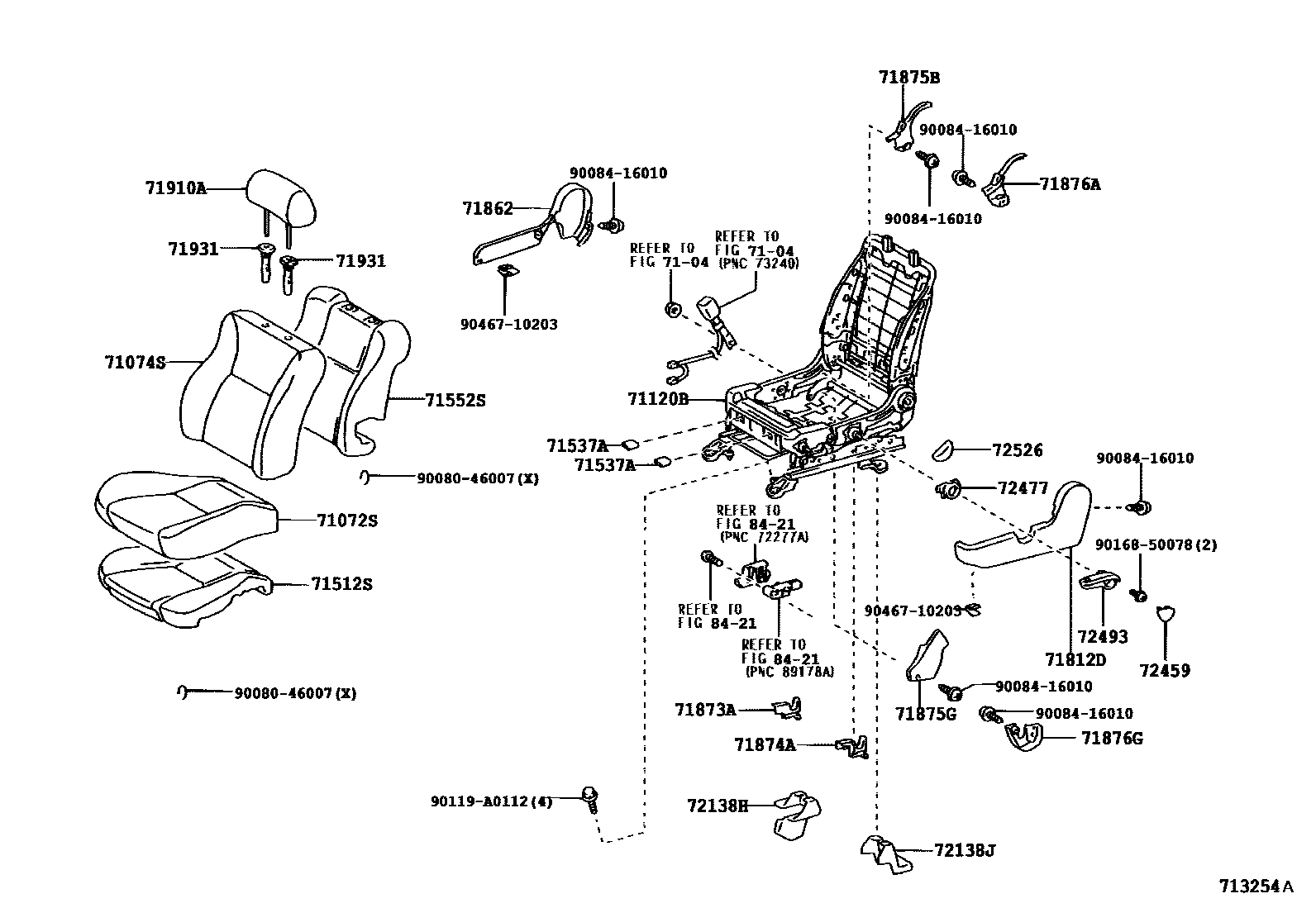

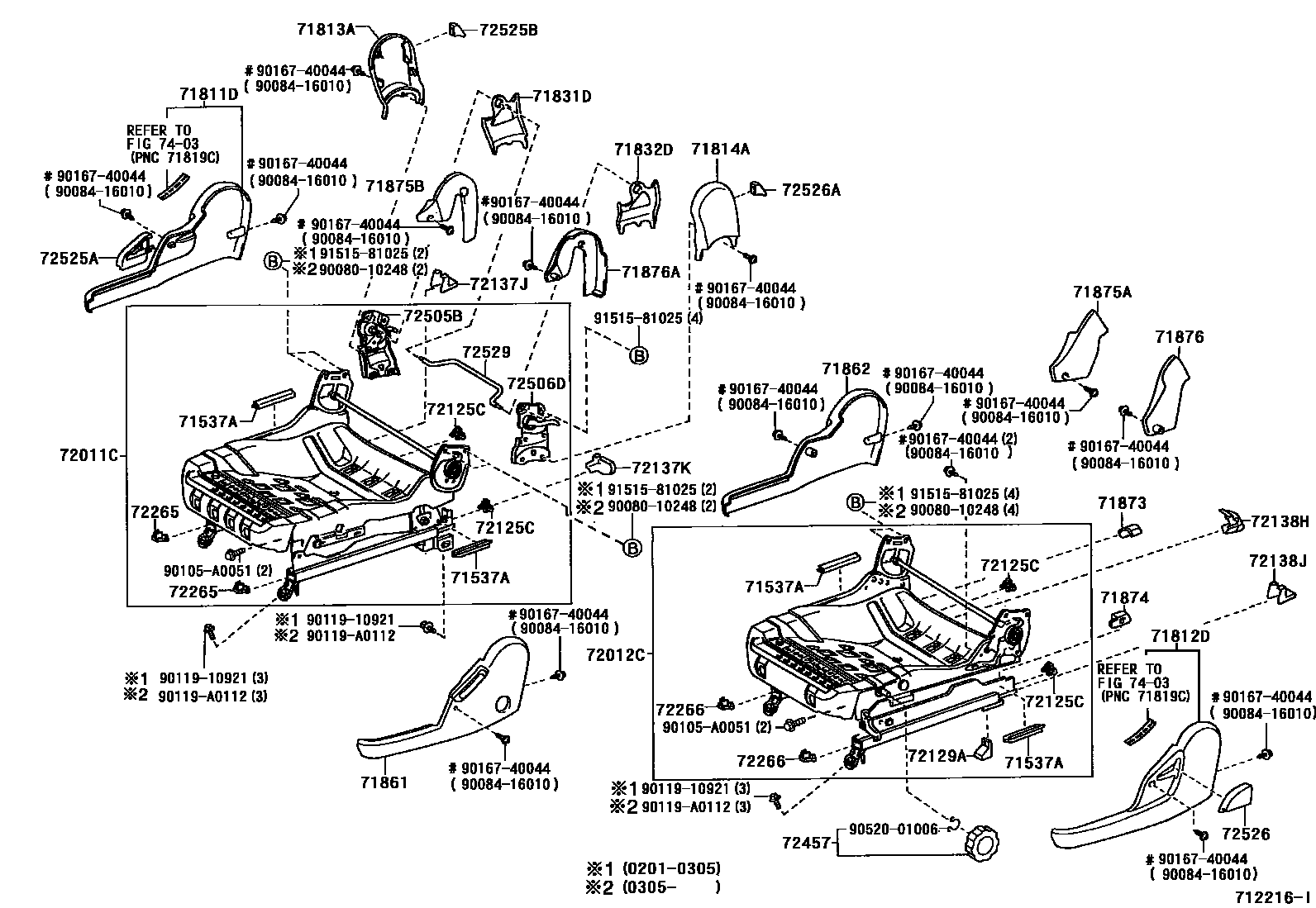

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 12 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-02010 · 71110-02011 · 71110-02030 · 71110-02031 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-02010 · 71120-02030 · 71120-02090 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-01010 · 71501-02010 · 71511-01060 · 71511-02230 · 71511-02240 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-02150 · 71512-02010 · 71512-02020 |
| 71537A | Front seat cushion protective cover | 71537-01010 · 71537-02010 · 71537-12030 · 71537-26010 · 71537-33010 · 71537-AA020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-01040 · 71551-01050 · 71551-01070 · 71551-02210 · 71551-02350 · 71551-02360 · 71551-02370 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02210 · 71551-02350 · 71551-02370 · 71552-02180 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-01050 · 71630-02110 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-02110 |
| 71873A | Front seat cushion lower guard | 71873-02020 |
| 71874A | Front left seat cushion lower guard | 71874-02020 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-AA060 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-AA060 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-AA060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-AA060 |
| 72010 | Front right seat adjuster assembly | 72010-02200 · 72010-02201 |
| 72011C | Front right seat adjuster sub-assembly | 72010-01010 · 72010-02010 |
| 72012C | Front left seat adjuster sub-assembly | 72020-01010 · 72020-02010 · 72020-02020 · 72020-02110 |
| 72125C | Seat No. 1 slide rail locking plate cover | 72125-AA010 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-AA010 |
| 72137J | Front right seat outer slide rail rear cover | 72137-01030 · 72137-01040 · 72137-02060 · 72137-02080 |
| 72137K | Front right seat inner slide rail rear cover | 72157-01010 · 72157-02060 |
| 72138H | Front left seat inner slide rail rear cover | 72158-01010 · 72158-02060 |
| 72138J | Front left seat outer slide rail rear cover | 72137-01030 · 72137-01040 · 72137-02060 · 72137-02080 |
| 72265 | Right seat rail upper rail cover | 72265-AA010 |
| 72266 | Left seat rail upper rail cover | 72265-AA010 |
| 72477 | Height adjuster spacer | 72477-02010 |
| 72505B | Front right seat back lock sub-assembly | 72505-13010 · 72505-AD010 |
| 72506D | Front left seat back lock sub-assembly | 72506-13020 · 72506-AD010 |
| 72529 | Front seat back lock handle lever | 72529-13010 · 72529-AD010 |
| 73910A | Front right seat airbag assembly | 73910-01020 · 73910-02050 |
| 73920A | Front left seat airbag assembly | 73920-02050 |
