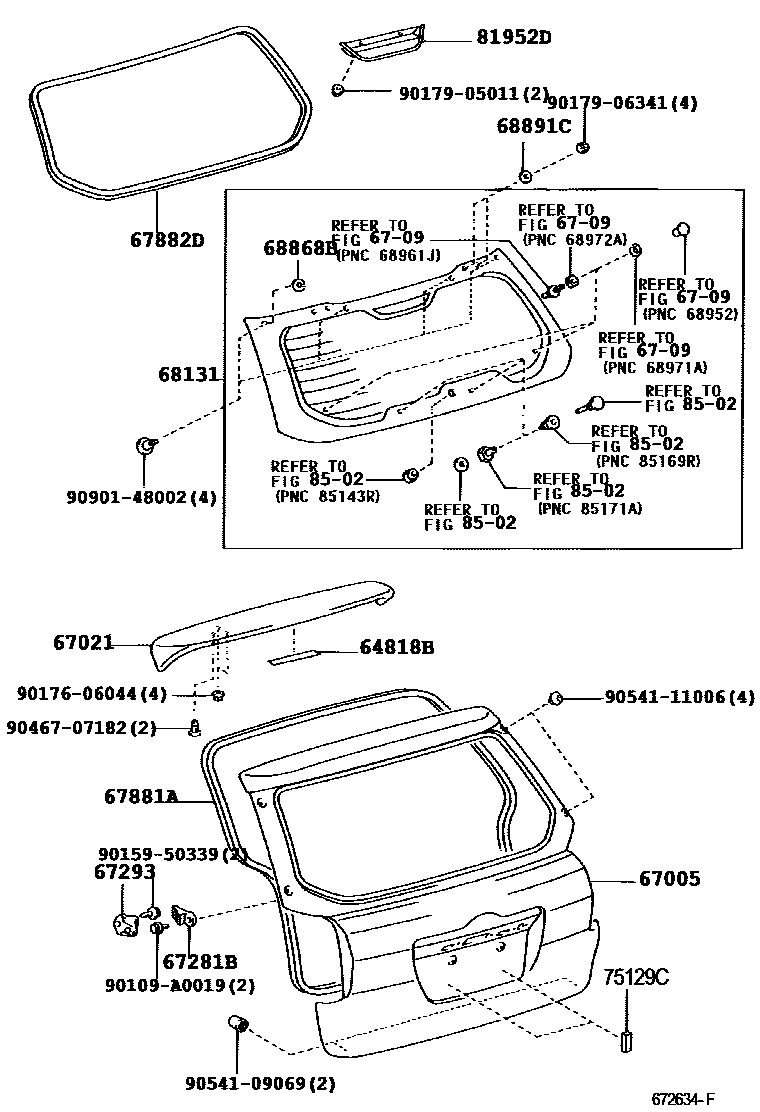

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64818B | No. 1 back door glass spacer | 64819-01010 |
| 67005 | Rear door panel sub-assembly | 67005-02080 |
| 67021 | Back door outer upper panel sub-assembly | 67021-02030 · 67021-02040 |
| 67281B | Back door lower block | 67281-02020 |
| 67293 | Back door lower block cushion | 67293-02020 · 67293-02021 |
| 67881A | Back door seal | 67881-02060 · 67881-02061 |
| 67882D | Back door seal No. 2 | 67882-02010 |
| 68131 | back door glass | 68105-02050 · 68105-02110 |
| 68868B | Back door hinge seal | 68868-32010 |
| 68891C | Rear door protruding hinge seal | 68891-32010 |
| 74811D | door handle | 74811-01010 |
| 75129C | rear license plate cushion | 75129-02020 · 75129-21010 |
| 81952D | rear light cover | 81952-02010 |
