Toyota COROLLA 后门车窗升降器和合页 — Figure 6707

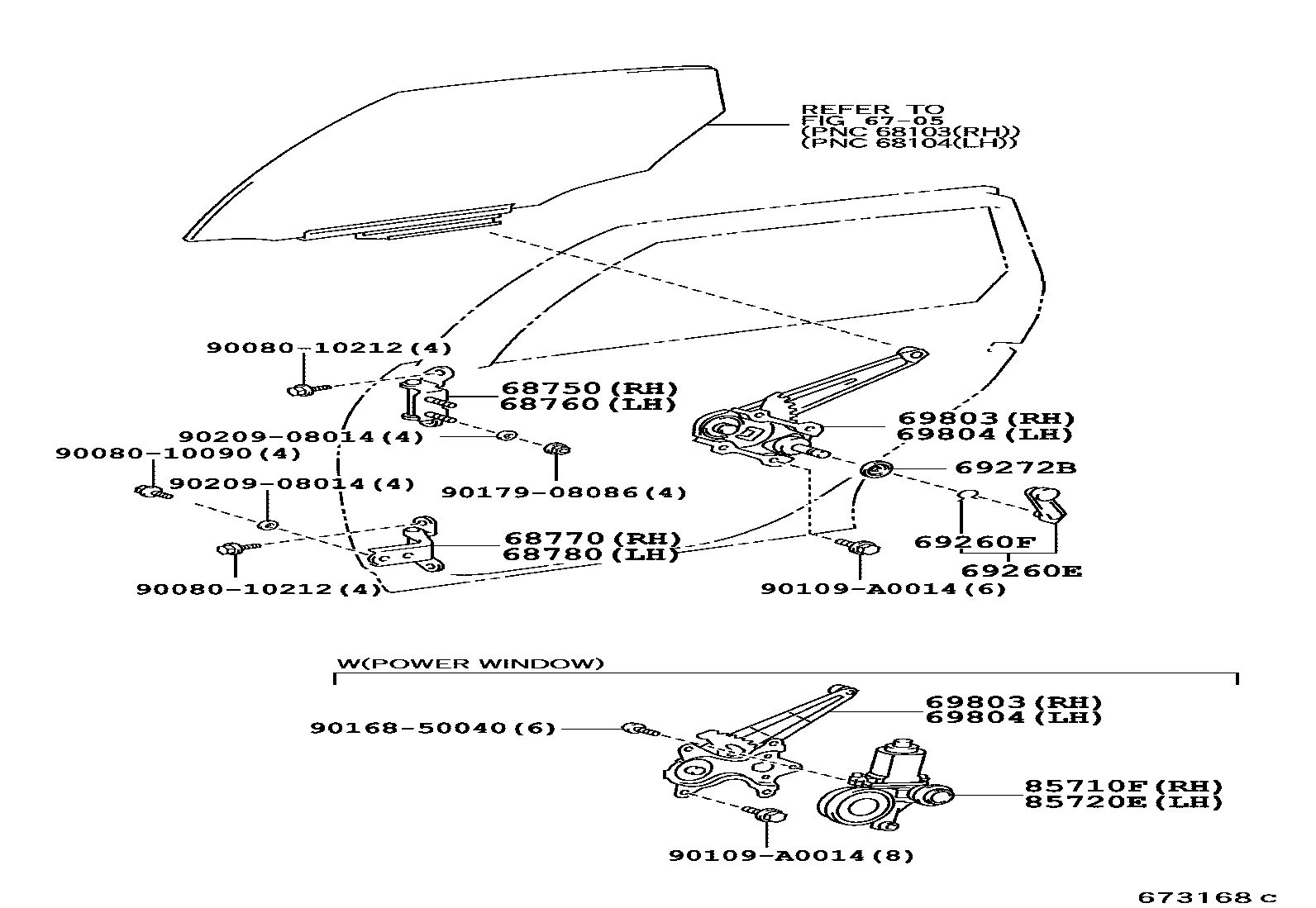

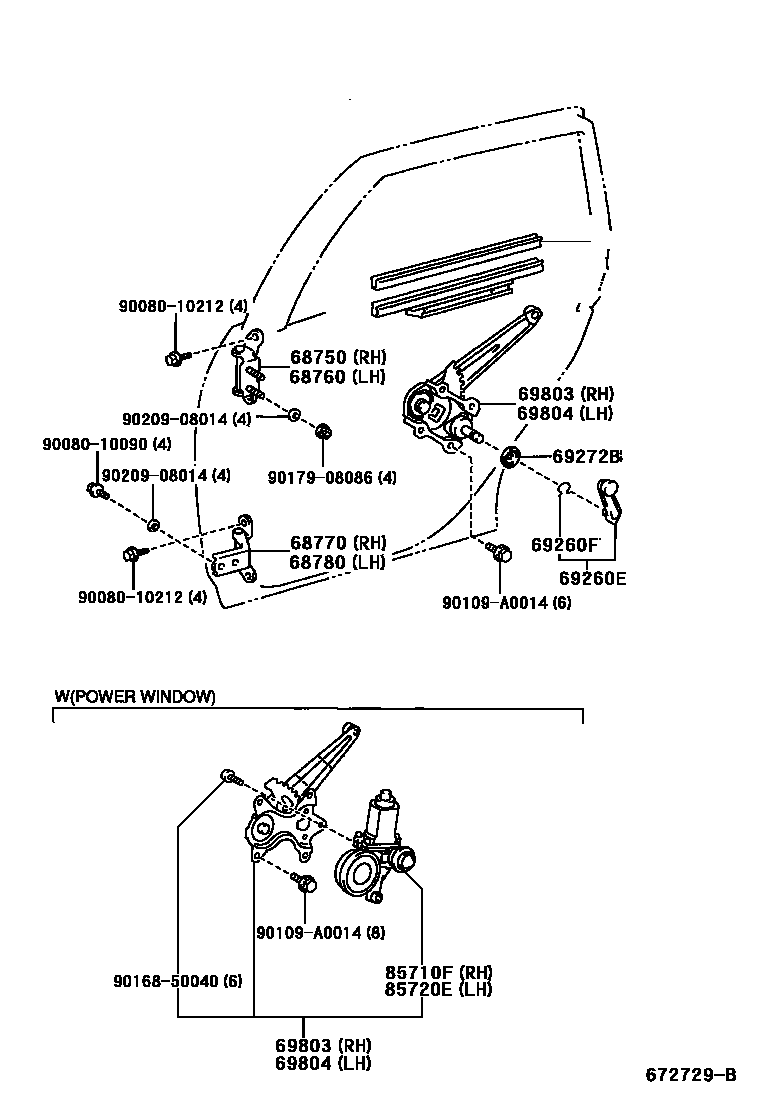

Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02050 |
| 68760 | Left rear door upper hinge assembly | 68760-02050 |
| 68770 | Right rear door lower hinge assembly | 68770-02050 |
| 68780 | Left rear door lower hinge assembly | 68780-02050 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90080-52001 |
| 69272B | Rear door window regulator inner handle plate | 69268-12020 |
| 69803 | Right rear door window lifter sub-assembly | 69803-01040 · 69830-01070 · 69830-02130 · 69830-02140 |
| 69804 | Left rear door window lifter sub-assembly | 69804-01040 · 69840-01070 · 69840-02130 · 69840-02140 |
| 85710F | Right power window lift motor assembly | 85720-AA050 |
| 85720E | Left electric window lift motor assembly | 85710-AA050 |
