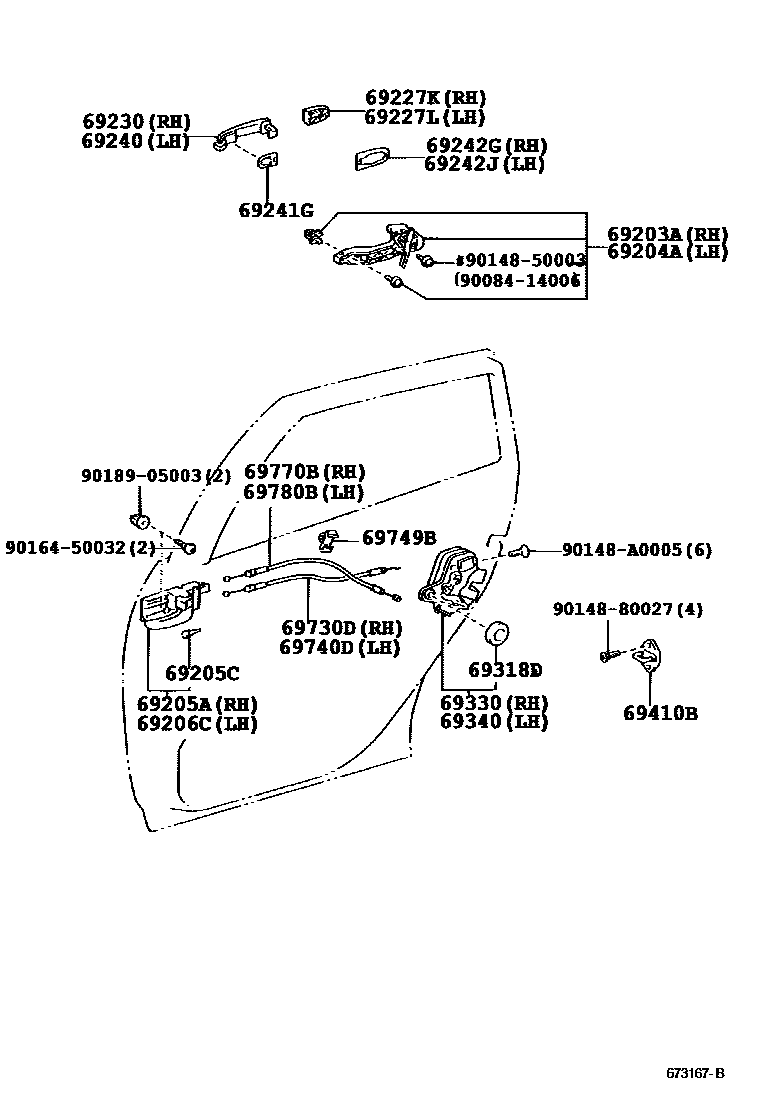

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02020 · 69203-02021 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02020 · 69204-02021 |
| 69205C | Cushion pad (for rear door inner handle) | 90080-54005 |
| 69227K | Right rear door outer handle cover | 69229-02010 · 69229-02011 · 69229-AA011 |
| 69227L | Left rear door outer handle cover | 69229-02010 · 69229-02011 · 69229-AA011 |
| 69230 | Right rear door outer handle assembly | 69211-02080 |
| 69240 | Left rear door outer handle assembly | 69211-02080 |
| 69241G | Rear door front exterior handle pad | 69241-AA010 · 69241-AA011 |
| 69242G | Rear door rear outer handle pad | 69238-AA010 |
| 69242J | Left rear door rear outer handle pad | 69238-AA010 |
| 69318D | door lock harness seal | 69318-AA010 |
| 69330 | Right rear door door lock assembly | 69050-01031 · 69050-02091 · 69050-0E010 · 69050-AA040 · 69330-01051 · 69330-02071 |
| 69340 | Left rear door lock assembly | 69060-01031 · 69060-02091 · 69060-0E010 · 69060-AA040 · 69340-01051 · 69340-02071 |
| 69410B | Rear door lock plate assembly | 69410-02030 · 69410-AA030 |
| 69730D | Right rear door lock remote control cable assembly | 69730-01010 · 69730-02020 |
| 69740D | Left rear door lock remote control cable assembly | 69730-01010 · 69730-02020 |
| 69749B | Rear door lock link clamp | 69749-32040 |
| 69770B | Right rear door inner lock cable assembly | 69770-01040 · 69770-02060 |
| 69780B | Left rear door inner lock cable assembly | 69780-01040 · 69780-02060 |
