Toyota COROLLA 后门板和后门玻璃 — Figure 6705

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 4 images and 43 PNC and OE references.

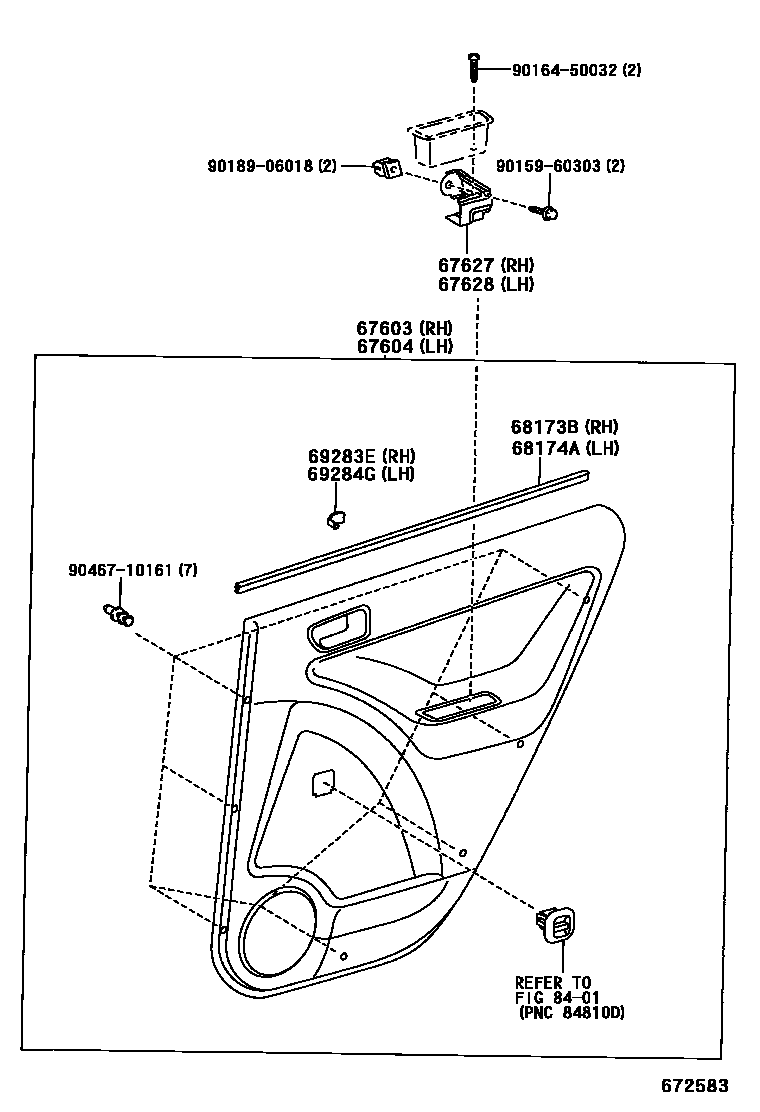

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 672583
后门板和后门玻璃 — 672583 (200201 – 999999)

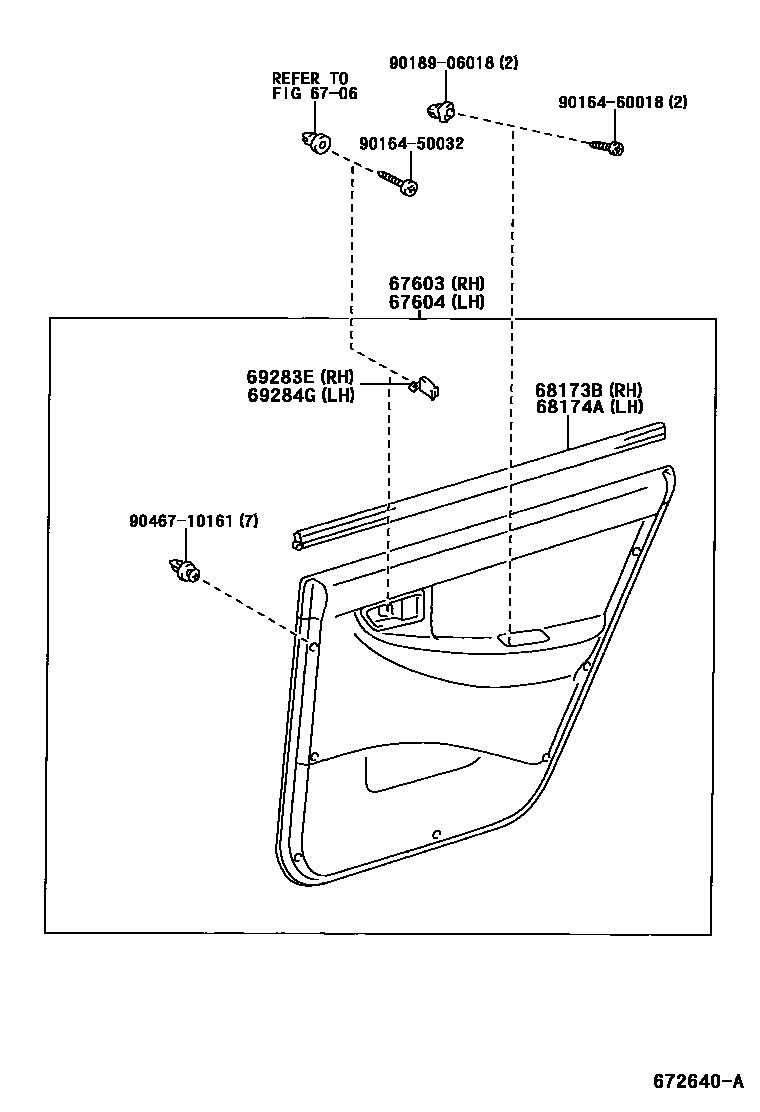

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 672640A
后门板和后门玻璃 — 672640A (200201 – 999999)

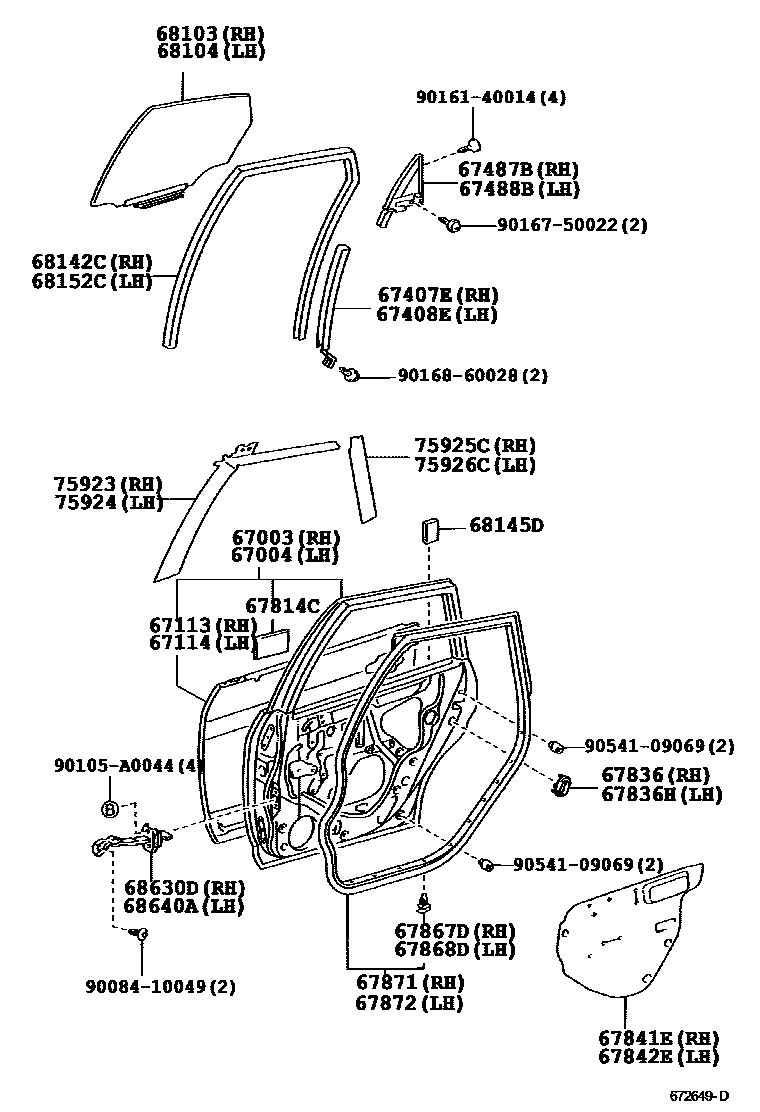

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 672649D
后门板和后门玻璃 — 672649D (200201 – 999999)

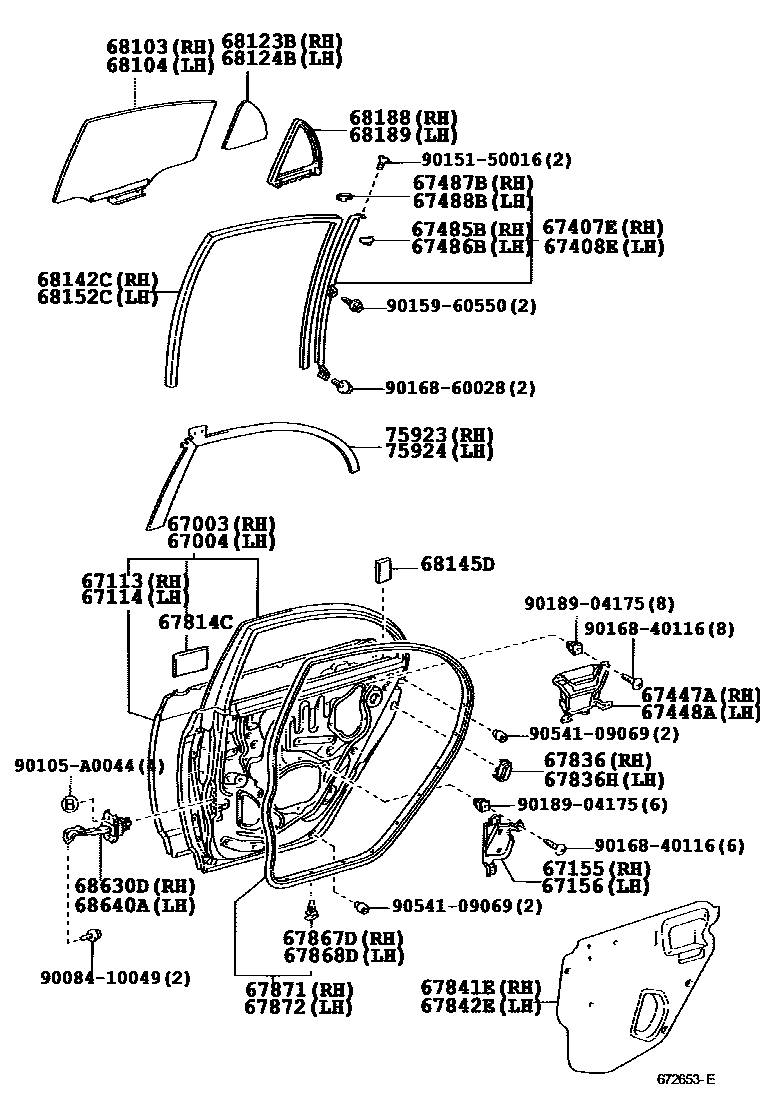

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 672653E
后门板和后门玻璃 — 672653E (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-02180 · 67003-02190 · 67003-02210
67004Left rear door panel sub-assembly67004-02180 · 67004-02190 · 67004-02210
67113Right rear door outer panel67113-02080 · 67113-02090
67114Left rear door outer panel67114-02080 · 67114-02090
67155Right rear door inner panel reinforcement67155-02020
67156Left rear door inner panel reinforcement67156-02020
67407ERight rear door window divider sub-assembly67407-01050 · 67407-12260
67408ELeft rear door window divider sub-assembly67408-01050 · 67408-12260
67447ARight rear door inner panel67077-12010 · 67077-12011
67448ALeft rear door inner panel67078-12010 · 67078-12011
67485BRight rear door divider inner seal67485-53010
67486BLeft rear door divider inner seal67486-53010
67487BRight rear door divider seal67487-01030 · 67487-53010
67488BLeft rear door divider seal67488-01030 · 67488-53010
67604Left rear door decorative panel sub-assembly67640-02B40 · 67640-02B50
67627Right rear door trim panel bracket67625-01010
67628Left rear door trim panel bracket67625-01010
67814Cdoor guard seals67817-47010
67836Right rear door lock child restraint cover67836-12040
67836HLeft rear door lock child restraint cover67836-12040
67841ERight rear door access hole cover67841-01020 · 67841-02090 · 67841-02120
67842ELeft rear door access hole cover67842-01020 · 67842-02070 · 67842-02120
67867DRight rear door seal strip fixing67868-02020
67868DLeft rear door seal strip fixing67868-02020
67871Right rear door sealing strip67871-01050 · 67871-02090
67872Left rear door sealing strip67872-01060 · 67872-02090
68103Right rear door glass sub-assembly68103-02090 · 68103-02150 · 68103-02190 · 68103-02200
68104Left rear door glass sub-assembly68104-02090 · 68104-02150 · 68104-02180 · 68104-02190
68123BRight rear door corner window glass68123-02080 · 68123-02160
68124BLeft rear door corner window glass68124-02080 · 68124-02160
68142CRight rear door glass lift slot68142-01030 · 68142-01050 · 68142-02080 · 68142-02160
68145DRear door window cushion69759-02100 · 69759-12110
68152CLeft rear door glass lift slot68152-01020 · 68152-01040 · 68152-02080 · 68152-02160
68173BRight rear door glass inner sealing strip68173-01040 · 68173-02090
68174ALeft rear door glass inner sealing strip68174-01020 · 68174-02060
68188Right rear door corner window seal68188-02040
68189Left rear door corner window seal68189-02040
68630DRight rear door opening limiter assembly68630-02060 · 68630-02061
68640ALeft rear door opening limiter assembly68640-02060 · 68640-02061
75923No. 2 right side light-shielding film75923-01010 · 75923-02020
75924No. 2 left shading film75924-01010 · 75924-02020
75925CNo. 3 right side light-blocking film75925-01010
75926CNo. 3 left shading film75926-01010
