Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 4 images and 34 PNC and OE references.

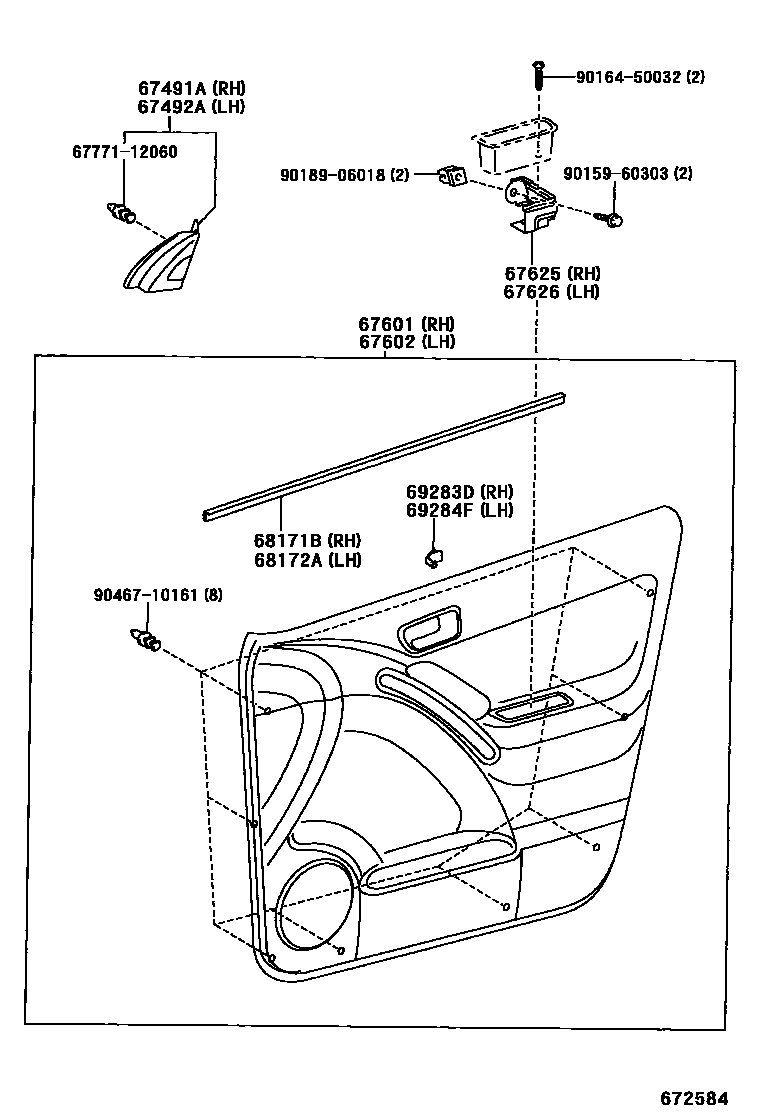

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 672584
前门板和前门玻璃 — 672584 (200201 – 999999)

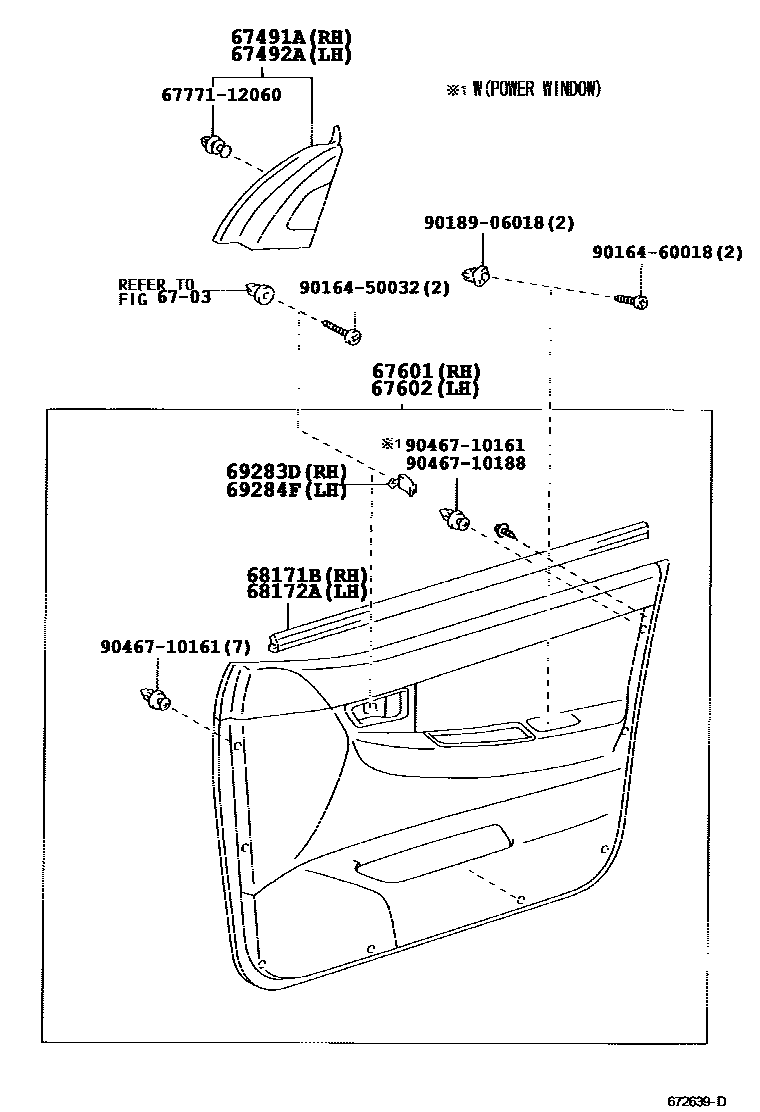

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 672639D
前门板和前门玻璃 — 672639D (200201 – 999999)

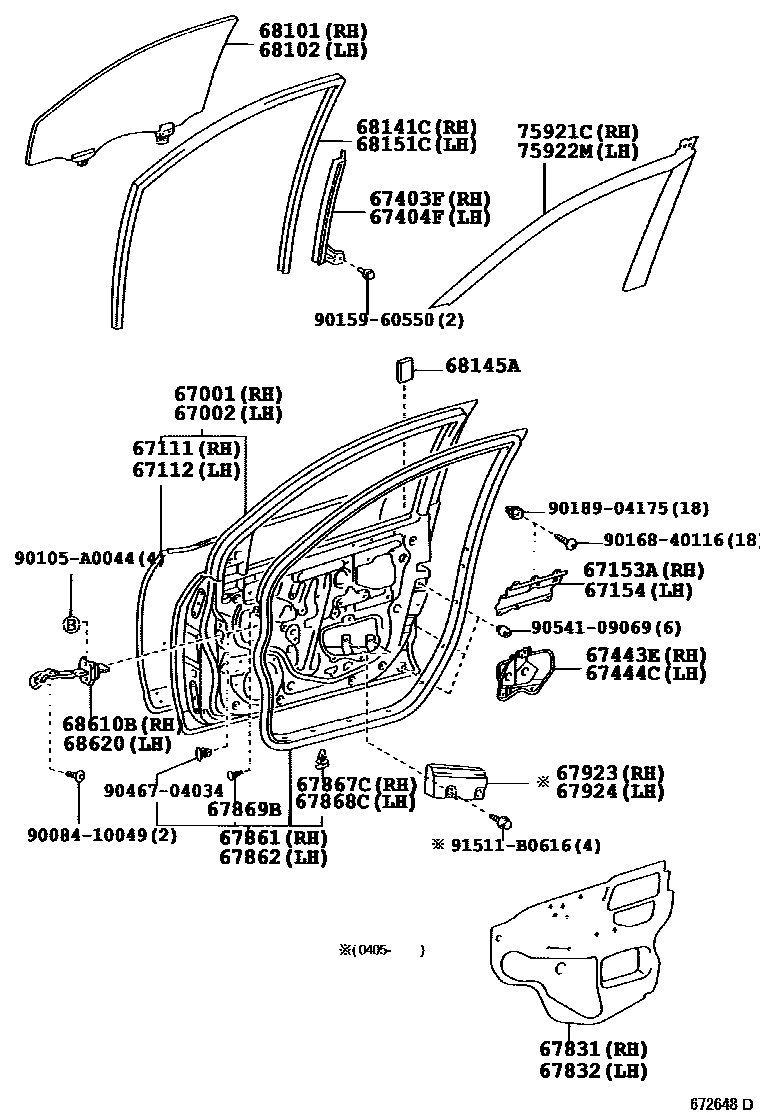

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 672648D
前门板和前门玻璃 — 672648D (200201 – 999999)

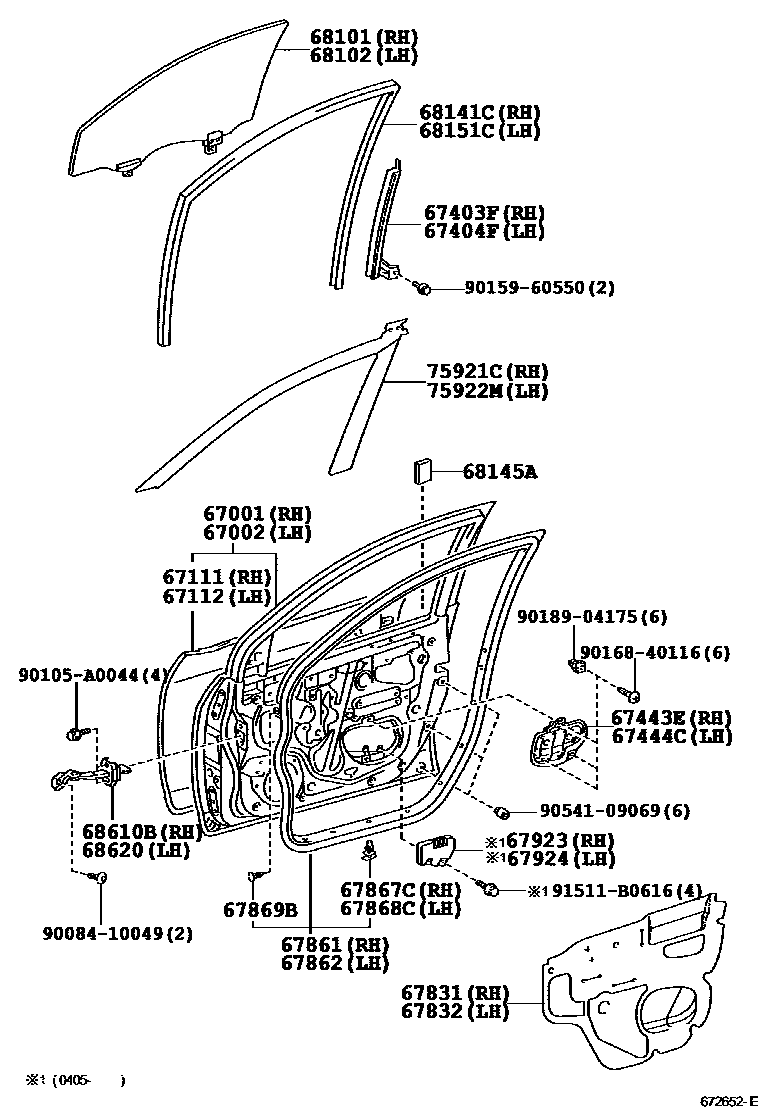

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 672652E
前门板和前门玻璃 — 672652E (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-02181 · 67001-02201 · 67001-02220 · 67001-02240
67002Left front door panel sub-assembly67002-02181 · 67002-02201 · 67002-02220 · 67002-02240
67111Outer right front door panel67111-02100 · 67111-02110
67112Outer left front door panel67112-02100 · 67112-02110
67153ARight front door inner panel rear reinforcement67153-01010 · 67153-12080
67154Left front door inner panel rear reinforcement67154-01010 · 67154-12090
67403FRight front door rear lower door frame sub-assembly67403-01020 · 67403-02040
67404FLeft front door rear lower door frame sub-assembly67404-01020 · 67404-02040
67443ERight front door inner panel67443-01010 · 67443-02040
67444CLeft front door inner panel67444-01010 · 67444-02040
67491ARight front door lower door frame bracket decorative strip67491-01060 · 67491-01070 · 67491-02150 · 67491-02160 · 67491-02170
67492ALeft front door lower door frame bracket decorative strip67492-01060 · 67492-01070 · 67492-02150 · 67492-02160 · 67492-02170
67625Right front door trim panel bracket67625-01010
67626Left front door trim panel bracket67625-01010
67831Right front door access hole cover67831-01020 · 67831-01021 · 67831-02130
67832Left front door access hole cover67832-01020 · 67832-01021 · 67832-02130
67861Right front door seal67861-01040 · 67861-02130
67862Left front door seal67862-01050 · 67862-02130
67867CRight front door seal strip fixing67868-02020
67868CLeft front door seal strip fixing67868-02020
67869BFront door seal strip clip67869-20030
67923Front door No. 1 reinforcement cushion pad67923-01020 · 67923-02010
67924Front door No. 2 reinforcement cushion pad67924-01020 · 67924-02010
68101Right front door glass sub-assembly68101-02130 · 68101-02170 · 68101-02210 · 68101-02220
68102Left front door glass sub-assembly68102-02130 · 68102-02170 · 68102-02210 · 68102-02220
68141CRight front door glass lift channel68141-01031 · 68141-01060 · 68141-01061 · 68141-02091 · 68141-02210 · 68141-02211
68145AFront door window cushion69759-02100 · 69759-12110
68151CLeft front door glass lift channel68151-01021 · 68151-01050 · 68151-01051 · 68151-02081 · 68151-02190 · 68151-02191
68171BRight front door glass inner sealing strip68171-01040 · 68171-02100
68172ALeft front door glass inner sealing strip68172-01040 · 68172-02090
68610BRight front door opening limiter assembly68610-02060 · 68610-02061
68620Left front door opening limiter assembly68620-02060 · 68620-02061
75921CNo. 1 right side light-shielding film75921-01010 · 75921-02030
75922MNo. 1 left shading film75922-01010 · 75922-02030
