Toyota COROLLA 底板和底板装饰罩 — Figure 6404

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 12 PNC and OE references.

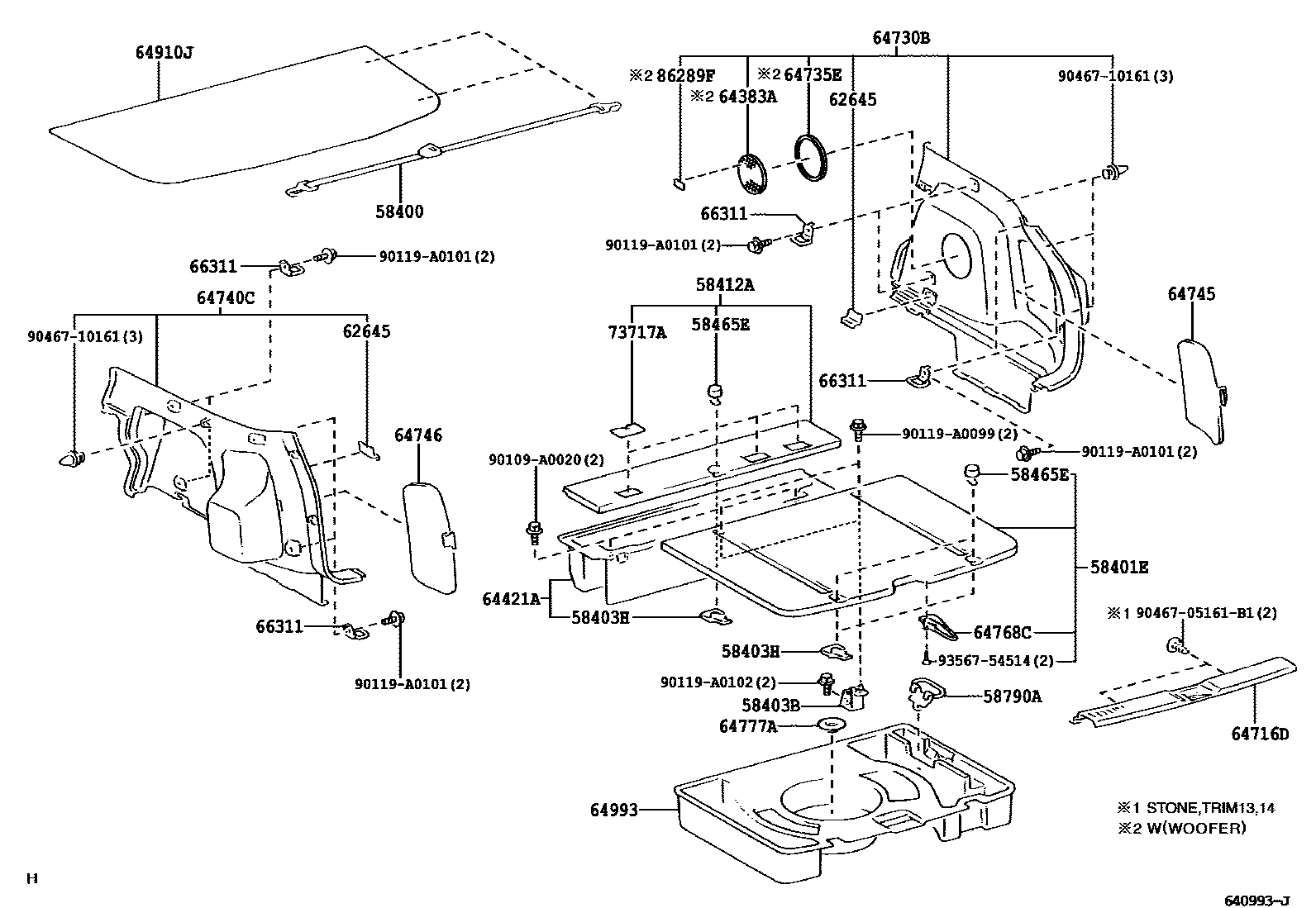

Toyota COROLLA 底板和底板装饰罩 EPC diagram — 640993J
底板和底板装饰罩 — 640993J (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
58400No. 1 suitcase fixing strap assembly58400-01010
58403Bbase hinge58404-12020
58403HBase plate lock spacer58491-12020 · 58491-12021
58790AJack bracket assembly58790-52020
64383ARear speaker grille (for floor trim)64383-02050
64421Aluggage carrier64421-01010
64735EDecorative part on the right side of the floor64753-02020
64768CTrunk lid stopper58492-01010
64777ASpare tire cover clip64777-01020 · 64777-33010
64993Bottom floor box64993-01010
66311rope hook66310-12010
86289Fspeaker grille86289-02010
