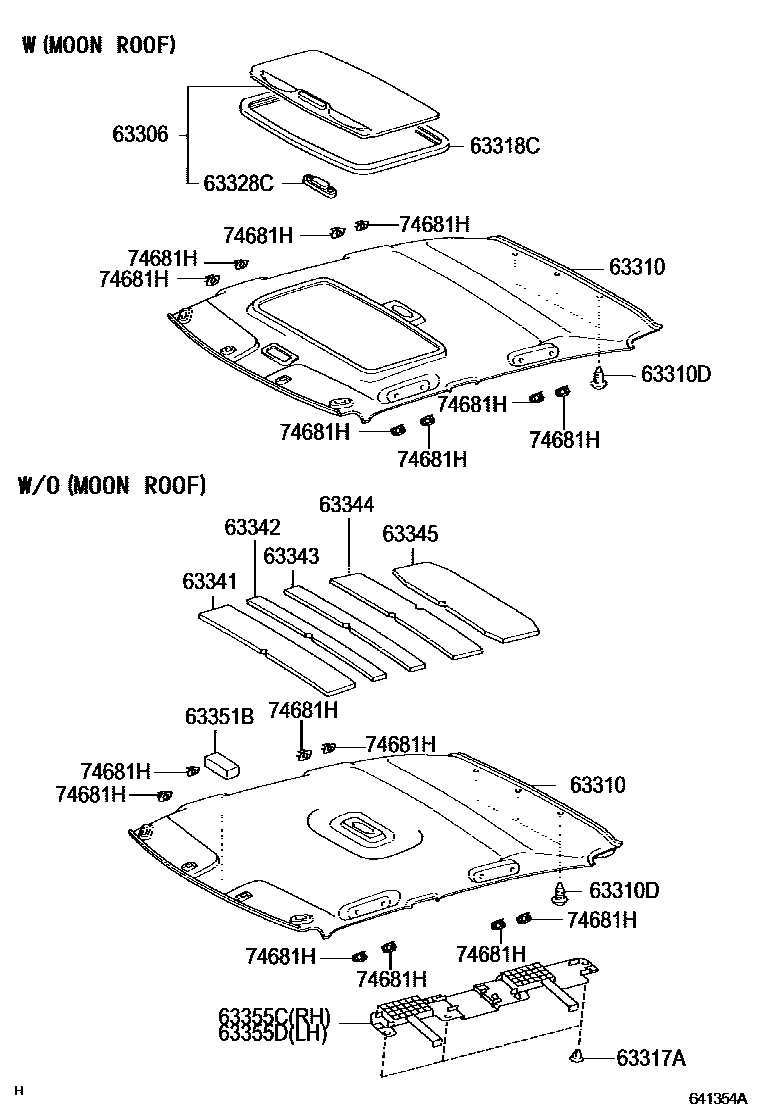

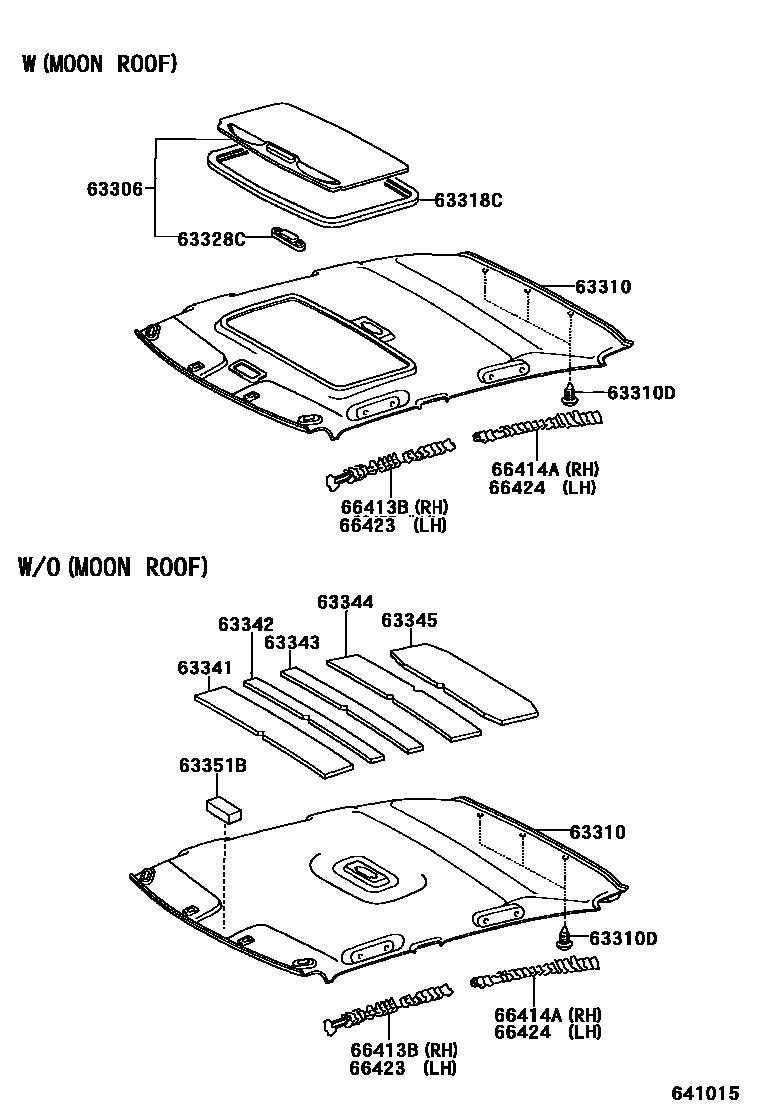

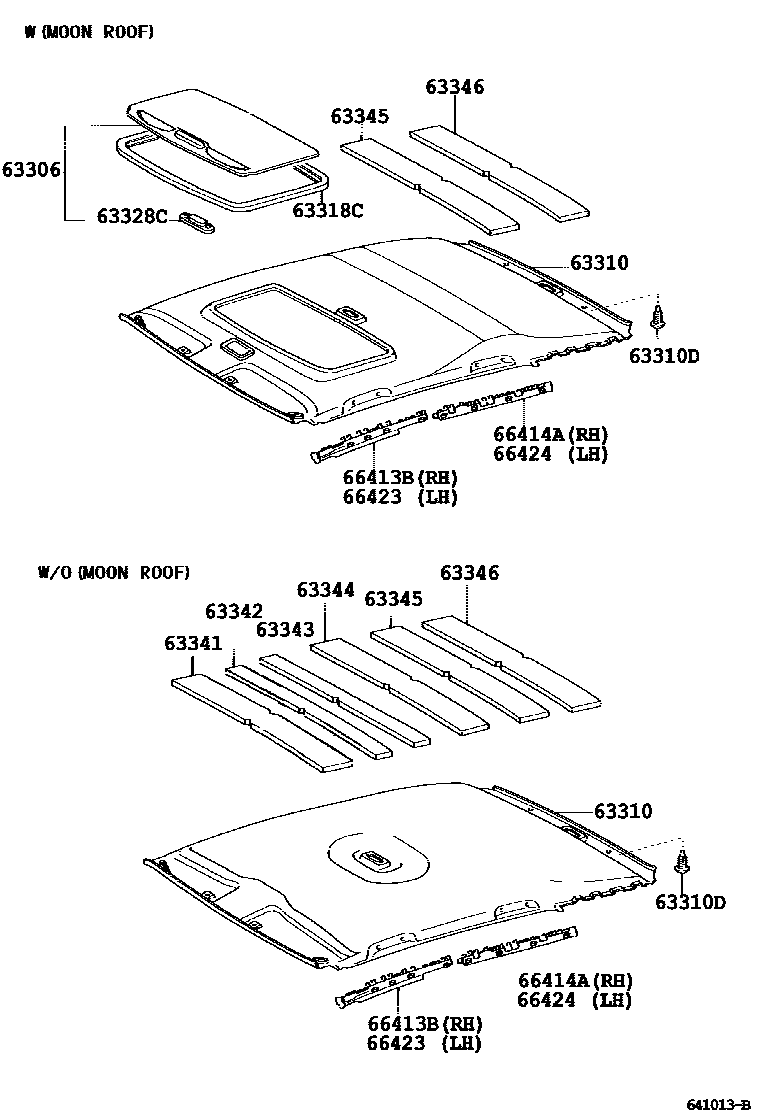

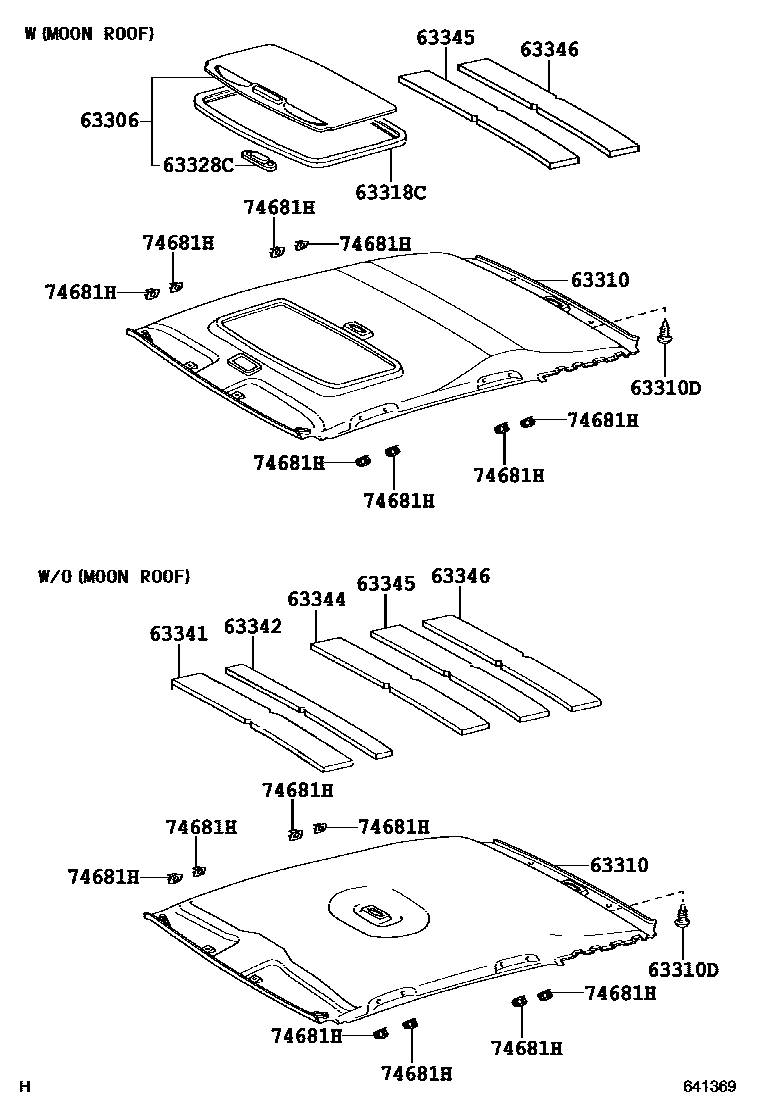

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63317A | headliner fixings | 63317-52030 |
| 63341 | No. 1 roof silencer mat | 63341-02060 |
| 63342 | No. 2 roof muffler pad | 63342-02080 |
| 63343 | No. 3 roof muffler pad | 63342-02080 |
| 63344 | No. 4 roof silencer mat | 63341-02060 |
| 63345 | No. 5 roof silencer mat | 63341-02060 · 63343-02040 |
| 63346 | No. 6 roof silencer mat | 63341-02060 |
| 63351B | roof lining pads | 63351-02040 |
| 63355C | Right side roof lining | 63355-02010 |
| 63355D | Roof left inner lining block | 63356-02020 |
| 66413B | Right front longitudinal member spacer | 66413-01010 · 66413-02030 |
| 66414A | Right rear longitudinal member spacer | 66414-01010 · 66414-02030 |
| 66423 | Left front longitudinal member spacer | 66423-01010 · 66423-02030 |
| 66424 | Left rear longitudinal member spacer | 66424-01010 · 66424-02030 |
| 74681H | Auxiliary handle fixing parts | 74681-12010 |
