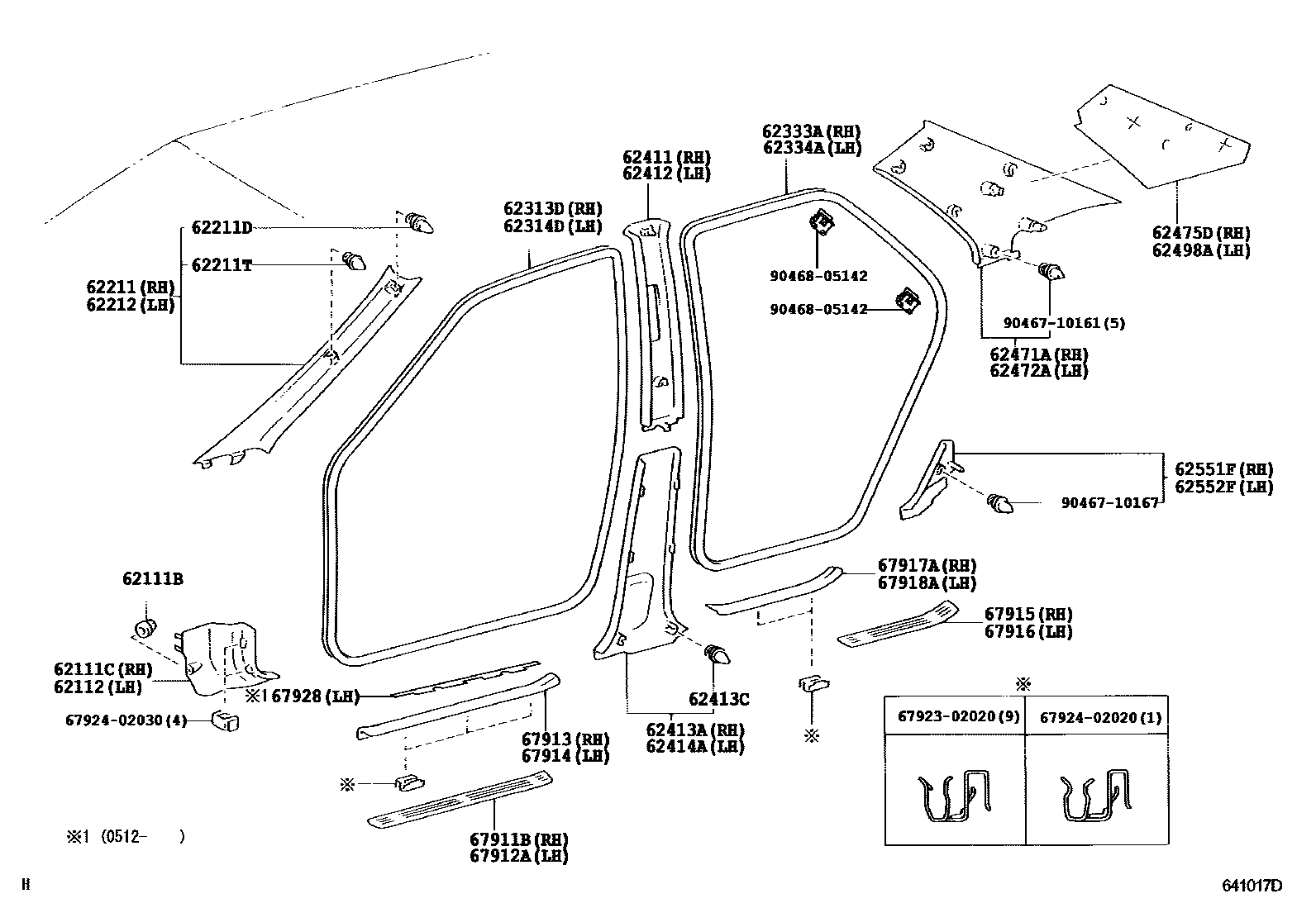

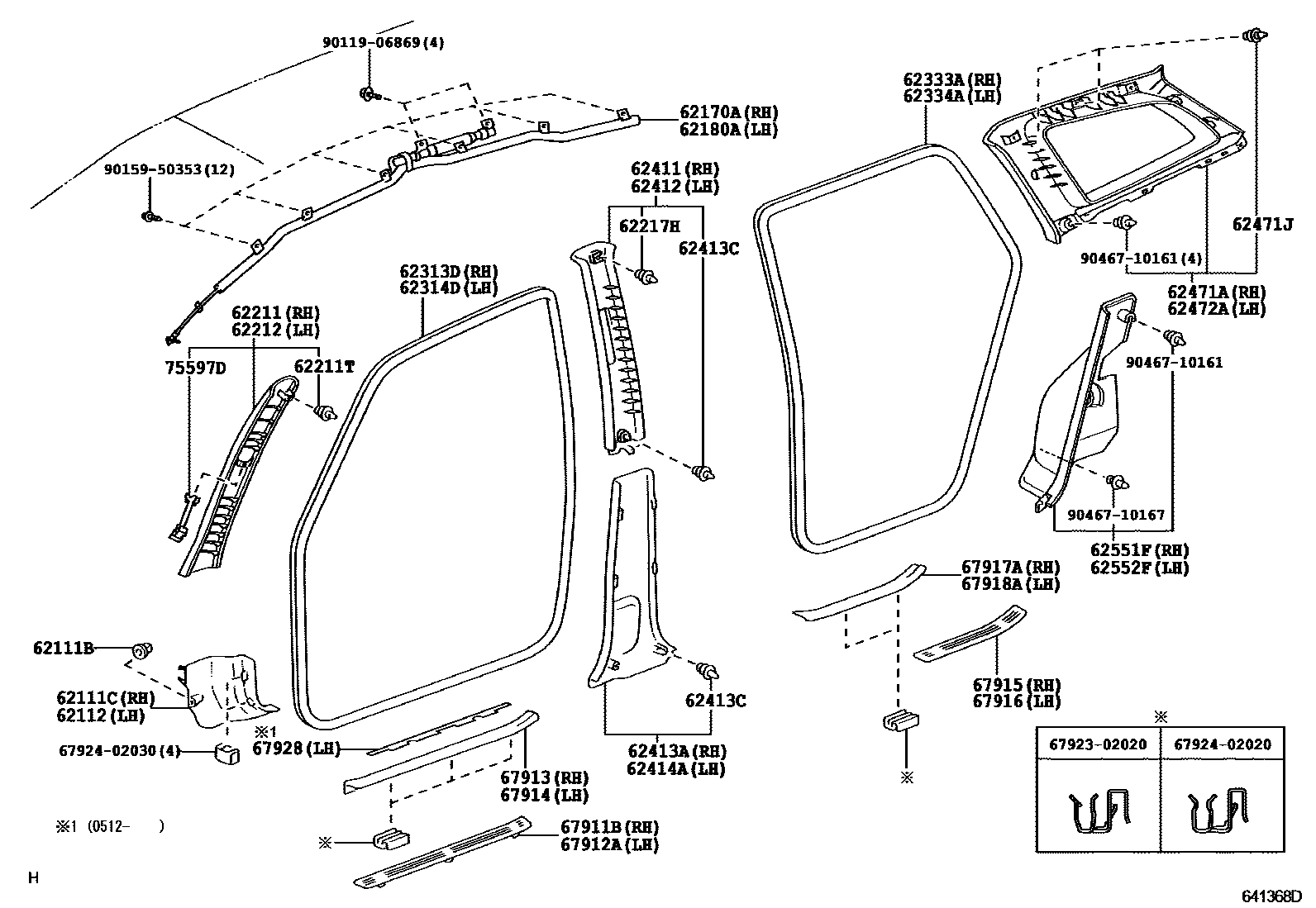

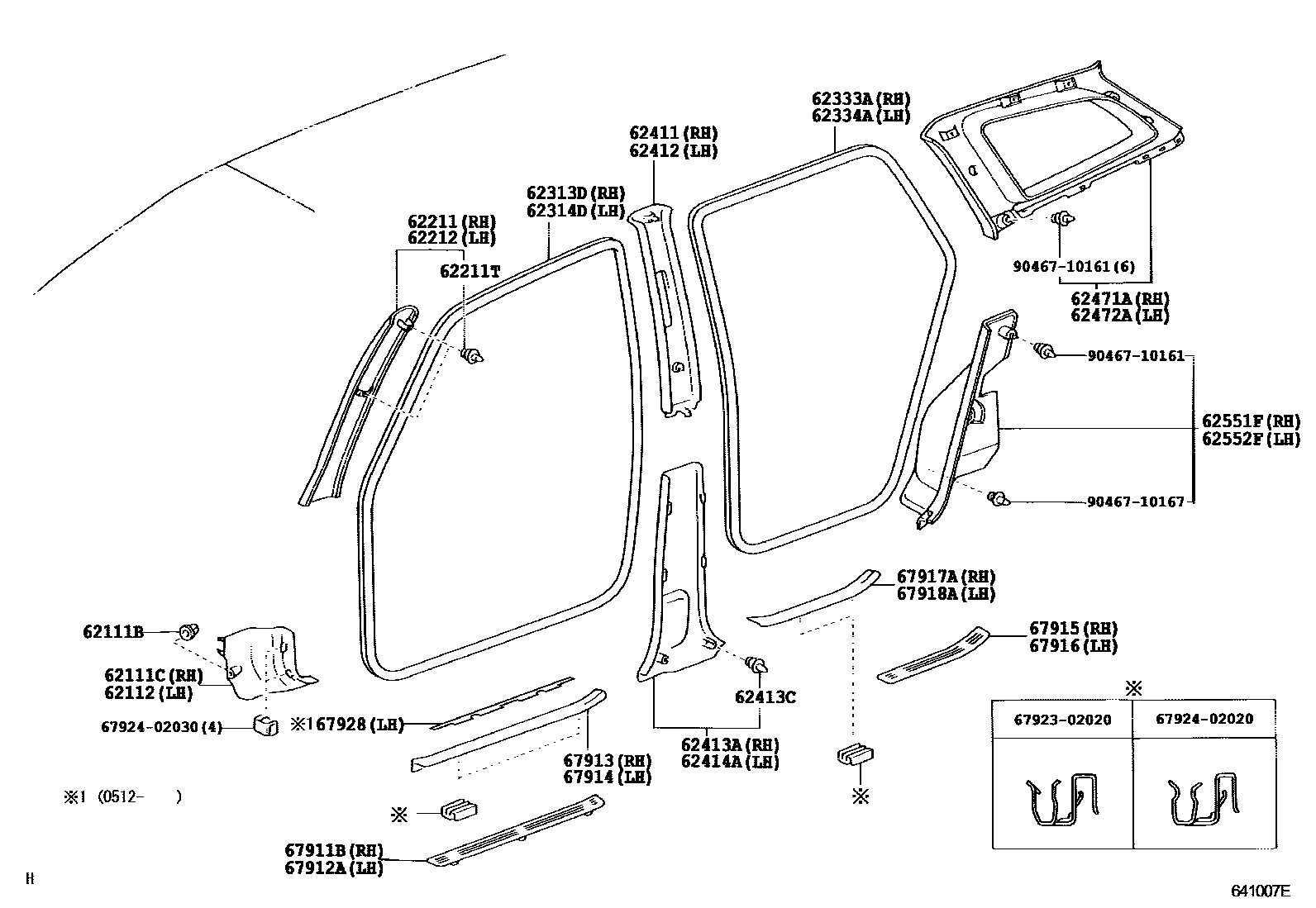

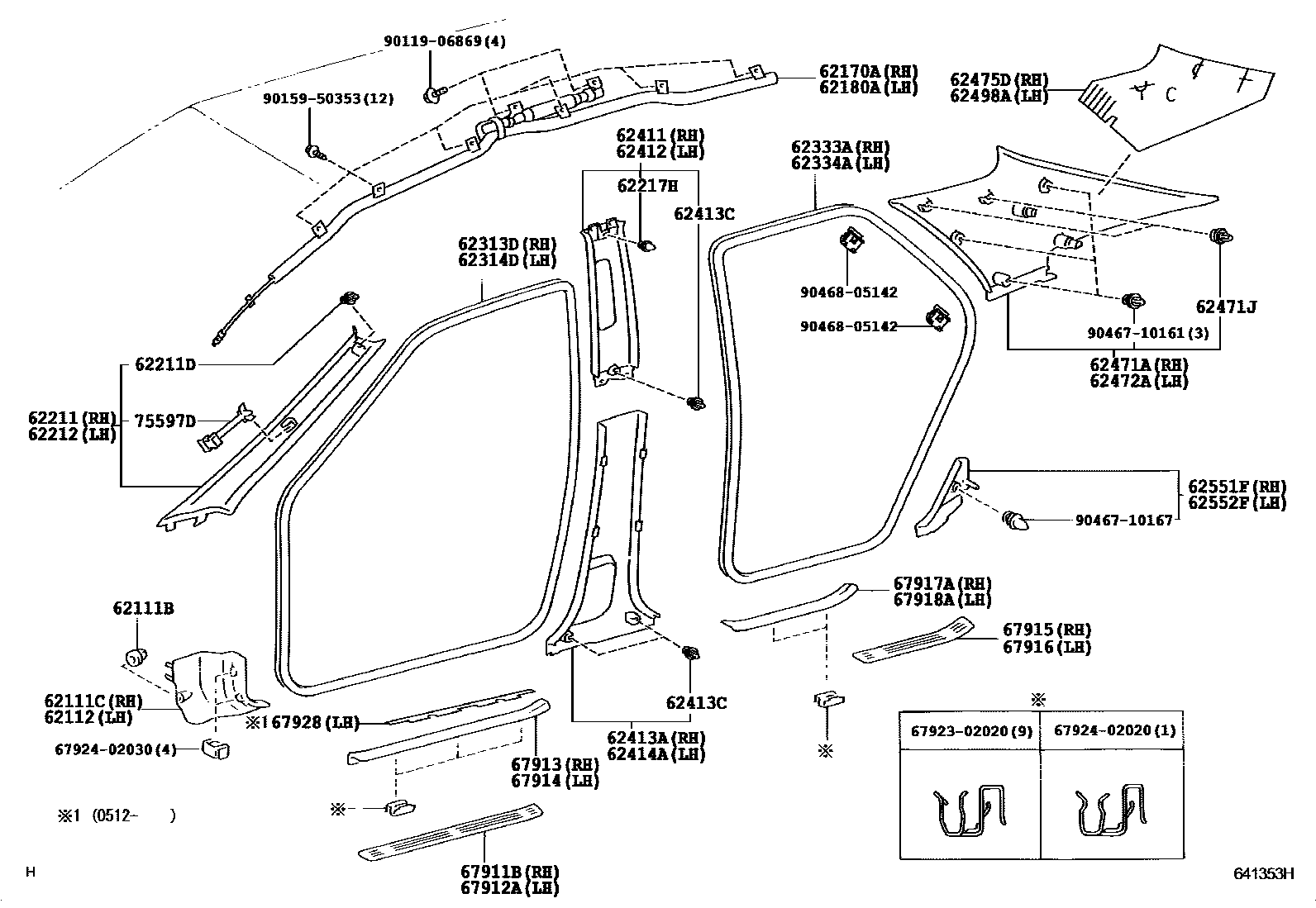

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06120 |
| 62170A | Right curtain air bag assembly | 62170-01020 · 62170-02120 |
| 62180A | Left curtain air bag assembly | 62180-01020 · 62180-02110 |
| 62211D | Clip (for body front pillar decorative panel) | 67771-12080 · 90467-10188 |
| 62211T | Clip (for front pillar decorative panel) | 62217-13010 · 90467-10192 |
| 62217H | Center pillar decorative plate clip | 62217-13010 · 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62471J | Clips (for roof side trim panels) | 62217-12050 |
| 62475D | Roof right interior trim panel lining | 62475-02060 · 62475-02070 |
| 62498A | Roof left interior panel lining | 62475-02060 · 62475-02070 |
| 67911B | Right front door outer wear plate | 67911-02040 · 67911-02060 · 67911-02120 · 67911-02130 |
| 67912A | Left front door outer wear plate | 67912-02040 · 67912-02060 · 67912-02080 · 67912-02090 |
| 67915 | Right rear door outer wear plate | 67915-02030 · 67915-02070 |
| 67916 | Left rear door outer wear plate | 67916-02030 · 67916-02070 |
| 67928 | Left front door wear plate trim | 67928-02030 · 67928-02040 |
| 75597D | Roof side trim clips | 75597-05010 · 75597-12100 |
