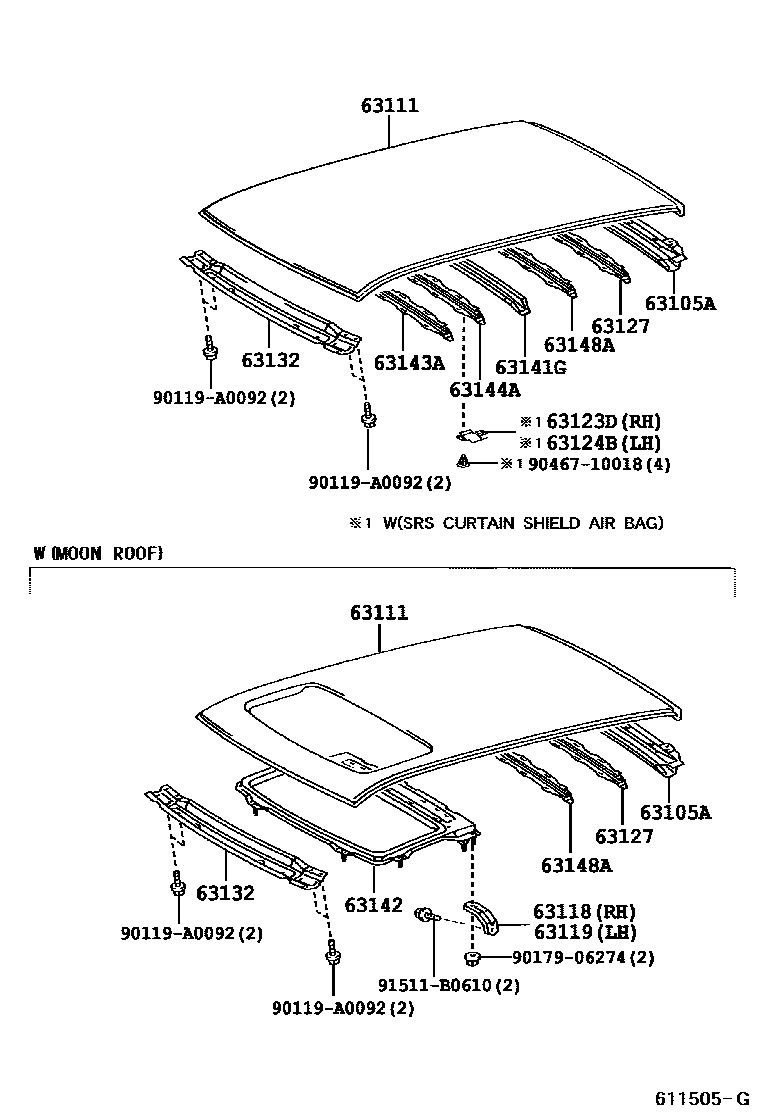

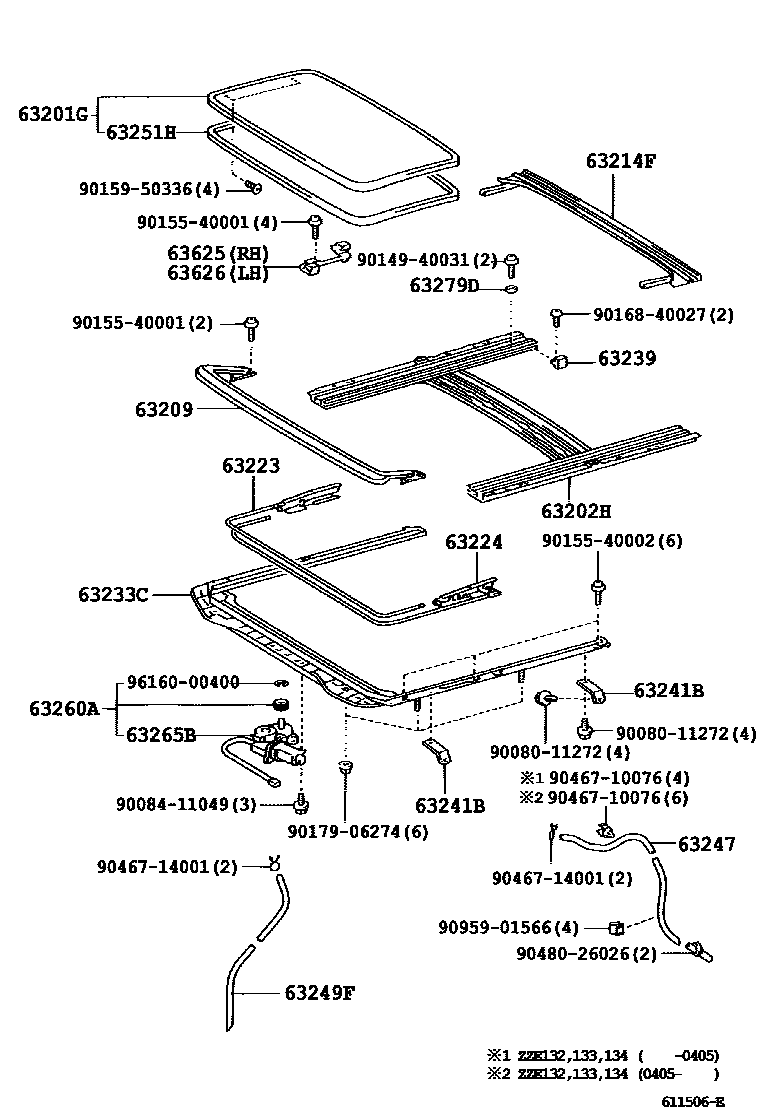

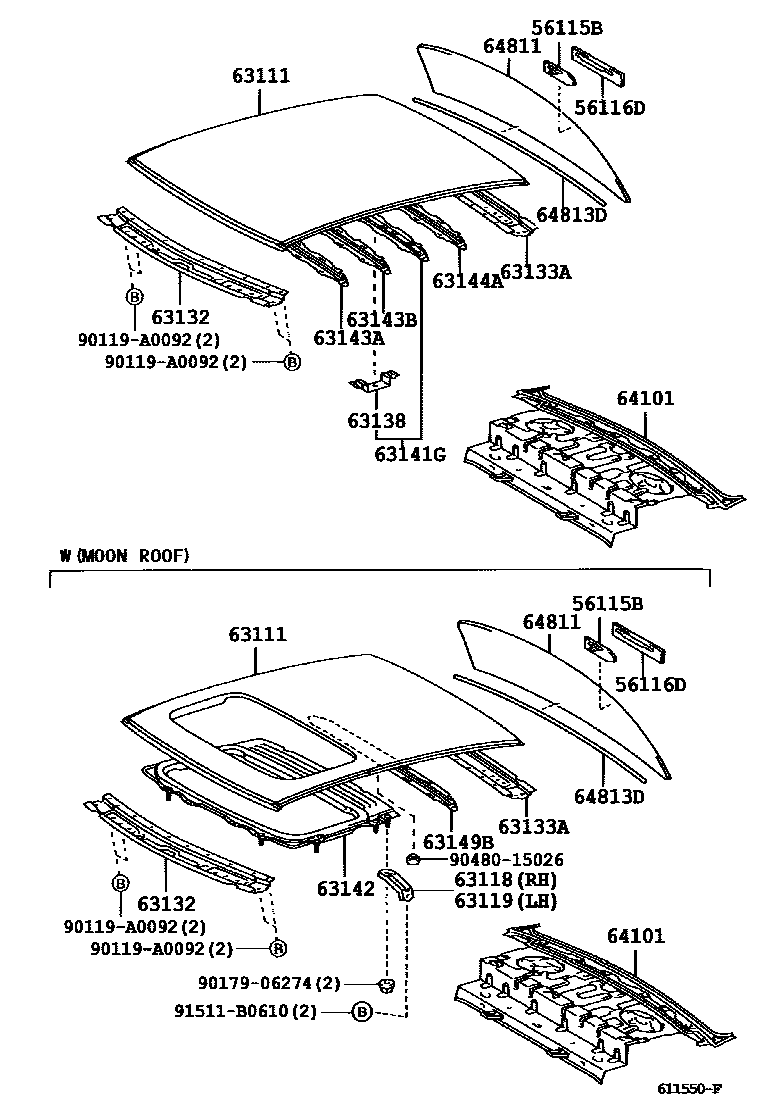

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63105A | Back door opening frame sub-assembly | 63105-02030 |
| 63111 | roof panel | 63111-02140 · 63111-02150 · 63111-02160 · 63111-02170 |
| 63118 | Right roof panel bracket | 63118-12100 |
| 63119 | Left roof panel bracket | 63118-12100 |
| 63123D | Right front roof panel reinforcement | 63123-12010 |
| 63124B | Left front roof panel reinforcement | 63124-12010 |
| 63127 | No. 5 roof panel reinforcement | 63148-01010 |
| 63132 | Windshield inner roof panel | 63132-01020 · 63132-02050 |
| 63133A | upper frame of back window | 63133-02040 |
| 63138 | No. 2 ceiling light bracket | 63138-02010 |
| 63141G | No. 1 roof panel reinforcement | 63106-02010 · 63141-01020 · 63141-01021 |
| 63142 | No. 2 roof panel reinforcement | 63142-01010 · 63142-12100 · 63142-12120 |
| 63143A | Roof panel reinforcement | 63143-01010 · 63143-02010 · 63143-02011 |
| 63143B | No. 3 roof panel reinforcement | 63143-02010 · 63143-02011 |
| 63144A | No. 4 roof panel reinforcement | 63144-01010 · 63144-01011 · 63144-02010 · 63144-02011 |
| 63148A | No. 7 roof panel reinforcement | 63148-01010 |
| 63149B | No. 1 rear roof panel reinforcement | 63149-12020 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-01010 · 63201-02050 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-01010 · 63202-02060 |
| 63209 | Roof deflector sub-assembly | 63209-12150 · 63209-12180 · 63209-12190 |
| 63214F | Roof rear drain channel | 63214-12070 |
| 63223 | Right sliding sunroof transmission cable | 63223-02020 · 63223-02021 |
| 63224 | Left sliding sunroof transmission cable | 63224-02020 · 63224-02021 |
| 63233C | Sliding skylight shelf | 63233-12090 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-02050 · 63241-52010 |
| 63247 | Sliding skylight frame drain hose | 63247-01010 · 63247-02020 · 63247-02030 · 63247-02050 · 63248-02020 |
| 63249F | Sliding skylight drain hose | 63249-02110 |
| 63251H | Sliding skylight seal | 63251-02020 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02040 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63625 | Right sliding sunroof guide block | 63625-12050 |
| 63626 | Left sliding sunroof guide block | 63626-12050 |
| 64101 | Upper back panel sub-assembly | 64101-02100 |
| 64811 | back window glass | 64811-02200 · 64811-02250 |
| 64813D | Back window glass adhesive seal | 56117-12240 · 56117-47010 |
