Toyota COROLLA 侧梁 — Figure 6101

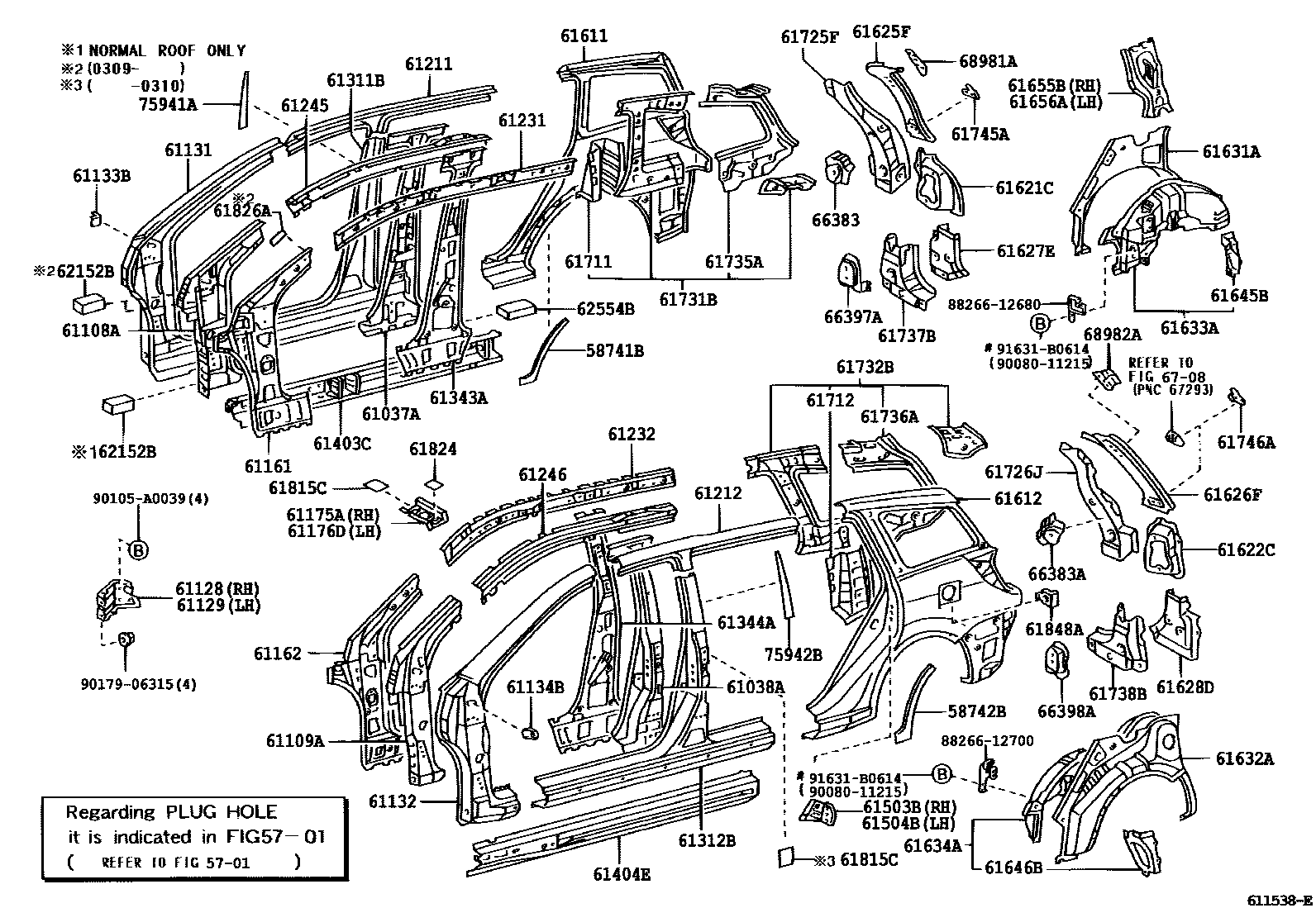

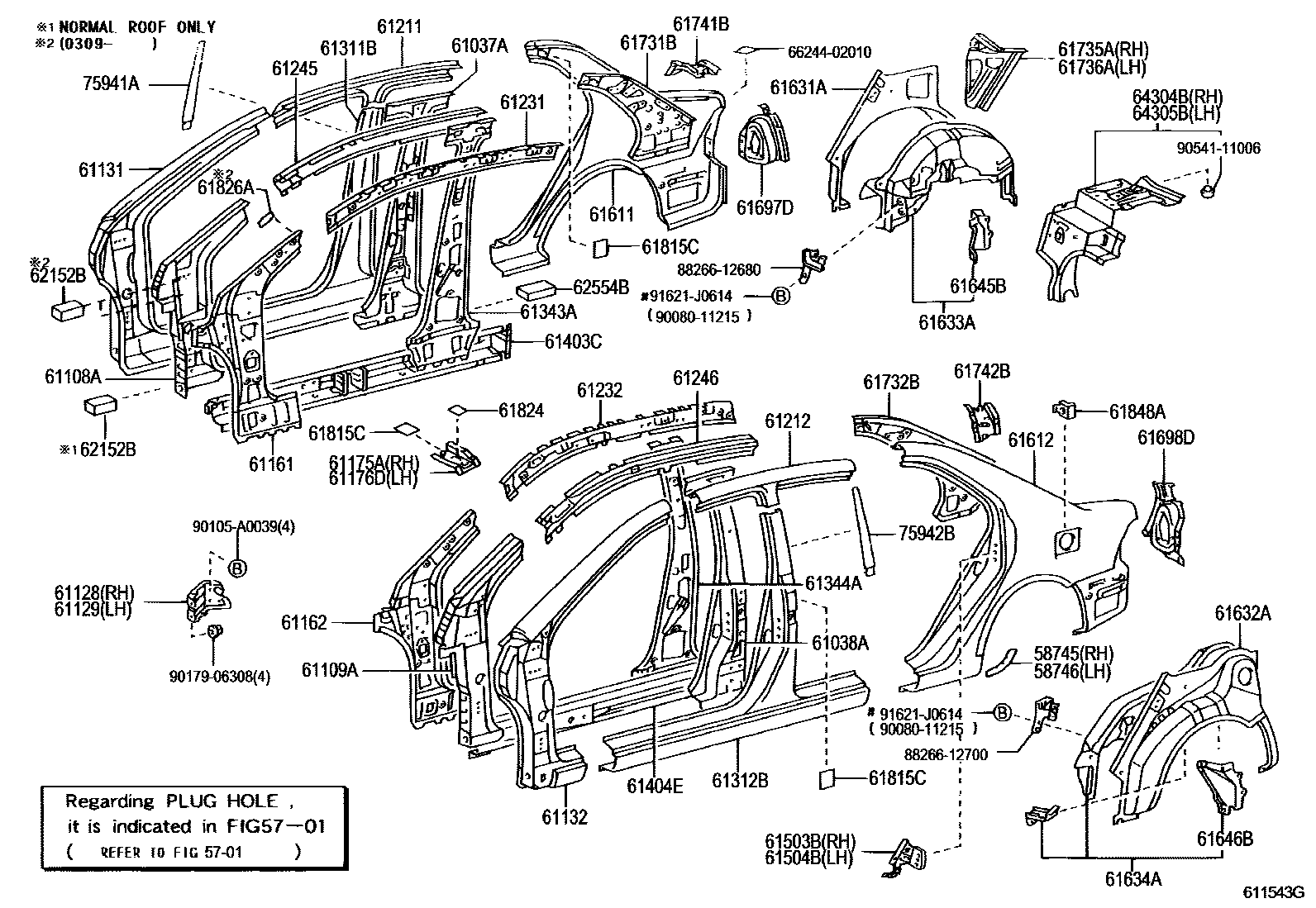

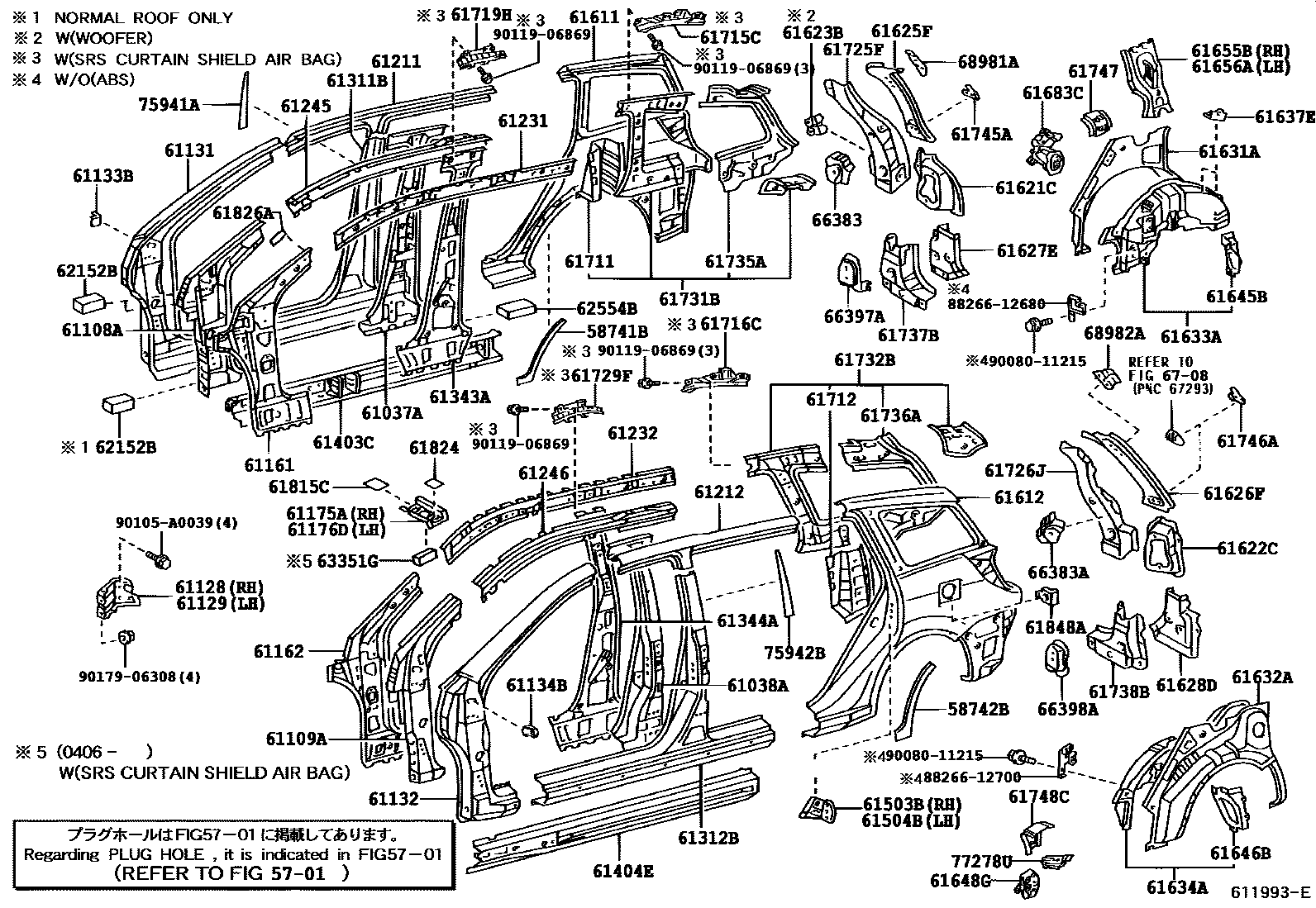

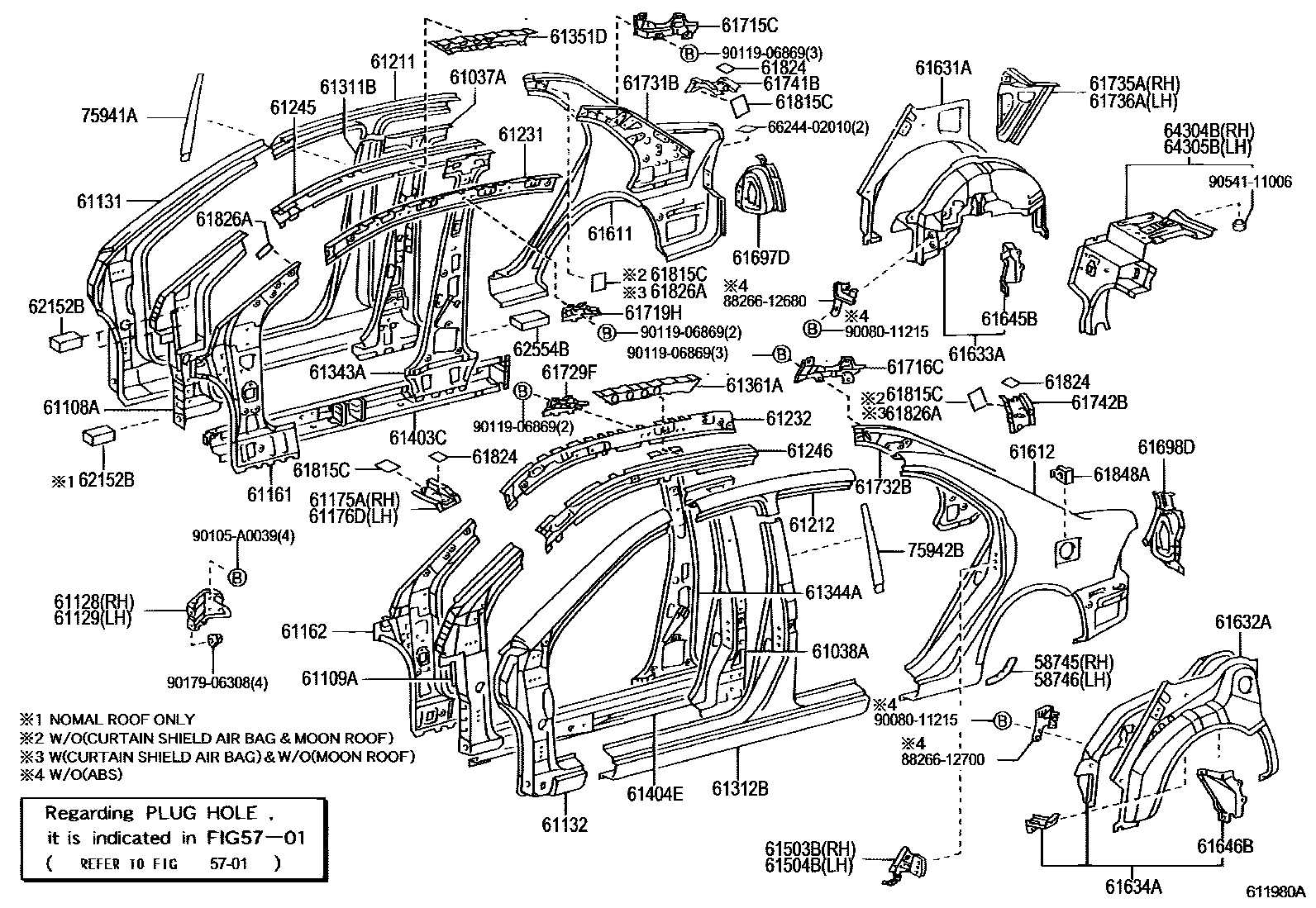

Toyota COROLLA EPC diagram 6101, 侧梁, with 4 images and 94 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-02050 |
| 58742B | Left side enclosure protection panel | 58742-02050 |
| 58745 | Right front side panel protector | 58741-02060 |
| 58746 | Left front side panel protector | 58742-02060 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-01900 · 61037-02903 · 61037-02906 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-01900 · 61038-02903 · 61038-02906 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-01020 · 61108-02070 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-01020 · 61109-02070 |
| 61128 | Right front wall side panel reinforcement | 61103-02030 · 61103-02060 |
| 61129 | Left front wall side panel reinforcement | 61104-02030 · 61104-02060 |
| 61131 | Right body outer front upper pillar | 61131-02090 · 61131-02100 · 61131-02110 · 61131-02120 |
| 61132 | Left body outer front upper pillar | 61132-02120 · 61132-02130 · 61132-02140 · 61132-02150 |
| 61133B | Right body outer front pillar bracket | 61133-12190 |
| 61134B | Left body outer front pillar bracket | 61133-12190 |
| 61161 | Right upper body inner front pillar | 61023-02090 · 61023-02091 · 61023-02092 · 61023-02110 · 61023-02111 · 61023-02112 · 61023-02130 · 61023-02140 |
| 61162 | Left side inner front upper pillar | 61024-01030 · 61024-01031 · 61024-01032 · 61024-01040 · 61024-02090 · 61024-02091 · 61024-02092 · 61024-02120 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-01010 · 61175-02040 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-01010 · 61176-02040 |
| 61211 | Roof right outer longitudinal beam | 61211-02070 · 61211-02080 |
| 61212 | Roof left outer longitudinal beam | 61212-02070 · 61212-02080 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-01030 · 61231-01031 · 61231-01032 · 61231-01040 · 61231-02040 · 61231-02100 |
| 61232 | Roof left inner longitudinal beam | 61232-01030 · 61232-01031 · 61232-01032 · 61232-01040 · 61232-02040 · 61232-02100 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-02040 · 61245-02050 · 61245-02060 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-02040 · 61246-02050 · 61246-02070 |
| 61311B | Right body outer center pillar | 61311-02060 · 61311-02070 · 61311-02080 · 61311-02090 |
| 61312B | Left body outer center pillar | 61312-02060 · 61312-02070 · 61312-02080 · 61312-02090 |
| 61343A | Right body inner center pillar | 61343-01020 · 61343-01021 · 61343-02050 · 61343-02051 |
| 61344A | Left body inner center pillar | 61344-01020 · 61344-01021 · 61344-02050 · 61344-02051 |
| 61351D | No. 1 right longitudinal beam in the outer center | 61351-02010 |
| 61361A | Outer center No. 1 left longitudinal beam | 61361-02010 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-01010 · 61403-02040 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-01010 · 61404-02040 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-01020 · 61503-02030 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-01020 · 61504-02030 |
| 61611 | Right side hoarding | 61601-02140 · 61601-02150 · 61601-02160 · 61601-02190 |
| 61612 | left side panel | 61602-02120 · 61602-02130 · 61602-02140 · 61602-02160 |
| 61621C | Luggage right opening slot | 61621-02090 |
| 61622C | Luggage trunk left opening slot | 61622-02090 |
| 61623B | Back door right rear opening slot | 61623-02030 |
| 61625F | Extension on right side panel | 61625-02030 · 61625-02031 |
| 61626F | Extension on left side panel | 61626-02030 · 61626-02031 |
| 61627E | Right rear side panel lower extension | 61627-02040 |
| 61628D | Left rear side panel lower extension | 61628-02040 |
| 61631A | Right wheel cover outer panel | 61631-01030 · 61631-01031 · 61631-01032 · 61631-02070 |
| 61632A | Left side wheel cover outer panel | 61632-01030 · 61632-02070 |
| 61633A | Right wheel housing lining panel | 61607-01170 · 61607-01180 · 61607-01200 · 61607-02919 · 61607-02920 · 61607-02932 · 61607-02933 · 61607-02934 · 61607-02940 · 61607-02941 · 61607-02942 |
| 61634A | Left side wheel housing lining panel | 61608-01150 · 61608-01160 · 61608-01180 · 61608-01906 · 61608-01907 · 61608-01908 · 61608-02917 · 61608-02918 · 61608-02931 · 61608-02932 · 61608-02933 |
| 61637E | Side wheel arch bracket | 61637-01020 |
| 61645B | Right rear side wheel housing corner panel | 61645-02050 |
| 61646B | Left rear side wheel housing corner panel | 61646-02050 |
| 61648G | Rear left seat backrest pivot lower seat | 61648-01010 |
| 61655B | Right side wheel cover inner corner panel | 61655-01900 |
| 61656A | Left side wheel housing inner corner panel | 61656-01900 |
| 61683C | Rear right seat backrest hinge bracket | 61087-01020 |
| 61697D | Right side enclosure end cover | 61697-02902 |
| 61698D | Left side enclosure end cover | 61698-02902 |
| 61711 | Roof right side outer panel | 61711-01020 |
| 61712 | Roof left outer panel | 61712-01020 |
| 61715C | Roof right bracket | 61715-02040 · 61715-02050 |
| 61716C | Roof left bracket | 61716-02040 · 61716-02050 |
| 61719H | Roof right side longitudinal beam bracket sub-assembly | 61719-01010 · 61719-02050 |
| 61725F | Rear door opening upper right reinforcement | 61725-02020 |
| 61726J | Rear door opening upper left reinforcement | 61726-02010 |
| 61729F | Roof left side longitudinal beam bracket sub-assembly | 61729-01010 · 61729-02050 |
| 61731B | Roof right inner panel | 61705-02900 · 61705-02901 · 61705-02902 · 61731-02080 · 61731-02081 · 61731-02150 |
| 61732B | Roof left inner panel | 61706-02900 · 61706-02901 · 61732-02080 · 61732-02081 · 61732-02150 · 61732-02151 |
| 61735A | Right rear roof inner panel | 61735-02040 · 61735-02050 · 61735-02051 |
| 61736A | Left rear roof inner panel | 61736-02040 · 61736-02050 |
| 61737B | Right inner lower panel of the roof | 61737-02020 |
| 61738B | Roof left inner lower panel | 61738-02020 |
| 61741B | Rear window opening right reinforcement | 61741-02040 · 61741-02041 |
| 61742B | Rear window opening left reinforcement | 61742-02040 · 61742-02041 |
| 61745A | Back door opening lower right reinforcement | 61745-02010 |
| 61746A | Rear door opening lower left reinforcement | 61746-02010 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-01020 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-01020 |
| 61815C | Inner roof cover | 61815-02040 |
| 61824 | Noise Control Panel No. 1 | 61824-02050 |
| 61826A | Noise Control Panel No. 3 | 61826-12020 · 61826-52020 |
| 61848A | Left side panel fixing | 61848-02030 |
| 62152B | No. 2 silencer pad on cowl side | 62152-02020 |
| 62554B | No. 4 column pad | 62554-02040 |
| 63351G | No. 1 roof lining lining block | 63351-01020 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02901 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02901 |
| 66383 | No. 1 right rope hook stay bracket | 66383-12040 |
| 66383A | No. 1 left rope hook stay bracket | 66384-12020 |
| 66397A | Right rope hook stay fixing | 66397-02010 |
| 66398A | Left side rope hook stay fixing | 66398-02010 |
| 68981A | Back door right side support rod fixing | 68901-02010 |
| 68982A | Back door left support rod fixing | 68902-02010 |
| 75941A | Right center pillar trim | 75941-01010 · 75941-02020 |
| 75942B | Left center pillar trim | 75942-01010 · 75942-02020 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-32050 |
