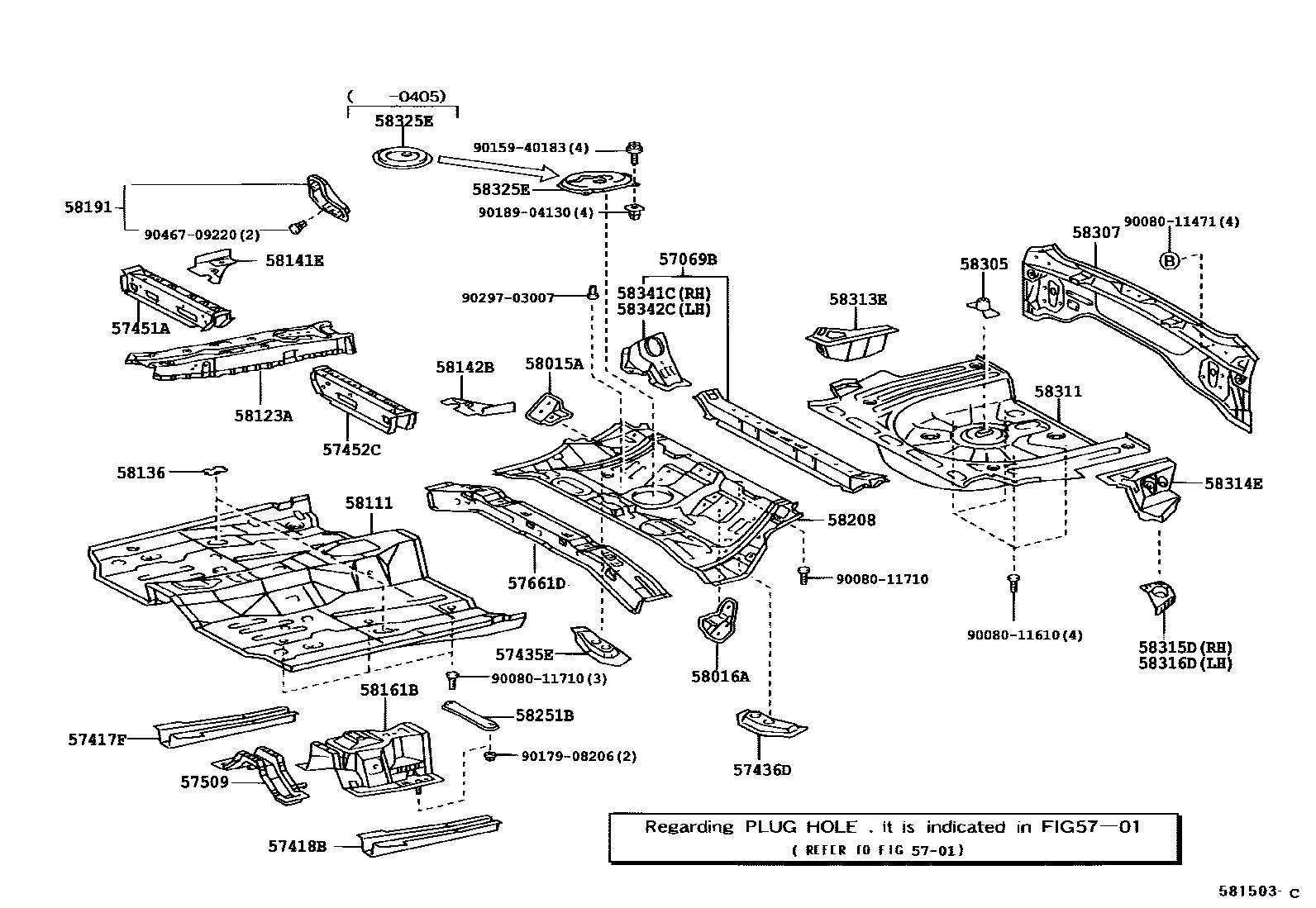

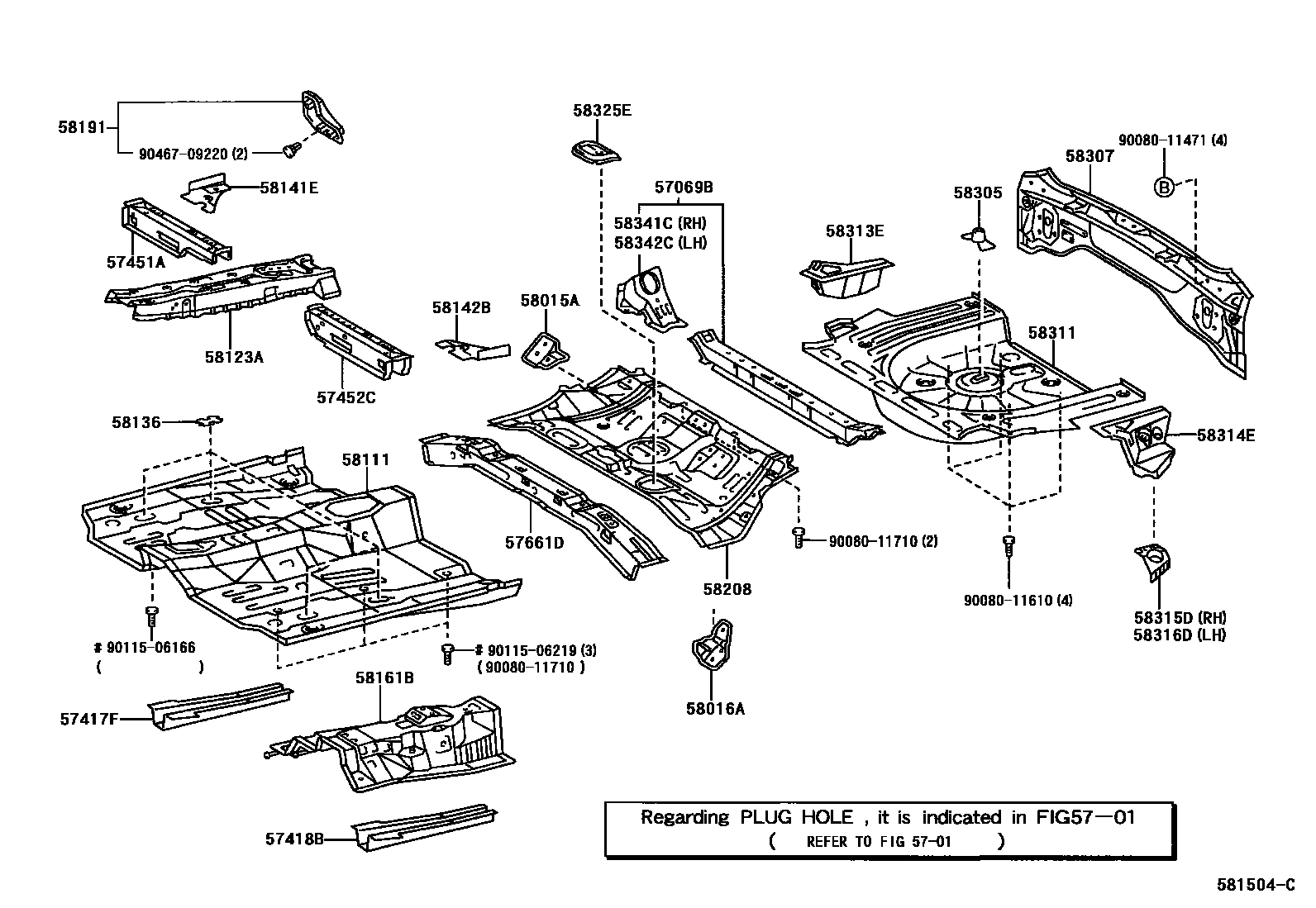

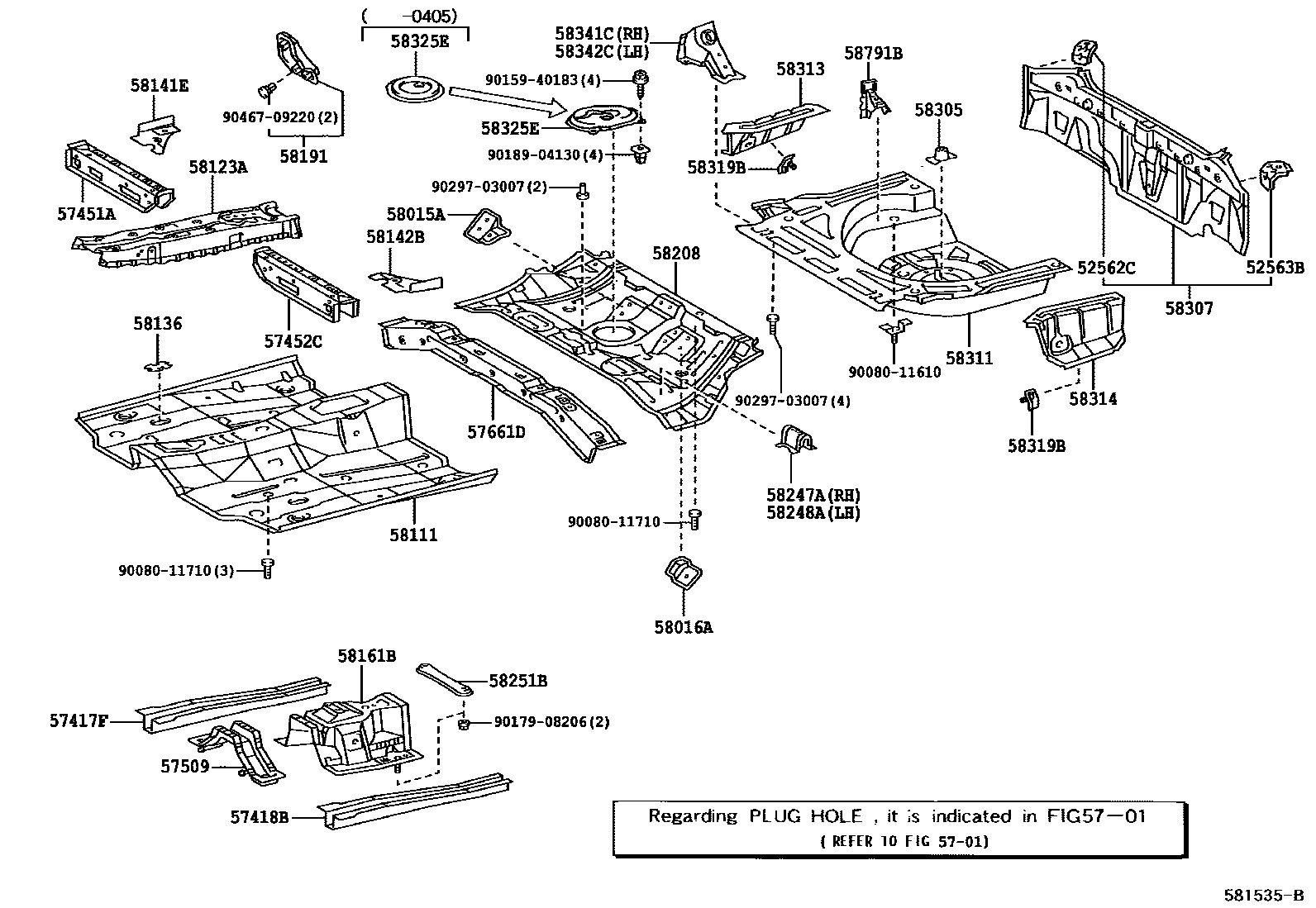

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562C | Rear bumper upper right fixing bracket | 52562-02020 |
| 52563B | Rear bumper upper left fixing bracket | 52562-02020 |
| 57069B | Rear floor middle cross member sub-assembly | 57069-01010 · 57069-01020 |
| 57417F | Front floor lower right reinforcement | 57417-02060 |
| 57418B | Front floor lower left reinforcement | 57417-02060 |
| 57435E | Center floor right longitudinal beam | 57435-01010 |
| 57436D | Center floor left longitudinal beam | 57436-01010 |
| 57451A | Front floor right cross member | 57451-01020 · 57451-01040 |
| 57452C | Front floor left cross member | 57452-01010 · 57452-02040 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-02030 |
| 57661D | rear floor front cross member | 57407-01010 · 57661-02050 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02020 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-01010 · 58016-02020 · 58016-02040 |
| 58111 | front floor pan | 58111-02902 · 58111-02903 · 58111-12904 |
| 58123A | shift lever bracket | 58013-02050 · 58013-12050 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-02010 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-02010 |
| 58161B | Seat belt anchor to floor pan reinforcement | 57805-02090 · 57805-12100 |
| 58191 | Front floor footrest | 58192-02050 |
| 58208 | central floor base | 58211-01030 · 58211-01040 · 58211-01041 · 58211-01050 · 58211-01060 · 58211-02130 · 58211-02131 · 58211-02140 · 58211-02160 · 58211-02170 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-02030 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-02030 |
| 58251B | front floor bracket | 58251-02010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-02110 · 58307-02120 |
| 58311 | rear floor pan | 58311-01900 · 58311-02904 |
| 58313 | Rear floor right panel | 58313-02040 |
| 58313E | Rear floor right side panel extension | 58313-01040 |
| 58314 | rear floor left panel | 58314-02040 |
| 58314E | Rear floor left side panel extension | 58314-01040 |
| 58315D | Rear floor pan right extension | 58315-01020 |
| 58316D | Rear floor pan left extension | 58316-01030 |
| 58319B | Rear floor side panel bracket | 58319-02010 |
| 58325E | Rear floor access hole cover | 58325-01030 · 58325-02050 · 58325-02071 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-01010 · 58341-01020 · 58341-02030 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-01010 · 58342-01020 · 58342-02030 |
| 58791B | jack bracket | 58791-02010 |
