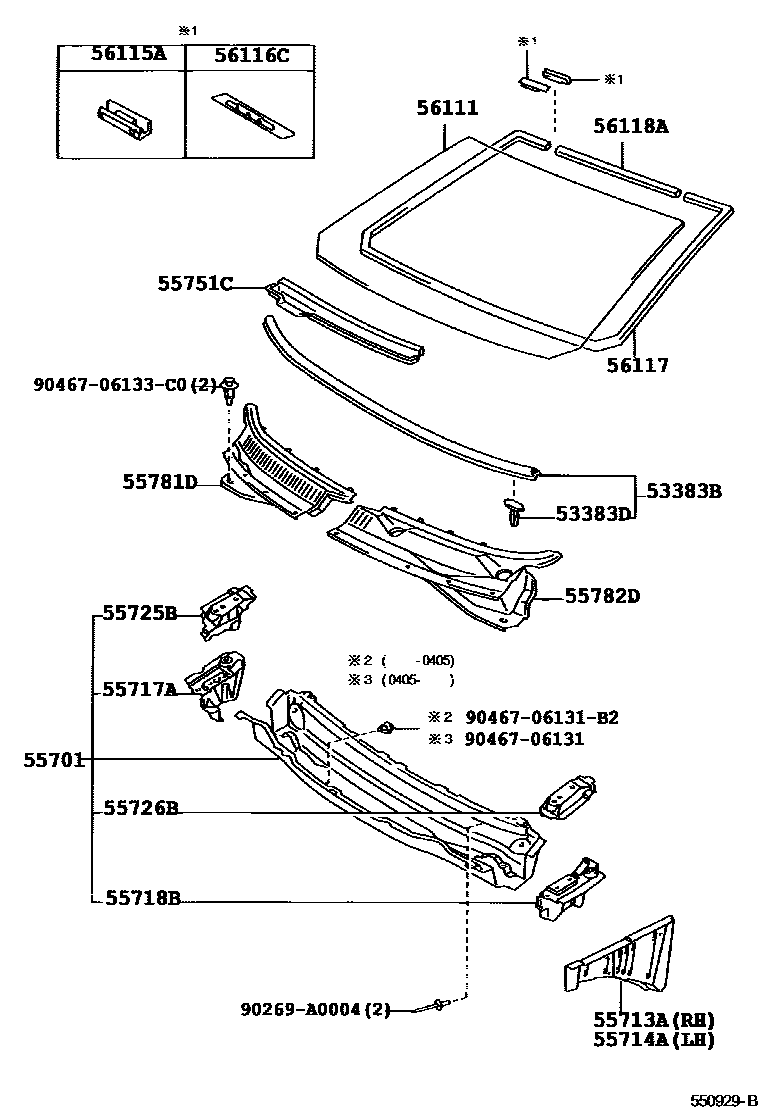

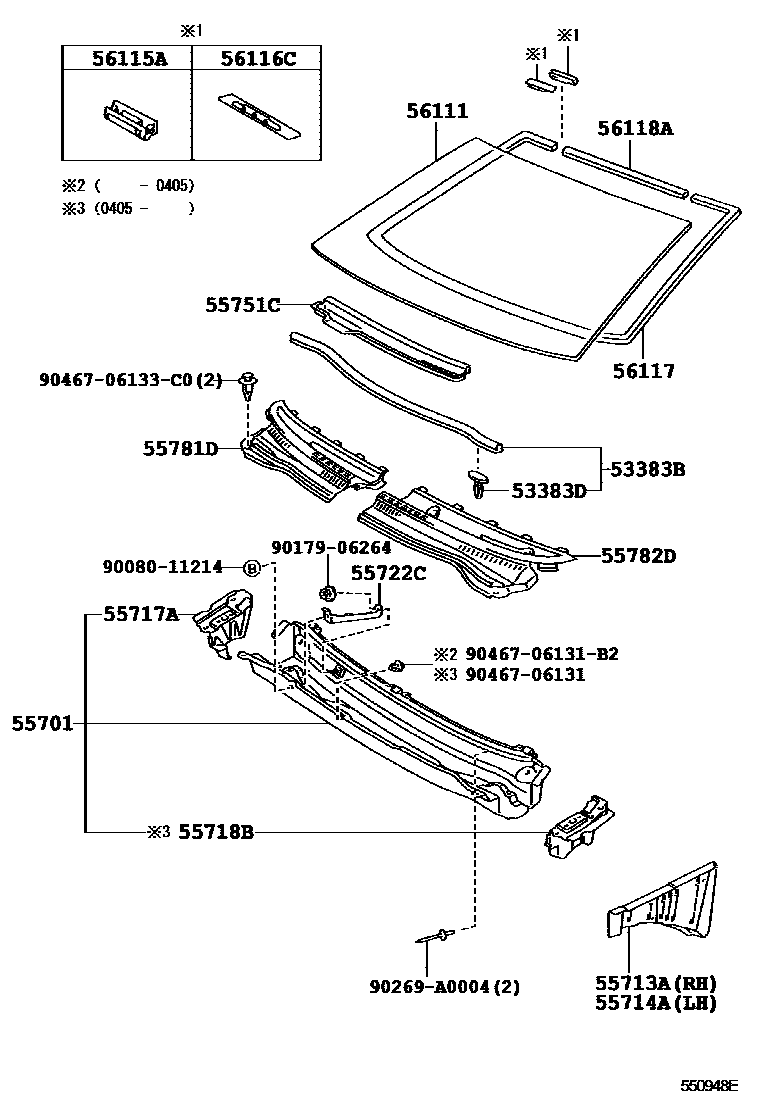

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-01020 · 53383-02070 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 |
| 55701 | Front apron sub-assembly | 55700-02230 · 55700-02240 |
| 55713A | Right front wall upper side panel | 55713-02040 |
| 55714A | Left front wall upper side panel | 55714-02040 |
| 55717A | Upper right inner panel of cowl | 55717-02050 |
| 55718B | Upper left inner panel of front wall | 55718-02040 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-02010 |
| 55725B | Engine cover hinge installation reinforcement | 55705-02030 |
| 55726B | Engine cover left hinge installation reinforcement | 55706-02030 |
| 55751C | Front ventilator splash guard | 55751-02070 |
| 55781D | Ventilation grille on right front apron | 55708-02170 · 55708-02180 · 55708-02190 · 55708-02191 · 55708-02200 · 55708-02201 |
| 55782D | Ventilation grille on left front apron | 55709-02090 · 55709-02100 · 55709-02110 · 55709-02111 · 55709-02120 · 55709-02121 |
| 56111 | windshield | 56101-02050 · 56101-02060 · 56101-02250 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117 | Front pillar outer sealing strip | 90998-91004 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 90998-91003 |
