Toyota COROLLA 仪表板和手套箱 — Figure 5501

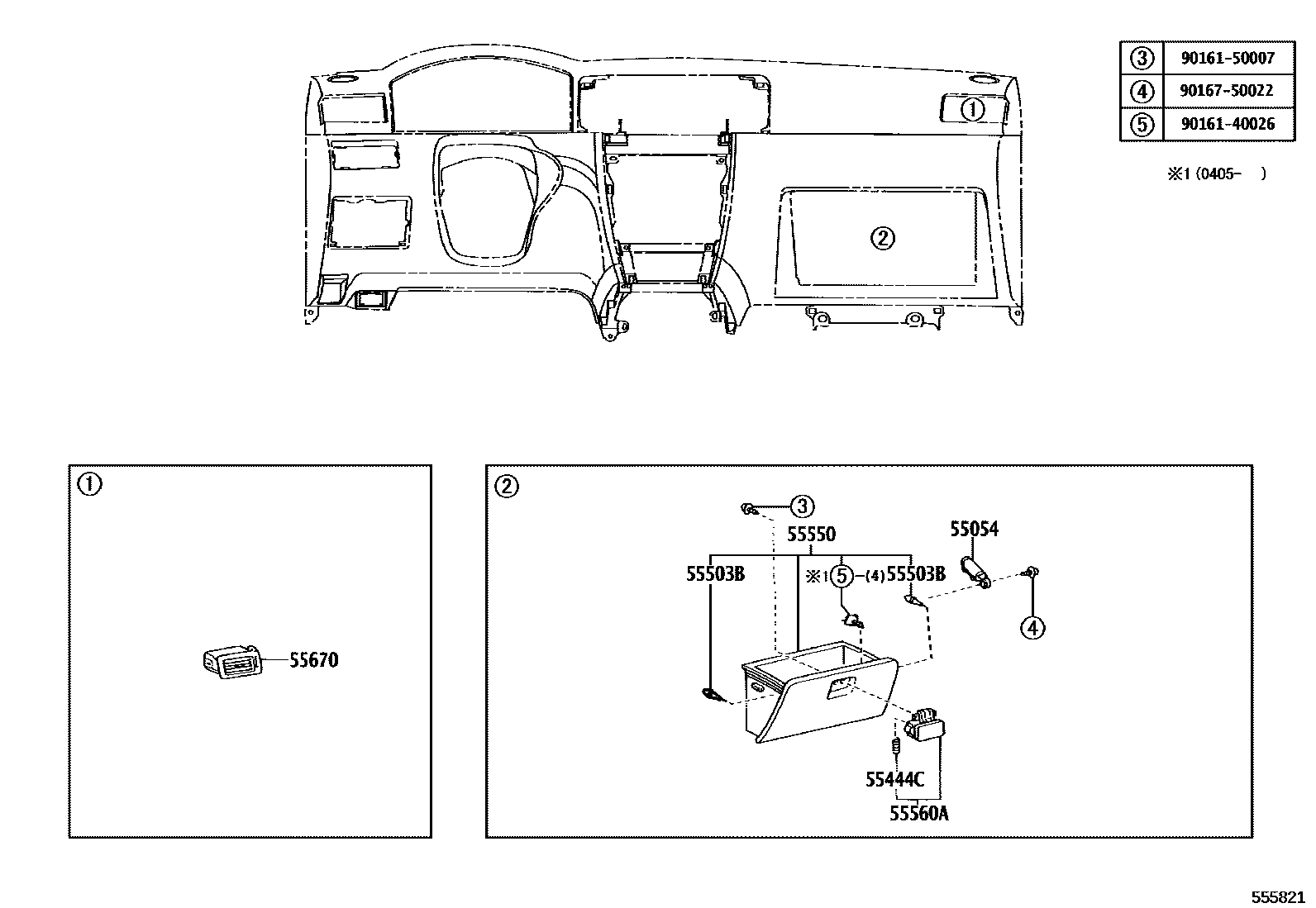

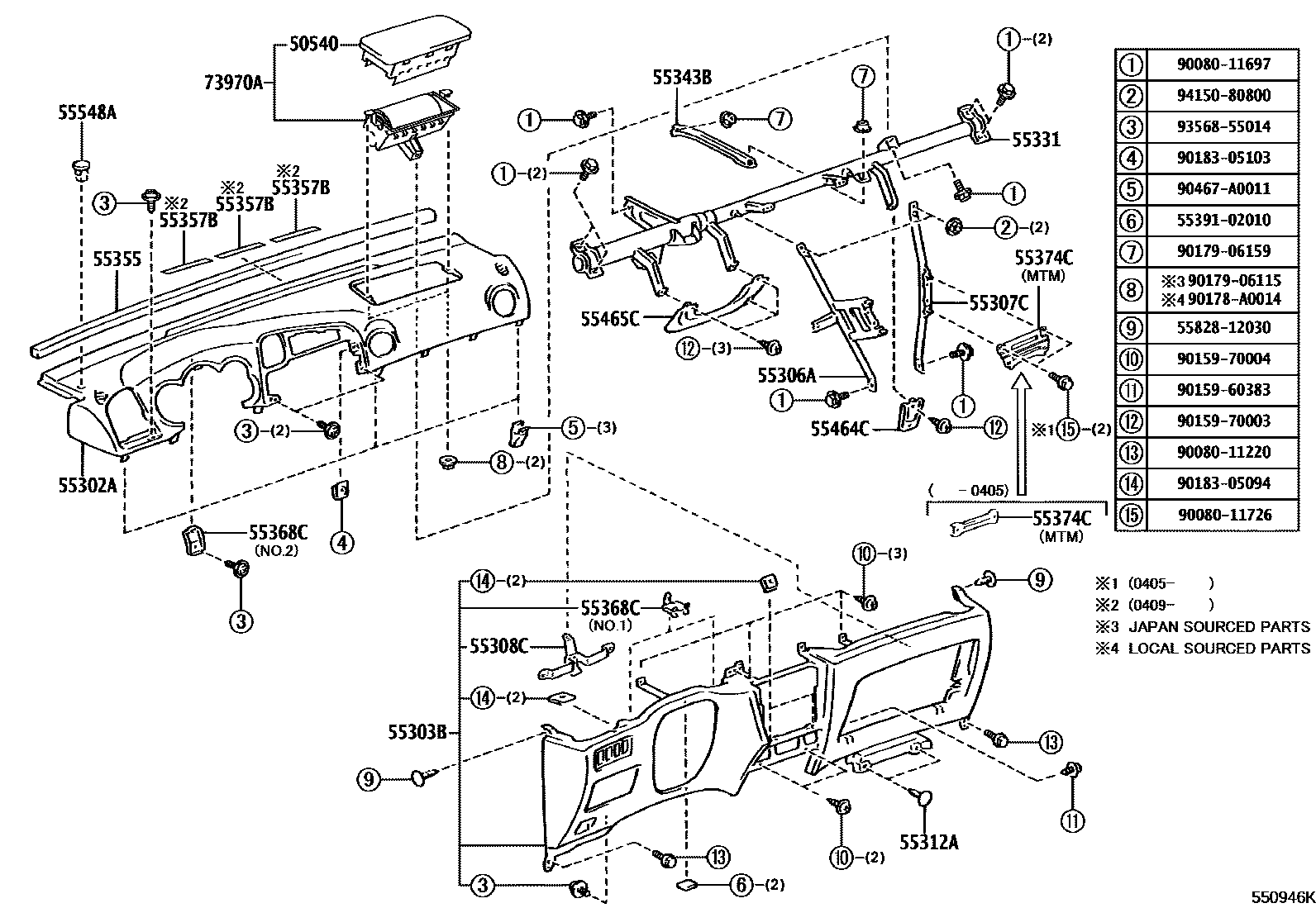

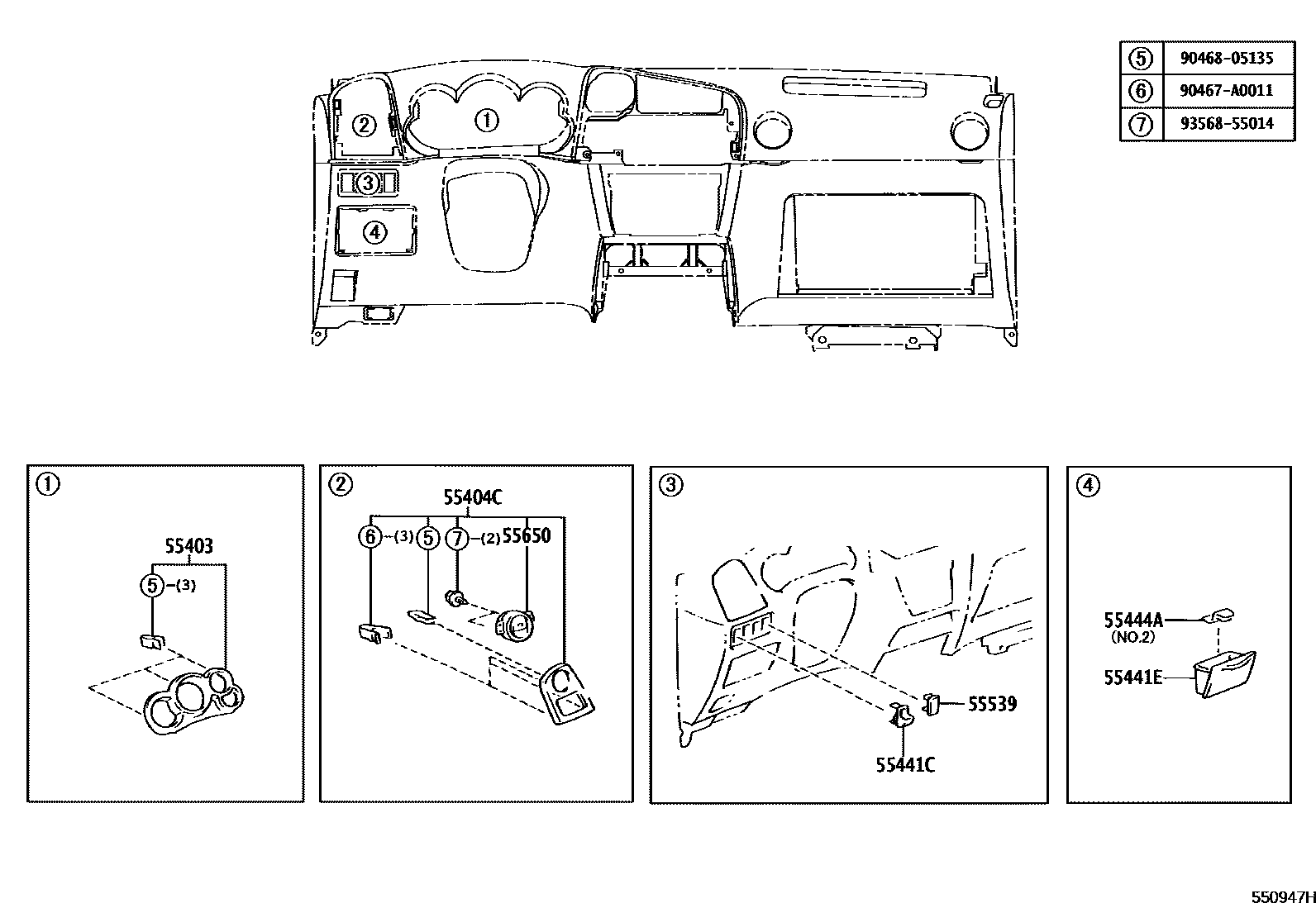

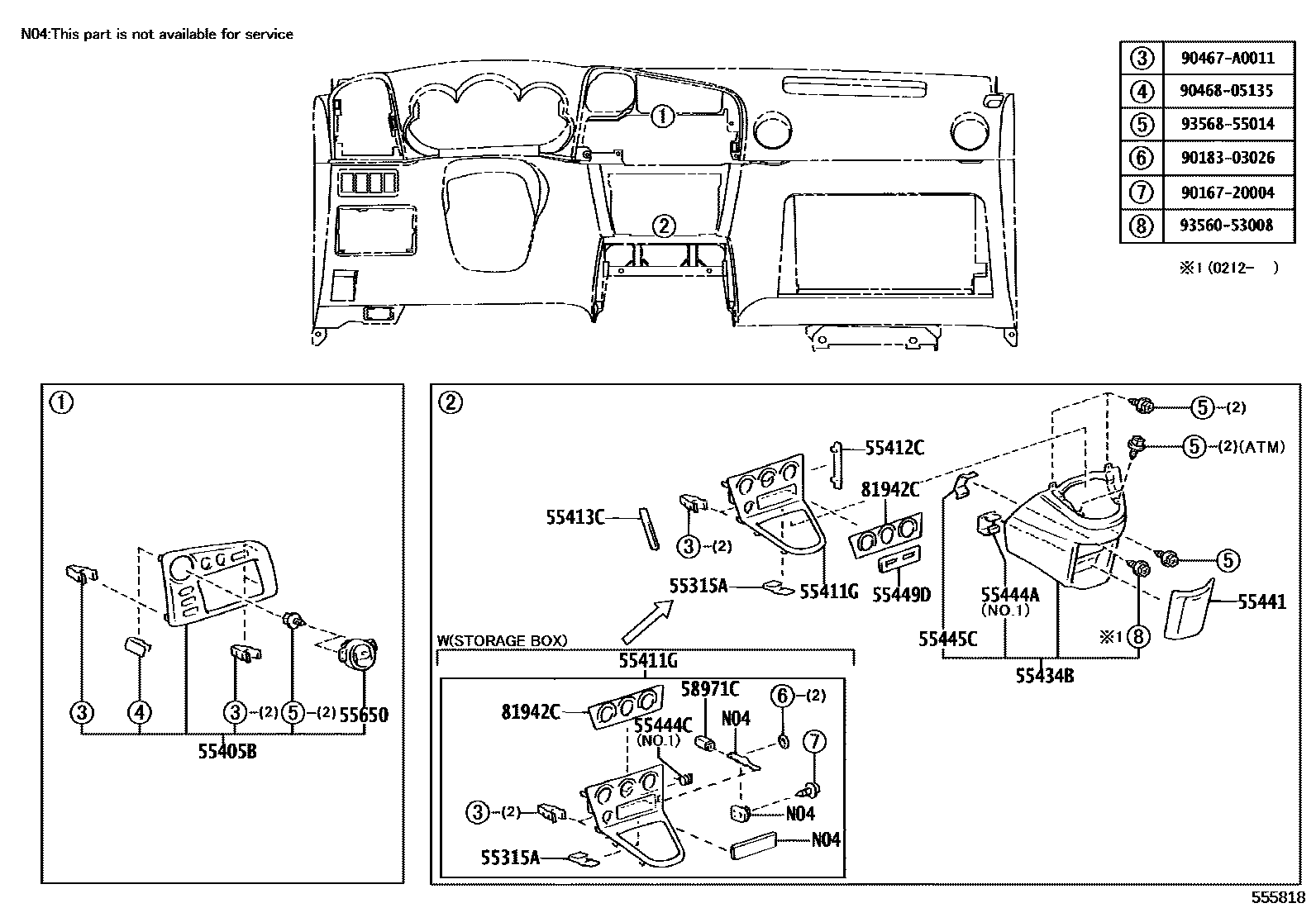

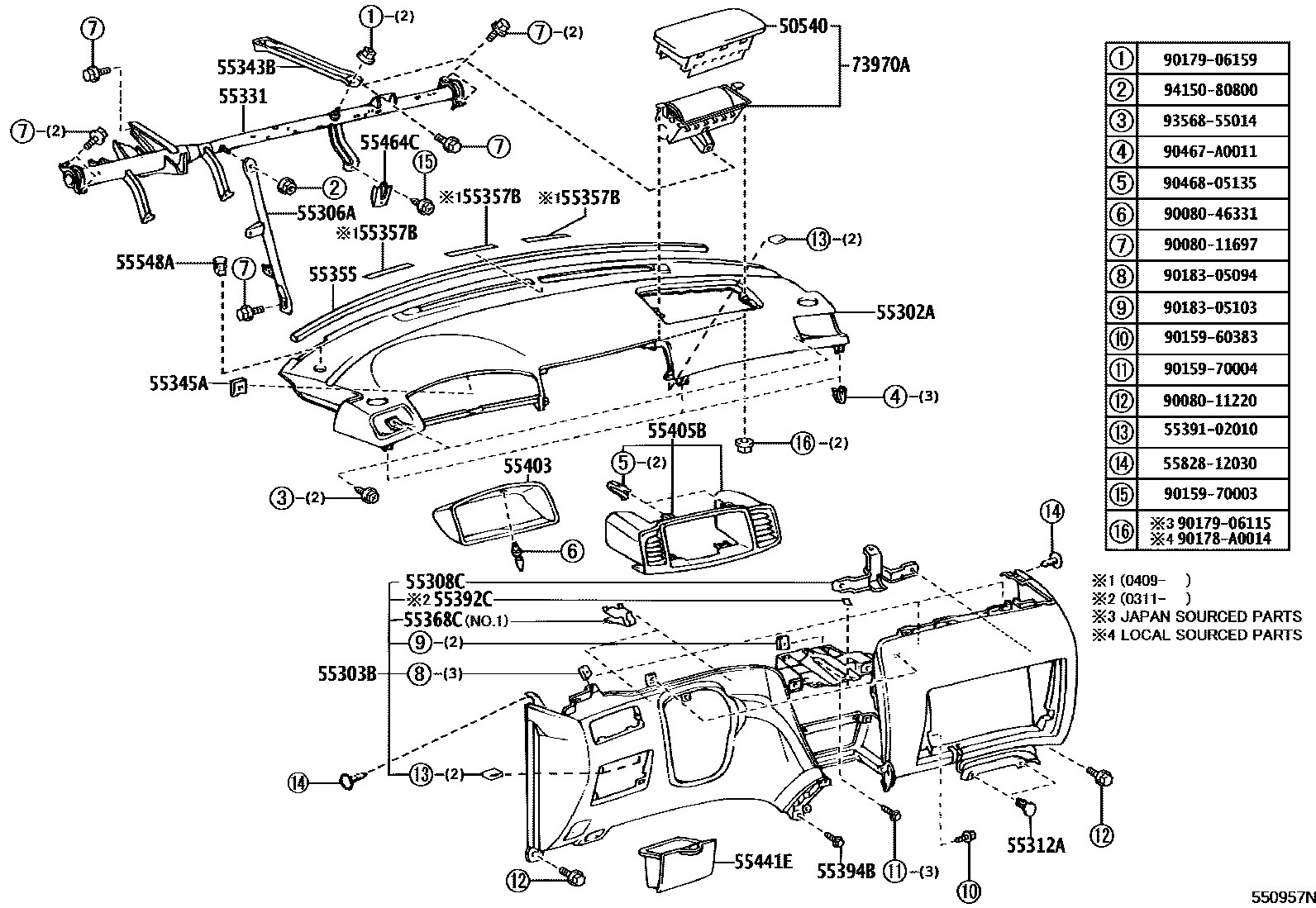

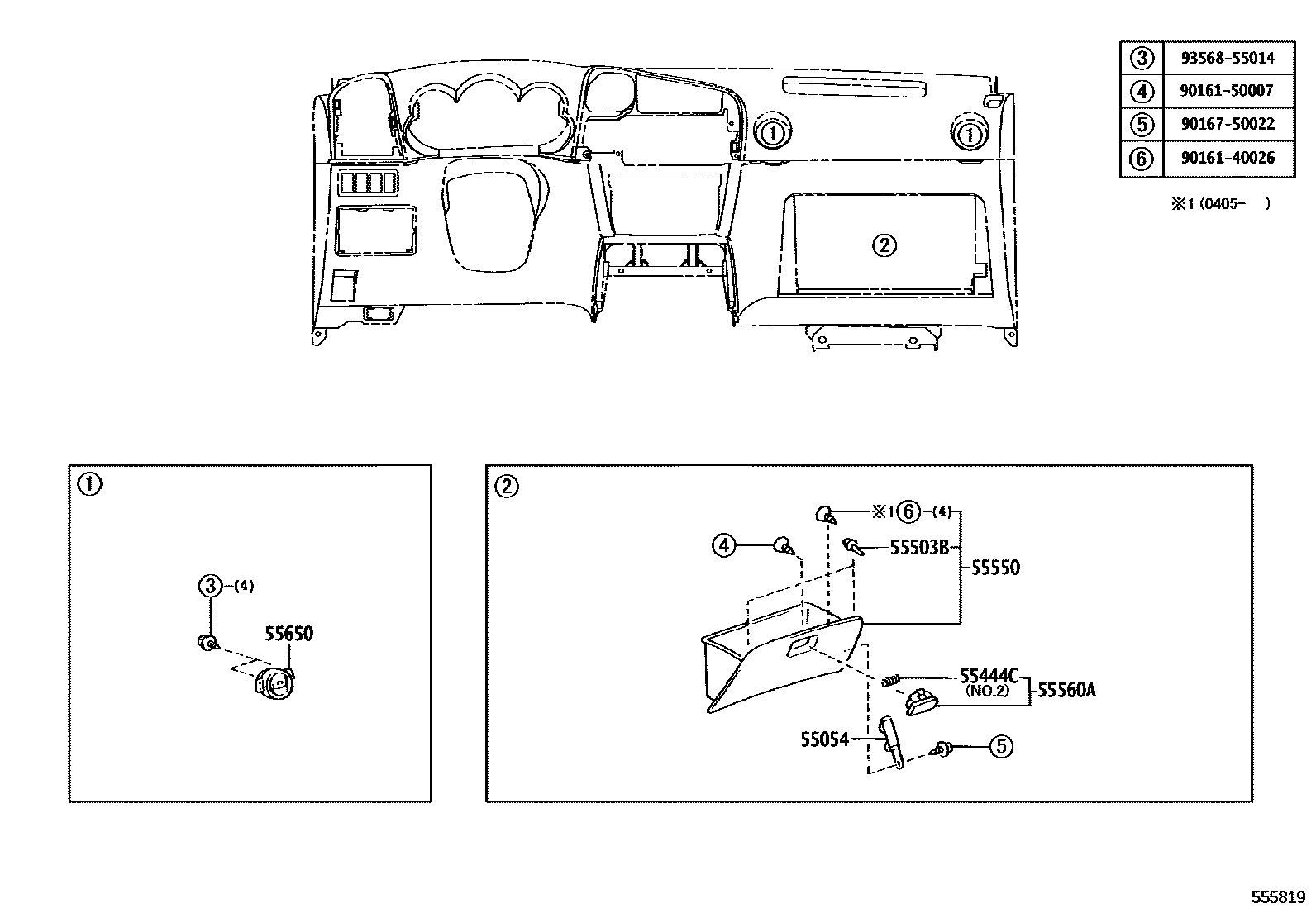

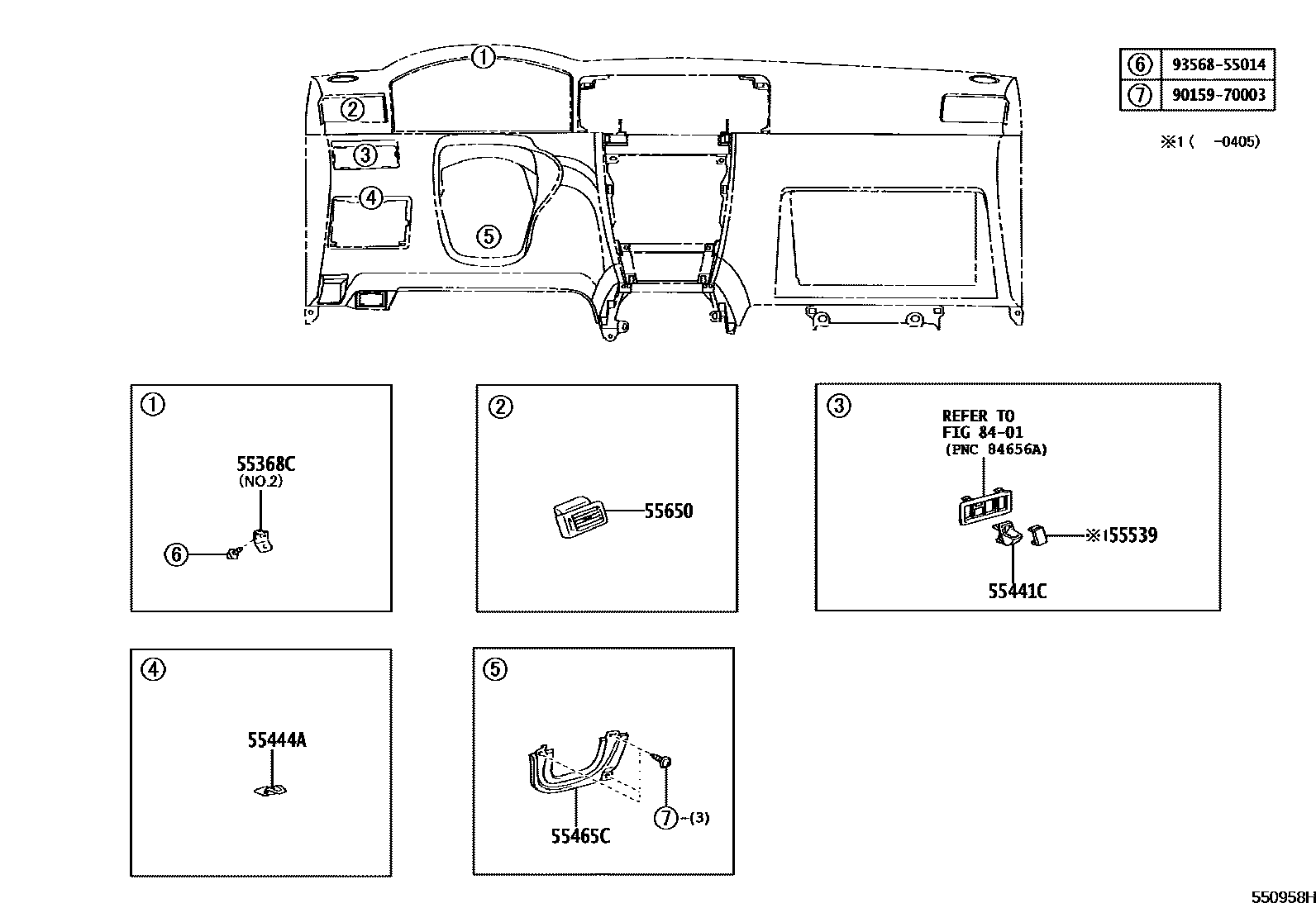

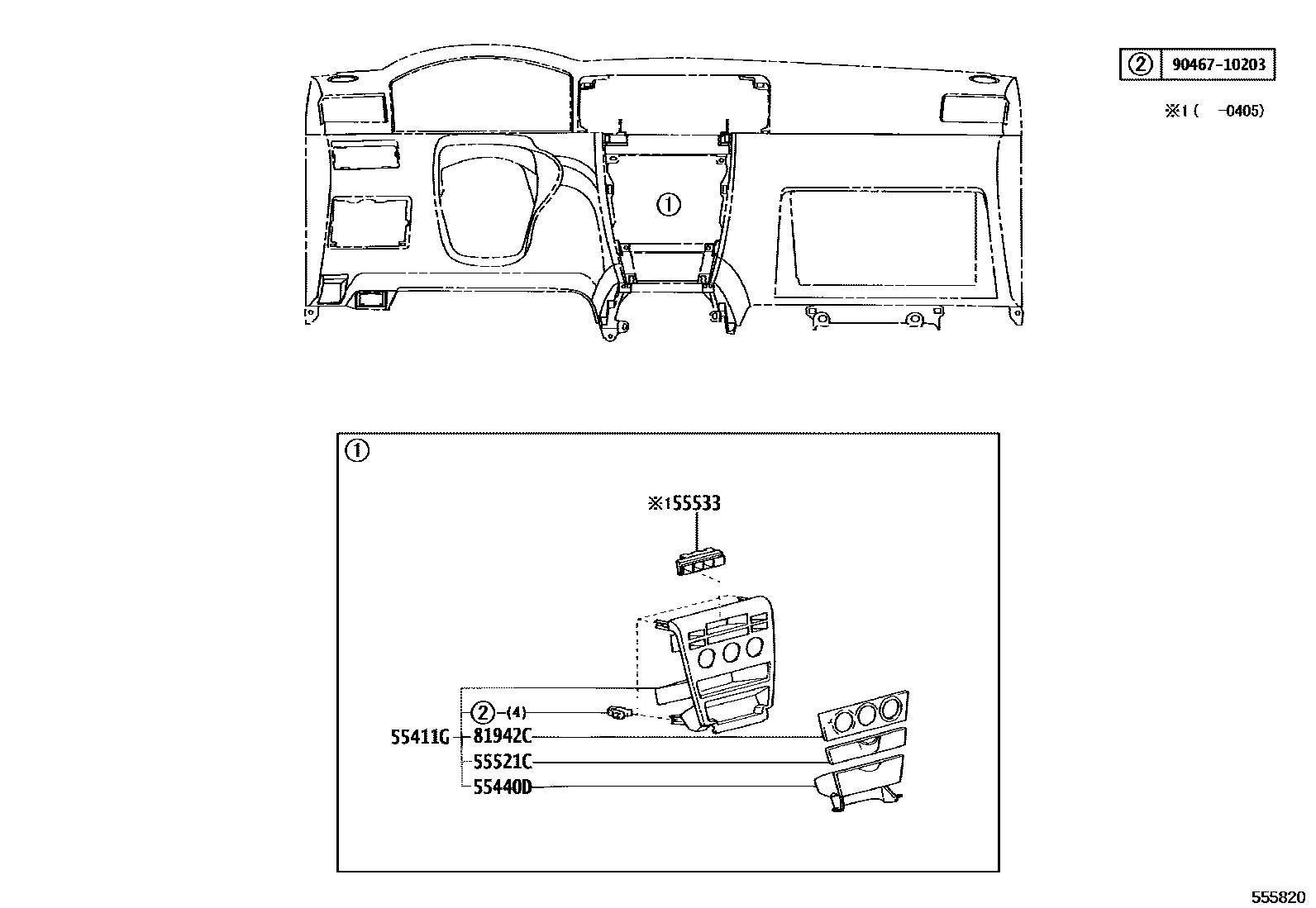

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 8 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-02020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-01030 · 55306-01031 · 55306-02140 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-01030 · 55307-01031 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-01020 · 55308-01021 · 55308-02120 · 55308-02121 |
| 55315A | Instrument panel spacer No. 1 | 55315-01040 |
| 55331 | Dashboard reinforcement | 55330-01040 · 55330-01060 · 55330-01061 · 55330-02130 · 55330-02260 · 55330-02261 · 55330-02262 · 55330-02263 · 55330-02264 · 55330-02265 |
| 55343B | Center bracket (dashboard to cowl) | 55343-01010 · 55343-02050 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02060 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-02040 |
| 55368C | Instrument mounting bracket | 55362-12050 · 55368-02060 |
| 55374C | Instrument panel No. 1 lower mounting bracket | 55349-01030 · 55349-13010 |
| 55392C | Dashboard No. 2 lower cushion | 55392-02060 |
| 55394B | Dashboard bolts | 55394-12020 |
| 55403 | Instrument cover sub-assembly | 55403-01010 · 55403-02080 |
| 55404C | Instrument cluster No. 2 decorative panel sub-assembly | 55404-01030 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-01040 · 55405-02050 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-01060 · 55420-01010 · 55420-02170 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-01050 |
| 55413C | Center instrument cluster No. 2 decorative panel | 55413-01010 |
| 55440D | Dashboard storage box assembly | 55440-02020 · 55440-02021 |
| 55444A | Dashboard storage box spring | 55444-01020 · 55444-12080 |
| 55444C | Dashboard storage box spring | 55444-01030 · 55444-02030 |
| 55445C | Dashboard storage box chassis | 55445-01010 · 55445-01011 |
| 55449D | switch base | 55449-01040 |
| 55464C | Dashboard lower right pad insert | 55464-02030 |
| 55465C | Dashboard lower left pad insert | 55465-02020 |
| 55503B | Cushion pad (for glove box) | 90080-54038 |
| 55521C | stereo system hole cover | 55520-02100 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-01020 |
| 58971C | Armrest box lid lock | 58971-47010 |
| 81942C | Heater control nameplate | 81942-01090 · 81942-02200 · 81942-02201 |
