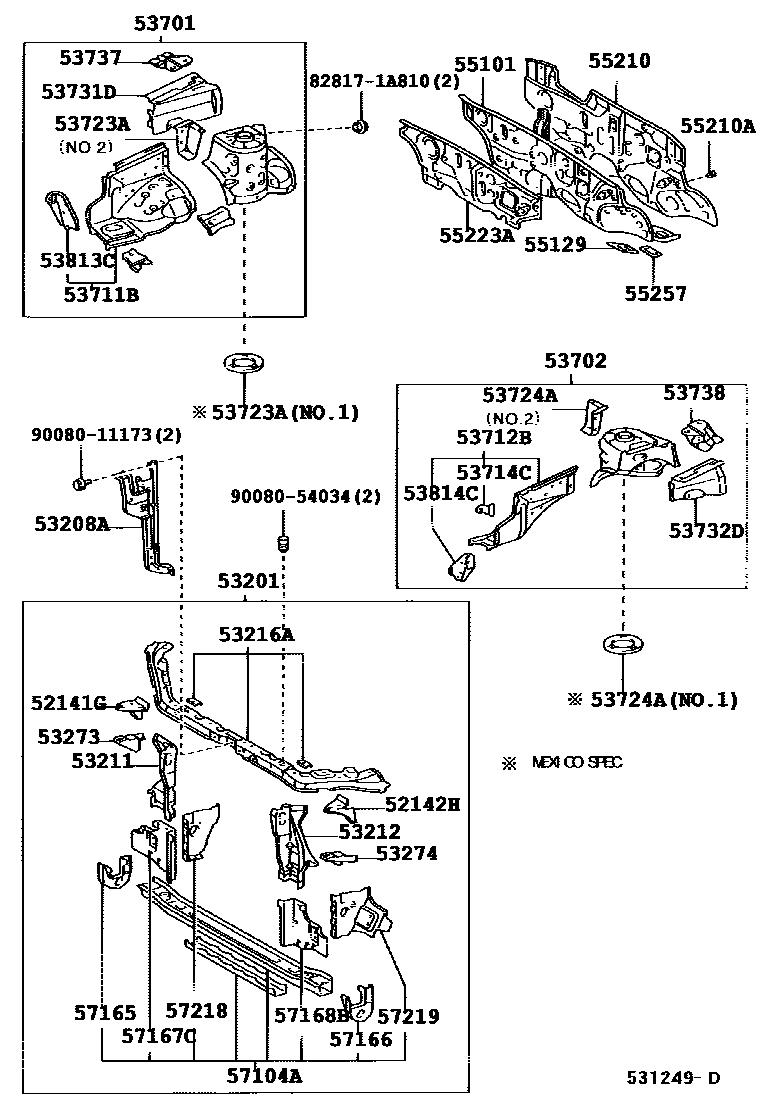

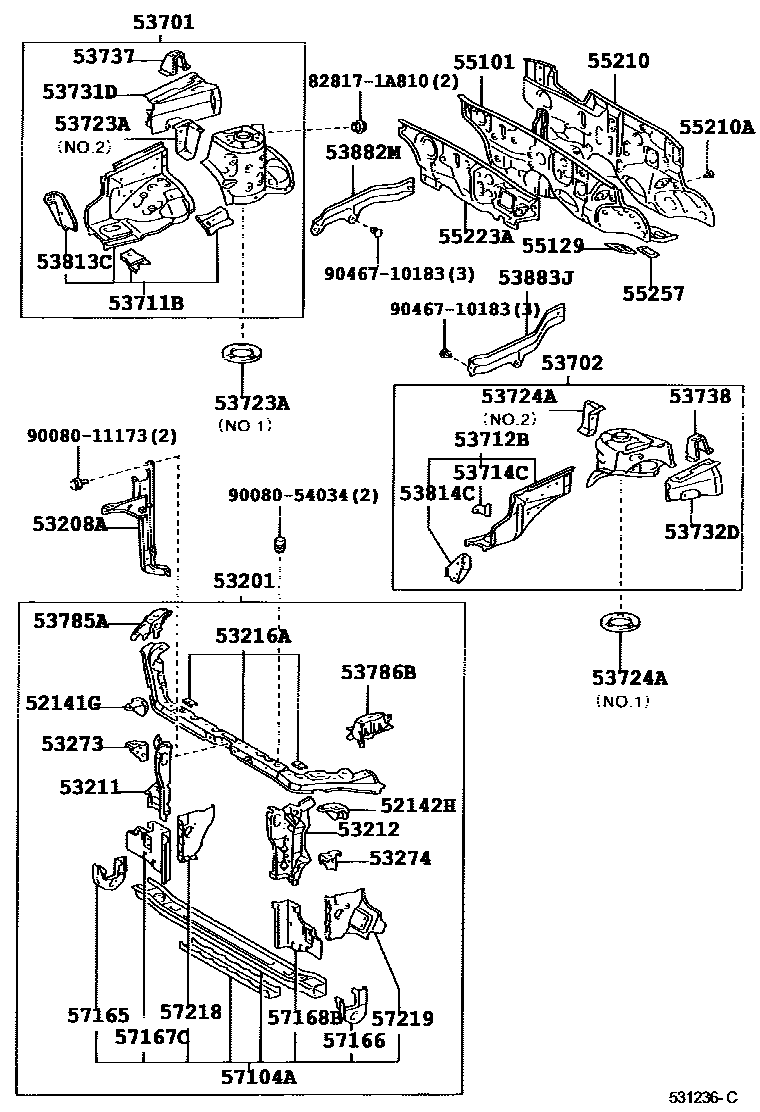

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141G | Front bumper right side stay | 52141-02060 · 52141-02070 |
| 52142H | Front bumper left stay | 52142-02060 · 52142-02070 |
| 53201 | Radiator bracket sub-assembly | 53201-02100 · 53201-02110 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02060 · 53208-02070 |
| 53211 | Radiator right side support | 53211-02070 · 53211-02080 |
| 53212 | Radiator left support | 53212-02070 · 53212-02080 |
| 53216A | Radiator upper bracket | 53216-01900 · 53216-02903 · 53216-02909 |
| 53273 | Front bumper arm right mounting bracket | 53273-02040 · 53273-02050 |
| 53274 | Front bumper arm left mounting bracket | 53274-01020 · 53274-02040 |
| 53701 | Right front fender fender sub-assembly | 53701-02120 · 53701-02140 |
| 53702 | Left front fender fender sub-assembly | 53702-02060 · 53702-02070 |
| 53711B | Right front fender front fender | 53711-02903 |
| 53712B | Left front fender front fender | 53712-02903 |
| 53714C | Left front fender fender front extension | 53714-02030 |
| 53723A | Front spring bracket right side reinforcement | 53723-01010 · 53723-01011 · 53723-02020 |
| 53724A | Front spring bracket left reinforcement | 53723-01010 · 53723-01011 · 53724-02020 |
| 53731D | Right front fender to cowl side upper beam | 53731-02060 |
| 53732D | Left front fender to cowl side upper beam | 53732-02050 |
| 53737 | Right front fender to front wall side sill | 53737-02010 · 53737-02020 |
| 53738 | Left front fender to front wall side sill | 53738-02010 · 53738-02020 |
| 53785A | Right front fender corner plate | 53785-02010 |
| 53786B | Left front fender corner plate | 53786-02010 |
| 53813C | Right front fender extension | 53813-02010 |
| 53814C | Left front fender extension | 53814-02020 |
| 53882M | front fender seal | 53882-02010 · 53882-02011 |
| 53883J | Left front fender seal | 53883-02010 · 53883-02011 |
| 55101 | Front apron sub-assembly | 55101-01180 · 55101-01190 · 55101-01200 · 55101-01210 · 55101-02380 · 55101-02390 · 55101-02470 · 55101-02480 |
| 55129 | Front panel hole cover | 55129-02020 · 55139-02010 |
| 55210 | Front wall insulation pad assembly | 55210-02150 · 55210-02160 |
| 55223A | Front wall outer heat insulation pad | 55223-02100 |
| 55257 | cowl opening cover | 55257-02020 |
| 57104A | Front cross member sub-assembly | 57104-02071 · 57104-02072 |
| 57165 | Front cross member lower right reinforcement | 57165-02040 |
| 57166 | Front cross member lower left reinforcement | 57166-02030 |
| 57167C | Front cross member right corner panel | 57167-02040 |
| 57168B | Front cross member left corner panel | 57168-02040 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-02030 · 57218-02031 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-02030 · 57219-02031 |
