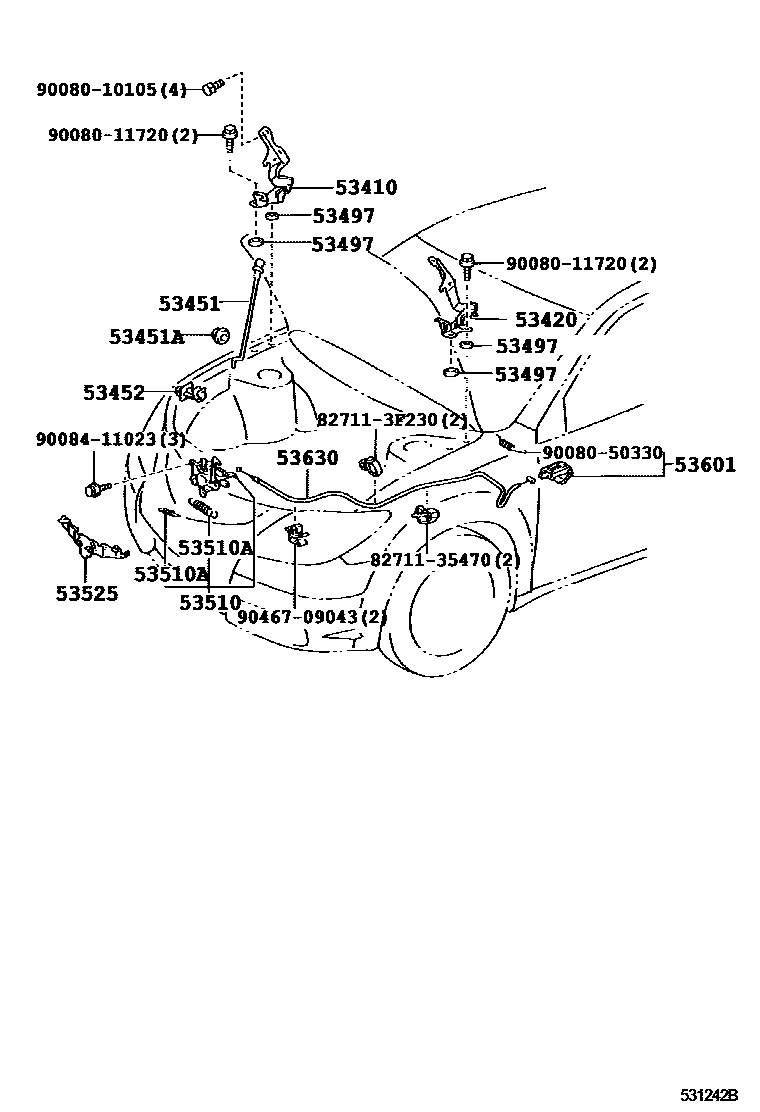

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12410 |
| 53420 | Engine cover left hinge assembly | 53420-12330 |
| 53451 | Engine cover support rod | 53440-02050 · 53440-12030 |
| 53451A | Gasket (for engine cover support rod) | 90080-48064 |
| 53452 | Engine cover stay rod fixing | 53452-01020 · 53452-02030 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-02230 · 53510-02240 · 53510-12730 · 53510-12760 |
| 53510A | Tension spring (for hood lock) | 90506-09055 · 90506-18078 |
| 53525 | Engine hood lock opening lever guard | 53525-33040 · 53525-AA030 |
| 53630 | Engine hood lock control cable assembly | 53630-02060 · 53630-02061 |
