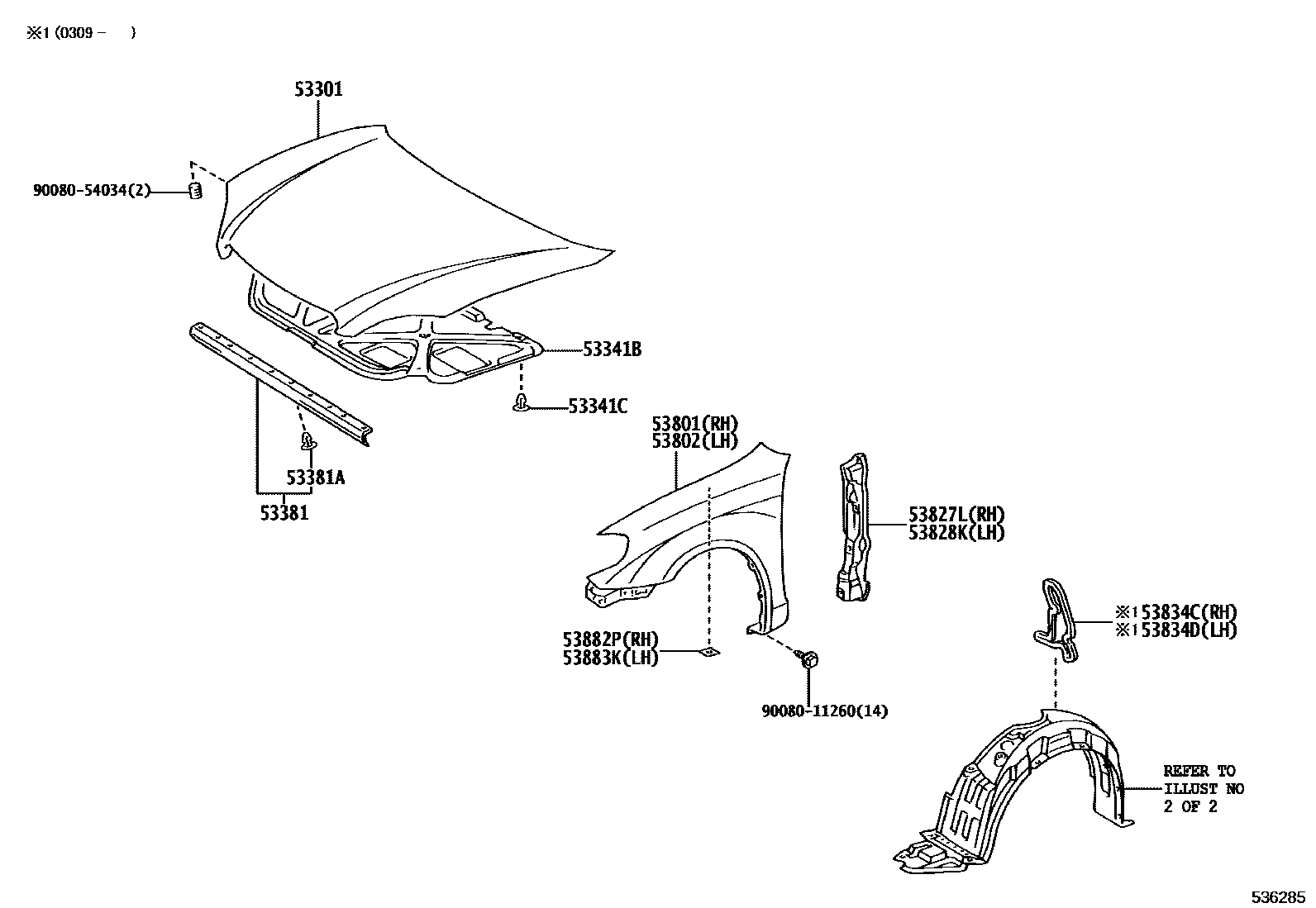

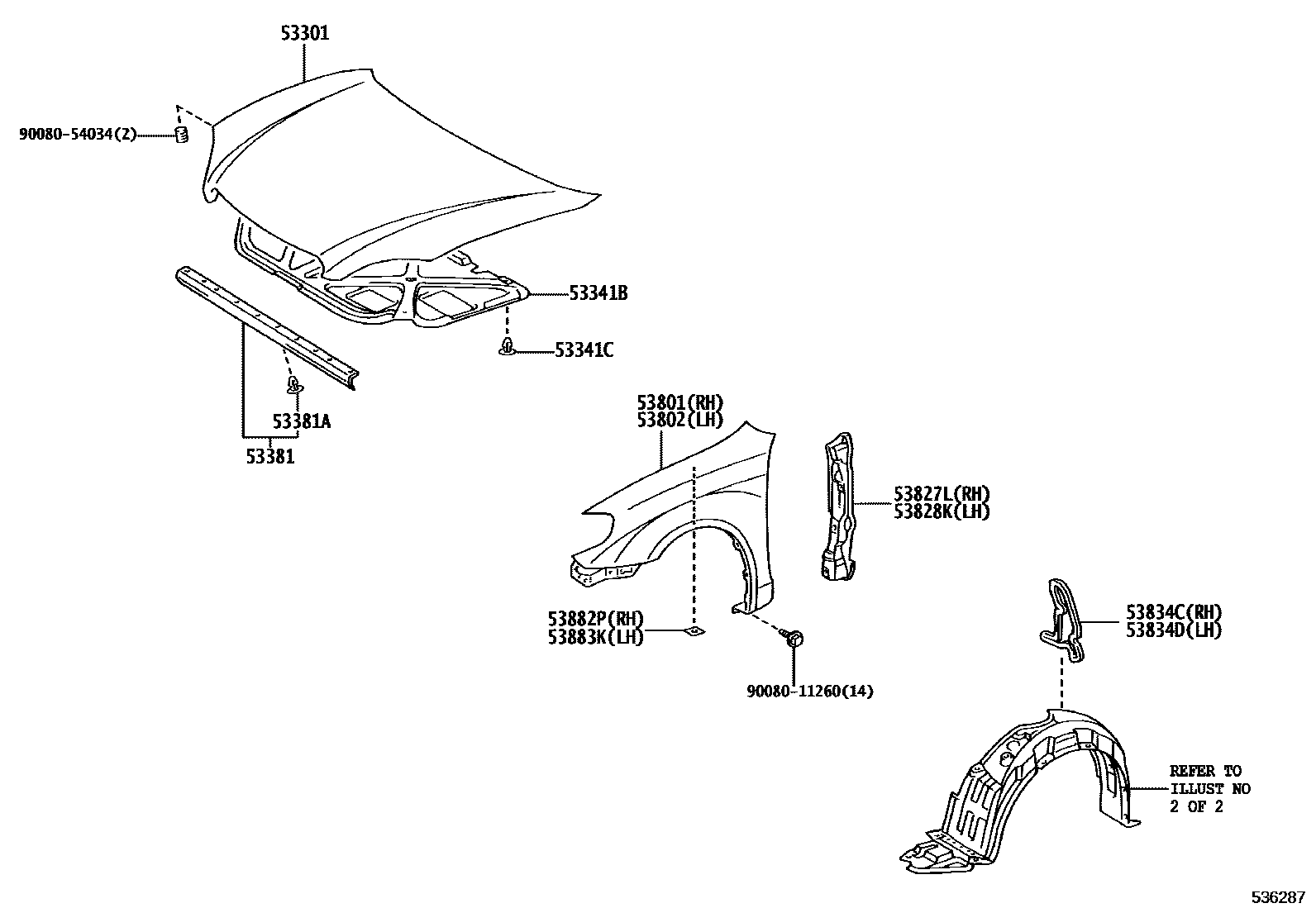

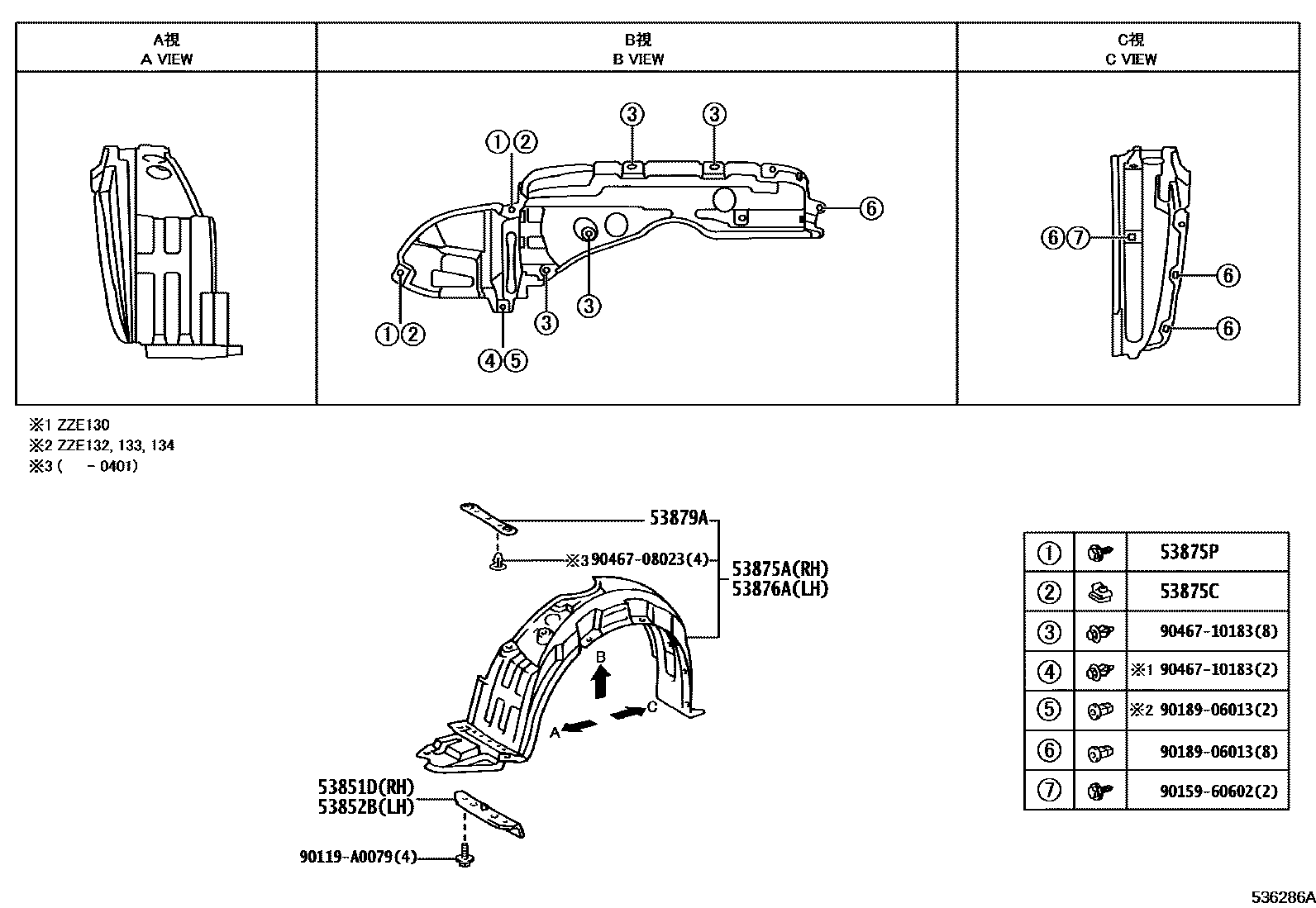

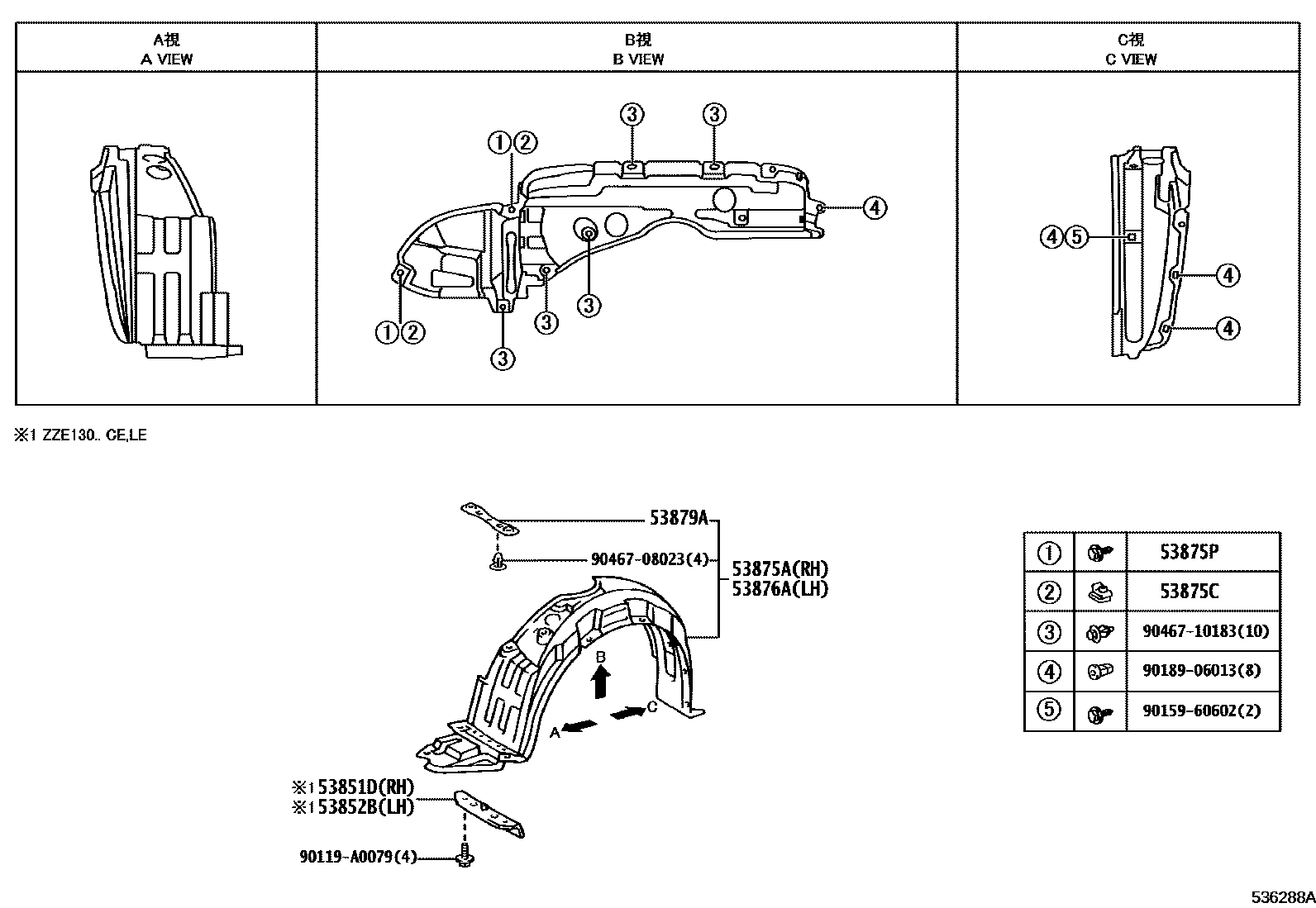

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-02110 · 53301-02130 |
| 53341B | engine cover gasket | 53341-01010 · 53341-02070 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-A0003 |
| 53381 | Engine cover to radiator bracket seal | 53381-01030 · 53381-02070 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53801-02060 · 53801-02070 · 53801-02080 · 53801-02090 |
| 53802 | Left front fender sub-assembly | 53802-02060 · 53802-02070 · 53802-02080 · 53802-02090 |
| 53827L | Right front fender side panel protector | 53827-02030 · 53827-02040 |
| 53828K | Left front fender side panel protector | 53828-02030 · 53828-02040 |
| 53834C | Right front fender support plate | 53834-02020 · 53834-02030 · 53834-12120 |
| 53834D | Left front fender support plate | 53834-02020 · 53834-02030 · 53834-12120 · 53878-02020 |
| 53851D | Right front fender outer panel pad | 53851-02010 |
| 53852B | Left front fender exterior panel pad | 53851-02010 |
| 53875A | Right front fender lining | 53875-02090 · 53875-02100 |
| 53875C | Front fender lining clip | 90467-05138 |
| 53875P | VIS, NO.1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-02090 · 53876-02110 |
| 53879A | Front fender lining fixing parts | 53879-02020 · 53879-02040 |
| 53882P | Right front fender seal | 53882-16030 |
| 53883K | Left front fender seal | 53882-16030 |
