Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 4 PNC and OE references.

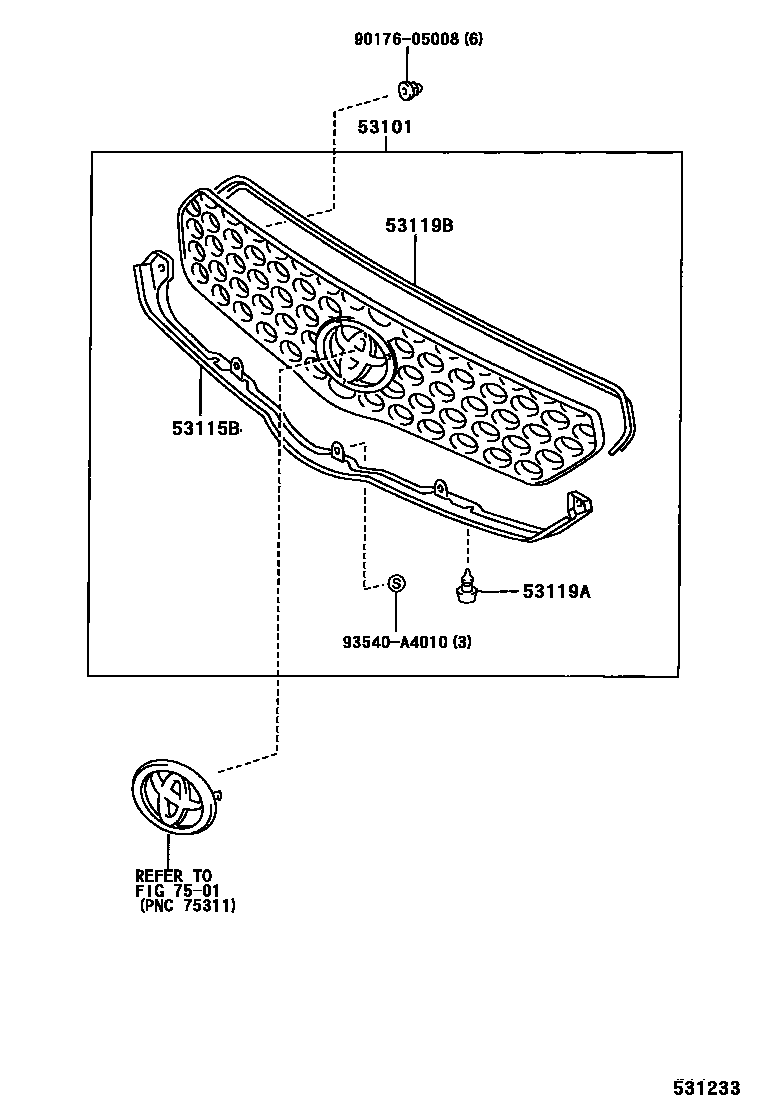

Toyota COROLLA radiator grille EPC diagram — 531233
radiator grille — 531233 (200201 – 200405)

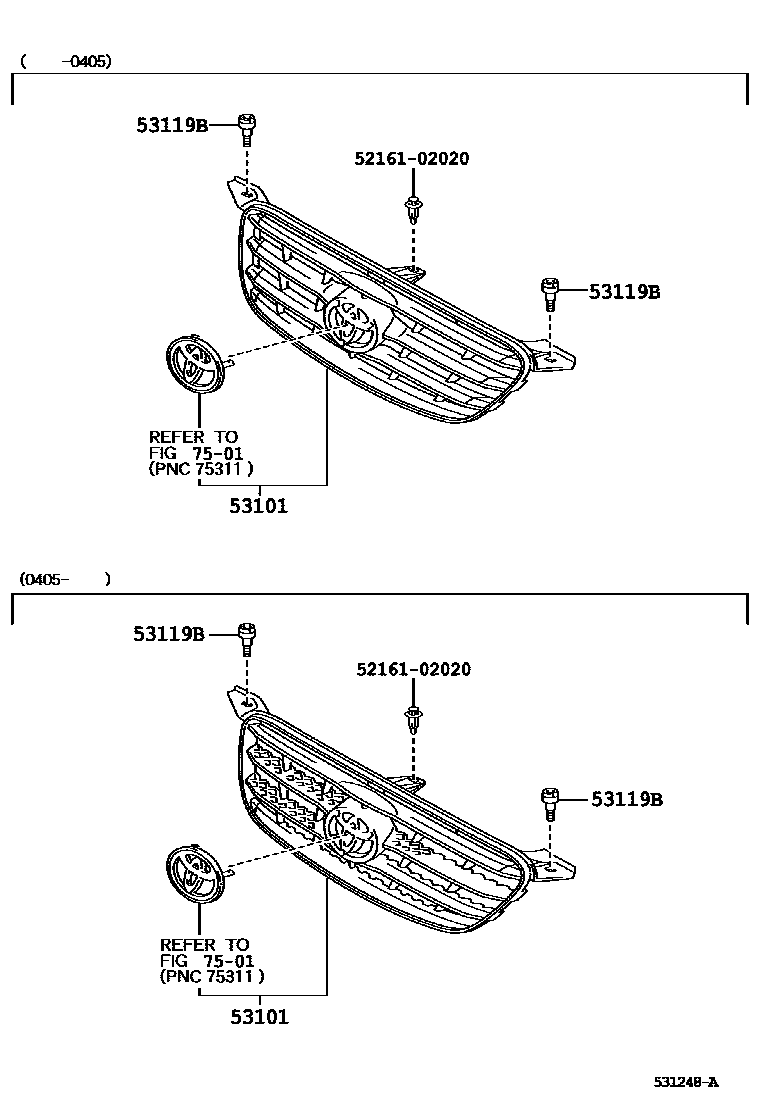

Toyota COROLLA radiator grille EPC diagram — 531248A
radiator grille — 531248A (200201 – 999999)

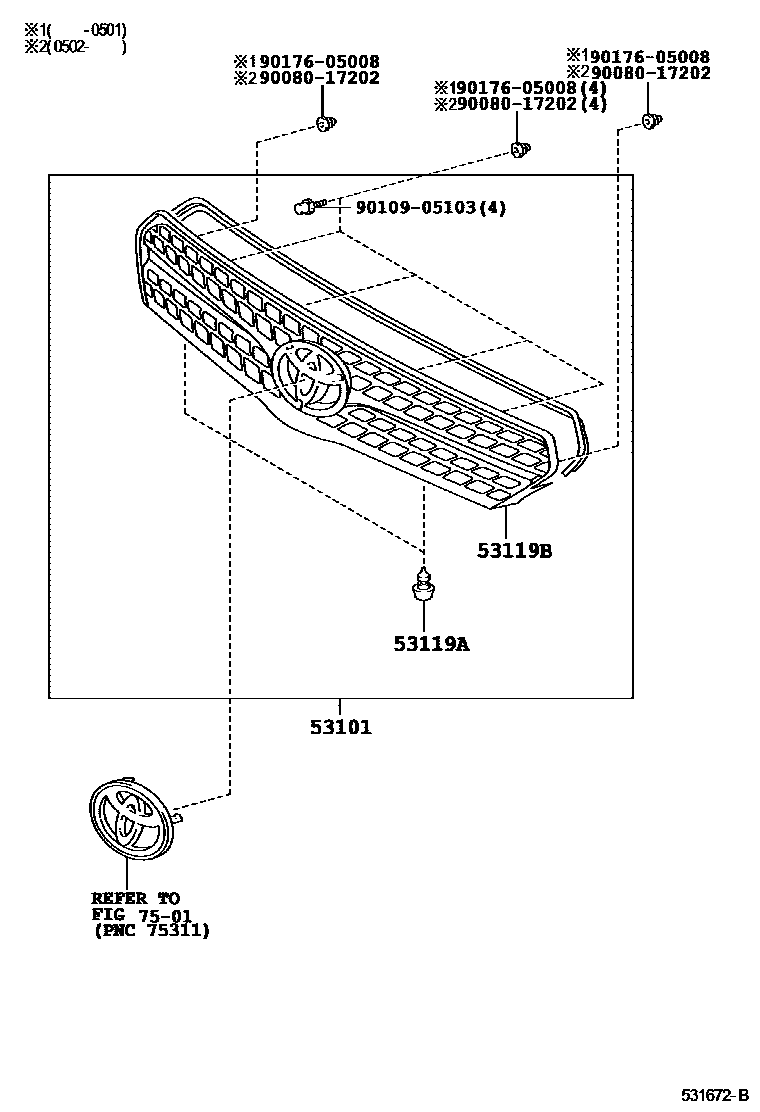

Toyota COROLLA radiator grille EPC diagram — 531672C
radiator grille — 531672C (200405 – 999999)

PNC and OE references

PNCPart nameOE numbers
53101Radiator grille sub-assembly53100-02020 · 53100-02070 · 53100-02090 · 53101-02070 · 53101-02080
53115BRadiator grille bracket53115-02030
53119ARadiator grille to front fender bumper53119-30140
53119BRadiator grille protector53119-02030 · 53119-02040 · 53119-02050 · 53119-12150
