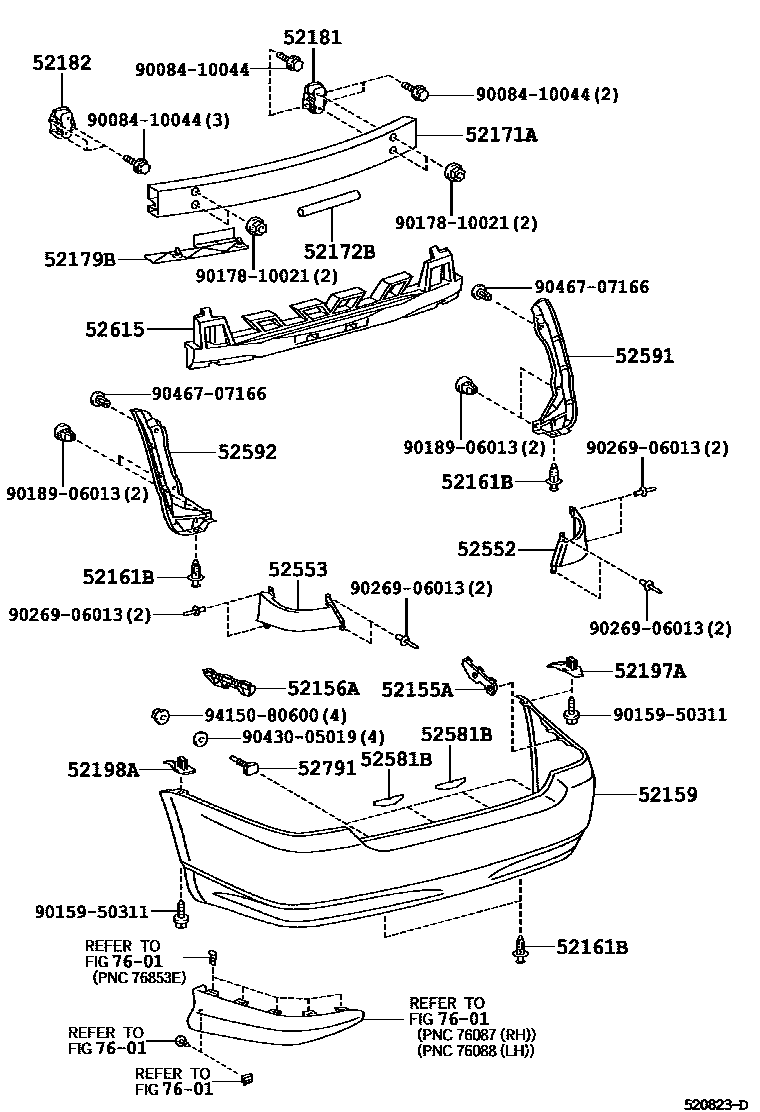

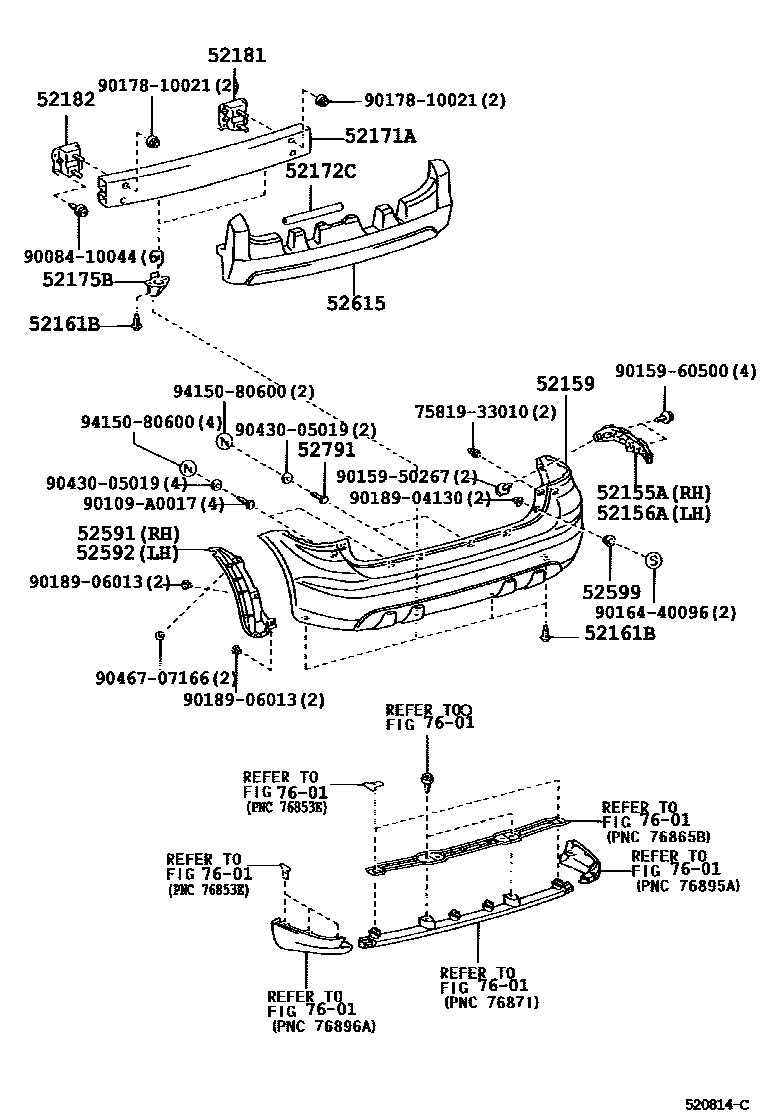

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-02070 · 52155-02080 |
| 52156A | Rear bumper left bracket | 52156-02070 · 52156-02080 |
| 52159 | rear bumper cover | 52159-02911 · 52159-02912 · 52159-02913 · 52159-02914 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-02080 · 52023-02090 |
| 52172B | Rear bumper reinforcement No. 2 | 52172-AA010 |
| 52172C | Rear bumper center reinforcement | 52172-AA010 |
| 52175B | Rear bumper No. 5 reinforcement | 52175-01010 |
| 52179B | rear bumper panel | 52178-02010 |
| 52181 | Rear bumper right arm | 52181-01020 · 52181-02070 |
| 52182 | Rear bumper left arm | 52182-01010 · 52182-02040 |
| 52197A | Rear bumper right seal support | 52197-02030 |
| 52198A | Rear bumper left seal support | 52198-02010 |
| 52552 | Arc filler on the right side of the rear bumper | 52552-02020 |
| 52553 | Rear bumper left curved filler | 52553-02020 |
| 52581B | rear bumper protector | 52581-02030 |
| 52591 | Rear bumper right seal | 52591-02050 · 52591-02060 |
| 52592 | Rear bumper left seal | 52592-02040 · 52592-02050 |
| 52599 | Rear bumper upper retainer | 52599-01010 · 52599-48010 |
| 52615 | Rear bumper energy absorber | 52615-02060 · 52615-02070 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12040 |
