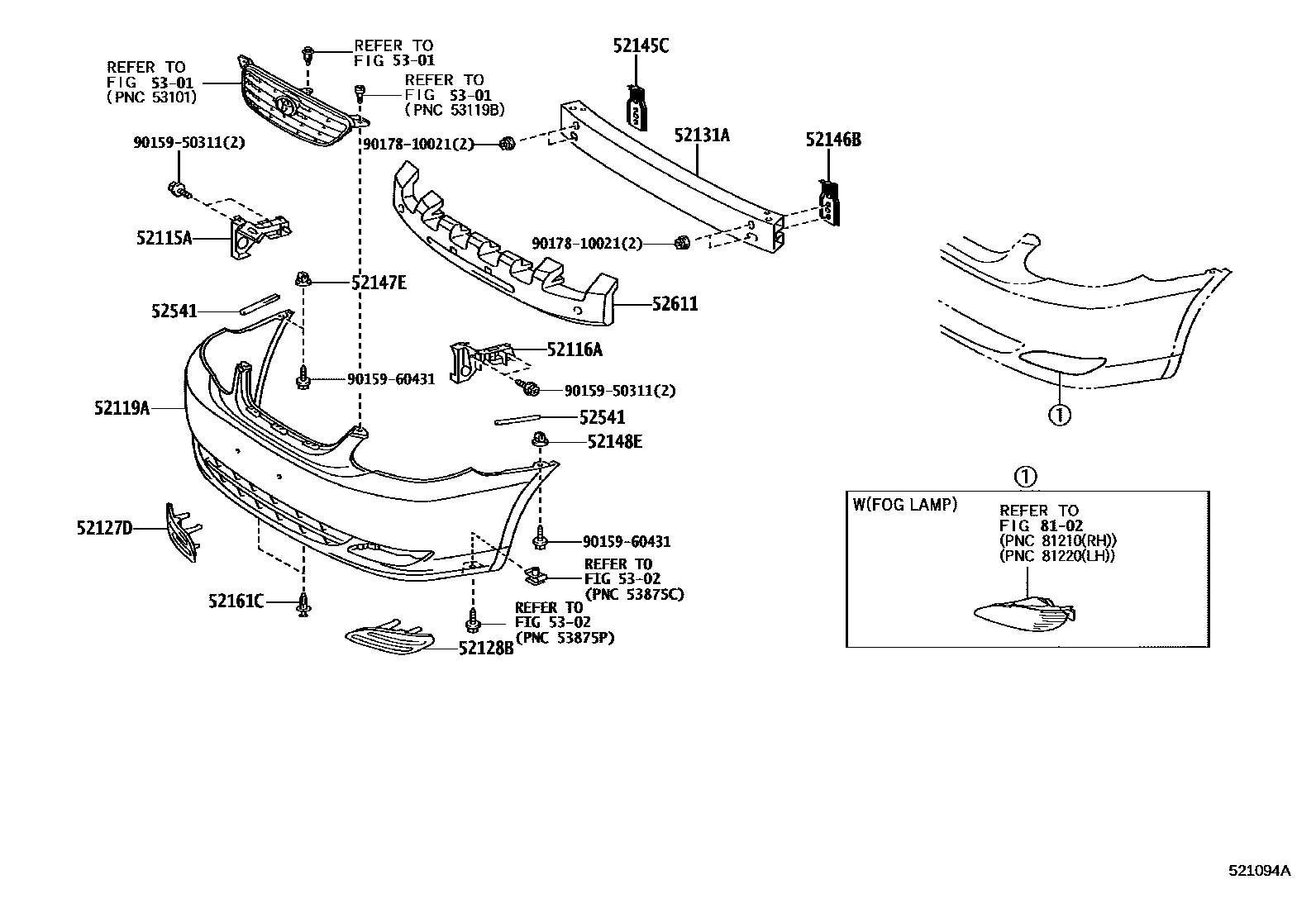

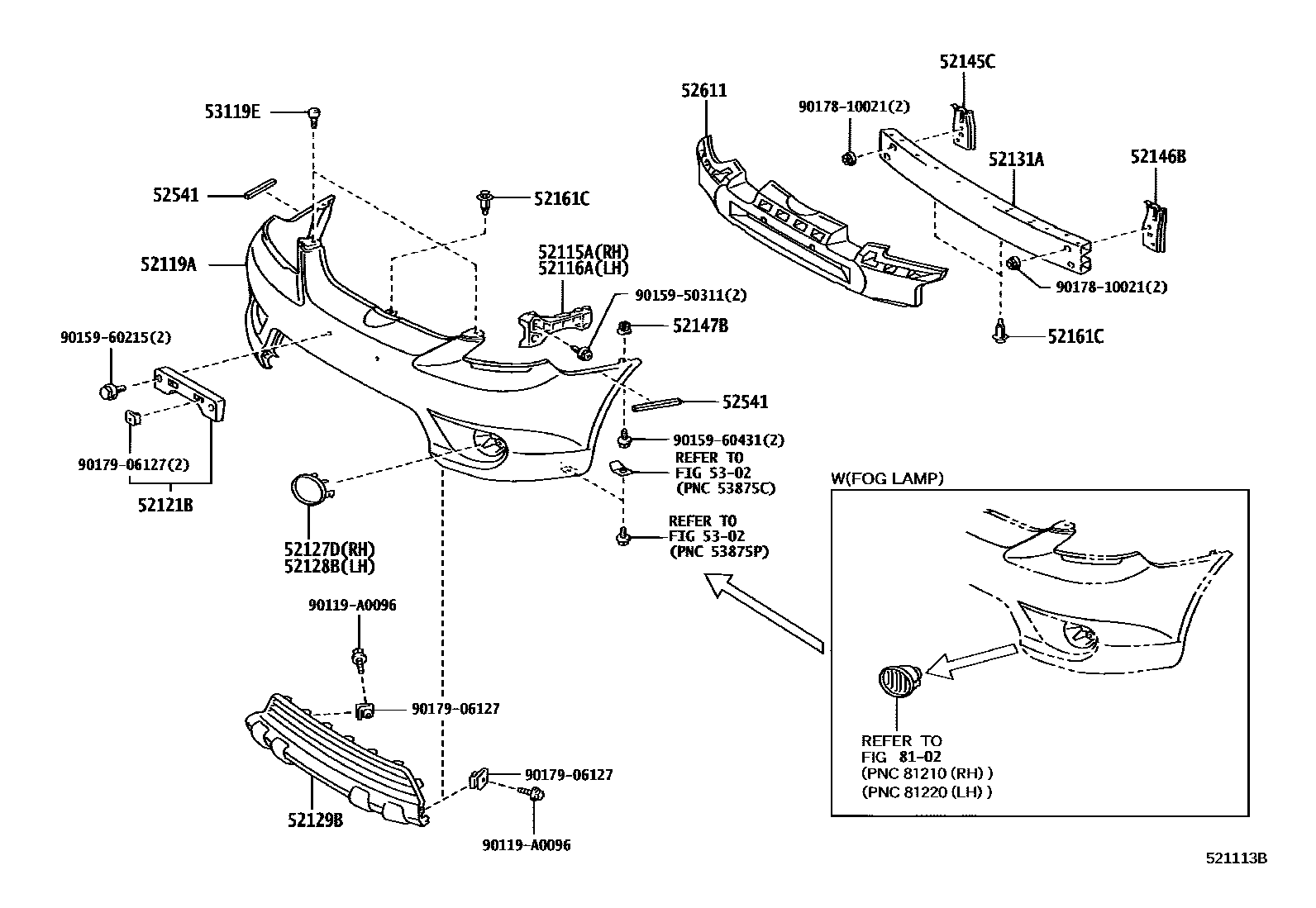

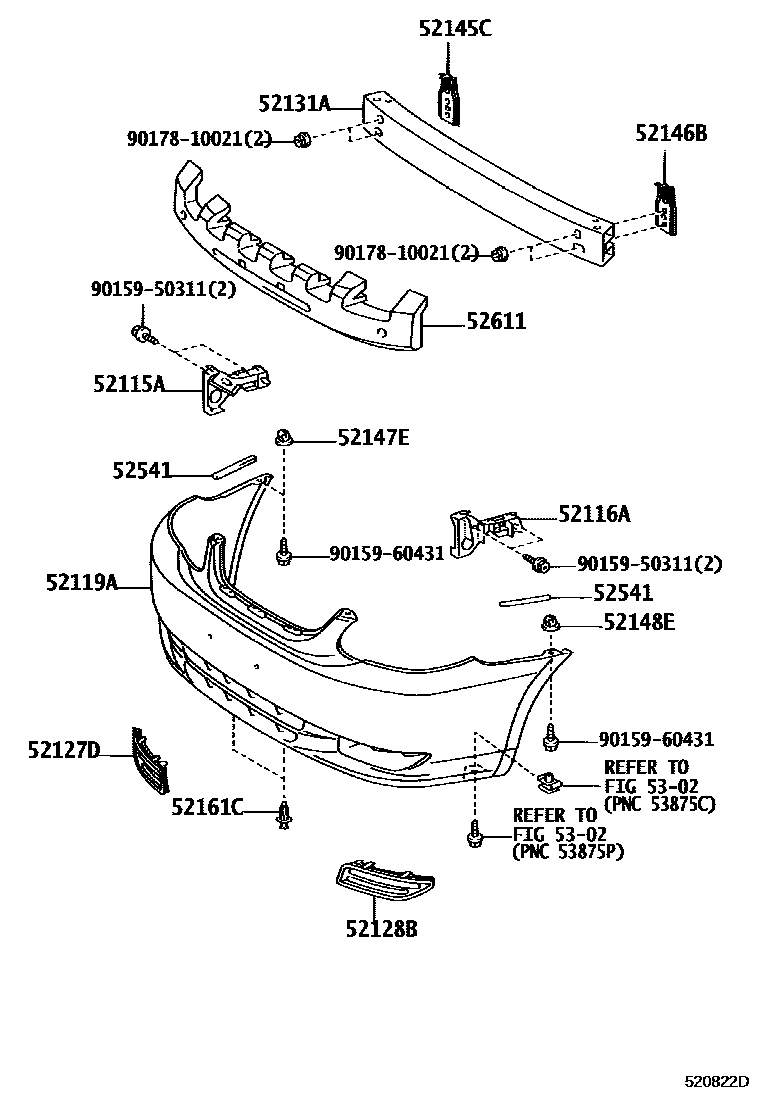

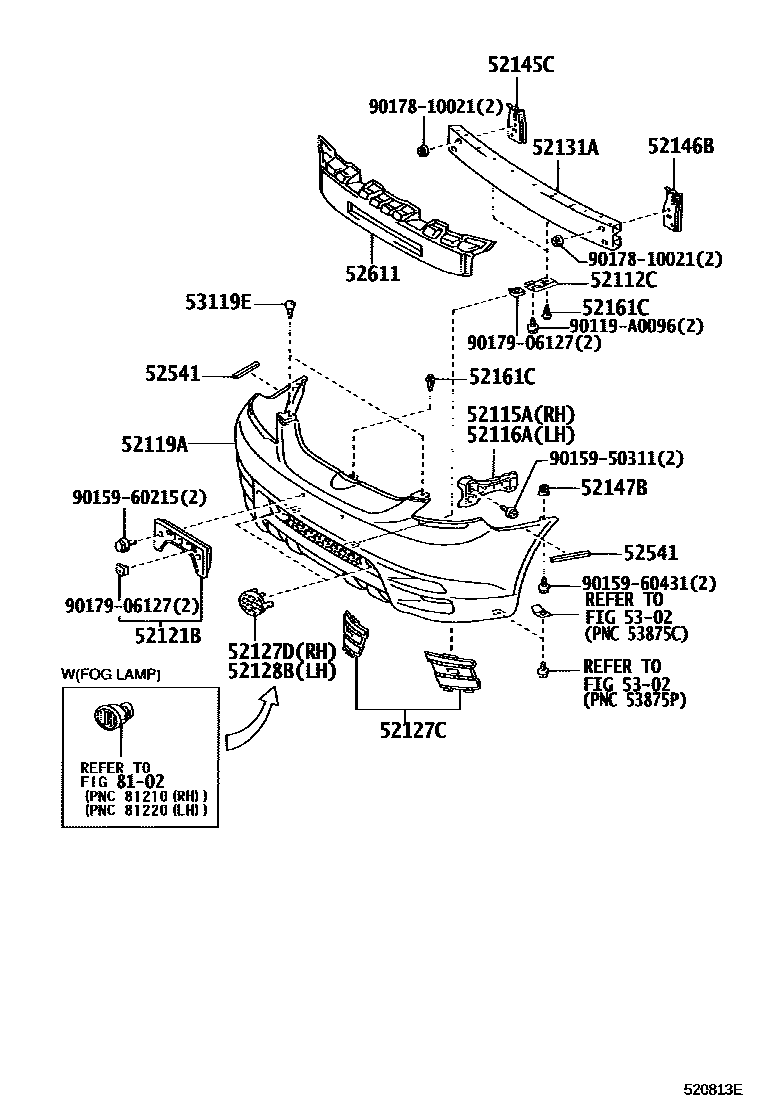

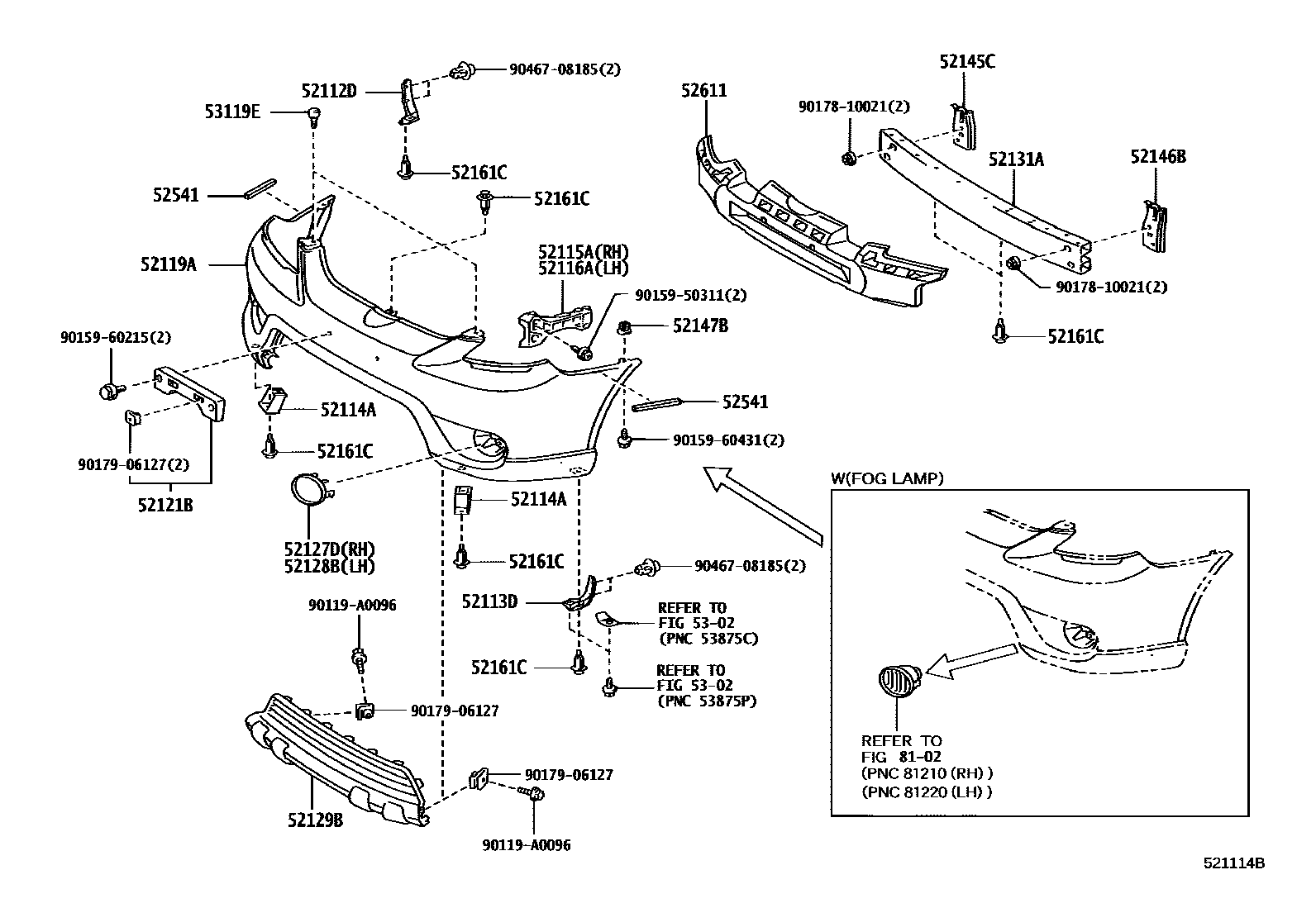

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52112C | Front bumper extension | 52112-02020 |
| 52112D | Front bumper right extension | 52112-02030 |
| 52113D | Front bumper left extension | 52113-02010 |
| 52114A | Front bumper extension mounting bracket | 52114-02030 |
| 52115A | Front bumper right side bracket | 52115-02060 · 52115-02061 · 52115-02070 |
| 52116A | Front bumper left bracket | 52116-02060 · 52116-02061 · 52116-02070 |
| 52119A | front bumper cover | 52119-02915 · 52119-02916 · 52119-02917 · 52119-02918 · 52119-02946 · 52119-02947 · 52119-02953 · 52119-02954 |
| 52121B | Front license plate mounting bracket | 52121-02030 · 52121-02040 |
| 52127C | Front bumper hole cover | 52127-09010 |
| 52127D | Front bumper right hole cover | 52127-02070 · 52127-02090 · 52127-02170 · 52127-02180 |
| 52128B | Front bumper left hole cover | 52128-02060 · 52128-02080 · 52128-02200 · 52128-02210 |
| 52129B | Front bumper lower cover | 52129-02030 · 52129-02040 |
| 52131A | Front bumper reinforcement | 52021-01030 · 52021-02060 · 52021-02070 |
| 52145C | Front bumper right side mounting bracket | 52145-02080 · 52145-02100 |
| 52146B | Front bumper left mounting bracket | 52146-02070 · 52146-02090 |
| 52147B | Front bumper mounting bracket | 52147-02030 |
| 52147E | Front bumper right side mounting support | 52147-02030 |
| 52148E | Front bumper left side mounting support | 52147-02030 |
| 52161C | front bumper insert | 52161-02020 |
| 52541 | front bumper protector | 52541-02020 |
| 52611 | front bumper energy absorber | 52611-02070 · 52611-02090 · 52611-02100 · 52611-02110 |
| 53119E | Radiator grille protector | 53119-02050 · 53119-12150 |
