Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

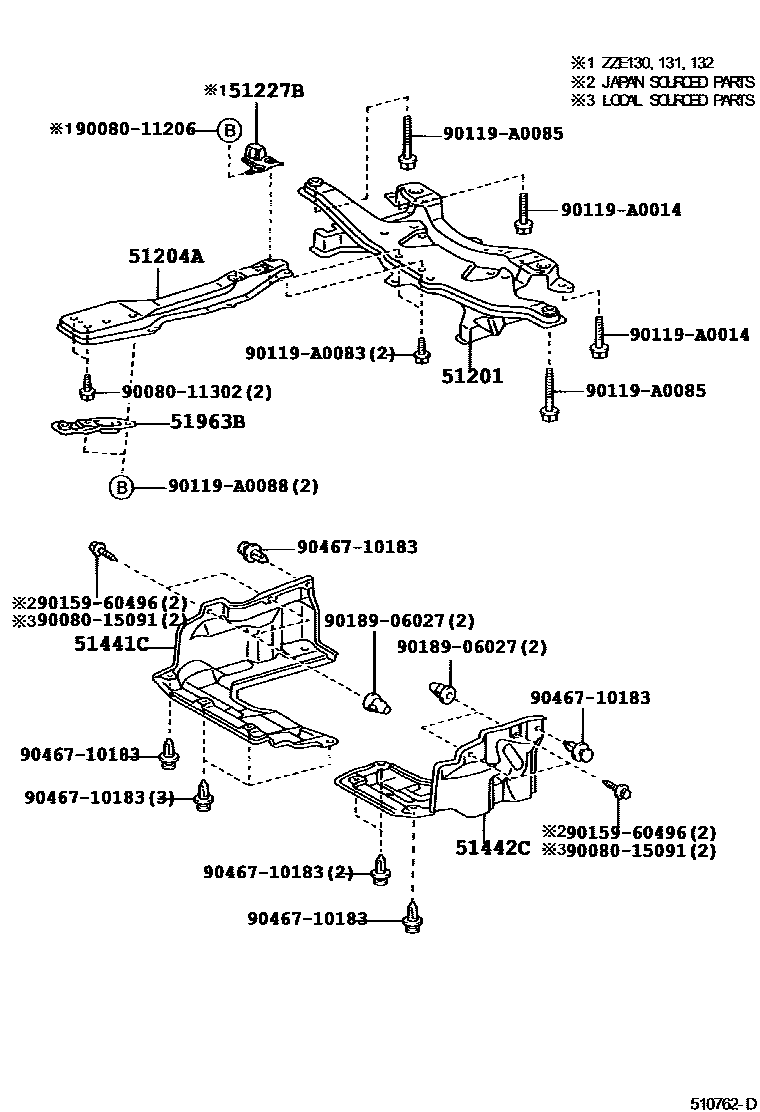

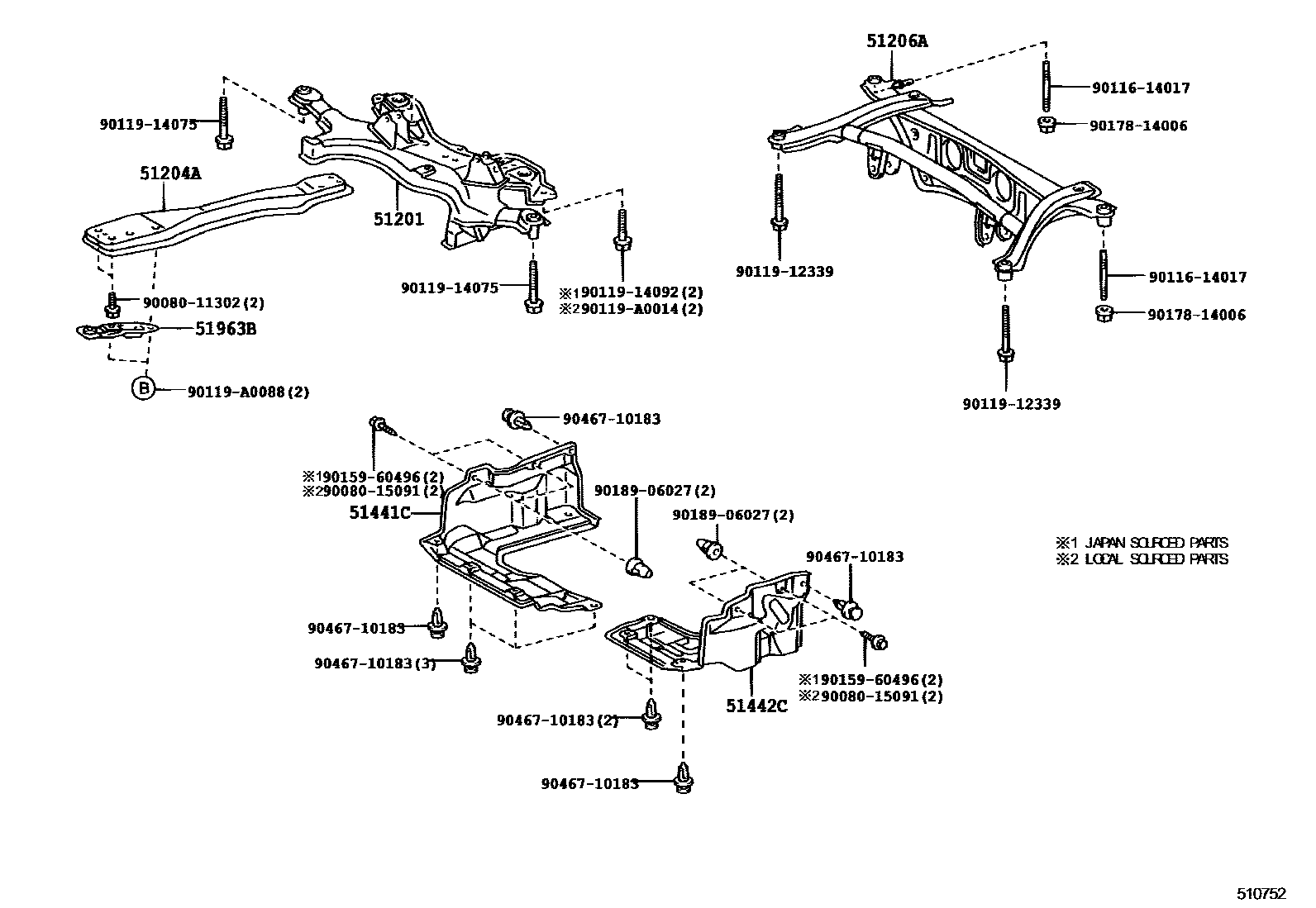

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02090 · 51201-02091 · 51201-02150 · 51201-12420 · 51201-12421 |
| 51204A | Engine center mount beam sub-assembly | 51204-01030 · 51204-02050 · 51204-12120 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12090 · 51206-12091 |
| 51227B | Front suspension beam dynamic damper | 51227-02030 · 51227-12081 |
| 51441C | Engine right bottom cover | 51410-01010 · 51441-02100 |
| 51442C | Engine left bottom cover | 51420-01010 · 51420-01020 · 51442-02160 · 51442-02170 |
| 51963B | Right front transport hook | 51963-02050 |
