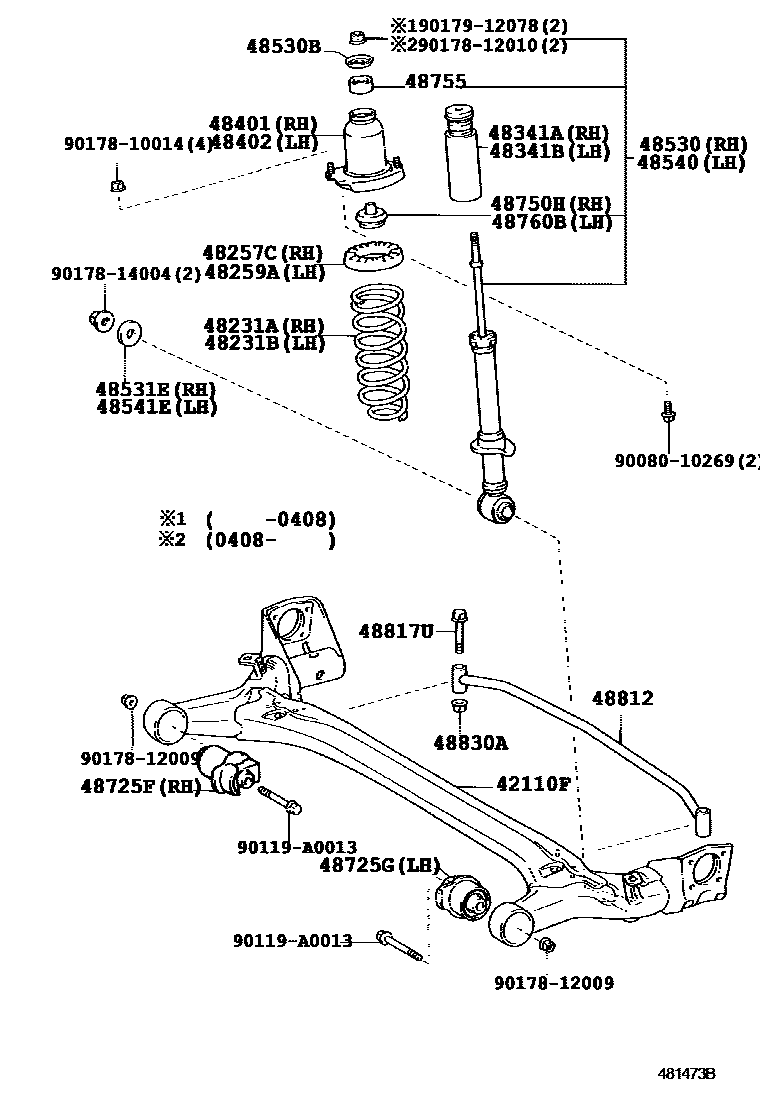

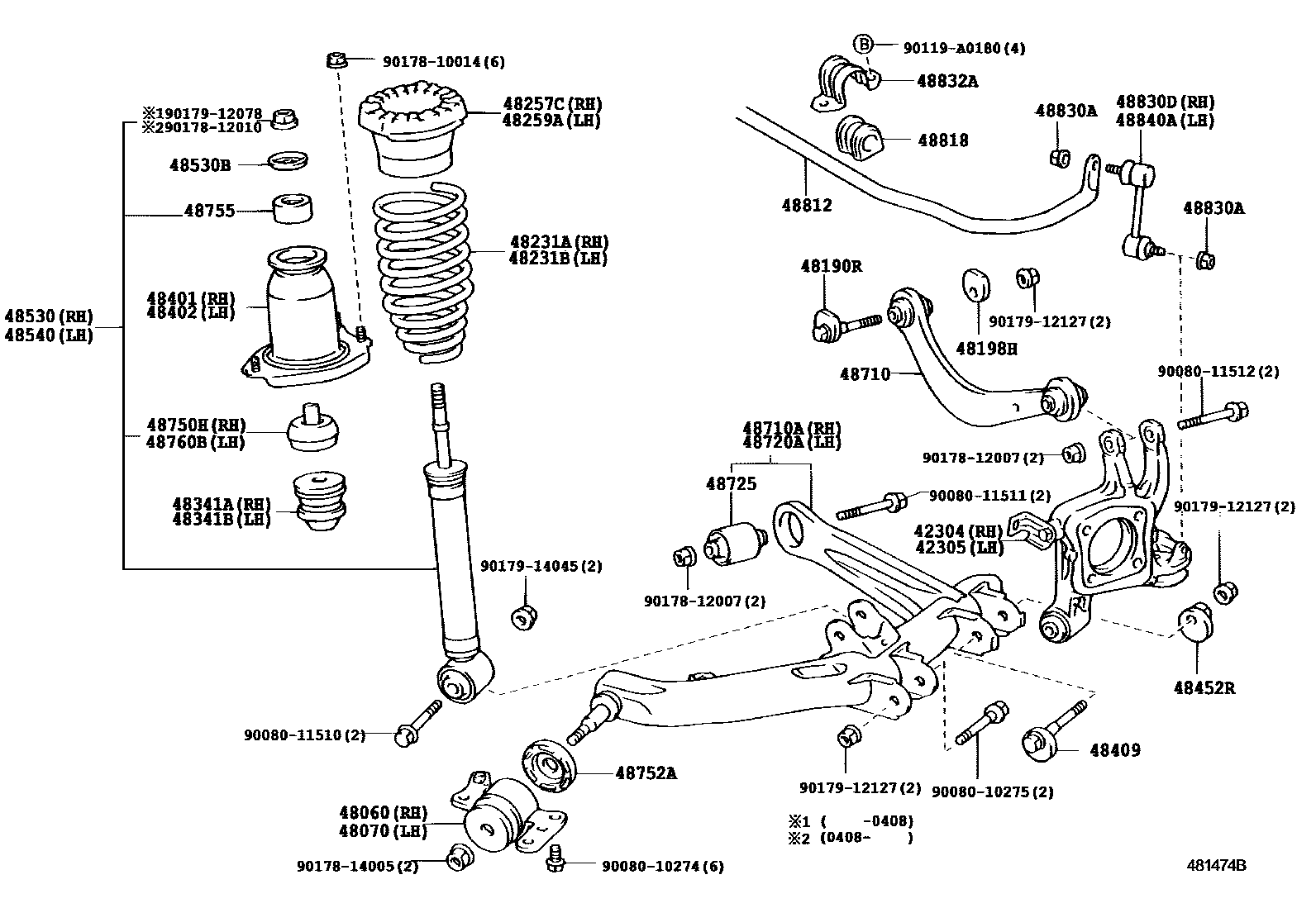

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42101-01010 · 42101-01020 · 42101-02050 · 42101-02120 |
| 42304 | Rear axle right bracket sub-assembly | 42304-63010 |
| 42305 | Rear axle left bracket sub-assembly | 42305-63010 |
| 48060 | Right rear suspension arm bracket assembly | 48060-32040 |
| 48070 | Left rear suspension arm bracket assembly | 48070-32040 |
| 48190R | Camber angle adjustment cam assembly | 48190-32010 |
| 48198H | No. 2 camber angle adjustment cam | 48198-32040 |
| 48231A | Right rear coil spring | 48231-02330 · 48231-02430 · 48231-02440 · 48231-02471 · 48231-AB010 |
| 48231B | Left rear coil spring | 48231-02330 · 48231-02430 · 48231-02440 · 48231-02471 · 48231-AB010 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-01020 · 48257-02040 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-01020 · 48257-02040 |
| 48341A | No. 1 right rear spring buffer block | 48341-01040 · 48341-AB010 |
| 48341B | No. 1 left rear spring buffer block | 48341-01040 · 48341-AB010 |
| 48401 | Rear spring right front bracket sub-assembly | 48401-32010 · 48401-32020 |
| 48402 | Rear spring left front bracket sub-assembly | 48401-32010 · 48403-32010 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-32040 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-32040 |
| 48530 | Right rear shock absorber assembly | 48530-09540 · 48530-09750 · 48530-09790 · 48530-09C60 · 48530-09E00 · 48530-09E10 · 48530-09F80 · 48530-09F90 · 48530-09G00 · 48530-A9140 · 48530-A9150 · 48530-A9160 · 48530-A9420 · 48530-A9430 · 48530-A9440 · 48530-A9530 · 48530-A9540 · 48530-A9550 · 48530-A9560 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90560-14028 |
| 48540 | Left rear shock absorber assembly | 48530-09540 · 48530-09750 · 48530-09790 · 48530-09C60 · 48530-09E00 · 48530-09E10 · 48530-09F80 · 48530-09F90 · 48530-09G00 · 48530-A9140 · 48530-A9150 · 48530-A9160 · 48530-A9420 · 48530-A9440 · 48530-A9530 · 48530-A9540 · 48530-A9550 · 48530-A9560 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90560-14028 |
| 48710 | Upper control arm assembly | 48770-20010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-32093 |
| 48720A | Left rear suspension No. 1 arm assembly | 48720-32093 |
| 48725 | lower control arm bushing | 48725-32250 |
| 48725F | Right rear axle bracket bushing | 48725-02230 · 48725-47010 |
| 48725G | Left rear axle bracket bushing | 48725-02230 · 48725-47010 |
| 48750H | Right rear suspension support assembly | 48750-01020 · 48750-02050 |
| 48752A | Rear suspension mount block | 48752-32011 |
| 48755 | rear suspension mount | 48755-01020 · 48755-02050 |
| 48760B | Left rear suspension support assembly | 48750-01020 · 48750-02050 |
| 48812 | rear stabilizer bar | 48812-01020 · 48812-AB010 · 48812-AB011 |
| 48817U | Bolt (for rear stabilizer bar) | 90105-14155 |
| 48818 | Rear stabilizer bar bushing | 48818-01020 |
| 48830A | Nut (for rear stabilizer link) | 90178-14009 · 90179-10183 |
| 48830D | Right rear stabilizer bar link assembly | 48830-01010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-32120 |
| 48840A | Left rear stabilizer bar link assembly | 48830-01010 |
