Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

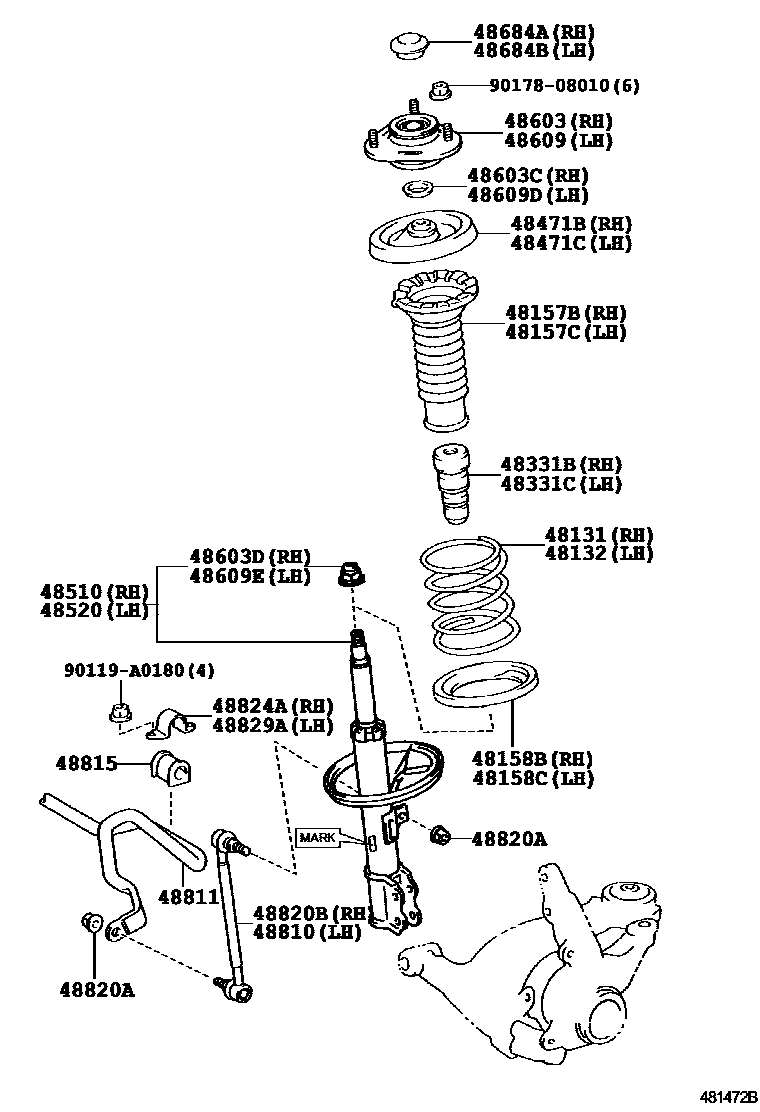

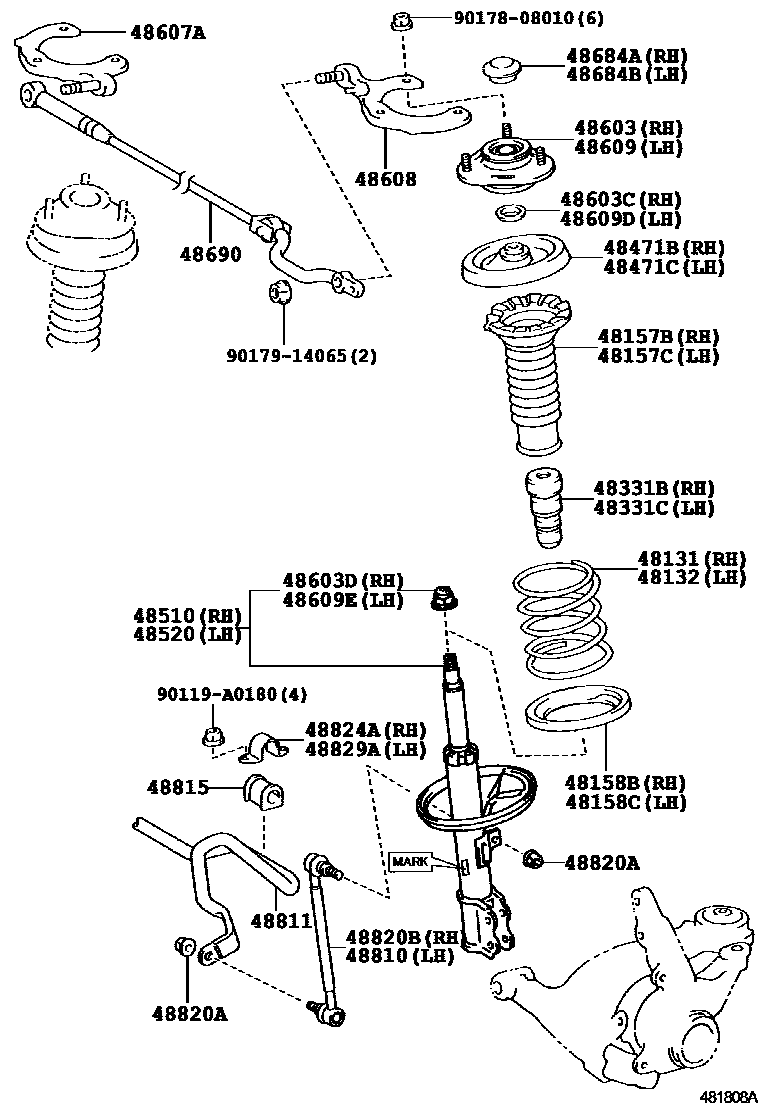

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0Z060 · 48131-0Z070 · 48131-0Z080 · 48131-0Z090 · 48131-AB010 · 48131-AB020 · 48131-AB040 · 48131-AB050 · 48131-AB060 · 48131-AB090 · 48135-02060 · 48135-02100 |
| 48132 | Left front coil spring | 48131-0Z060 · 48131-0Z070 · 48131-0Z080 · 48131-0Z090 · 48131-AB010 · 48131-AB020 · 48131-AB040 · 48131-AB050 · 48131-AB060 · 48131-AB090 · 48135-02060 · 48135-02100 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02070 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02070 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02060 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02060 |
| 48331B | Right front spring buffer block | 48331-AB010 |
| 48331C | Left front spring buffer block | 48331-AB010 |
| 48471B | Front coil spring upper right seat | 48044-02050 |
| 48471C | Front coil spring upper left seat | 48044-02050 |
| 48510 | Right front shock absorber assembly | 48510-09660 · 48510-09860 · 48510-09861 · 48510-09B00 · 48510-A9210 · 48510-A9220 · 48510-A9230 · 48510-A9260 · 48510-A9270 · 48510-A9320 · 48510-A9330 · 48510-A9340 |
| 48520 | Left front shock absorber assembly | 48520-09560 · 48520-09710 · 48520-09711 · 48520-09740 · 48520-09750 · 48520-09A20 · 48520-A9130 · 48520-A9140 · 48520-A9150 · 48520-A9180 · 48520-A9190 · 48520-A9200 |
| 48603 | Right front suspension bearing sub-assembly | 48609-01050 · 48609-02120 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 · 90303-22049 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-14015 |
| 48607A | Right support rod bracket sub-assembly | 48607-12030 |
| 48608 | Left support rod bracket sub-assembly | 48608-12030 |
| 48609 | Left front suspension bearing sub-assembly | 48609-01050 · 48609-02120 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 · 90303-22049 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-01010 · 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-01010 · 48684-52010 |
| 48690 | Front suspension support rod assembly | 48690-12040 · 48690-12090 |
| 48810 | Left front stabilizer bar link assembly | 48820-02030 |
| 48811 | front stabilizer bar | 48811-01010 · 48811-AB010 · 48811-AB011 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-02100 |
| 48820A | Nut (for front stabilizer bar link) | 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-02030 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-02030 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-02030 |
