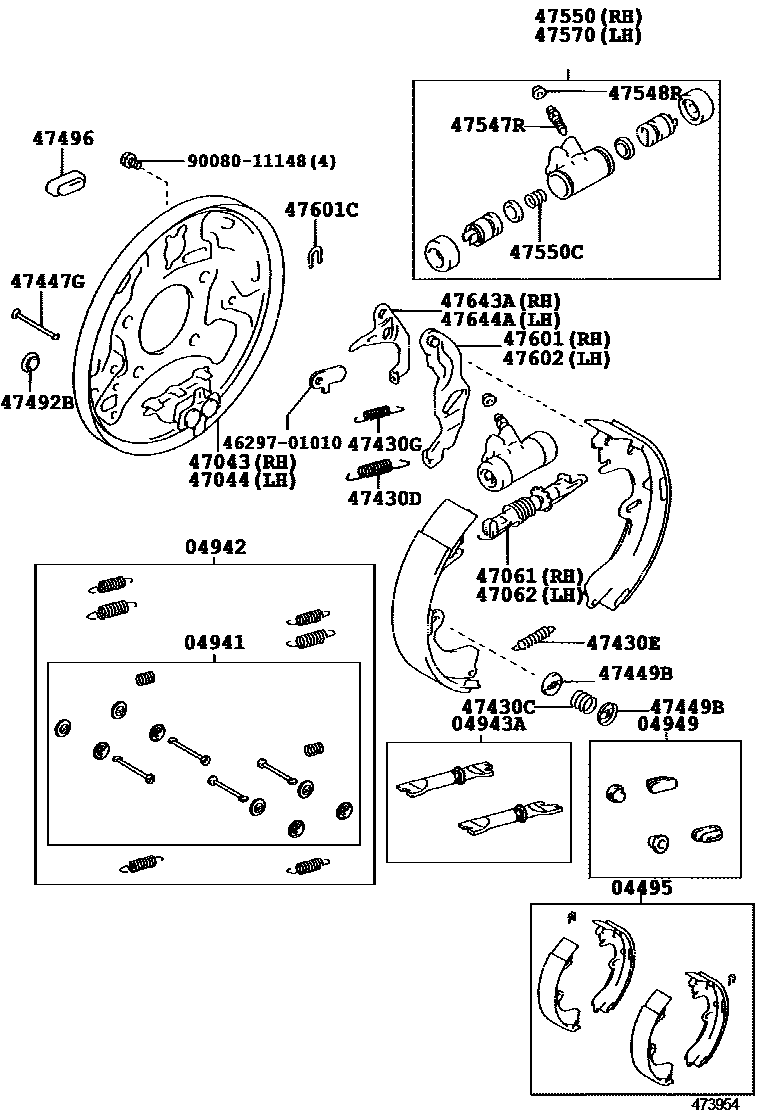

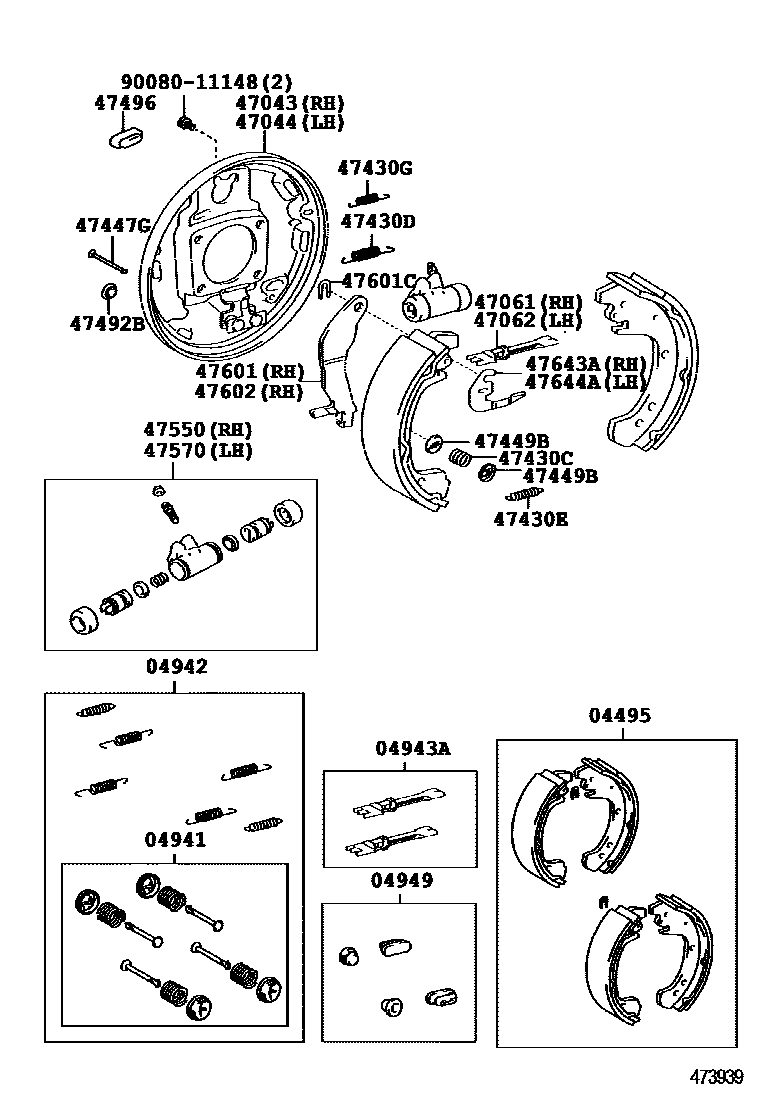

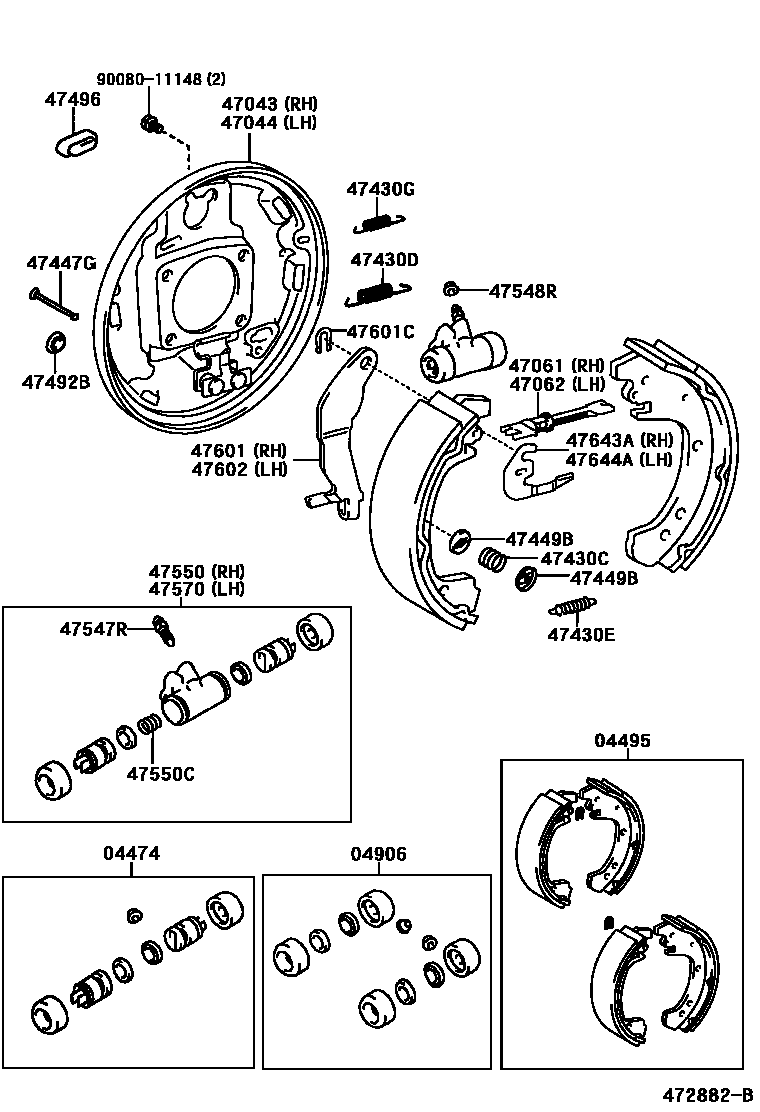

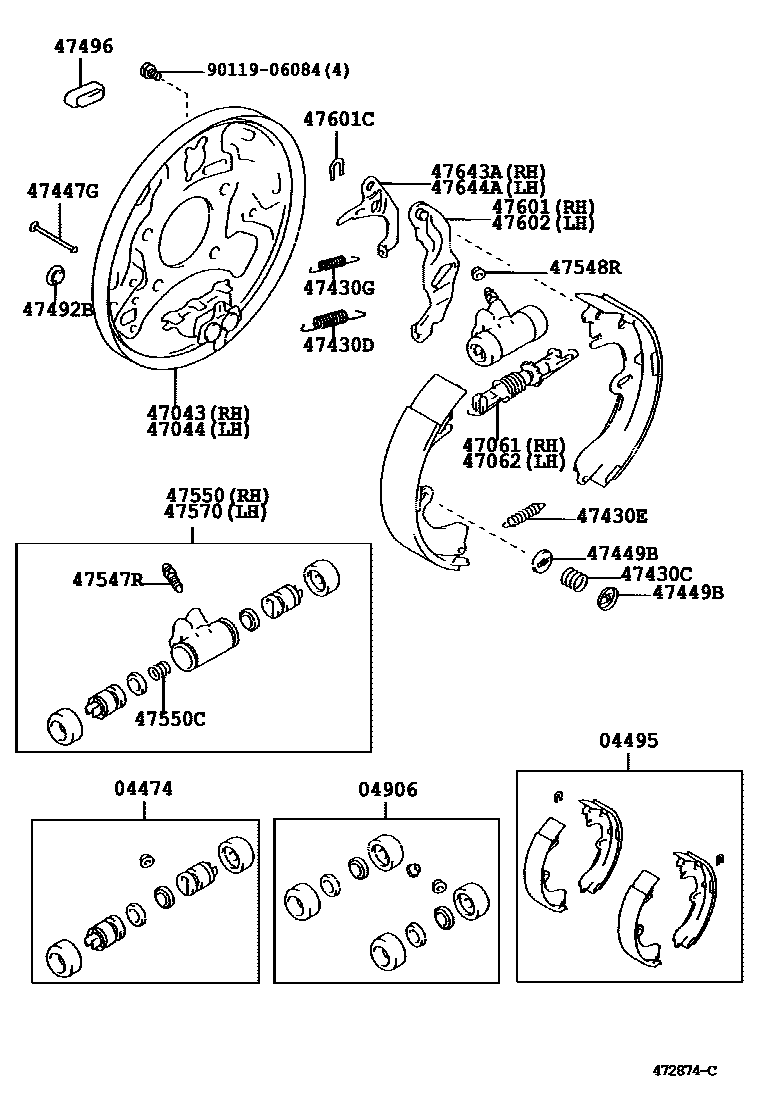

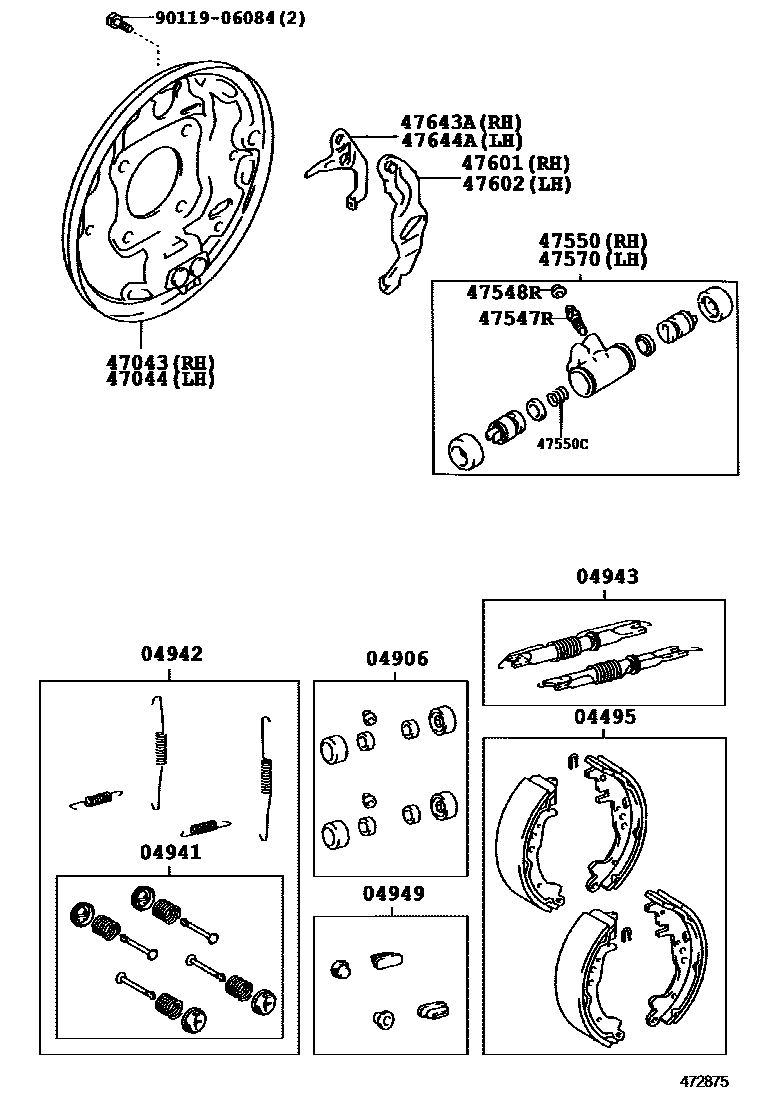

Toyota COROLLA 后鼓式制动器分泵和底板 — Figure 4706
Toyota COROLLA EPC diagram 4706, 后鼓式制动器分泵和底板, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-42020 · 04474-52020 |
| 04495 | Rear brake shoe assembly | 04495-01040 · 04495-02050 · 04495-63011 |
| 04906 | Rear wheel pump cup assembly | 04906-20030 · 04906-42020 · 04906-52020 |
| 04941 | Rear brake shoe limit spring assembly | 04941-02050 · 04941-02060 · 04941-28010 |
| 04942 | Rear brake spring assembly | 04942-02060 · 04942-02080 · 04942-13020 · 04942-13030 |
| 04943 | Right rear brake bracket assembly | 04943-13010 |
| 04943A | Rear brake bracket assembly | 04943-02040 · 04943-12020 |
| 04949 | Rear brake plug assembly | 04949-02030 · 04949-13010 |
| 47043 | Right rear brake base plate sub-assembly | 47043-01020 · 47043-02040 · 47043-63010 |
| 47044 | Left rear brake base plate sub-assembly | 47044-01020 · 47044-02040 · 47044-63010 |
| 47061 | Right parking brake shoe push rod assembly | 47061-02030 · 47061-12040 |
| 47062 | Left parking brake shoe push rod assembly | 47062-02030 · 47062-12040 |
| 47430C | Limit spring (for rear brake shoe) | 90080-50327 · 90080-50336 |
| 47430D | Tension spring (for rear brake shoe return) | 90080-50337 · 90080-50342 |
| 47430E | Tension spring (for rear brake shoe return) | 90080-50339 · 90080-50340 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90080-50338 · 90080-50341 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-02040 · 47447-07020 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-01020 · 47449-02030 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-06020 |
| 47496 | Hole plug (for rear brake) | 47491-02010 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20010 · 47547-26010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-01030 · 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-01040 · 47550-02100 · 47550-42020 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90029-60014 · 90501-09079 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-01040 · 47550-42020 · 47570-02020 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47611-01020 · 47611-02060 · 47612-33010 |
| 47601C | C-shaped washer (for rear brake) | 90080-21020 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47611-33010 · 47612-01020 · 47612-02060 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-01020 · 47643-02030 · 47643-42010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-01020 · 47644-02030 · 47644-42010 |
