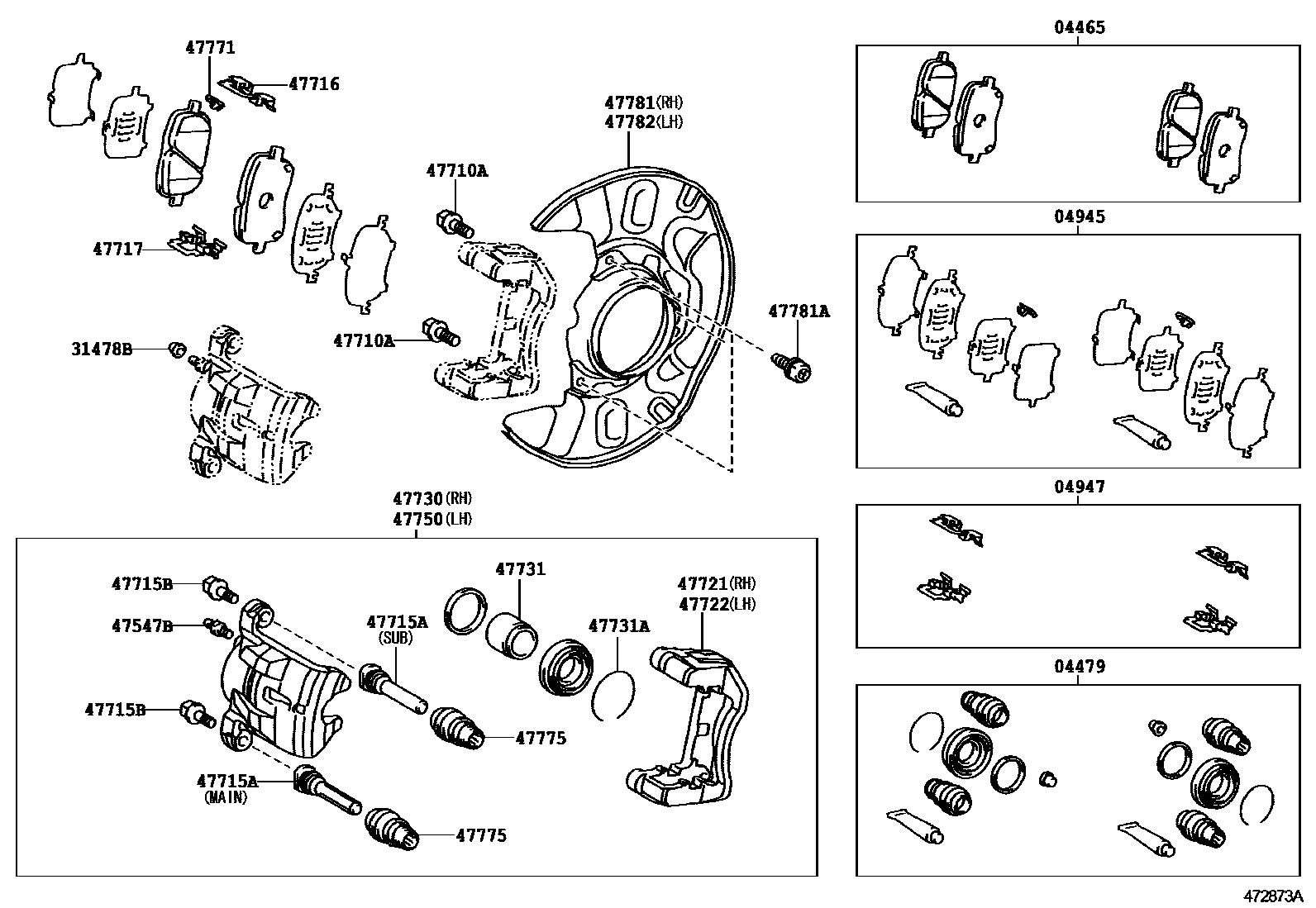

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-02070 · 04465-02080 |
| 04479 | Front disc brake cylinder assembly | 04479-02100 |
| 04945 | Front silencer gasket assembly | 04945-02040 · 04945-02050 |
| 04947 | Front disc brake mounting kit | 04947-02060 · 04947-02120 · 04947-02130 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-01030 |
| 47547B | Bleed plug (for front disc brake) | 47547-06010 · 47547-12130 · 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90080-10067 · 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-02200 · 47715-02210 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90080-10075 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-02100 · 47717-02051 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-02050 · 47717-02051 |
| 47721 | Right front disc brake cylinder retainer | 47721-02140 · 47721-02141 |
| 47722 | Left front disc brake cylinder retainer | 47721-02140 · 47721-02141 |
| 47730 | Right front disc brake cylinder assembly | 47730-02140 |
| 47731 | Front disc brake piston | 47731-02110 |
| 47731A | retaining ring (for front disc brake piston) | 90080-52086 |
| 47750 | Left disc brake cylinder assembly | 47750-02140 |
| 47771 | No. 1 pad wear indicator plate | 47771-02090 |
| 47775 | Bushing boot (for front disc brake) | 47775-02090 |
| 47781 | Right front disc brake dust cover | 47781-12240 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90080-11429 · 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-12240 |
