Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

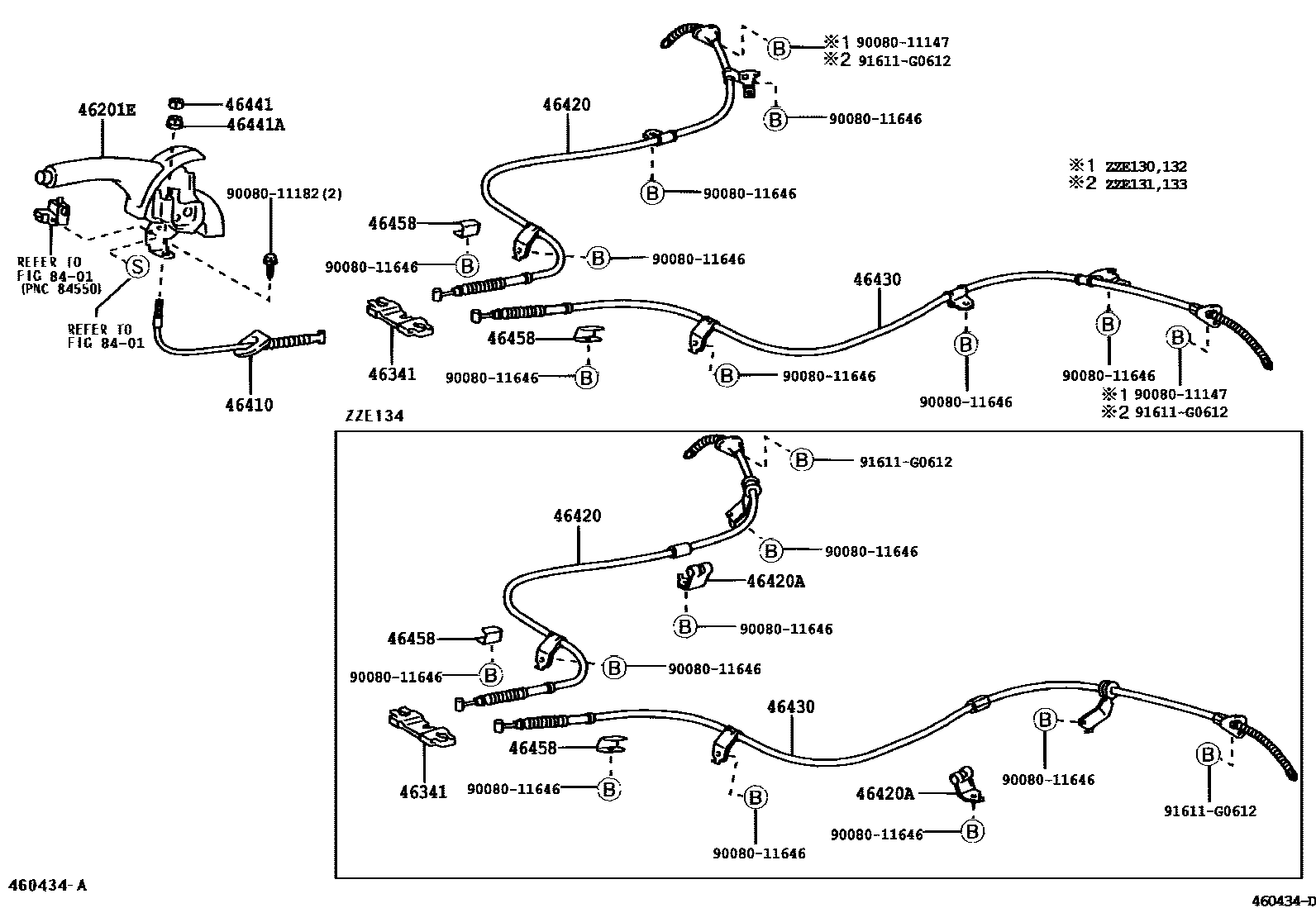

| 46341 | Parking brake balancer | 46341-20070 |
| 46410 | Parking brake cable assembly No. 1 | 46410-12270 · 46410-42040 |
| 46420 | Parking brake No. 2 cable assembly | 46420-01030 · 46420-01040 · 46420-02070 · 46420-02080 · 46420-12550 · 46420-12560 · 46420-12570 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90949-01C31 |
| 46430 | Parking brake No. 3 cable assembly | 46430-01030 · 46430-01040 · 46430-02070 · 46430-02080 · 46430-12390 · 46430-12450 · 46430-12460 |
| 46441 | No. 1 cable adjustment nut | 90179-06058 · 90179-06299 |
| 46441A | No. 2 cable adjustment nut | 46441-12010 |
| 46458 | Cable fixings | 46458-01020 |

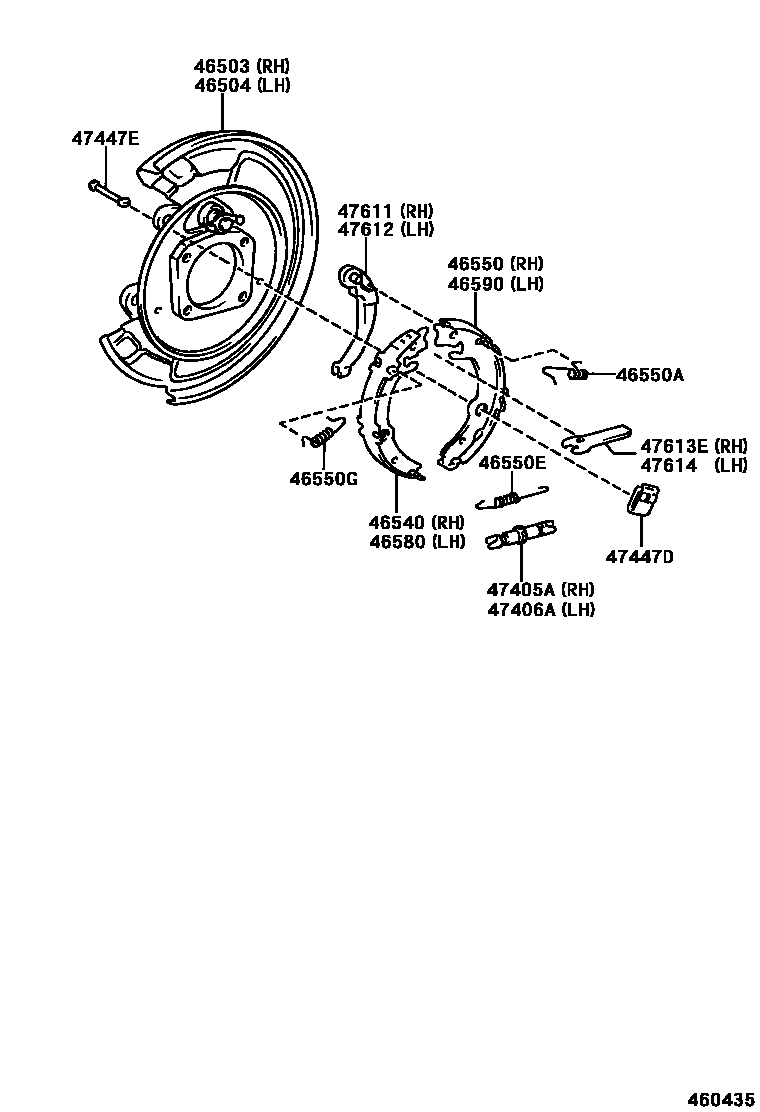

| 46503 | Right parking brake pad sub-assembly | 46503-20070 |
| 46504 | Left parking brake pad sub-assembly | 46504-20070 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-20080 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46540-20080 |
| 46550A | No. 1 tension spring (used for parking brake shoe return) | 90905-06044 · 90905-06045 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90905-06046 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90905-06043 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-20080 |
| 46590 | No. 2 left parking brake shoe assembly | 46540-20080 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-32010 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47406-32010 |
| 47447D | Compression spring (for parking brake shoe limit) | 47446-32010 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-11010 |
| 47611 | Right parking brake shoe lever | 47601-32030 |
| 47612 | Left parking brake shoe lever | 47602-32030 |
| 47613E | Right parking brake shoe push rod | 47613-32030 |
| 47614 | Left parking brake shoe push rod | 47613-32030 |
