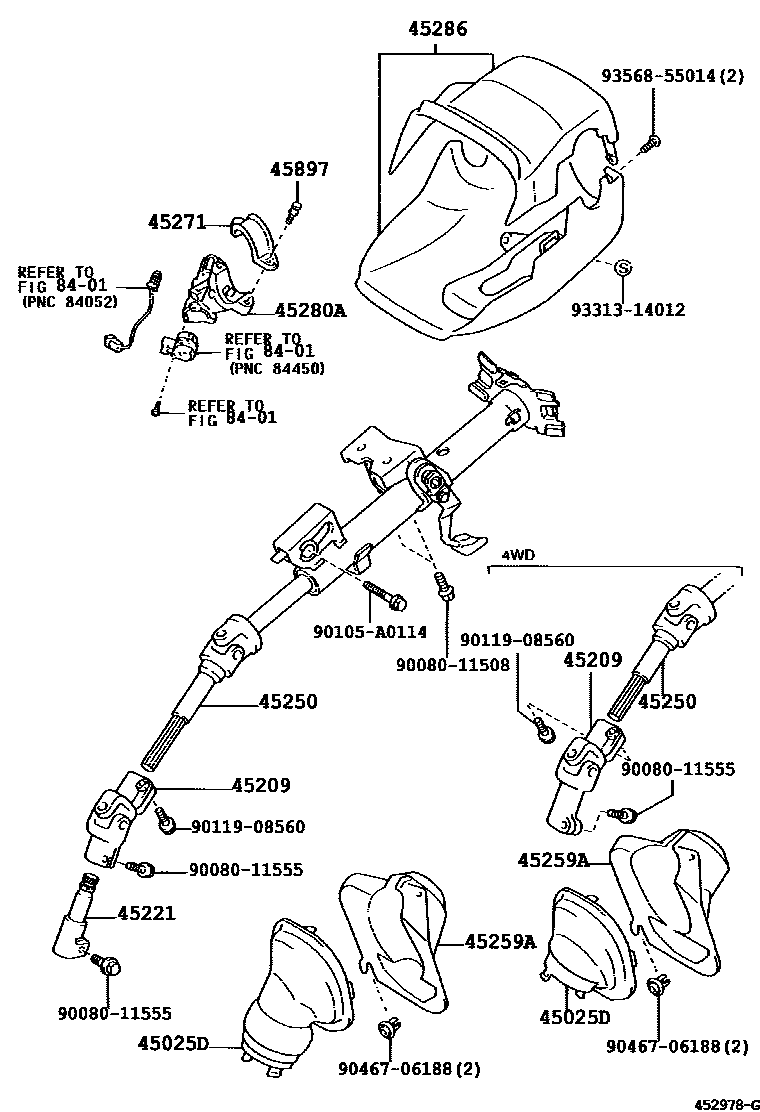

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-01020 · 45025-02030 |
| 45209 | Steering slip fork sub-assembly | 45209-02040 · 45209-02041 · 45209-02050 · 45209-02051 · 45209-02060 |
| 45221 | steering intermediate shaft | 45221-02030 · 45221-05011 |
| 45250 | Steering column assembly | 45250-02410 · 45250-02420 · 45250-02430 |
| 45259A | Steering column hole cover silencer plate | 45259-12030 · 45259-12031 · 45259-12040 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45280A | Steering column upper bracket assembly | 45280-02070 · 45280-02080 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
