Toyota COROLLA Front Drive Shaft — Figure 4302

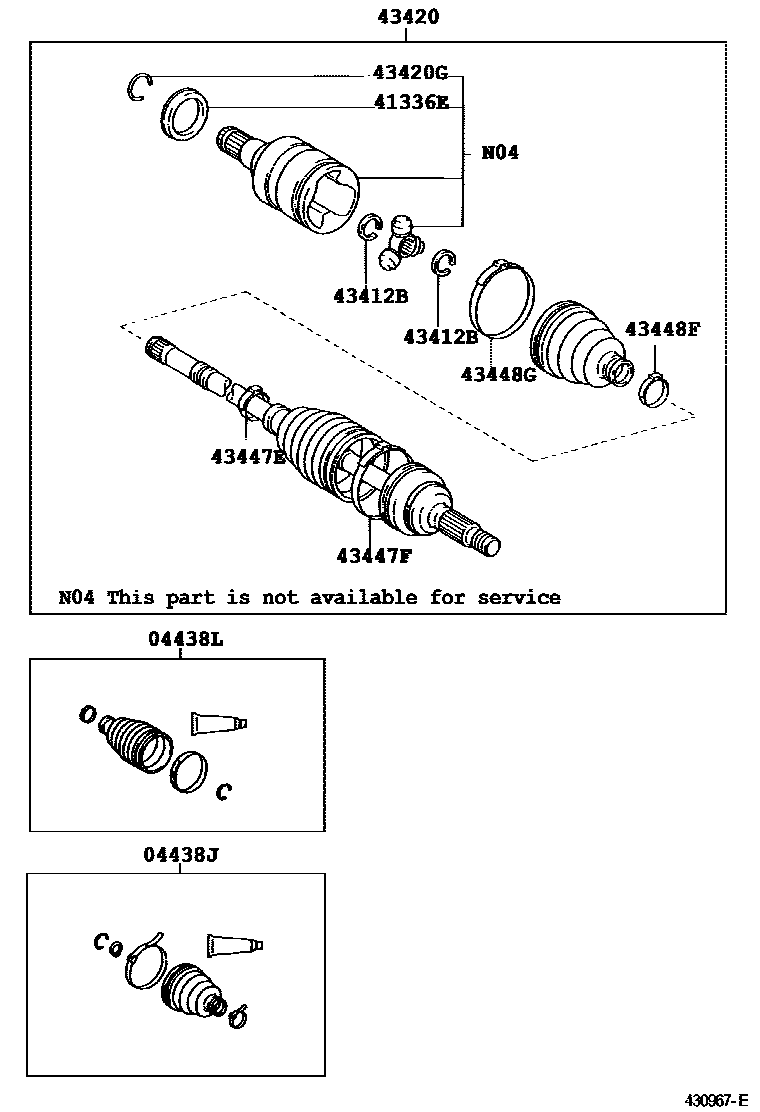

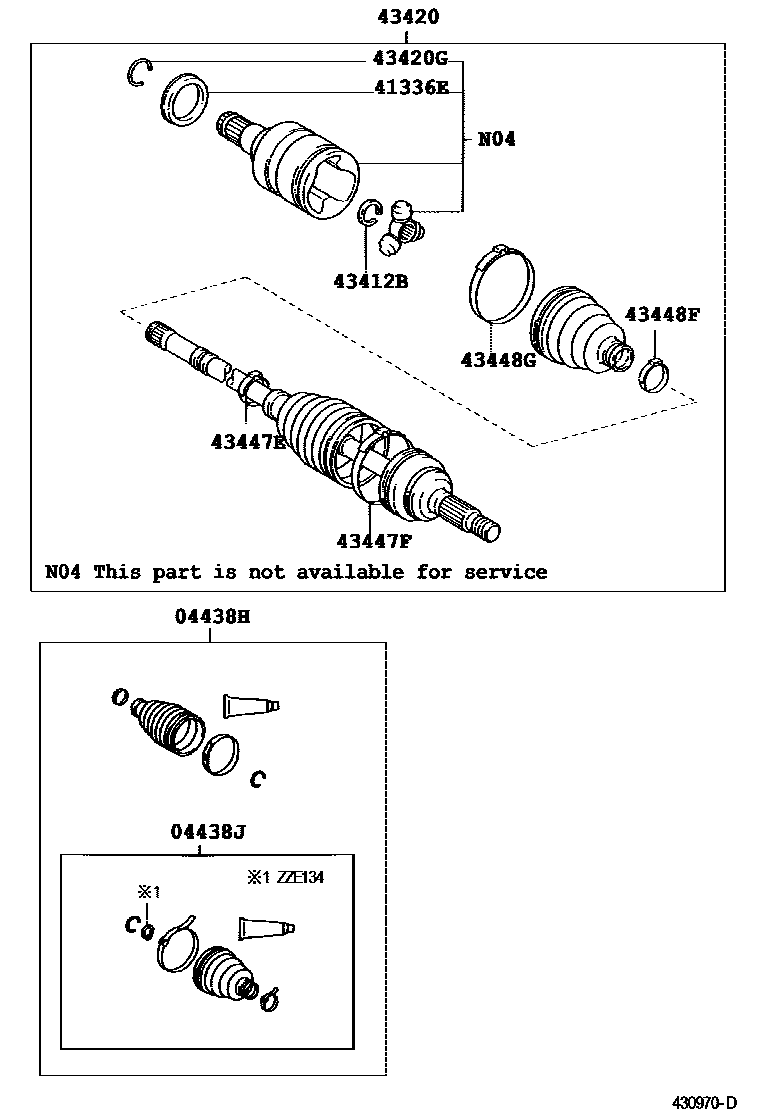

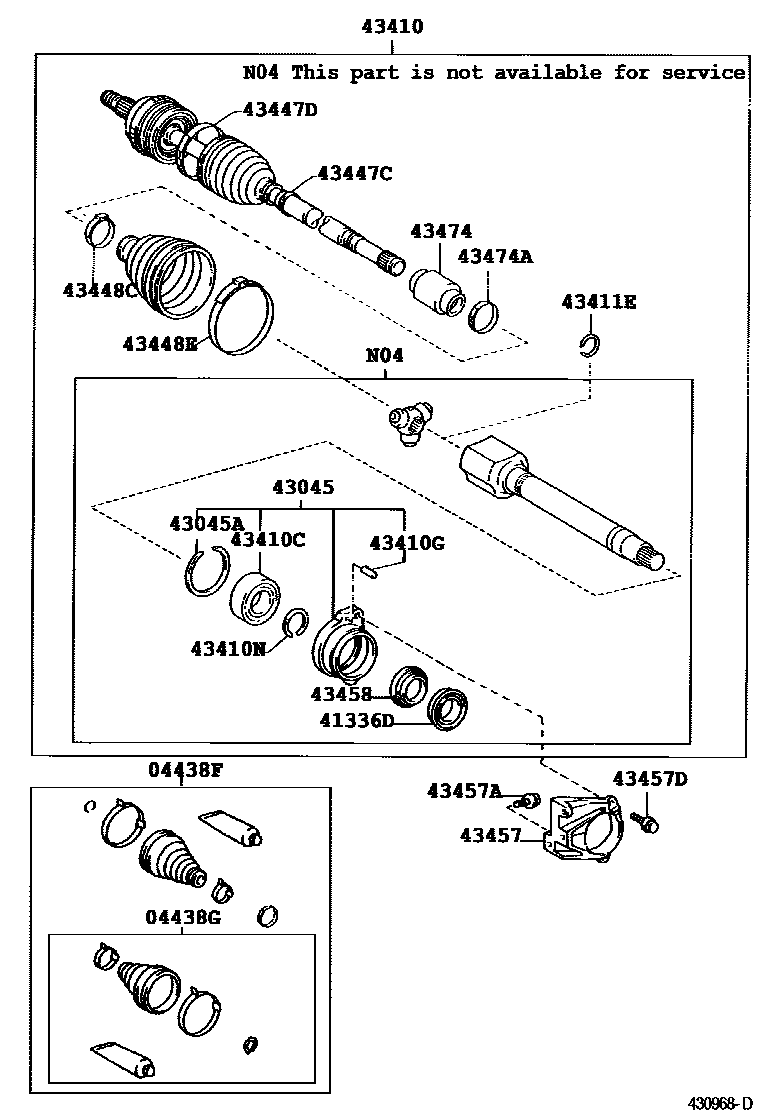

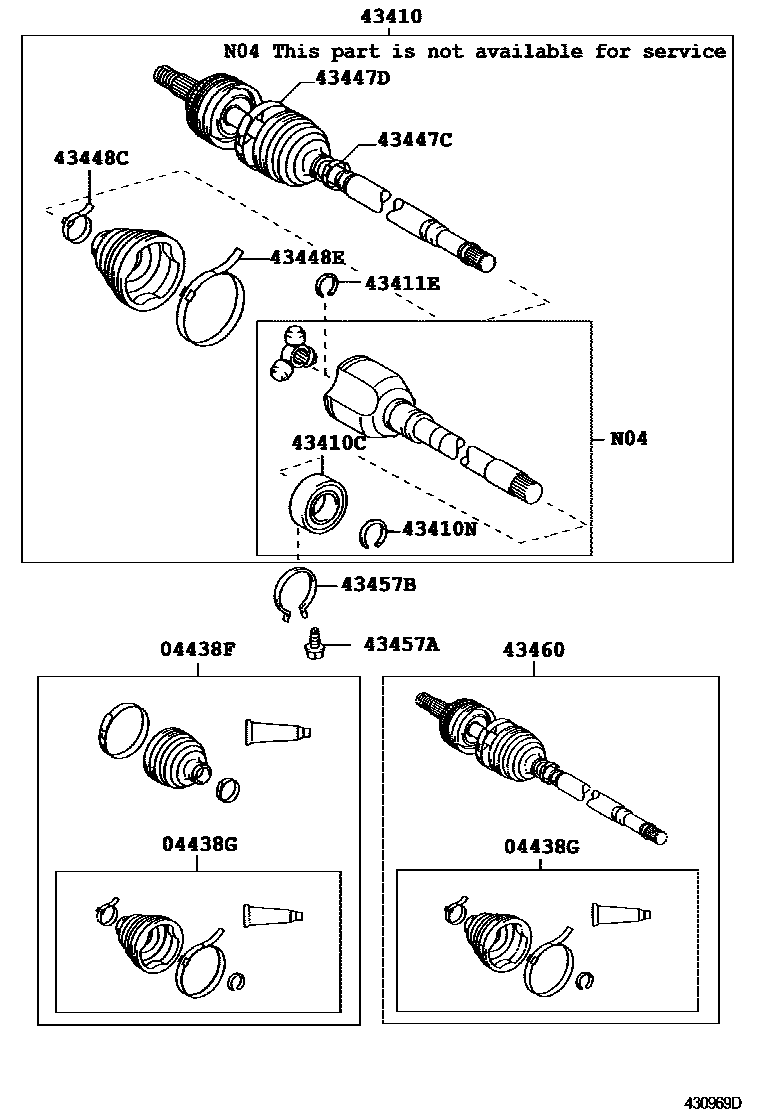

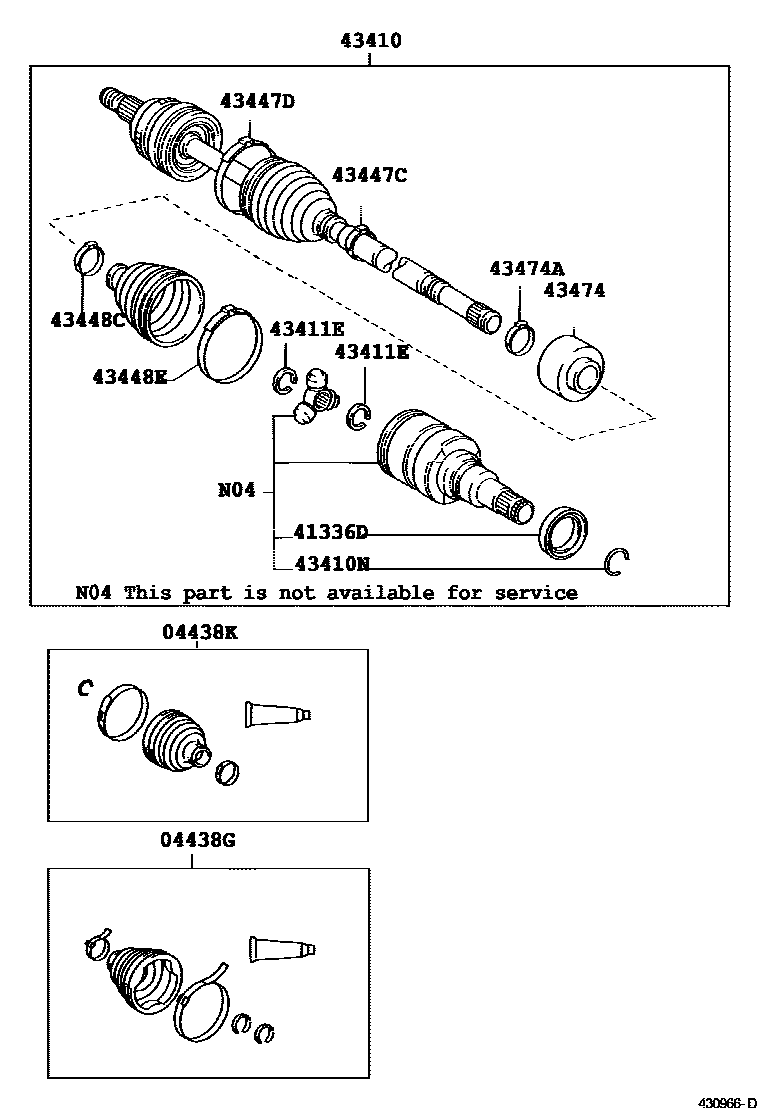

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04428-12260 · 04438-02200 · 04438-02210 · 04438-12481 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-01060 · 04438-02180 · 04438-02190 · 04438-42200 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-42100 · 04438-02200 · 04438-12481 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-01060 · 04438-02180 · 04438-02190 · 04438-12730 · 04438-42200 |
| 04438K | Right front drive shaft outer universal joint dust boot assembly | 04438-01080 |
| 04438L | Left front drive shaft outer universal joint dust boot assembly | 04438-01080 |
| 41336D | Right front driveshaft dust cover | 41336-01010 · 41336-02030 · 41336-02040 |
| 41336E | Left front driveshaft dust cover | 41336-01010 · 41336-02030 · 41336-05030 · 41336-05140 · 41336-12060 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20040 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 96153-00680 |
| 43410 | Right front driveshaft assembly | 43410-01090 · 43410-01100 · 43410-02280 · 43410-02290 · 43410-02310 · 43410-02320 · 43410-02330 · 43410-02350 · 43410-02550 · 43410-12630 |
| 43410C | Bearings (for front driveshaft) | 90363-36004 · 90363-36006 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-02050 · 90080-52015 · 90080-52054 · 90520-33008 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02010 · 90080-52008 · 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02010 · 90080-52008 · 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-01050 · 43420-01070 · 43420-01080 · 43420-01090 · 43420-02320 · 43420-02340 · 43420-02360 · 43420-02380 · 43420-02390 · 43420-02580 · 43420-12590 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-02050 · 90080-52015 · 90080-52055 · 90521-27005 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02110 · 42345-12150 · 90080-46147 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02100 · 42345-12140 · 90080-46149 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02110 · 42345-12150 · 90080-46147 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02100 · 42345-12140 · 90080-46149 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-05100 · 90080-46148 · 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02040 · 42345-02120 · 42345-12160 · 90949-01076 · 90949-01946 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-05100 · 90080-46148 · 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02040 · 42345-02120 · 42345-12160 · 90949-01076 · 90949-01946 |
| 43457 | drive shaft bearing bracket | 43457-20080 · 43457-32070 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10285 · 90105-10361 · 90901-19060 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-05010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-19885 |
| 43474 | drive shaft damper | 43474-02110 · 43474-02120 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02130 · 90080-46154 |
