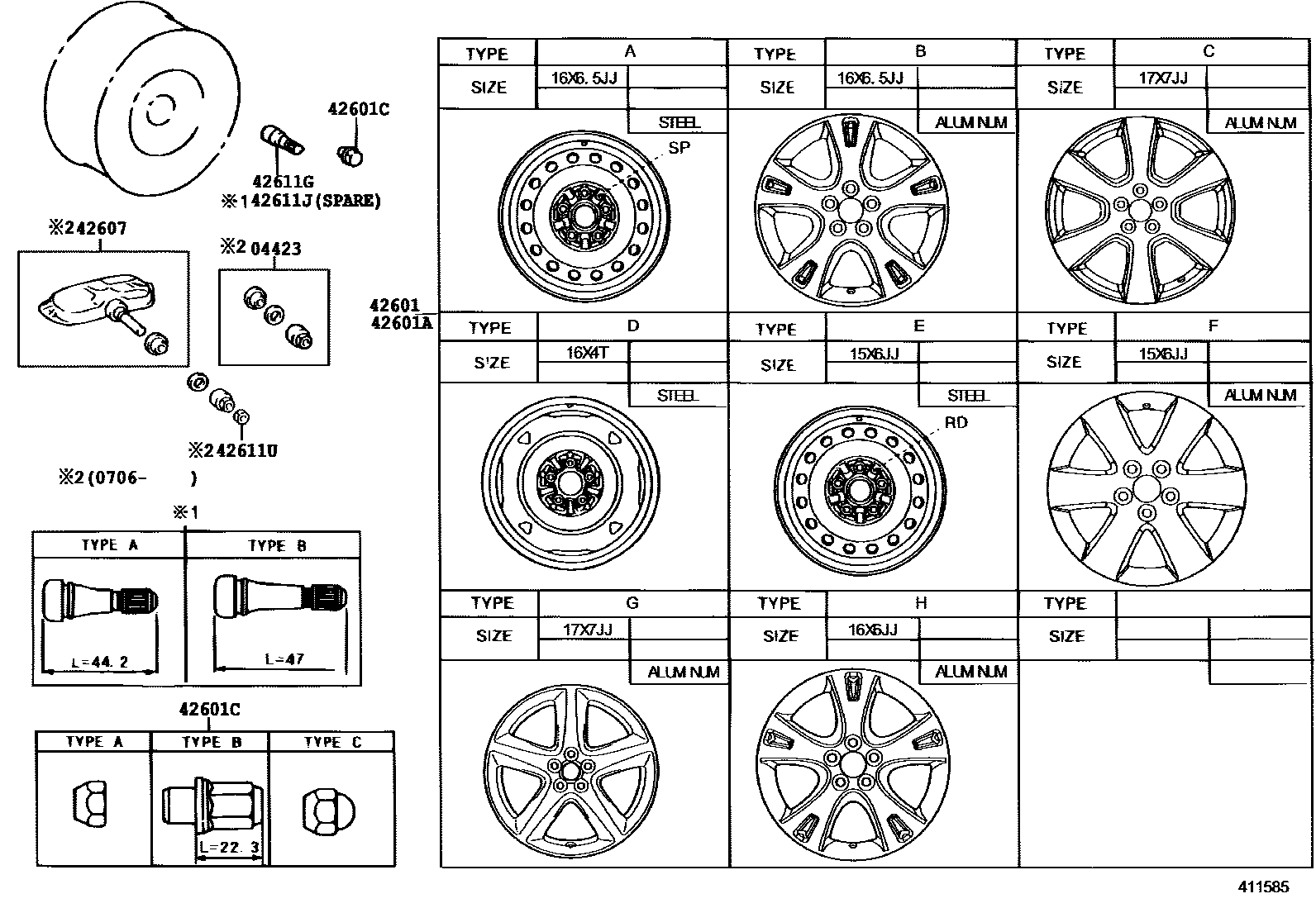

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0E010 |
| 42601 | spoke wheel | 42611-01180 · 42611-01181 · 42611-02470 · 42611-02471 · 42611-21140 · 42611-AB010 · 42611-AB011 · 42611-AB020 · 42611-AB021 · 42611-AB030 · 42611-AB031 · 42611-AB040 · 42611-AB041 |
| 42601A | Spoke wheel (for spare tire) | 42611-02470 · 42611-02480 · 42611-AB010 |
| 42601C | Hub nut (for axle) | 90080-17035 · 90084-94001 · 90942-01021 |

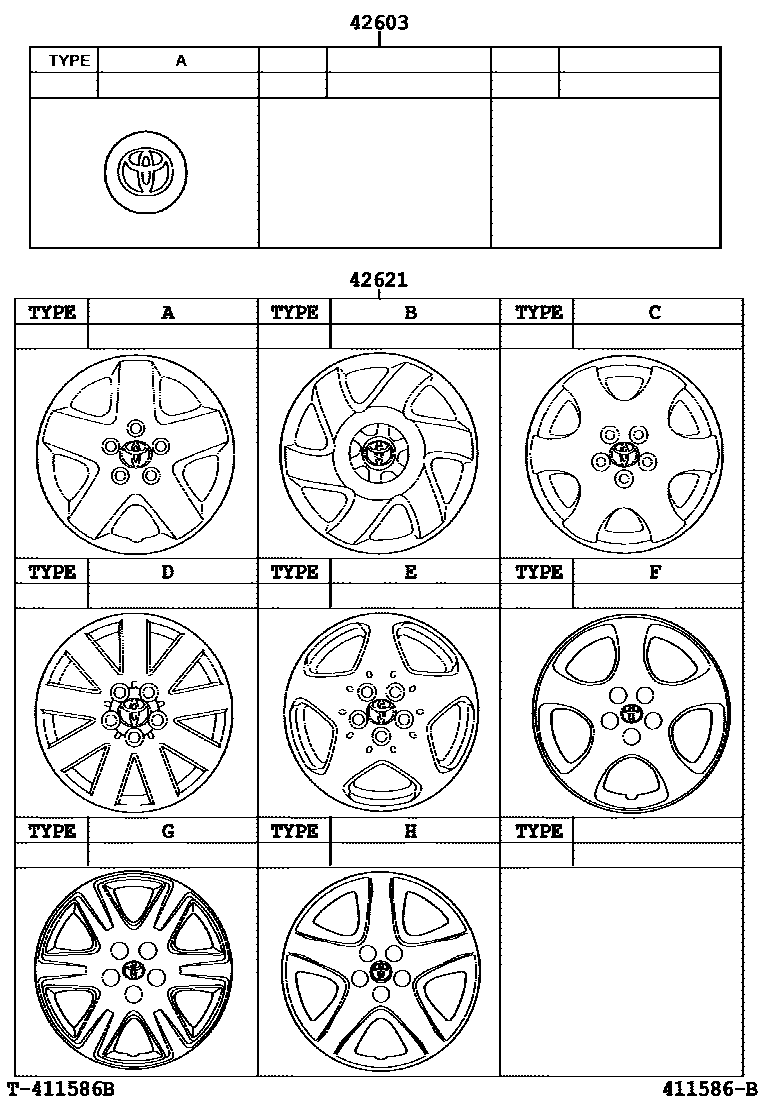

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12700 · 42603-AB020 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06011 |
| 42611G | Valve (for tubeless tires) | 90080-45001 · 90080-45006 |
| 42611J | Valve (for tubeless spare tire) | 90080-45001 · 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 |
| 42621 | wheel cover | 42621-AB050 · 42621-AB060 · 42621-AB070 · 42621-AB080 · 42621-AB090 · 42621-AB100 · 42621-AB110 · 42621-AB120 |
