Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

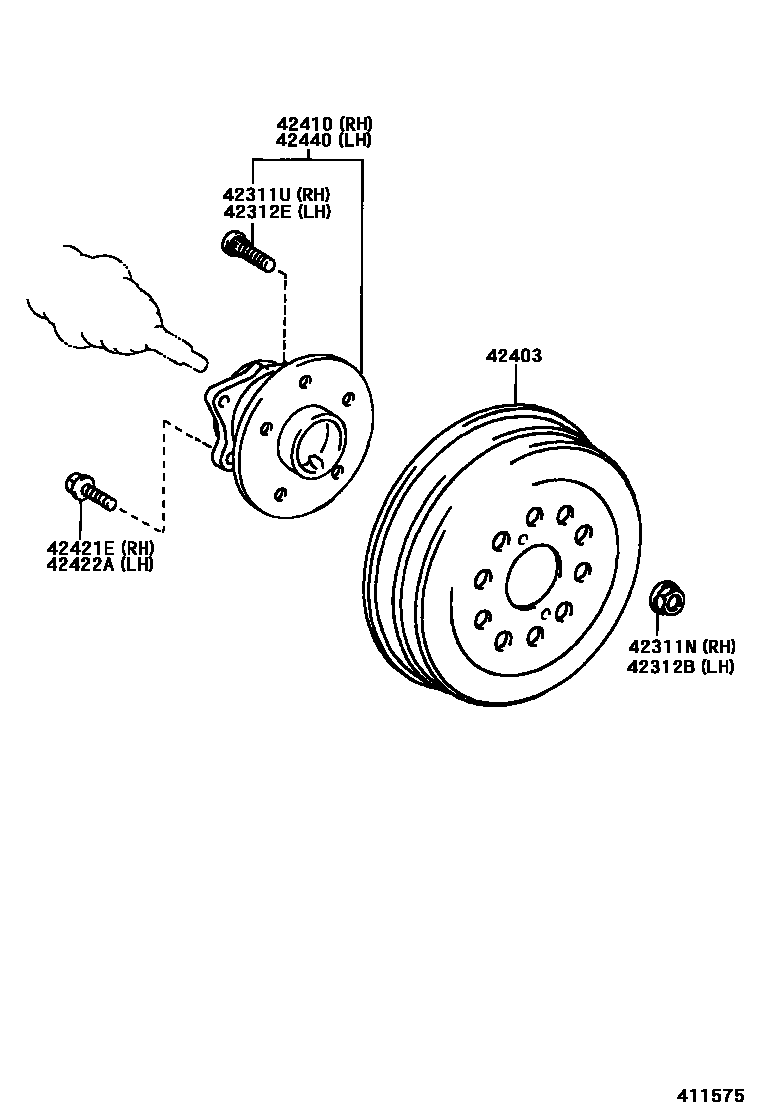

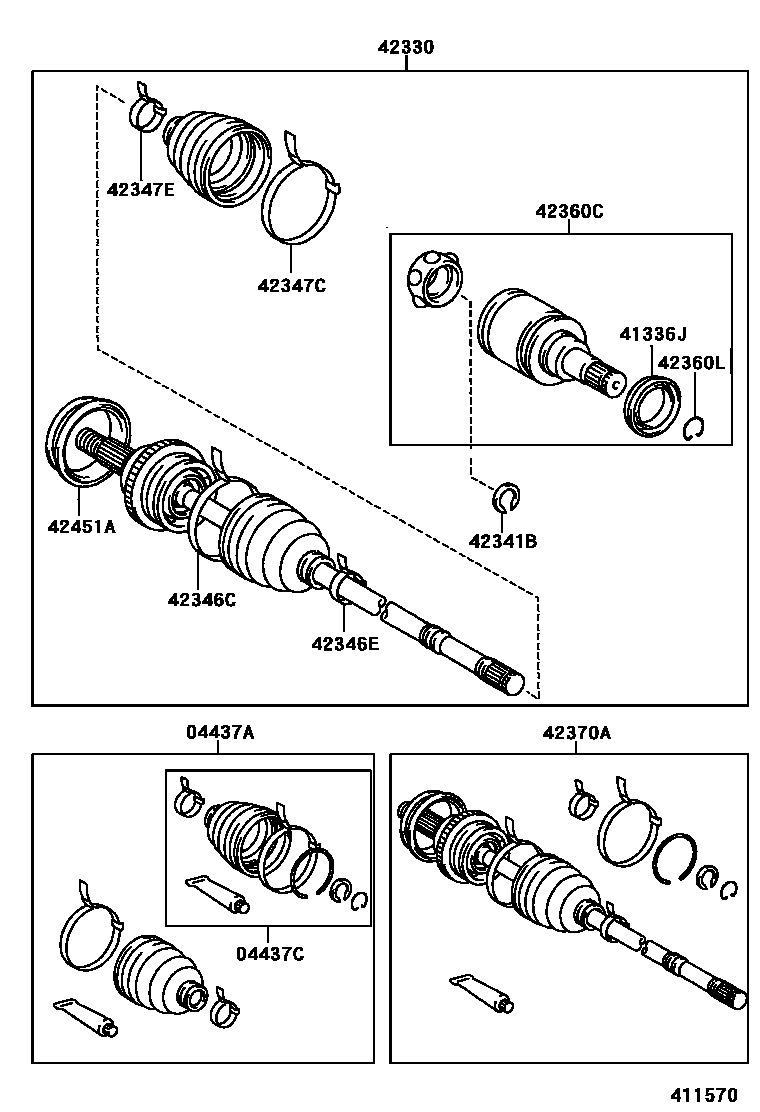

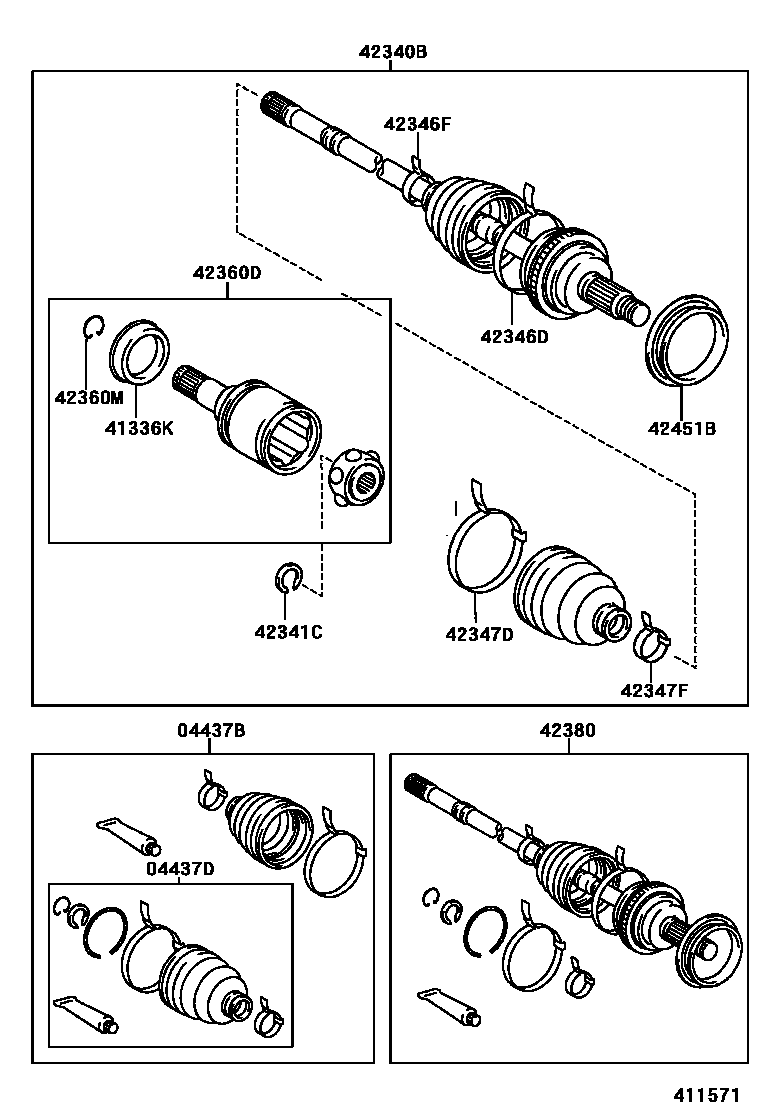

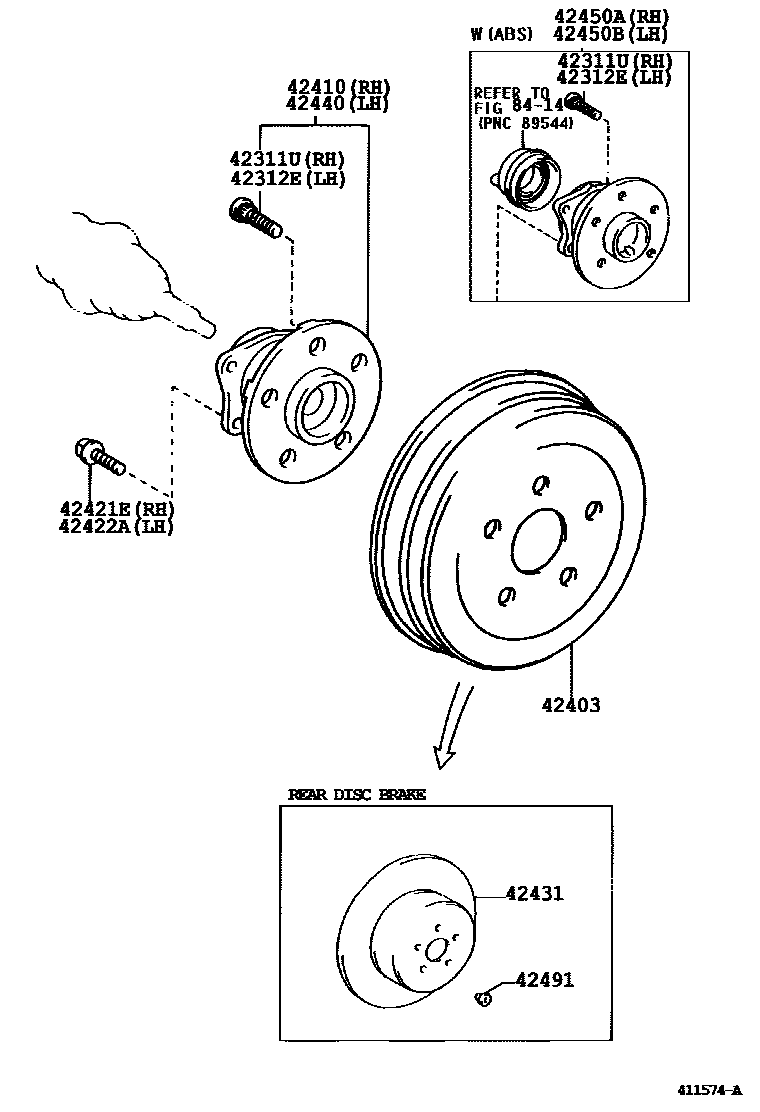

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04437A | Right rear drive shaft dust boot assembly | 04429-12020 · 04437-21022 |
| 04437B | Left rear drive shaft dust boot assembly | 04429-12020 · 04437-21022 |
| 04437C | Right rear drive shaft inner universal joint dust boot assembly | 04437-21012 |
| 04437D | Left rear drive shaft inner universal joint dust boot assembly | 04437-21012 |
| 41336J | Rear axle right drive shaft dust cover | 41336-33010 |
| 41336K | Rear axle left drive shaft dust cover | 41336-33010 |
| 42311N | Nut (for rear axle right half shaft) | 90177-22001 |
| 42311U | Hub bolt (for rear axle right) | 90942-02049 · 90942-02078 |
| 42312B | Nut (for rear axle left half shaft) | 90177-22001 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 · 90942-02078 |
| 42330 | Rear axle right drive shaft assembly | 42340-32110 |
| 42340B | Rear axle left drive shaft assembly | 42340-32110 |
| 42341B | Snap ring (for rear axle right drive shaft) | 90520-21020 |
| 42341C | Snap ring (for rear axle left drive shaft) | 90520-21020 |
| 42346C | Clamp (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-12120 |
| 42346D | Clamp (for universal joint dust cover outside left drive shaft of rear axle) | 42345-12120 |
| 42346E | Clamp No. 2 (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-12130 |
| 42346F | Clamp No. 2 (for the universal joint dust cover on the outside of the rear left drive shaft of the rear axle) | 42345-12130 |
| 42347C | Clamp (for the universal joint dust cover inside the right drive shaft of the rear axle) | 42345-12120 |
| 42347D | Clamp (for the universal joint dust cover inside the left drive shaft of the rear axle) | 42345-12120 |
| 42347E | Clamp No. 2 (for the dust cover of the universal joint inside the right drive shaft of the rear axle) | 42345-12130 |
| 42347F | Clamp No. 2 (for the dust cover of the universal joint inside the left drive shaft of the rear axle) | 42345-12130 |
| 42360C | Rear axle right drive shaft inner universal joint assembly | 42360-33010 |
| 42360D | Rear axle left drive shaft inner universal joint assembly | 42360-33010 |
| 42360L | Shaft snap ring (for rear axle right drive shaft inner universal joint) | 90521-26004 |
| 42360M | Shaft snap ring (for rear axle left drive shaft inner universal joint) | 90521-26004 |
| 42370A | Rear axle right drive shaft outer universal joint assembly | 42370-39156 |
| 42380 | Rear axle left drive shaft outer universal joint assembly | 42370-39156 |
| 42403 | Rear brake drum sub-assembly | 42431-01030 · 42431-02100 · 42431-12230 |
| 42410 | Rear axle right hub and bearing assembly | 42410-01020 · 42410-02080 · 42410-12250 |
| 42421E | Bolt (for rear axle right bearing housing) | 90080-10382 · 90105-10449 |
| 42422A | Bolt (for rear axle left bearing housing) | 90080-10382 · 90105-10449 |
| 42431 | rear brake disc | 42431-47030 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-01020 · 42410-02080 · 42410-12250 |
| 42450A | Rear axle right hub and bearing assembly | 42450-01010 · 42450-02070 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-01010 · 42450-02070 |
| 42451A | No. 1 right rear wheel bearing dust cover | 42451-32020 |
| 42451B | No. 1 left rear wheel bearing dust cover | 42451-32020 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47491-22020 |
