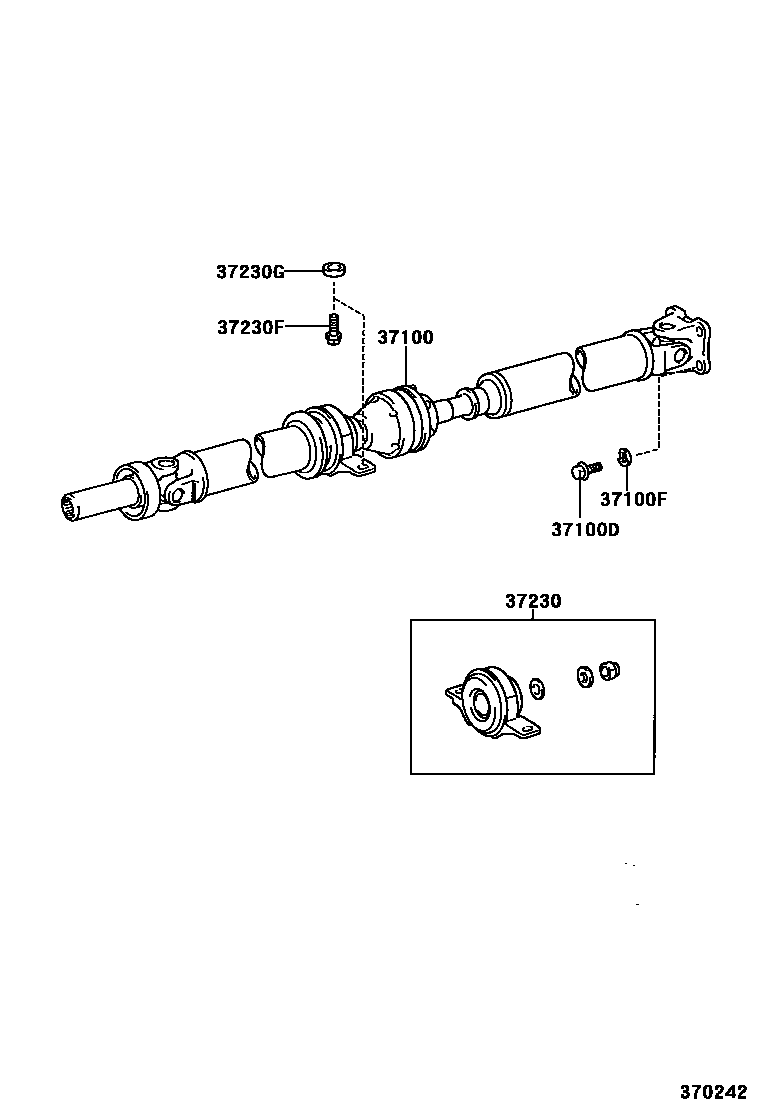

Toyota COROLLA Propeller Shaft & Universal Joint — Figure 3701
Toyota COROLLA EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 37100 | Drive shaft assembly with central bearing | 37100-12620 |
| 37100D | No. 2 bolt (used to secure the drive shaft and differential) | 90105-10423 |
| 37100F | No. 2 washer (used to secure drive shaft and differential) | 90204-10002 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-19015 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10444 |
| 37230G | No. 2 washer (for intermediate support bearing) | 90201-10008 · 90201-10017 · 90201-10033 · 90201-10040 |
