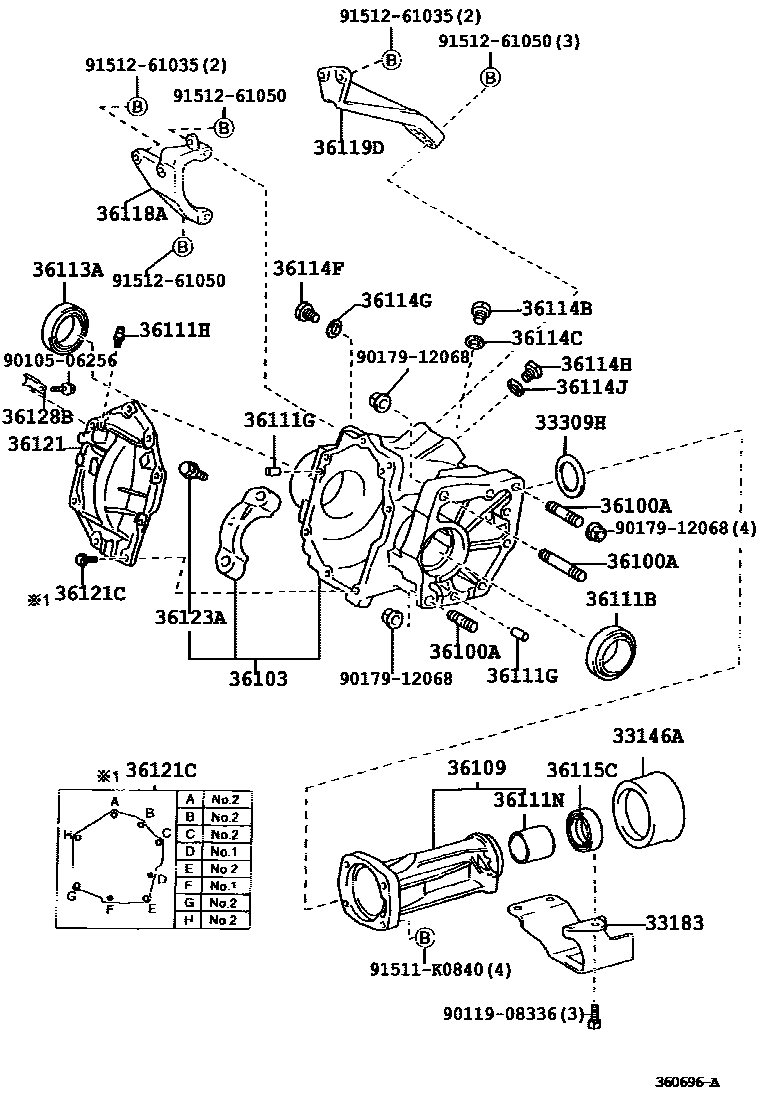

Toyota COROLLA Transfer Case & Extension Housing — Figure 3609
Toyota COROLLA EPC diagram 3609, Transfer Case & Extension Housing, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33146A | Transfer case extension housing dust cover | 33146-30020 |
| 33183 | Transfer case dynamic damper | 33183-21020 |
| 33309H | Transfer case output shaft washer | 36275-33010 · 36275-33030 · 36275-33050 · 36275-33070 · 36275-33090 · 36275-33110 · 36275-33130 · 36275-33150 · 36275-33170 · 36275-33190 · 36275-33210 · 36275-33230 · 36275-33250 · 36275-33270 · 36275-33290 · 36275-33310 · 36275-33330 · 36275-33350 · 36275-33370 · 36275-33390 · 36275-33410 · 36275-33430 · 36275-33450 |
| 36100A | Stud bolts (for securing transfer case and transaxle) | 90116-12028 · 90116-12034 · 90116-12041 |
| 36103 | Transfer case sub-assembly | 36103-12010 |
| 36109 | Transfer case extension housing sub-assembly | 36109-33010 |
| 36111B | Oil seal (for transfer case) | 90311-49001 |
| 36111G | Direct sales (for transfer case) | 90250-08030 · 90250-08046 · 90250-10017 |
| 36111H | Breather plug (for transfer case) | 90930-03133 |
| 36111N | Bushing (for transfer case) | 90999-73105 |
| 36113A | Oil seal (for right transfer case) | 90311-36006 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-18055 |
| 36114C | No. 1 gasket (for transfer case) | 12157-10010 |
| 36114F | Screw plug (for transfer case oil drain) | 90341-18057 |
| 36114G | Gasket (for transfer case drain plug) | 12157-10010 |
| 36114H | No. 2 screw plug (for transfer case) | 90341-18006 |
| 36114J | No. 2 gasket (for transfer case) | 12157-10010 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-38062 · 90311-38090 |
| 36118A | Transfer case right side reinforcement plate | 36118-12080 |
| 36119D | Transfer case center reinforcement plate | 36119-12050 |
| 36121 | No. 1 transfer case cover | 36121-28010 |
| 36121C | Hexagon head bolt with washer base (for transfer case cover) | 90105-08351 · 91511-J0820 |
| 36123A | Differential bearing cap bolts | 41114-16010 |
| 36128B | Air vent oil baffle | 36128-28010 |
