Toyota COROLLA 制动带和多片式离合器(ATM) — Figure 3507

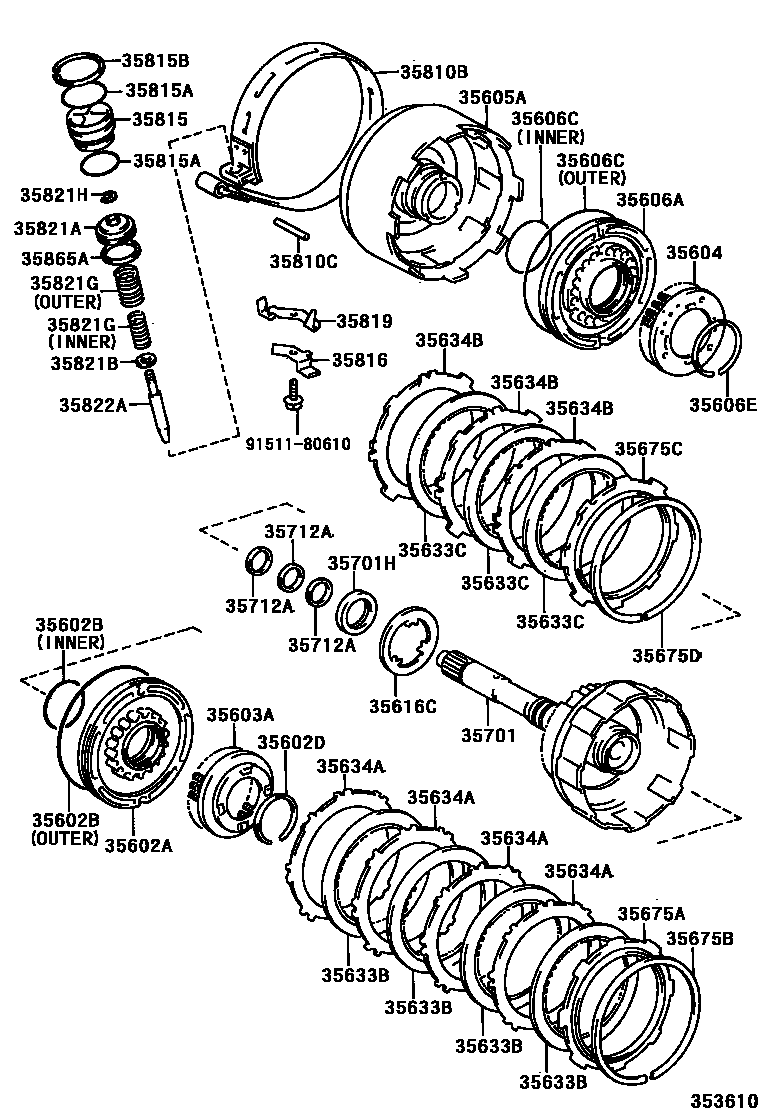

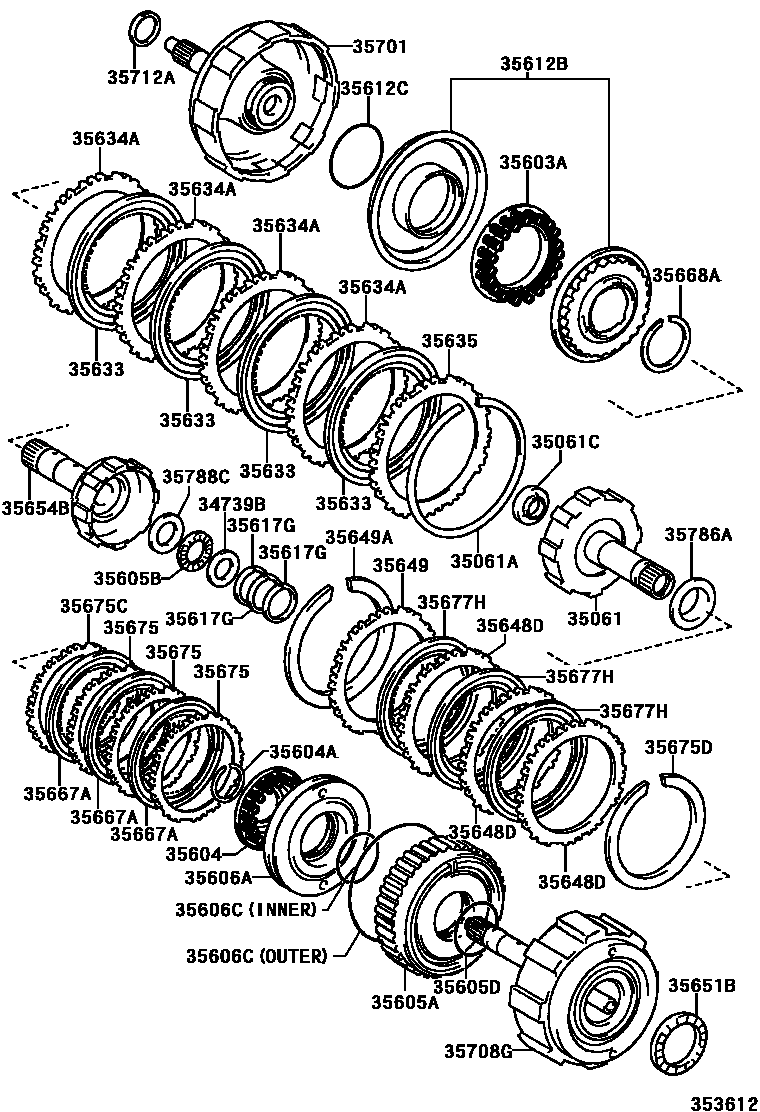

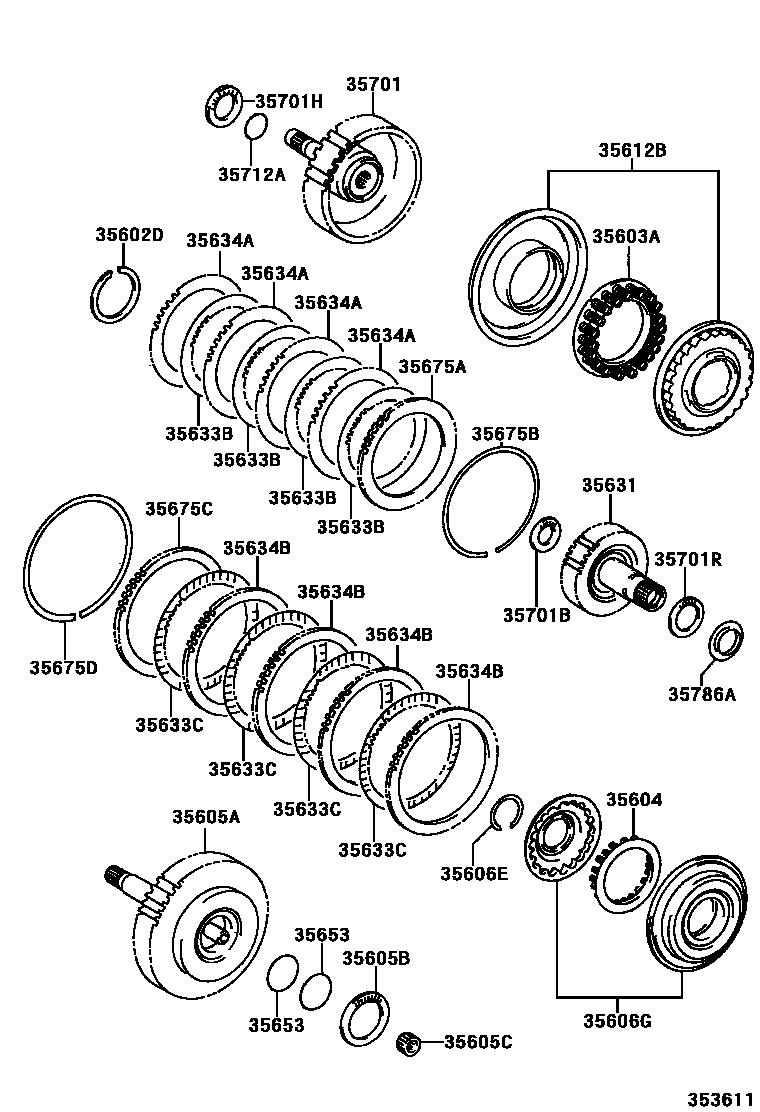

Toyota COROLLA EPC diagram 3507, 制动带和多片式离合器(ATM), with 3 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34739B | Thrust bearing race (for C2 hub) | 34739-52010 |
| 35061 | Forward gear clutch hub sub-assembly | 35061-52020 |
| 35061A | Hole snap ring (for forward clutch flange) | 90520-99049 |
| 35061C | Thrust needle roller bearing (for forward clutch hub) | 90374-21003 |
| 35602A | Forward gear clutch piston sub-assembly | 35602-12060 |
| 35602B | O-ring (for forward clutch piston) | 90301-49006 · 90301-99058 |
| 35602D | Shaft snap ring (for forward clutch piston return spring) | 90520-47009 · 90520-54004 |
| 35603A | Forward gear clutch return spring sub-assembly | 35603-12020 · 35603-20010 · 35603-52020 |
| 35604 | Direct clutch return spring sub-assembly | 35604-12010 · 35604-21010 · 35604-52020 |
| 35604A | Shaft snap ring (for direct clutch piston) | 90520-31012 |
| 35605A | Direct gear clutch drum sub-assembly | 35605-12040 · 35605-21010 · 35605-52010 · 35605-52020 |
| 35605B | Thrust needle roller bearing | 90374-22008 · 90374-53001 · 90374-53002 |
| 35605C | Needle roller bearings | 90364-18010 |
| 35605D | O-ring (for direct clutch drum) | 90301-42005 |
| 35606A | Direct clutch piston sub-assembly | 35606-20010 · 35606-52020 |
| 35606C | O-ring (for direct clutch piston) | 90301-41008 · 90301-56007 · 90301-99058 · 90301-99120 |
| 35606E | Shaft snap ring (for direct clutch piston return spring) | 90520-38019 · 90520-52002 |
| 35606G | Direct clutch piston assembly | 35606-21010 |
| 35612B | forward clutch piston | 35063-20010 · 35063-52010 · 35063-52020 |
| 35612C | O-ring (for forward clutch piston) | 90301-58003 |
| 35616C | Clutch drum thrust washer (for direct gear clutch drum) | 35616-12040 |
| 35617G | Clutch drum oil ring | 35617-52020 |
| 35631 | Clutch hub (for multi-plate clutches) | 35061-33010 |
| 35633 | Clutch disc (for front clutch) | 35633-52020 |
| 35633B | Clutch disc (for forward multi-plate clutch) | 35633-12080 · 35633-21010 |
| 35633C | Clutch disc (for direct gear multi-plate clutch) | 35633-32060 · 35667-21010 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-12030 · 35634-21010 · 35634-52020 |
| 35634B | Clutch plate (for direct gear multi-plate clutch) | 35634-12020 · 35647-21010 |
| 35635 | forward clutch flange | 35635-52050 · 35635-52060 · 35635-52070 · 35635-52080 |
| 35648D | Clutch plate No. 3 | 35648-52020 |
| 35649 | Reverse clutch flange | 35649-52020 · 35649-52030 · 35649-52040 · 35649-52050 |
| 35649A | Hole snap ring (for reverse clutch flange) | 90520-99052 |
| 35651B | Thrust needle roller bearing (for rear clutch drum) | 90374-43004 · 90374-43005 |
| 35653 | Rear clutch outer oil ring | 35653-21010 |
| 35654B | Direct clutch hub | 35062-52010 |
| 35667A | Direct clutch disc | 35667-52020 |
| 35668A | Snap ring (for clutch balancer) | 90520-39024 |
| 35675 | rear clutch flange | 35675-52040 |
| 35675A | forward clutch flange | 35635-21010 · 35635-21020 · 35635-21030 · 35635-21040 · 35635-21050 · 35635-30060 · 35675-12040 · 35675-12050 · 35675-12060 · 35675-32061 |
| 35675B | Hole snap ring (for forward clutch flange) | 90520-99025 · 90521-99001 |
| 35675C | Direct clutch flange | 35675-12020 · 35675-12040 · 35675-12050 · 35675-12060 · 35675-21010 · 35675-21020 · 35675-21030 · 35675-21040 · 35675-21050 · 35675-21060 · 35675-52040 · 35675-52050 · 35675-52060 · 35675-52070 |
| 35675D | Hole snap ring (for direct clutch flange) | 90520-99028 · 90520-99051 · 90521-99001 |
| 35677H | Reverse clutch disc | 35677-52020 · 35677-52050 |
| 35701 | Input shaft sub-assembly | 35701-12030 · 35701-48010 · 35701-52020 |
| 35701B | Rear thrust needle roller bearing (for input shaft) | 90374-23002 |
| 35701H | Thrust needle roller bearing (for input shaft) | 90374-30011 · 90374-30012 · 90374-30013 · 90374-34005 |
| 35701R | Thrust needle roller bearing | 90374-37005 |
| 35708G | Intermediate shaft sub-assembly | 35708-52020 |
| 35712A | Input shaft oil ring | 35712-21010 · 35712-32010 · 35712-52020 |
| 35786A | No. 1 thrust bearing race | 35786-21010 · 35786-52010 |
| 35788C | No. 3 thrust bearing race | 35788-52010 |
| 35810B | Second gear coasting brake band assembly | 35810-32020 |
| 35810C | Pin (for second gear coast brake band) | 90250-07003 |
| 35815 | Second gear coast brake cover | 35815-12020 |
| 35815A | O-ring (for second gear coast brake cover) | 90301-41002 |
| 35815B | Hole snap ring (for second gear coast brake cover) | 90521-48003 |
| 35816 | Brake belt guide plate cover | 35816-12010 |
| 35819 | Second gear coasting brake with guide plate | 35819-12030 |
| 35821A | Second gear coast brake piston | 35821-32010 |
| 35821B | Flat washer (for second gear coast brake piston) | 90201-06557 |
| 35821G | Compression spring (for second gear coast brake piston) | 90501-26024 · 90501-27009 |
| 35821H | E-ring (for second gear coast brake piston) | 96160-00500 |
| 35822A | Second gear coast brake piston rod | 35822-32010 · 35822-32020 |
| 35865A | Second gear coasting brake piston oil protection ring | 35865-32010 |
