Toyota COROLLA 超速档齿轮(ATM) — Figure 3506

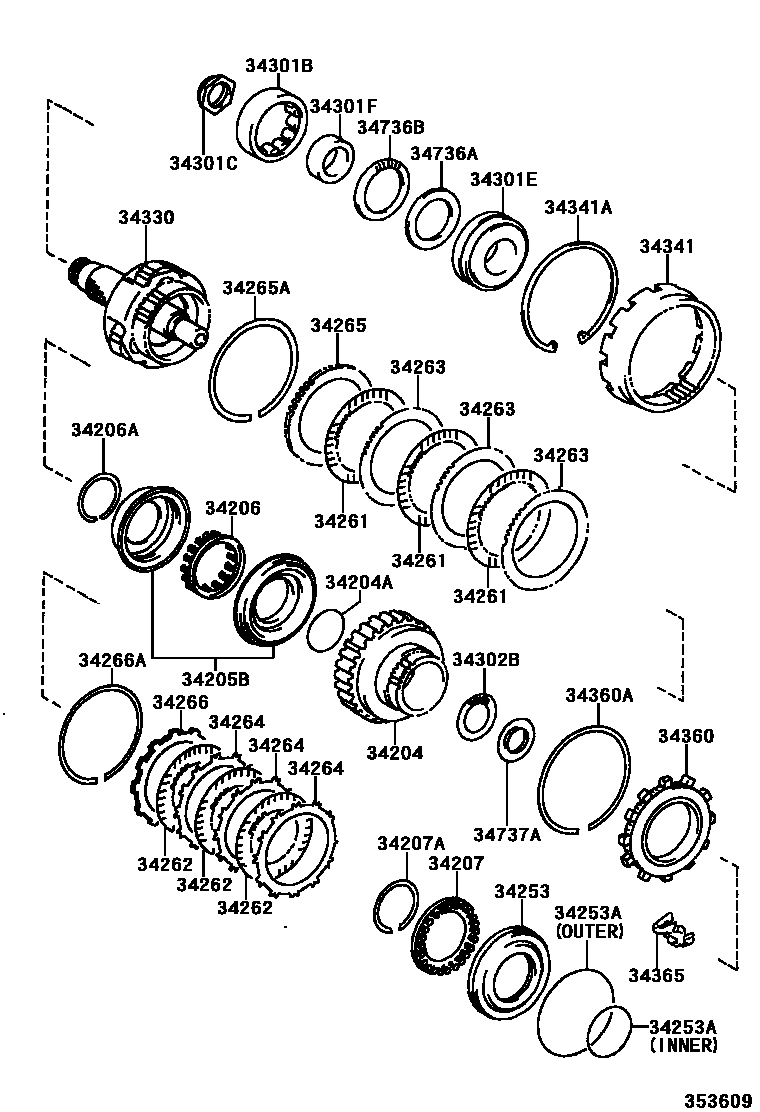

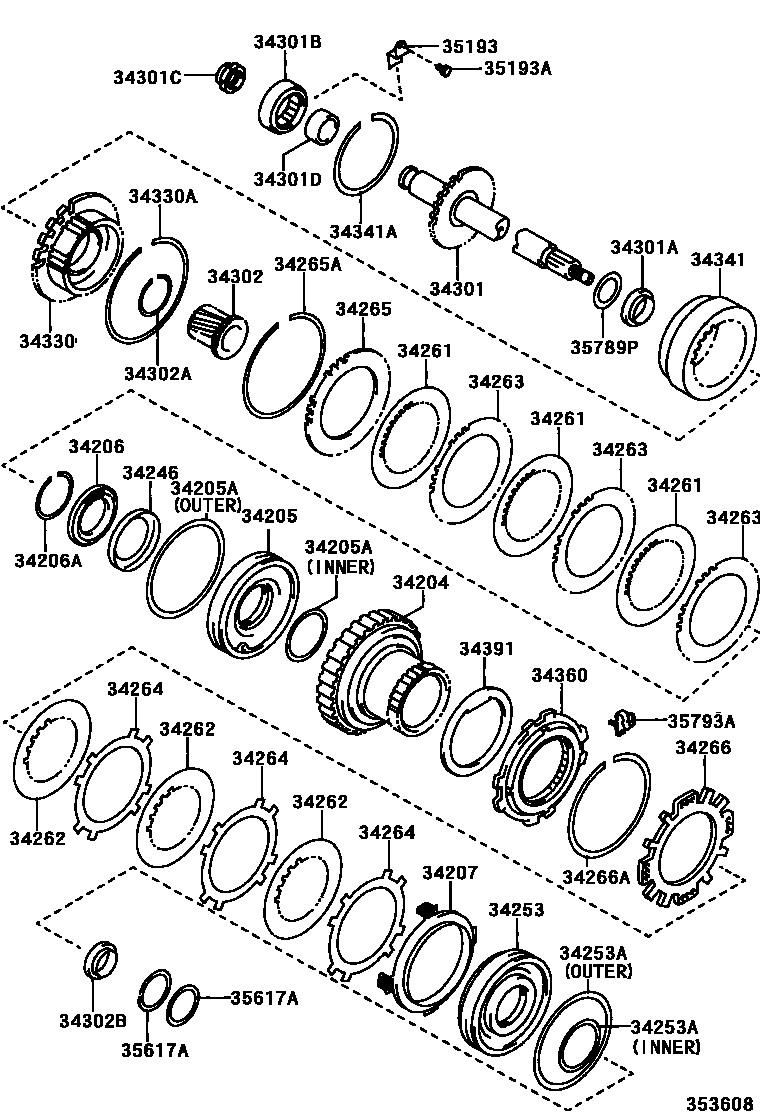

Toyota COROLLA EPC diagram 3506, 超速档齿轮(ATM), with 2 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34204 | Low speed clutch drum sub-assembly | 34204-12040 · 34204-32010 |
| 34204A | O-ring (for low-speed clutch drum) | 90301-44004 |
| 34205 | Low speed clutch piston sub-assembly | 34205-12020 |
| 34205A | O-ring (for low-speed clutch piston) | 90301-56007 · 90301-98003 |
| 34205B | Low range clutch piston assembly | 34205-32010 |
| 34206 | Low speed clutch return spring sub-assembly | 34206-12010 · 34206-32010 |
| 34206A | Shaft snap ring (for low speed return spring) | 90520-46011 · 90520-52262 |
| 34207 | Low speed brake return spring sub-assembly | 34207-12010 · 34207-21010 |
| 34207A | Snap ring (for low gear brake return spring) | 90520-59004 |
| 34246 | Low gear clutch return spring | 34246-12010 |
| 34253 | Low gear brake piston | 34253-12010 · 34253-21010 |
| 34253A | O-ring (for low-speed brake piston) | 90301-56007 · 90301-62007 · 90301-98003 · 90301-99094 |
| 34261 | No. 1 low speed clutch disc | 34261-20010 · 34261-32010 |
| 34262 | No. 2 low speed clutch disc | 34262-13010 · 34262-32010 |
| 34263 | No. 1 low speed clutch plate | 34263-12020 · 34263-32010 |
| 34264 | No. 2 low speed clutch plate | 34264-12020 · 34264-32010 |
| 34265 | No. 1 low speed clutch flange | 34265-12060 · 34265-12070 · 34265-12080 · 34265-12090 · 34265-32010 · 34265-32020 · 34265-32030 |
| 34265A | Hole snap ring (for No. 1 low-speed clutch flange) | 90520-99041 · 90521-99015 |
| 34266 | No. 2 low speed clutch flange | 34266-12010 · 34266-32010 · 34266-32020 · 34266-32030 |
| 34266A | Hole snap ring (for No. 2 low-speed clutch flange) | 90520-99041 · 90521-99015 |
| 34301 | Low speed gear input shaft sub-assembly | 34301-12020 |
| 34301A | Needle roller bearing (for low speed input shaft) | 90364-31003 |
| 34301B | No. 1 roller bearing (for low speed gear) | 90365-30031 · 90365-50003 |
| 34301C | Nut (for low speed input shaft) | 90179-26003 · 90179-32002 |
| 34301D | No. 2 roller bearing (for low speed gear) | 90365-30021 |
| 34301E | Roller tapered bearings (for low speed gears) | 90369-43013 |
| 34301F | Roller bearing inner race | 34733-32010 |
| 34302 | Low-speed planetary gear train sun gear sub-assembly | 34302-20010 |
| 34302A | Hole snap ring (for low speed planetary gear train sun gear) | 90521-48001 |
| 34302B | Needle roller bearings (for low-speed planetary gear train sun gear) | 90364-31003 · 90374-37007 |
| 34330 | Low speed planetary gear assembly | 34330-12030 · 34330-20020 · 34330-32010 |
| 34330A | Hole snap ring (for low speed planetary gear) | 90521-99015 |
| 34341 | Low speed planetary ring gear | 34341-20010 · 34341-32011 |
| 34341A | Hole snap ring (for low speed planetary ring gear) | 90521-98001 · 90521-99121 |
| 34360 | Low speed gear one-way clutch assembly | 34360-12030 · 34360-12040 · 34360-32011 |
| 34360A | Shaft snap ring (for low gear one-way clutch) | 90520-99040 |
| 34365 | Outer race retainer | 34365-32011 |
| 34391 | Low range clutch drum thrust washer | 34391-12020 |
| 34736A | No. 2 thrust bearing low speed gear race | 34736-32010 · 34736-32020 |
| 34736B | Thrust needle roller bearing | 90374-53004 |
| 34737A | No. 3 thrust bearing low speed gear race | 34737-21010 |
| 35193 | Roller retainer | 35193-12010 |
| 35193A | Bolt (for roller retainer) | 90119-08208 |
| 35617A | Clutch drum oil guard (for overdrive) | 35617-16010 |
| 35789P | Thrust bearing race (for low speed input shaft) | 35789-12010 |
| 35793A | Low gear one-way clutch retaining ring | 35793-10010 |
