Toyota COROLLA 变矩器、前油泵和链条(ATM) — Figure 3502

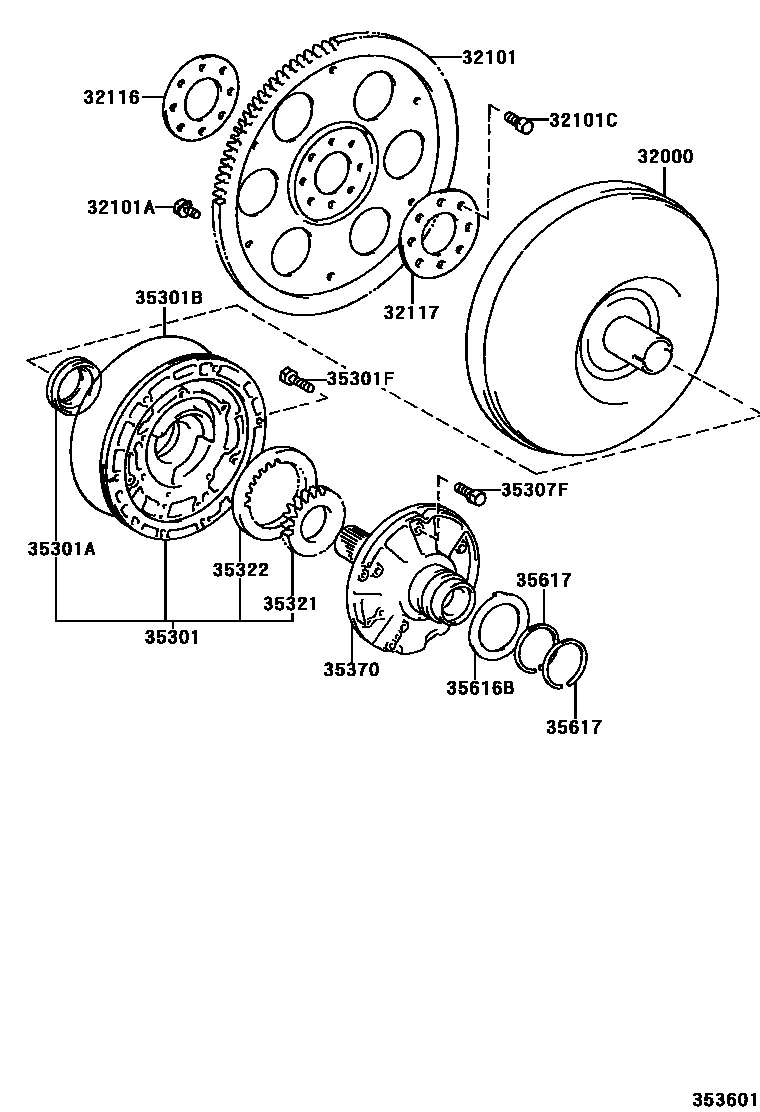

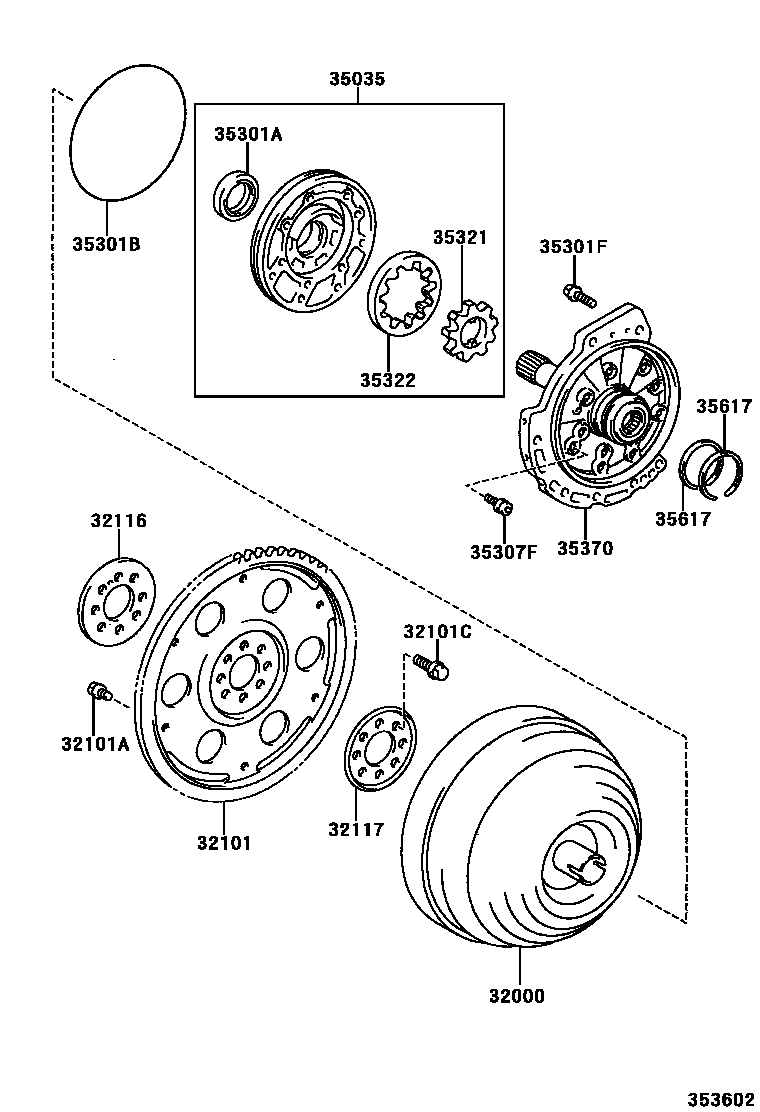

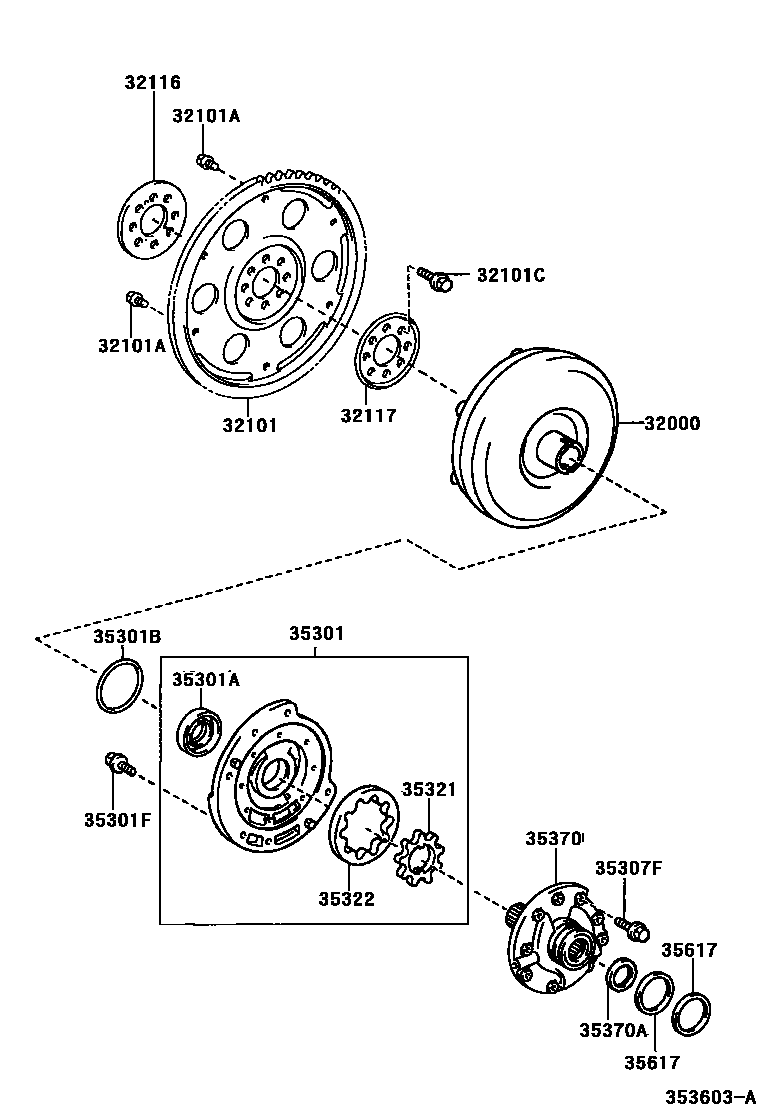

Toyota COROLLA EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-12340 · 32000-12380 · 32000-20320 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-02030 · 32101-12090 · 32101-12091 · 32101-20120 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08107 · 90109-08113 · 90109-09001 · 90119-08269 · 90119-08498 · 90119-09025 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90105-A0022 |
| 32116 | Front transmission plate spacer | 32116-12020 · 32116-20060 |
| 32117 | Rear transmission plate spacer | 32117-12030 · 32117-20070 |
| 35035 | Front oil pump and gear body sub-assembly | 35035-21020 |
| 35301 | Front oil pump body sub-assembly | 35035-20010 · 35035-52040 |
| 35301A | Oil seal (for front oil pump) | 90311-38020 · 90311-38064 · 90311-38082 · 90311-38083 |
| 35301B | O-ring (for front oil pump body) | 90301-99024 · 90301-99099 · 90301-99124 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08050 · 90105-08198 · 90105-08301 |
| 35307F | Bolt (for stator shaft) | 90119-06559 · 90148-60027 |
| 35321 | Front oil pump driving gear | 35321-12070 · 35321-12080 · 35321-12090 · 35321-12100 · 35321-12110 · 35321-21060 · 35321-21070 · 35321-21080 · 35321-21090 · 35321-21100 · 35321-52060 · 35321-52070 · 35321-52080 · 35321-52090 · 35321-52100 |
| 35322 | Front oil pump driven gear | 35322-12060 · 35322-12070 · 35322-12080 · 35322-12090 · 35322-12100 · 35322-21060 · 35322-21070 · 35322-21080 · 35322-21090 · 35322-21100 · 35322-52060 · 35322-52070 · 35322-52080 · 35322-52090 · 35322-52100 |
| 35370 | stator shaft assembly | 35370-21030 · 35370-32060 · 35370-52030 · 35370-52070 |
| 35370A | Thrust needle roller bearing (for stator shaft) | 90374-26003 |
| 35616B | Clutch drum thrust washer (for stator shaft) | 35616-32010 |
| 35617 | Clutch drum oil ring | 35613-21010 · 35613-52010 · 35617-32011 |
