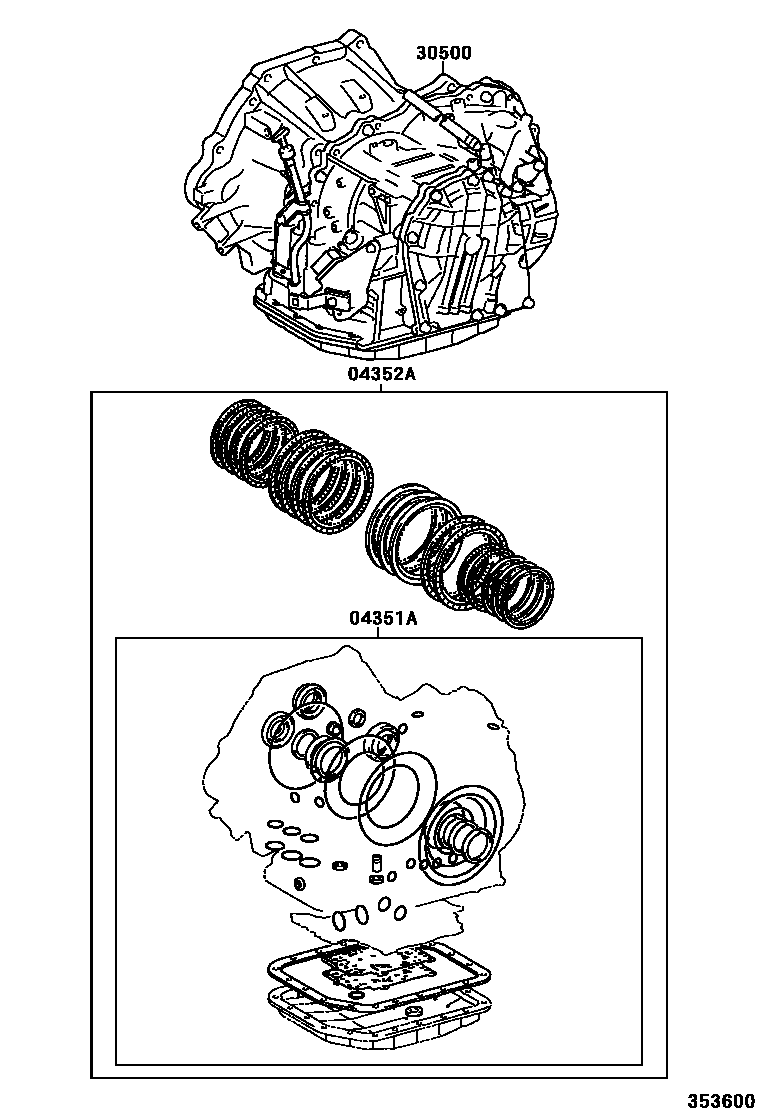

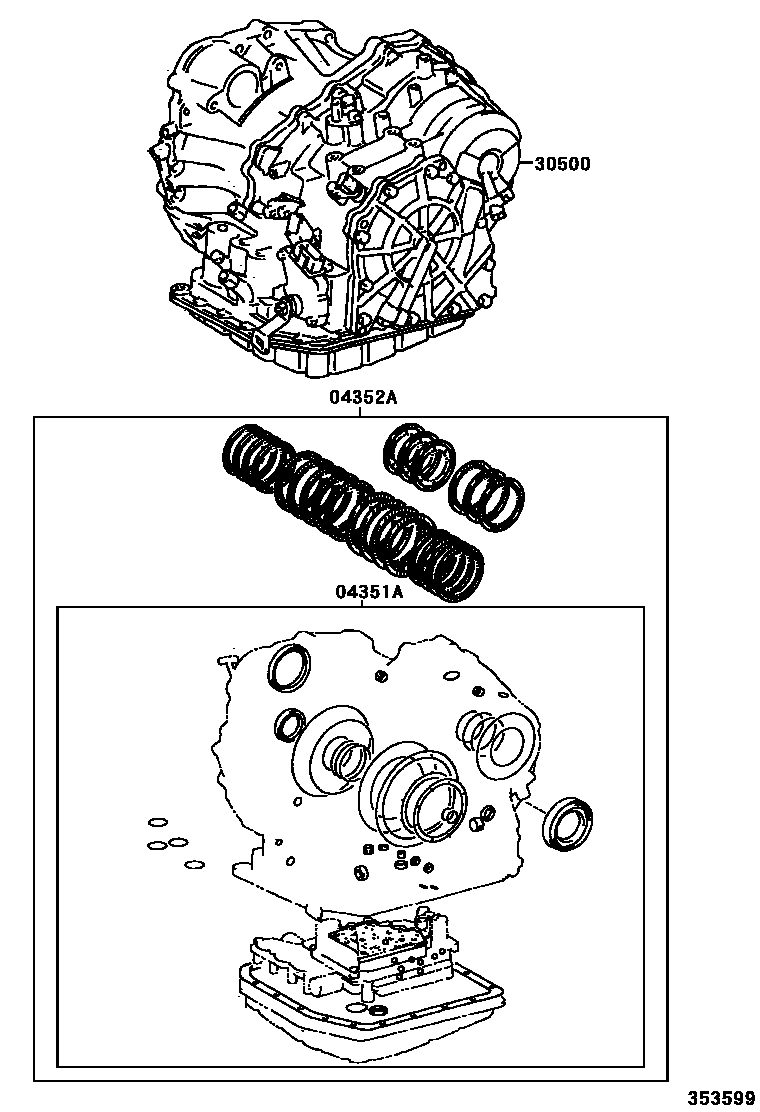

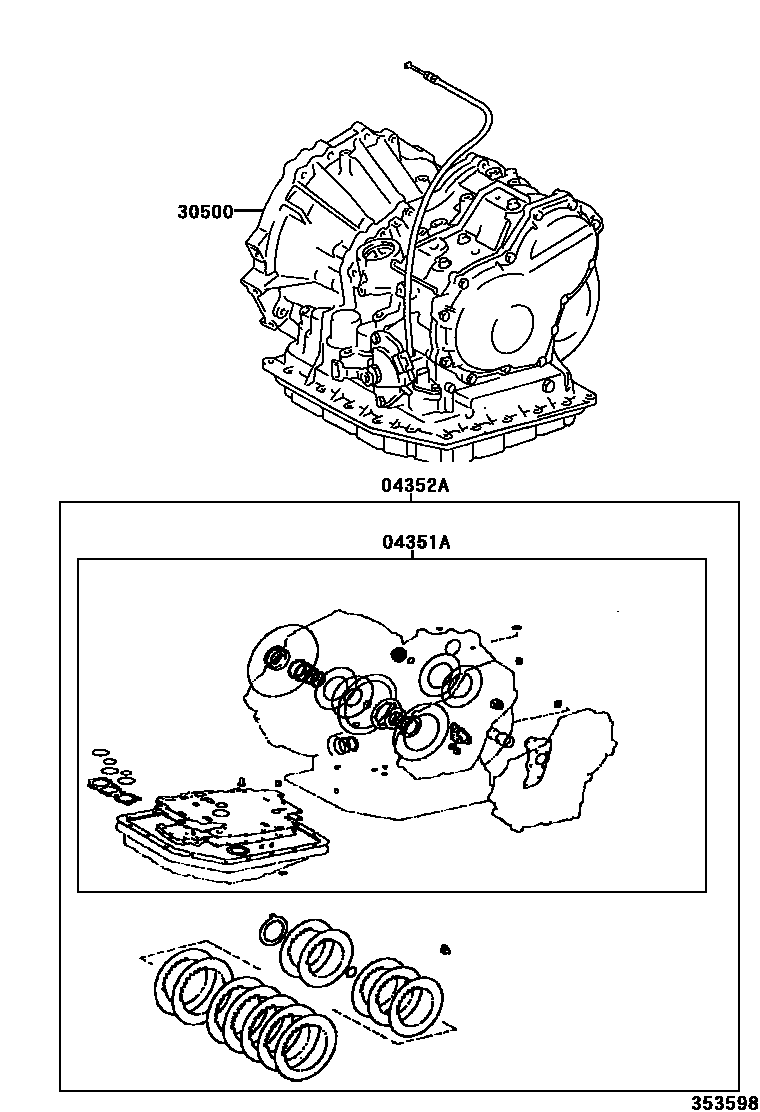

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-12261 · 04351-12420 · 04351-12490 · 04351-20100 · 04351-21190 · 04351-30830 · 04351-63010 |
| 04352A | Transaxle Overhaul Kit (ATM) | 04352-12210 · 04352-12220 · 04352-12301 · 04352-12350 · 04352-12510 · 04352-20070 · 04352-21150 |
| 30500 | Automatic transmission axle assembly | 30500-12A00 · 30500-12A20 · 30500-12A21 · 30500-12A30 · 30500-1A790 · 30500-1A800 · 30500-1A810 · 30500-1A830 |
