Toyota COROLLA 点火线圈和火花塞 — Figure 1901

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 2 images and 2 PNC and OE references.

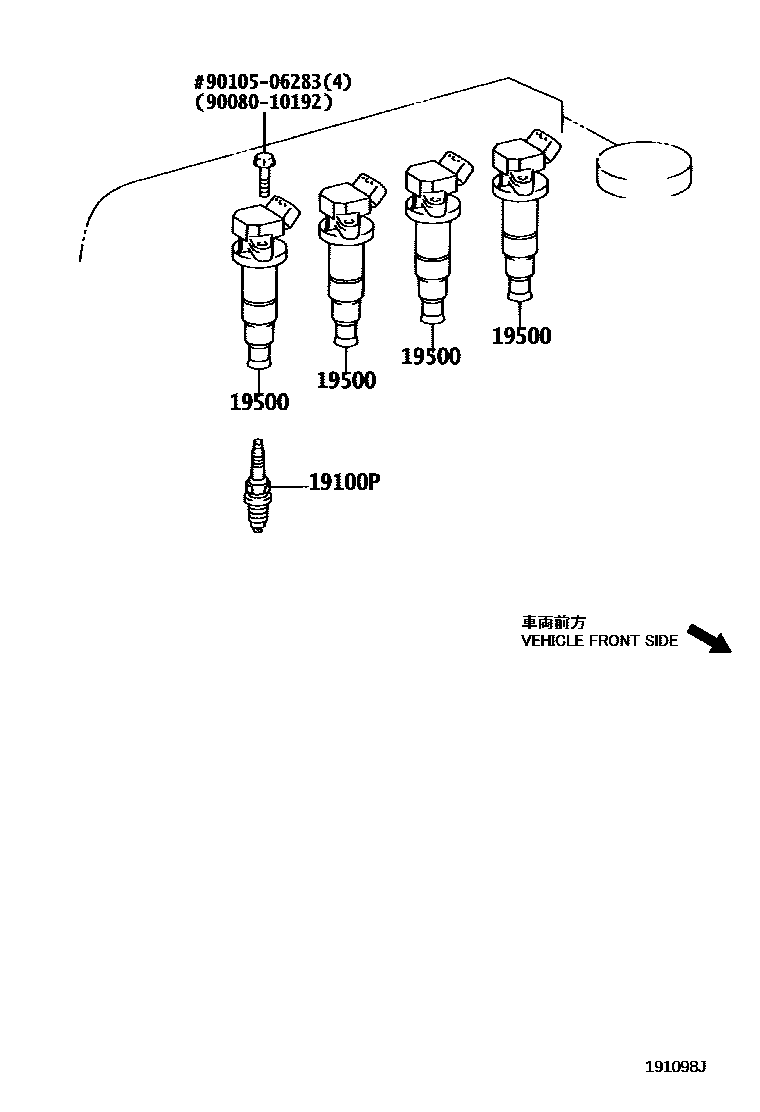

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 191098J
点火线圈和火花塞 — 191098J (200201 – 999999)

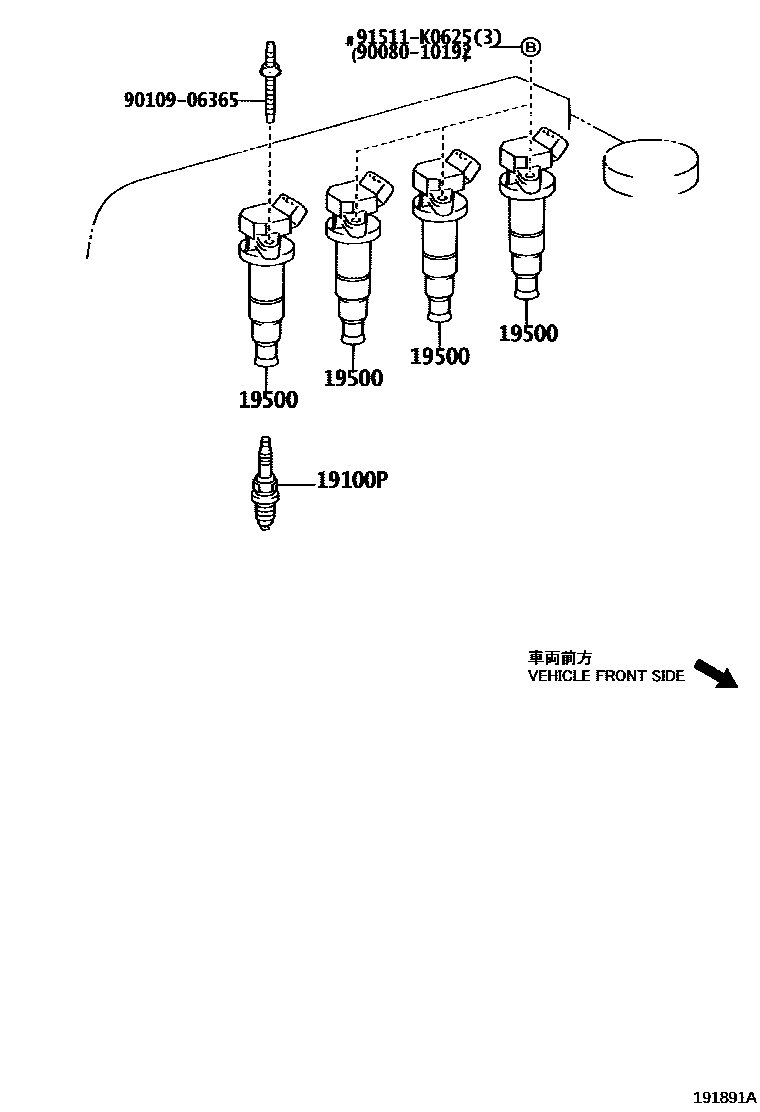

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 191891A
点火线圈和火花塞 — 191891A (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90080-91184 · 90919-01210 · 90919-01211 · 90919-01217 · 90919-01218 · 90919-01237 · 90919-01240
19500Ignition coil assembly90080-19015 · 90080-19019 · 90919-02238 · 90919-02239 · 90919-T2002
