Toyota COROLLA vacuum tube — Figure 1708

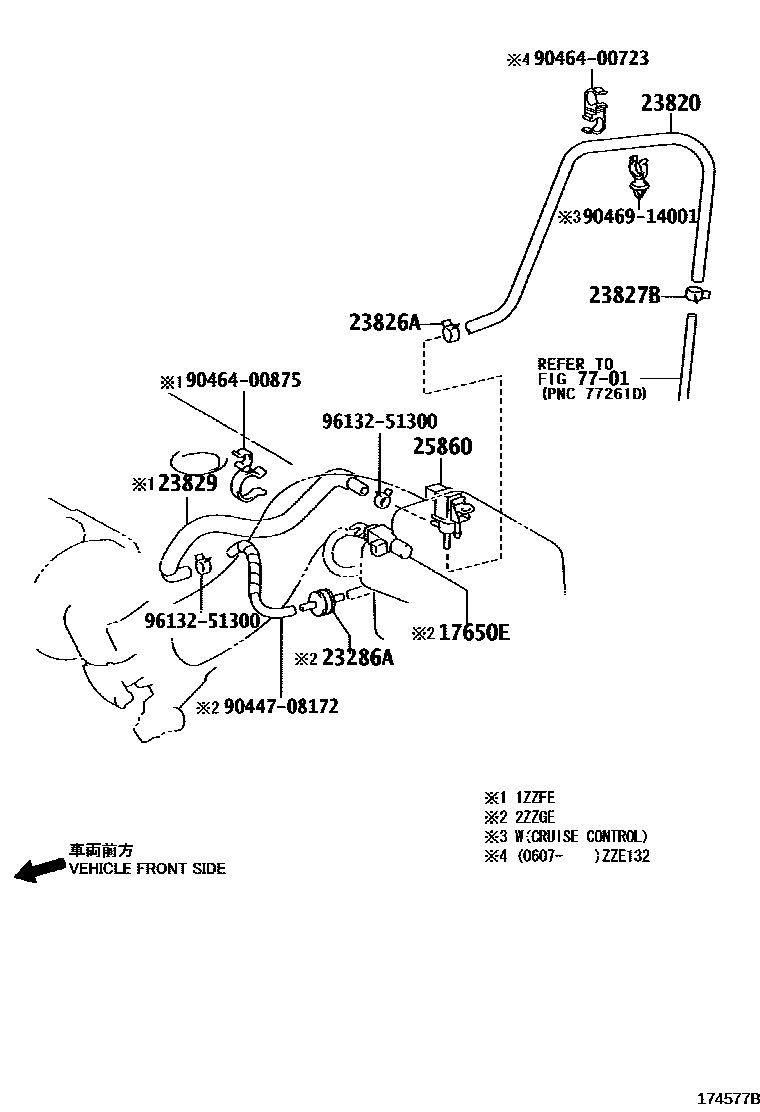

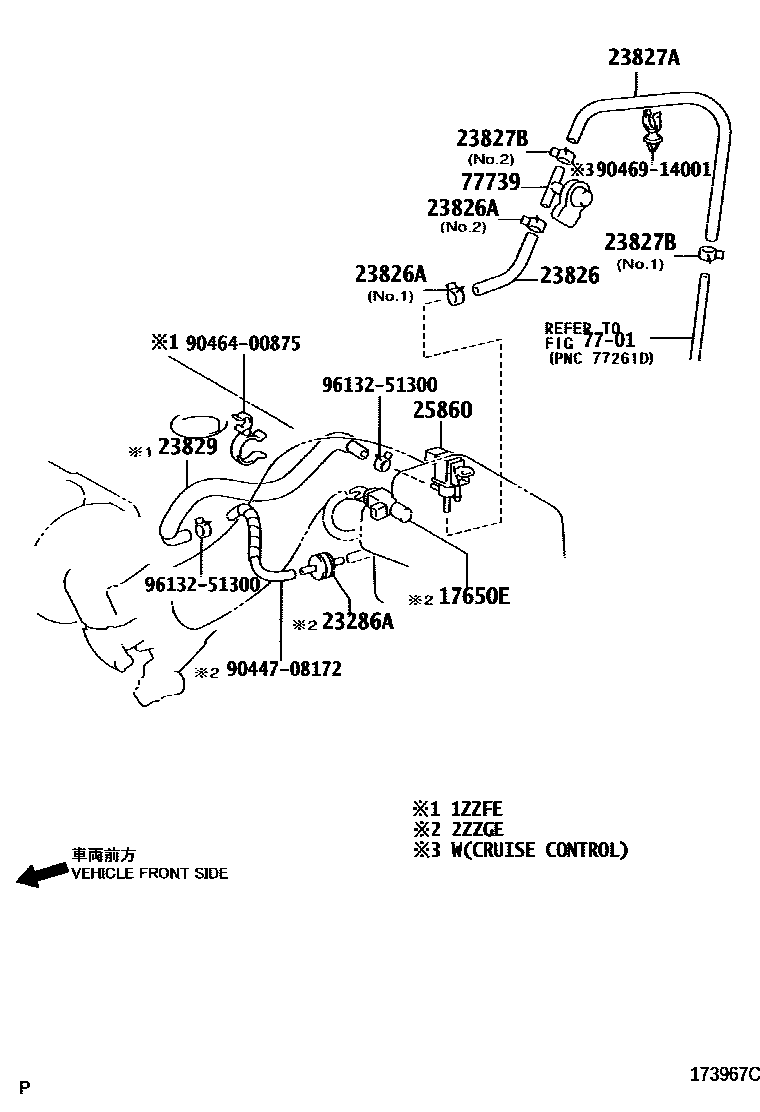

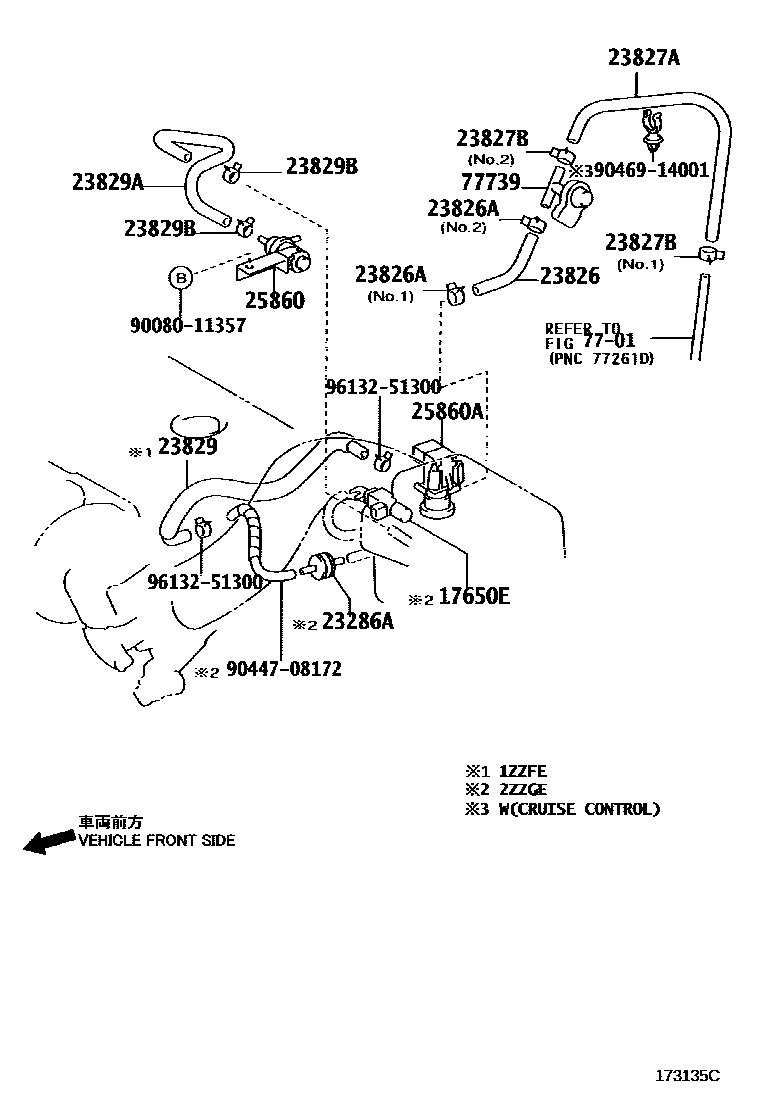

Toyota COROLLA EPC diagram 1708, vacuum tube, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650E | Vacuum switch valve | 90910-12089 |
| 23286A | No. 2 one-way valve | 90917-10065 |
| 23820 | Fuel vapor supply hose assembly | 23820-0D012 · 23820-0D130 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0D010 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0D010 · 23827-0D011 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-51300 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22080 · 23829-22110 · 23829-22150 |
| 23829A | Fuel vapor supply hose | 23829-0D030 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51300 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0D050 · 25860-22100 |
| 25860A | No. 1 vacuum switch valve | 90080-91211 |
| 77739 | Steam service valve | 77739-06010 |
