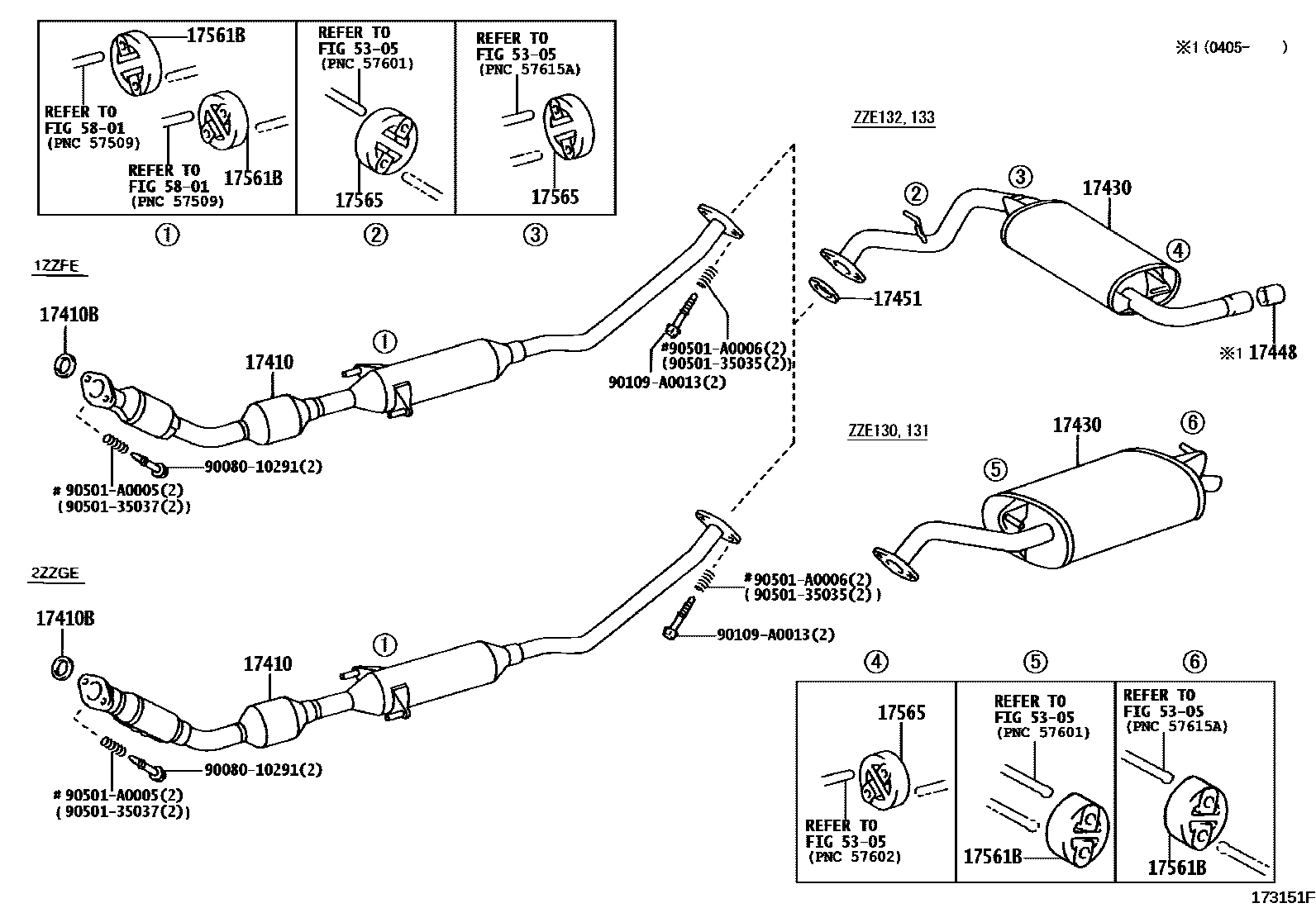

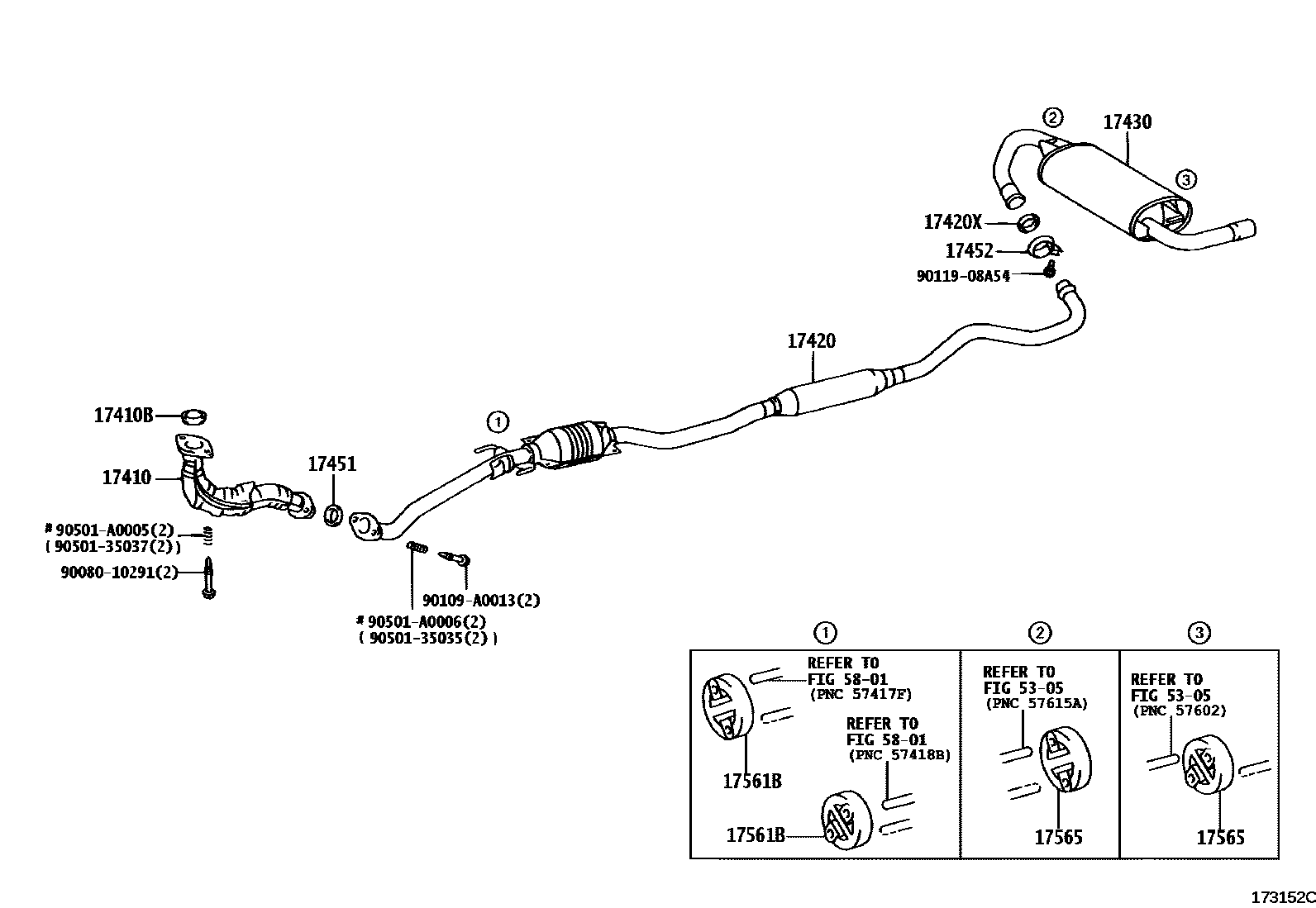

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0D150 · 17410-0D170 · 17410-0D190 · 17410-0D300 · 17410-0D340 |
| 17410B | Exhaust pipe gasket | 17451-0D020 · 17451-0D040 · 17451-0D060 |
| 17420 | Central exhaust pipe assembly | 17420-0D100 |
| 17420X | Center exhaust pipe liner | 90917-06082 |
| 17430 | Exhaust tailpipe assembly | 17430-0D180 · 17430-0D190 · 17430-0D191 · 17430-0D210 · 17430-0D250 · 17430-0D340 · 17430-0D360 · 17430-0D370 |
| 17448 | Exhaust pipe tail throat | 17448-22030 |
| 17451 | Exhaust pipe gasket | 17451-0D030 · 17451-0D050 · 17451-0D070 |
| 17452 | Exhaust pipe clamp | 90080-46324 · 90461-15013 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-0D040 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0D050 |
