Toyota COROLLA Engine Oil Pump — Figure 1501

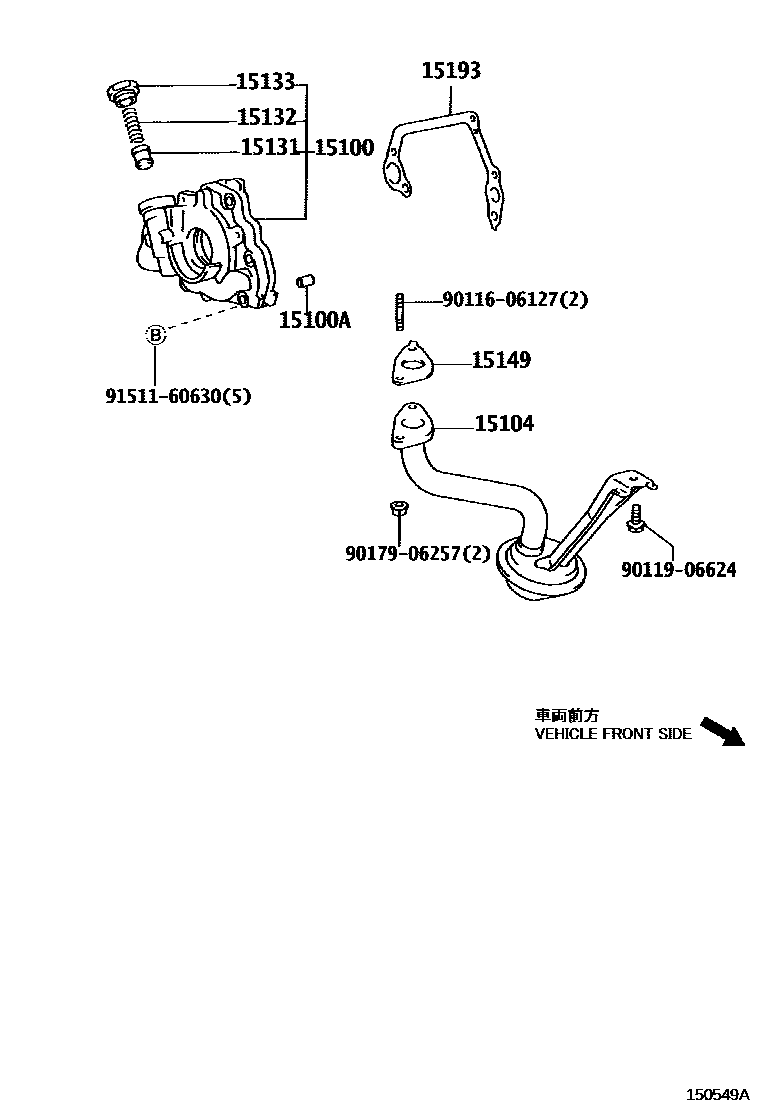

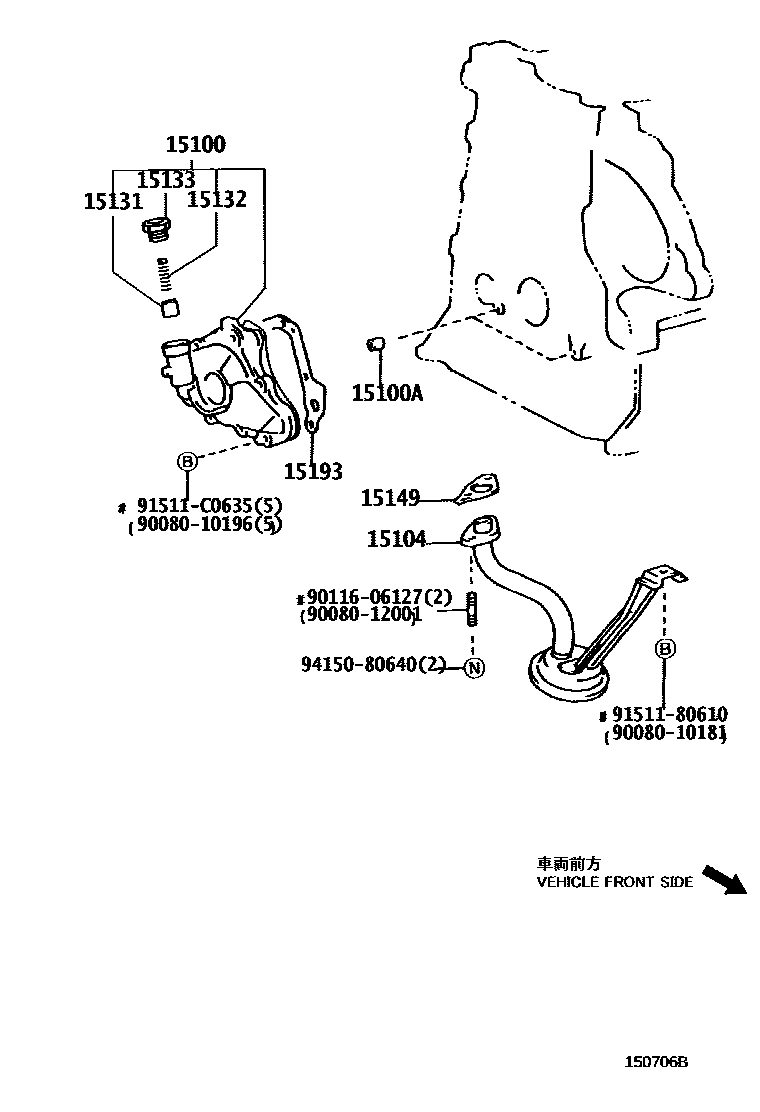

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-0D020 · 15100-0D021 · 15100-22040 · 15100-22041 · 15100-88600 |
| 15100A | Ring pin (for oil pump assembly) | 90253-09003 · 90253-A0004 |
| 15104 | Oil filter sub-assembly | 15104-0D020 · 15104-22022 · 15104-22023 · 15104-88600 · 15104-88601 |
| 15131 | Oil pump pressure reducing valve | 15131-03010 · 15131-24010 · 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-22040 · 15132-46020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-17010 · 15133-20010 |
| 15149 | Oil filter flange gasket | 15149-0D010 · 15149-22010 · 15149-88600 |
| 15193 | oil pump gasket | 15193-88600 · 15197-0D010 · 15197-22010 |
