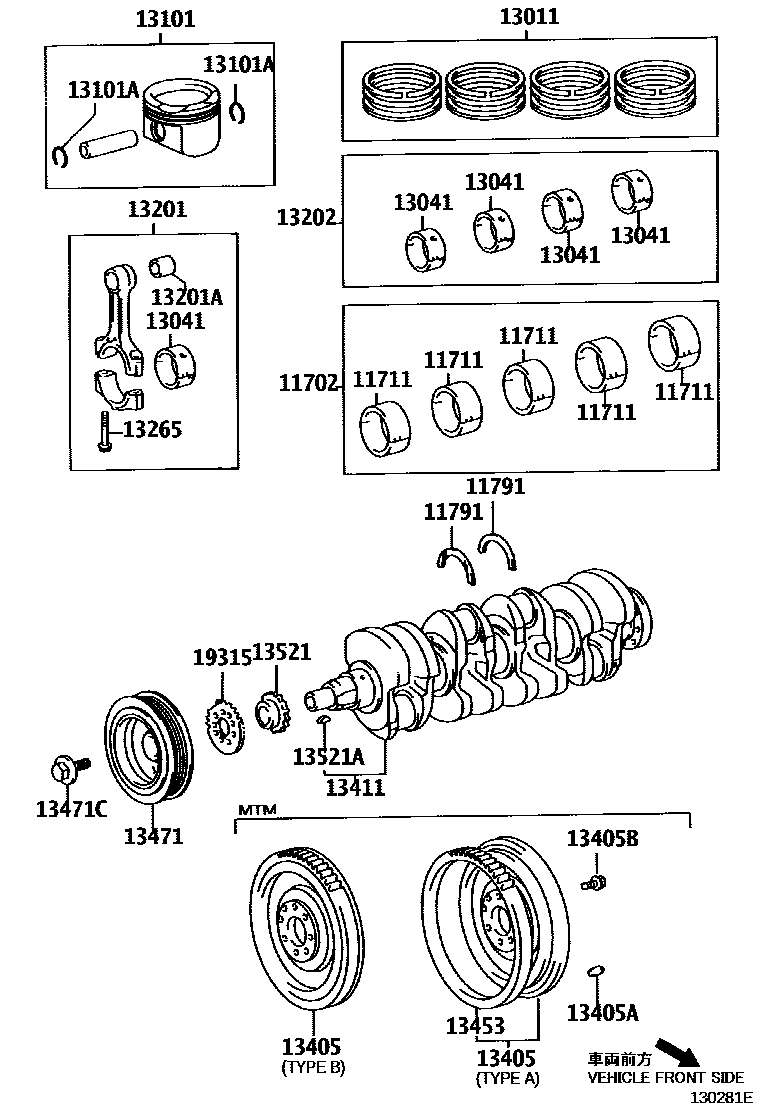

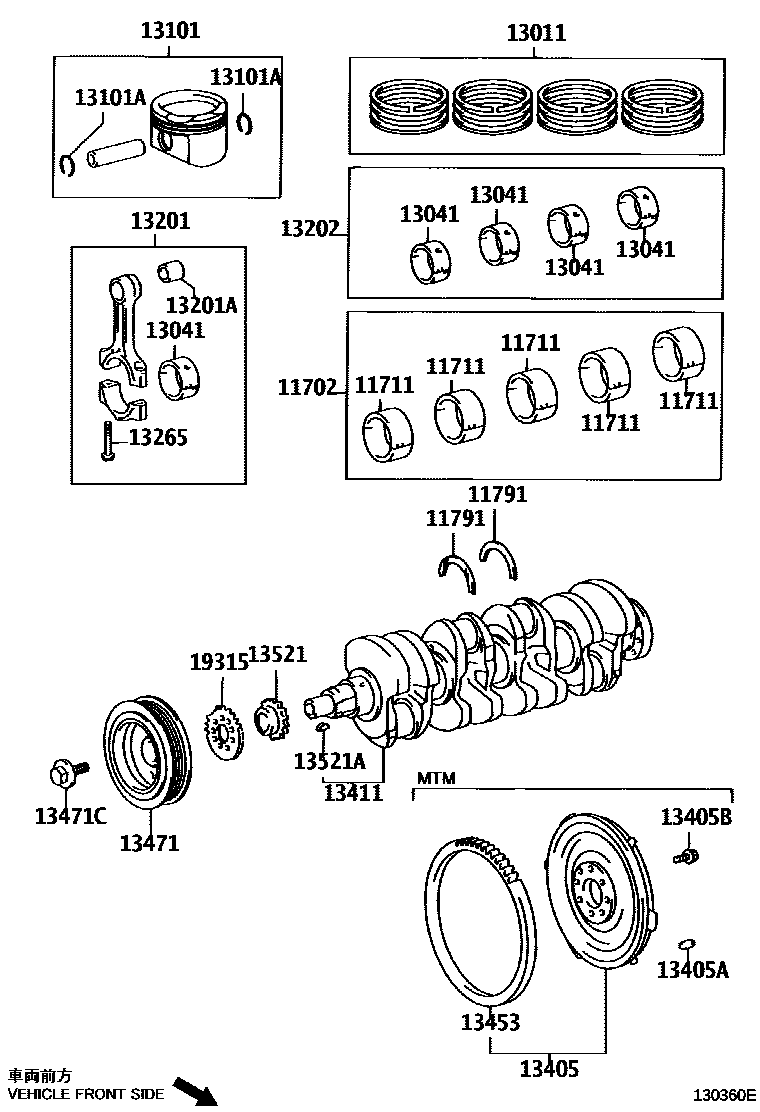

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-22011 · 11704-22021 · 11704-22030 · 11704-88600 |
| 11711 | crankshaft bearings | 11701-22010 · 11701-88600 |
| 11791 | Thrust washer on crankshaft | 11791-22020 |
| 13011 | Piston ring assembly | 13011-0D010 · 13011-0D090 · 13011-22170 · 13011-22190 · 13011-22200 · 13011-22220 · 13011-22230 · 13011-88601 |
| 13041 | Connecting rod bearing | 13041-22023 · 13041-88600 |
| 13101 | Piston sub-assembly with pin | 13101-0D090 · 13101-0D091 · 13101-22140 · 13101-22141 · 13101-22180 · 13101-88601 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-09122 · 13201-09201 · 13201-09202 · 13201-09240 · 13201-29038 · 13201-29075 · 13201-29176 |
| 13201A | Bushing (for connecting rod small end) | 90999-73140 · 90999-73142 · 90999-73151 |
| 13202 | Connecting rod bearing assembly | 13204-22023 · 13204-22024 · 13204-88600 |
| 13265 | Connecting rod bolts | 13265-22020 · 13265-22030 |
| 13405 | Flywheel sub-assembly | 13405-22020 · 13405-88600 · 13451-22020 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 · 90250-A0014 · 90250-A0016 |
| 13405B | Flywheel fixing bolt | 90910-02103 |
| 13411 | crankshaft | 13401-0D050 · 13401-22010 · 13401-22051 |
| 13453 | flywheel ring gear | 13453-10010 |
| 13471 | crankshaft pulley | 13470-0D010 · 13470-22021 · 13470-88600 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12127 · 90119-12351 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0D010 · 13521-22020 |
| 13521A | Key (for crankshaft timing gear) | 95161-30416 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-22020 |
