Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 2 images and 10 PNC and OE references.

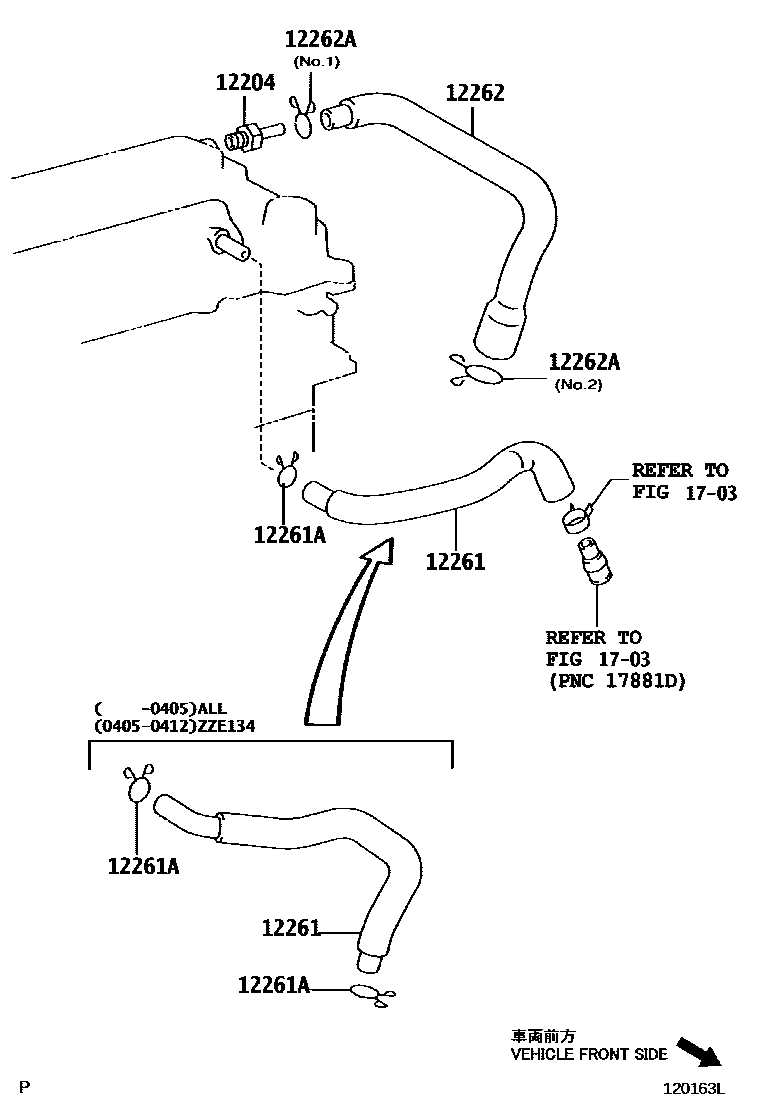

Toyota COROLLA Ventilation Hose EPC diagram — 120163L
Ventilation Hose — 120163L (200201 – 999999)

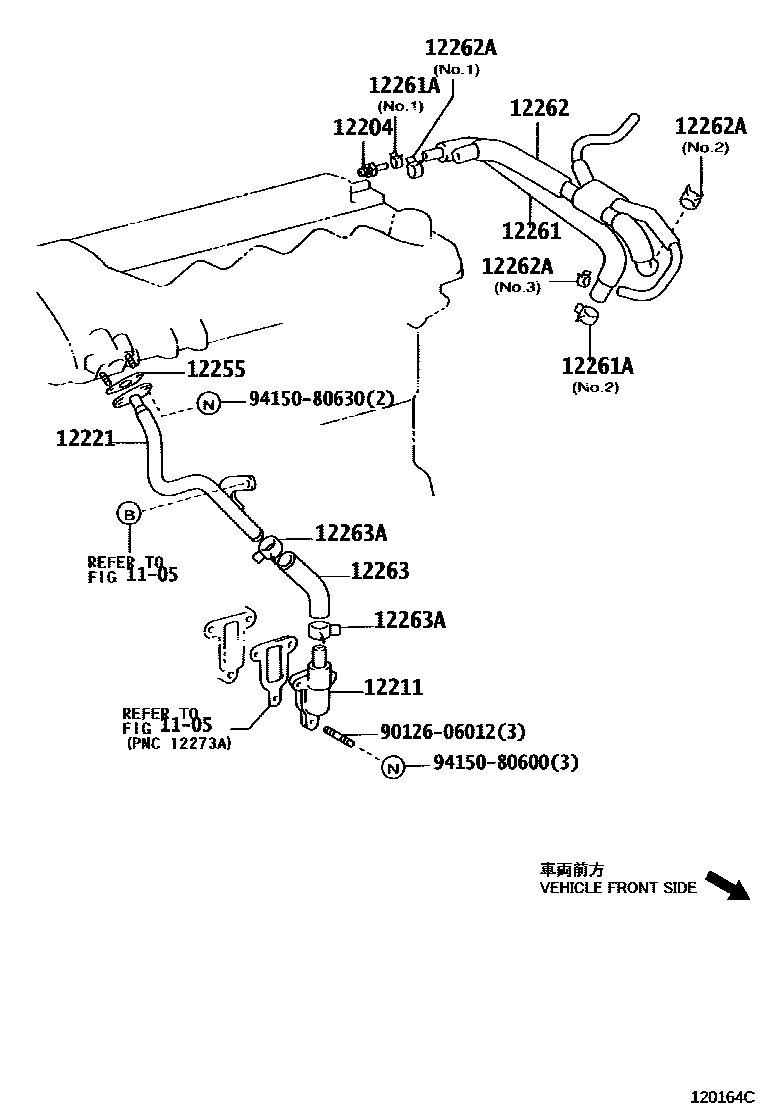

Toyota COROLLA Ventilation Hose EPC diagram — 120164C
Ventilation Hose — 120164C (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22040 · 12204-22041 · 12204-22050 · 12204-22051 · 12204-88600
12211Ventilation box No. 112211-88600
12221Ventilation duct No. 112221-88601
12255Ventilation padding12255-88600
12261Ventilation Hose12261-0D040 · 12261-0D050 · 12261-0D060 · 12261-22050 · 12261-88601
12261AClip or clip (for vent hose)90466-24001 · 90467-14037 · 90467-21004 · 90467-21152
12262Ventilation hose No. 212262-0D050 · 12262-0D070 · 12262-22040 · 12262-22090 · 12262-22100 · 12262-88602
12262AClamp (for vent hose No. 2)90466-18002 · 90467-13103 · 90467-14001 · 90467-19003 · 90467-19019 · 90467-21010 · 96132-51300
12263No. 3 ventilation hose12263-88600
12263AClip (for ventilation hose)90467-31003
