Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 7 PNC and OE references.

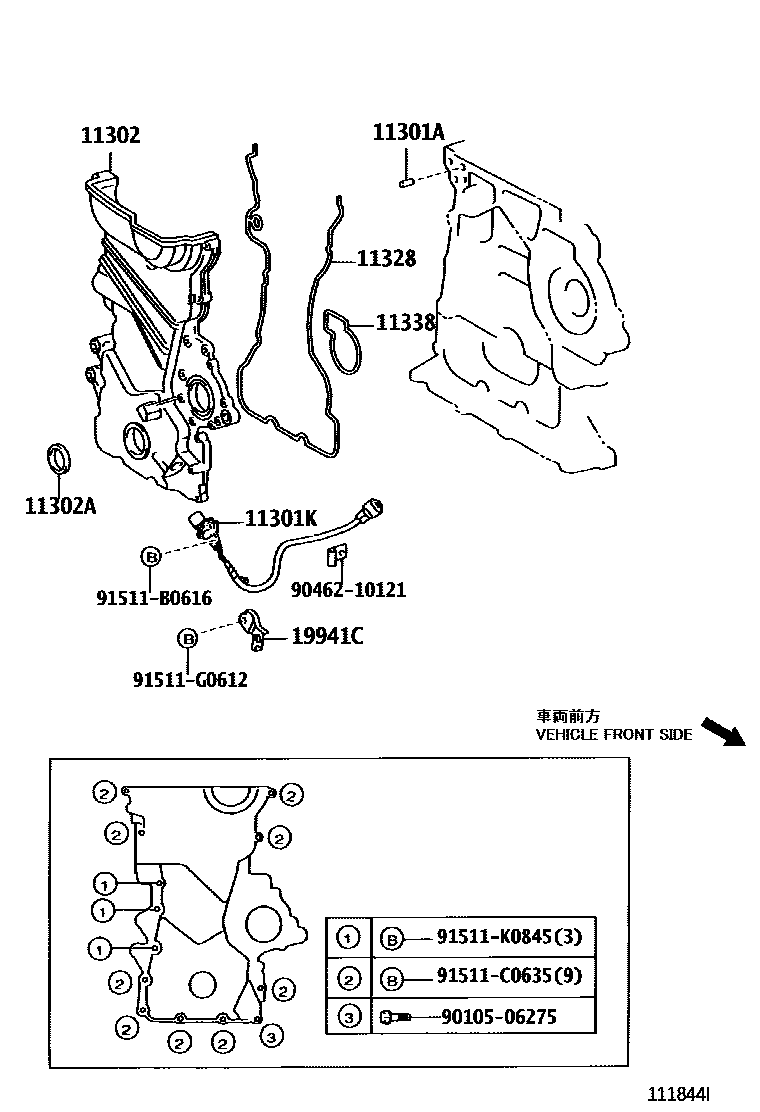

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 111844I
Timing Gear Cover & Rear End Plate — 111844I (200201 – 999999)

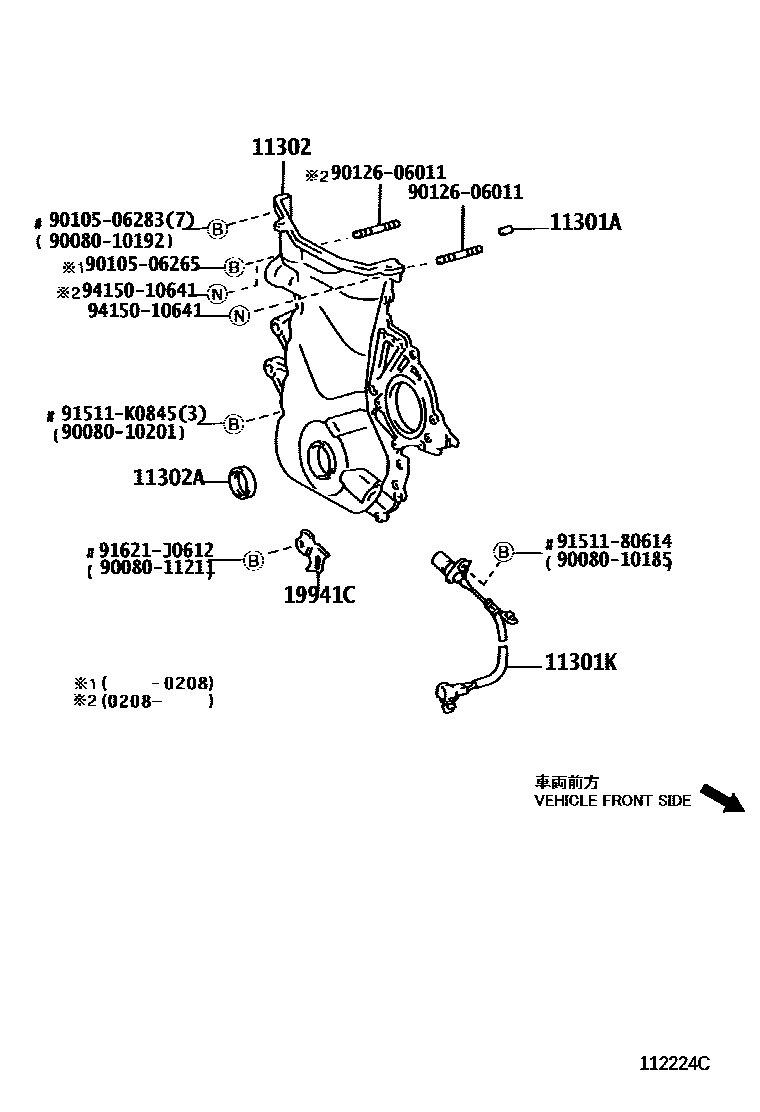

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 112224C
Timing Gear Cover & Rear End Plate — 112224C (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074 · 90250-A0015
11301Kcrankshaft position sensor90080-19013 · 90919-05030 · 90919-05048
11302TIMING CHAIN OR BELT COVER SUB-ASSY11321-0D010 · 11321-0D030 · 11321-22021 · 11321-88601
11302AOil seal (for timing chain or timing belt cover)90080-31049 · 90311-38059 · 90311-38089
11328GASKET, TIMING GEAR OR CHAIN COVER11328-88600
11338No. 2 timing chain cover gasket11329-88600
19941CWire clamp (for crankshaft position sensor)19941-22010
